Create a UI5 Integration Card that Consumes Data from the SAP Gateway Demo System

Create a UI5 integration card in SAP Work Zone to display data from the backend SAP Gateway Demo System.
You will learn
  • How to create a card for SAP Work Zone using SAP Business Application Studio (BAS)
  • What the main elements of the Integration card are and understand their roles
BorisDafovBoris DafovNovember 15, 2022
Created by
BorisDafov
December 2, 2021

Prerequisites

IMPORTANT: SAP Work Zone is not available in a trial account. If you only have a trial account and you want to learn more about the Integration cards you can follow this tutorial from steps 1 to 5.

Integration cards are UI elements which display concise pieces of information in a limited-space container. Cards are small previews of application content, and each card represents a specific topic, task, or perspective. As a card developer, you only need to configure a descriptor (manifest.json file) and as a result you get fully functional and reusable card.

  • Step 1

    If you are following this tutorial as part of a workshop, please skip this step.

    1. In SAP Business Application Studio, stop the dev space if it is not already stopped.

    2. Edit the dev space by selecting the Edit button.

      Image depicting SAP Business Application Studio with configured dev spaces – click on Edit button
    3. Ensure that the Development Tools for SAP Work Zone extension is checked and save the changes.

      Image depicting SAP BAS with Development Tools for SAP Work Zone extension selected
  • Step 2
    1. Open the dev space (If the dev space is not running, you first have to start it).

      Image depicting configured dev spaces – open dev space

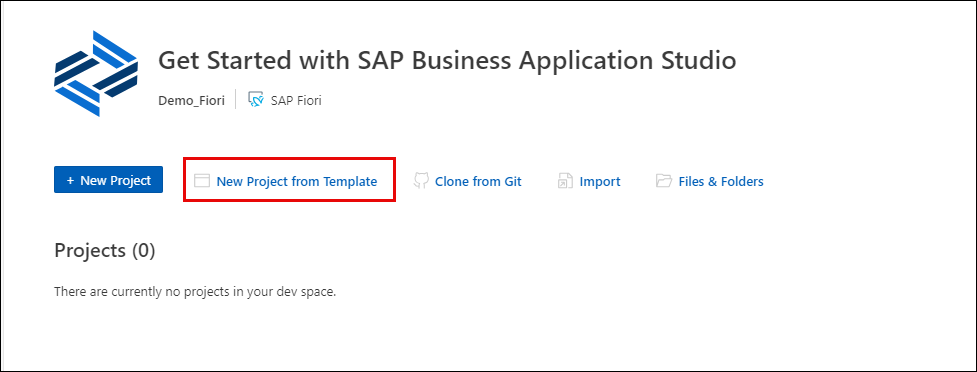

    2. Select Start from template.

      Image - start from template
    3. Choose the UI Integration Card template and select Start.

      Image depicting UI Integration Card template option
    4. Fill-in the required project details. Use the Highlight Card template, which creates an Integration card of type List and select Finish.

      If you are following this tutorial as part of a workshop, please give your card a unique name. Your card name should be #uid_products_by_vendor_card where #uid is your unique identifier.

      Description Value
      Project Name products_by_vendor_card If you’re taking part in a workshop, please add your unique identifier to the project name like this: <your unique identifier>_products_by_vendor_card.
      Name Space ns
      Select a Card Sample (dropdown menu) Highlight Card
      Title Products by Vendor Card
      Subtitle UI5 Integration Card of Type List
      Compatible with SAP Mobile Cards (dropdown menu) False
      Image depicting required Project Details
    5. To see the card, right-click on manifest.json and select UI Integration Card: Preview.

      Image depicting UI Integration Card: Preview option
    6. Currently the card displays only static data:

      Image depicting the application showing only static data
    7. Open the manifest.json file. Everything needed to render the card is described in this file.

      The manifest.json is a simple JSON file and has the following structure (check the picture below to see where each part is located):

      • sap.app namespace declaration. The type: card defines that this is a manifest for a card. Each card has a unique id.

      • sap.card section:

        • Card type (List): Defines how the card is displayed. It could be one of the available content types - Adaptive, Component, Analytical, List, etc.
        • Header: Displays general information about the card. Using its properties, you can configure the title, subtitle, status text, and icon.
        • Content: This is the main section of the displayed card.

      • data sections: Define how the card handles its data. It can provide static data (see the json object below) or define required parameters for a data request to a backend system. Can be set on different levels (card, header, filter-definition, or content). The inner level data sections take precedence. In the example below the data section is defined on content level.

      Image depicting manifest.json file structure

    In the next steps you edit the manifest.json file to configure the card.

  • Step 3

    By connecting your card to the SAP Gateway Demo System (ES5), you’re enabling the card to consume dynamic data. Card destinations are used for outbound communication to a remote resource and contain the required connection information.

    1. To set a destination, add the following configuration section in the sap.card section after the type subsection. Note, that the card destination is pointing to the same (ES5) destination that is set on the subaccount level.

      JSON
      Copy
        "configuration": {
                              "destinations": {
                                  "ES5": {
                                      "name": "ES5",
                                     "defaultUrl": "/sap/opu/odata/sap/EPM_REF_APPS_SHOP_SRV/"
                                  }
                              }
                          },

      Image depicting manifest.json file – add configuration section
    2. To configure a data request pointing to the SAP Gateway Demo System, add a new data section after the configuration. In this way the data section will be defined on a card level. Note, that our destination is referred here using the double-bracket syntax {{destinations.ES5}}.

      JSON
      Copy
      "data": {
      	"request": {
      "url": "{{destinations.ES5}}/sap/opu/odata/sap/EPM_REF_APPS_SHOP_SRV/Products",
      "withCredentials": true
                                  },
                      "path": "/d/results"
              },

      Image depicting manifest.json file – add data section
    3. To display the dynamically requested data, replace the static content section with the following one. The title, description, icon, and info properties are now dynamically requested.

      JSON
      Copy
      "content": {
                  "item": {
                      "title": "{Name}",
                      "description": "{Description}",
                      "icon": {
                          "src": "{ImageUrl}"
                      },
                      "info": {
                          "value": "{AverageRating}",
                          "state": "{= ${AverageRating} > 3.5 ? 'Success' : 'Warning' }"
                      }
                  },
                  "maxItems": 5
              }

      Image depicting manifest.json file – replace content section

    Results after Step 3:

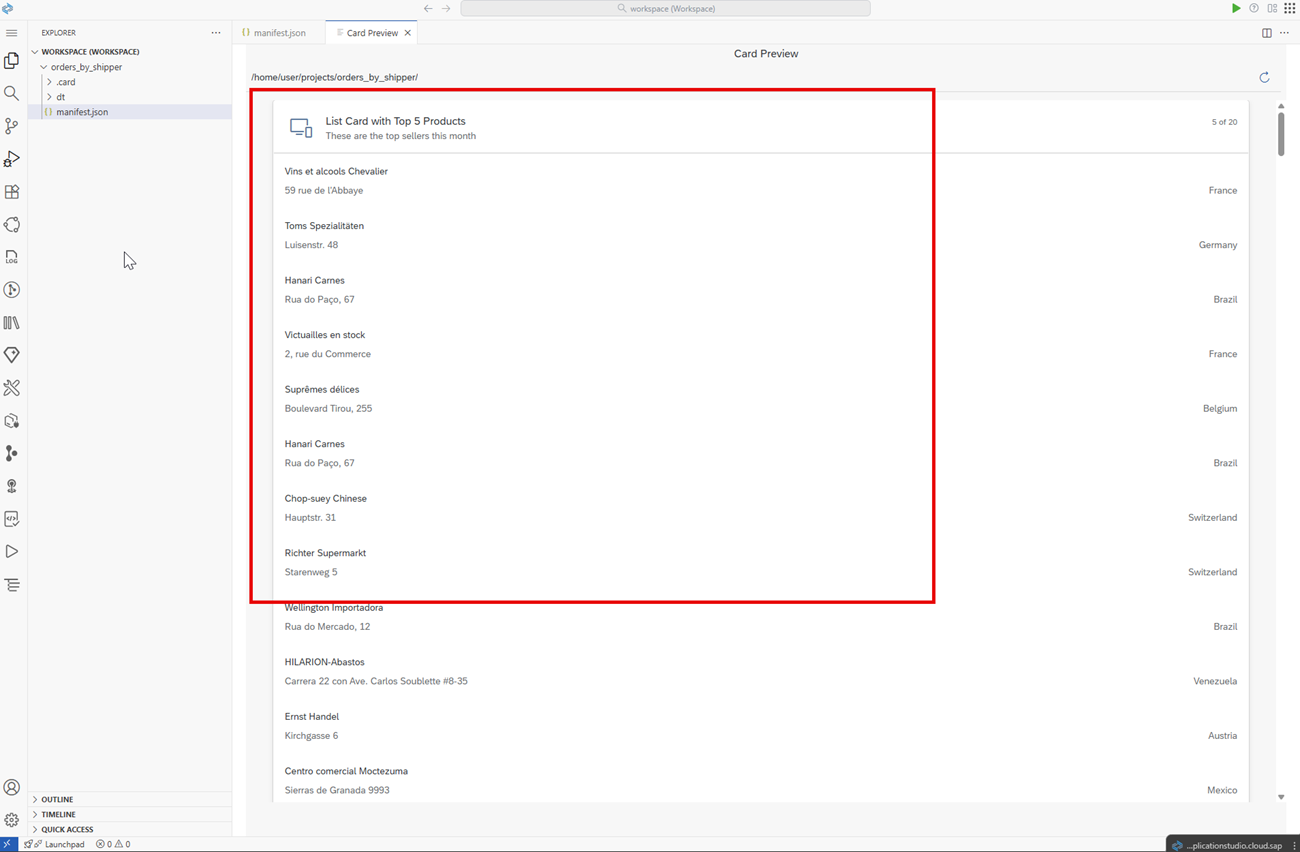

    The application displays dynamic data loaded from the SAP Gateway Demo System (ES5). Note, that the actual displayed products may differ depending on the current data in the ES5 demo system.
    To learn more, see the Destinations and Data sections in the Card Explorer.

    Image depicting the application showing dynamic data

    If you would like to deploy the card and see how it looks on SAP Work Zone, you can skip to Step 6 and deploy it. In the next steps you add card capabilities that can make your card more interactive.

  • Step 4

    Manifest parameters provide dynamic values for card attributes. They are replaced during manifest processing and can be used with the double-bracket syntax like: {{parameters.city}}. As an example, in this step you will add parameters to set the header (title and subTitle) properties and the number (maxItems) of displayed items in the content.

    If you are following this tutorial as part of a workshop and run out of time, you can skip steps 4,5,6 and create a simpler card. You can later read the steps you missed.

    1. To define parameters - add the following parameters subsection in the manifest.json in the configuration section (note the comma which divides the entries).

      JSON
      Copy
      ,
                                  "parameters": {
                                      "title" : {
                                          "value": "List Card with Top {{parameters.maxItems}} Products"
                                      },
                                      "subTitle": {
                                          "value": "These are the top sellers this month"
                                      },
                                      "maxItems": {
                                          "value": 4
                                    		  }
                 		 	             }

      Image depicting manifest.json file - add parameters
    2. To use the new maxItems parameter, replace the maxItems: 5 static value in the content section with the (maxItems) parameter as shown below:

      JSON
      Copy
      "maxItems": "{{parameters.maxItems}}"

      Image depicting manifest.json file – use maxItems parameter
    3. Let’s also use the new parameters in the header section. Use the double-bracket syntax and edit (or replace) the header, so it looks like this:

      JSON
      Copy
      "header": {
      			"title": "{{parameters.title}}",
      			"subTitle": "{{parameters.subTitle}}",
      			"icon": {
      				"src": "sap-icon://desktop-mobile"
      			},
      			"status": {
      				"text": "{{parameters.maxItems}} of 20"
      			}
      		},

      Image depicting manifest.json file - edit header

    Results after Step 4:

    In this step you have learned how to declare configurable parameters and use them to achieve desired dynamic behavior. The application now displays a list of 4 items according to the parameters property (maxItems value: 4).

    Image depicting the application showing dynamic data using parameters

    To learn more, see the Manifest Parameters section in the Card Explorer.

  • Step 5

    You can make the card even more dynamic when using filters. Filters appear as a dropdown under the card header, and users can interact to customize the data shown by the card. The value of each filter can be used inside a data request definition by using the {filters>/myFilter/value} placeholder. When the end user selects different value from the dropdown - a new data request is made with the updated value. As an example, in this step you will add a filter that enables users to filter products by a selected supplier.

    1. Add a filters subsection in the configuration section. It defines a dropdown list with suppliers, which are received by a data request.

      JSON
      Copy
      ,
                               "filters": {
                                   "supplier": {
                                       "value": "{{parameters.selectedSupplierID}}",
                                       "type": "string",
                                       "label": "Supplier",
                                       "description": "Filter the orders by supplier.",
                                          "item": {
                                              "path": "/d/results",
                                              "template": {
                                                  "key": "{Id}",
                                                  "title": "{Name}"
                                              }
                                          },
                                          "data": {
                                              "request": {
                                                  "url": "{{destinations.ES5}}/sap/opu/odata/sap/EPM_REF_APPS_SHOP_SRV/Suppliers",
      "withCredentials": true
                                              }
                                          }
                                      }
                                  }

      Image depicting manifest.json file - add filters section
    2. Add selectedSupplierID subsection in the parameters section. This is the supplier that is initially selected in the filter. Later the user can change it from the dropdown list. The "value": 100000056 corresponds to the supplier ID (of Pear Computing Services) in the SAP Gateway Demo System (ES5).

      JSON
      Copy
      ,
                                      "selectedSupplierID": {
                                          "value": 100000056,
                                          "type": "integer",
                                          "label": "The default selected supplier"
                                      }

      Image depicting manifest.json file – set the initially selected supplier
    3. Add parameters in the main data section > request subsection, after the url property as shown below. The $filter parameter will be used in a data request for the supplier with ID that is equal to the one selected by the user in the filter’s dropdown list.

      JSON
      Copy
      "parameters": {
                                          "$filter": "Supplier/Id eq '{filters>/supplier/value}'"
                                      },

      Image depicting manifest.json file - add filter parameter in the main data section
    4. Finally replace the title in the header adding the {filters>/supplier/selectedItem/title} parameter, which will show the selected vendor:

      JSON
      Copy
      "title": "Products provided by {filters>/supplier/selectedItem/title} vendor ",

      Image depicting manifest.json file – use parameters in the header’s title

    Results after Step 5:

    The manifest.json file is configured with destinations, parameters, and a filter.
    The application displays the products from the selected vendor:

    Image depicting the application showing dynamic data, parameters, and a filter

    To learn more, see the Filters section in the Card Explorer.

  • Step 6
    1. Select the dt/configuration.js file (in the Explorer view on the left).

      Image depicting the configuration.js file in the file menu
    2. Replace the content with the code below:

    JSON
    Copy
    sap.ui.define(["sap/ui/integration/Designtime"], function (
        Designtime
    ) {
        "use strict";
        return function () {
            return new Designtime({
            "form": {
              "items": {
                "maxItems": {
                  "manifestpath": "/sap.card/configuration/parameters/maxItems/value",
                  "type": "integer",
                  "label": "Maximum Items",
                  "translatable": false,
                  "description": "Defines how many items will be displayed at most."
                }
              }
            },
            "preview": {
              "modes": "LiveAbstract"
            }
          });
        };
    });


    The dt/configuration.js now looks like:

    Image depicting the configuration.js file content
  • Step 7
    1. Right-click on the manifest.json file (in the Explorer view on the left) and select the UI Integration Card:Deploy to SAP Work Zone option from the dropdown menu.

      Image depicting UI Integration Card:Deploy to SAP Work Zone option
    2. Select the target SAP Work Zone destination.

      Image depicting Select the target Work Zone destination option
    3. In the right-bottom corner, confirm to Continue and wait to see the successful message.

      Image depicting the Continue button to proceed with card deployment

    Now the basic UI5 card deployment is done!

    To learn more about the Integration cards and their functionalities, see the Card Explorer page.


    In which parts (sections) of the card you can define a Data section? Only one option is correct.
