Write an ABAP Unit Test for the RAP Business Object

Create the test class

1. Right-click on your package


   ZRAP100_EX### and choose New > ABAP Class from the context menu.

2. Maintain the required information (### is your group ID) and click Next >.

   • Name: ZRAP100_TC_TRAVEL_EML_###
   • Description: BO Test with EML

3. Assign a transport request and choose Finish to create the new ABAP class.



4. Specify the new global ABAP class as an ABAP Unit test class and also specify the test relation to the behavior definition (BDEF) of your Travel BO entity ZRAP100_R_TravelTP_###. For that, insert the addition FOR TESTING RISK LEVEL HARMLESS DURATION SHORT after the addition CREATE PPUBLIC (just before the .) of the class definition to enable the class for ABAP Unit testing.

   ABAP

   Copy

   FOR TESTING
   RISK LEVEL HARMLESS
   DURATION SHORT


   Then add the ABAP Doc comment provided as code snippet below at the top of class editor to specify the test relation with your behavior definition ZRAP100_R_TravelTP_### (TADIR entry: R3TR BDEF). Replace the placeholder ### with your group ID.

   Info: In ABAP Unit testing, test relations allow the tests of a given object to be executed from the referenced object. In the present example, you will execute the test for your RAP BO in the separate test class. It is also possible to write ABAP Unit tests directly in the behavior implementation classes.

   ABAP

   Copy

   "! @testing BDEF:ZRAP100_R_TravelTP_###


   Your source code should look like this:



5. Save


   the changes.

Enhance the ABAP Unit test class definition with all the needed methods.
You will declare the needed special ABAP unit instance and static methods, and the test method for the code under test (CUT).

1. Insert the code snippet provided below under the PRIVATE SECTION. statement in the class definition.

   ABAP

   Copy

   CLASS-DATA:
     cds_test_environment TYPE REF TO if_cds_test_environment,
     sql_test_environment TYPE REF TO if_osql_test_environment,
     begin_date           TYPE /dmo/begin_date,
     end_date             TYPE /dmo/end_date,
     agency_mock_data     TYPE STANDARD TABLE OF /dmo/agency,
     customer_mock_data   TYPE STANDARD TABLE OF /dmo/customer,
     carrier_mock_data    TYPE STANDARD TABLE OF /dmo/carrier,
     flight_mock_data     TYPE STANDARD TABLE OF /dmo/flight.

   CLASS-METHODS:
     class_setup,    " setup test double framework
     class_teardown. " stop test doubles
    METHODS:
     setup,          " reset test doubles
     teardown.       " rollback any changes

    METHODS:
     " CUT: create with action call and commit
     create_with_action FOR TESTING RAISING cx_static_check.


   An error will be displayed in the ABAP editor due to the missing method bodies in the class implementations.

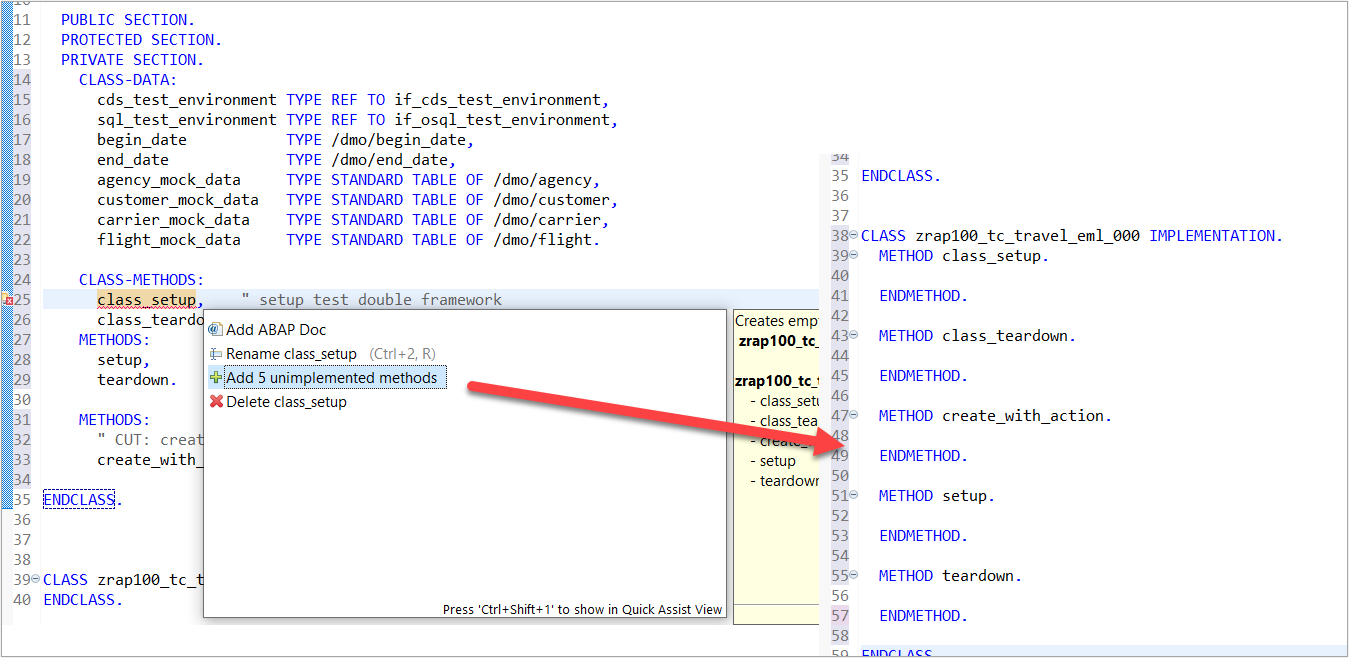

2. Add the method bodies via ADT quick fix.

   For that, set your cursor on the method name class_setup, press Ctrl+1 to display the Quick Assist view, and select the entry + Add 5 unimplemented methods from the pop-up menu to add the empty method bodies in the class implementation section.

   Your source code should now look like:



   Short explanation:

   Various static attributes for the test doubles and the mock data

   • cds_test_environment: The reference object for the CDS TDF (if_cds_test_environment) which is used to provide test doubles for the travel CDS entity of the base BO view. The CDS test doubles will be used for read operations.

   • sql_test_environment: The reference object for the ABAP SQL TDF (if_osql_test_environment) is used for stubbing the additional needed database tables. The database test doubles will be used for write operations.

     • The ABAP unit framework standard special methods of the test configuration are specified: setup, teardown, class_setup, and class_teardown.
     • The method create_with_action() is the unit test method for our CUT. Test methods are easily identifiable by the addition FOR TESTING in the method signature.

3. Save


   the changes.

Implement the special static methods class_setup and class_teardown, and the special instance method setup required by the ABAP unit framework.

1. Implement the static method class_setup which is used to setup the test doubles environment and prepare the test data.

   Replace the method body with the code snippet below and replace all occurrences of the placeholder ### with your group ID.

   Use the Pretty Printer (Shift+F1) to format your source code and save


   the changes.
   ABAP

   Copy

    METHOD class_setup.
      " create the test doubles for the underlying CDS entities
      cds_test_environment = cl_cds_test_environment=>create_for_multiple_cds(
                        i_for_entities = VALUE #(
                          ( i_for_entity = 'ZRAP100_R_TravelTP_###' ) ) ).

      " create test doubles for additional used tables.
      sql_test_environment = cl_osql_test_environment=>create(
      i_dependency_list = VALUE #( ( '/DMO/AGENCY' )
                                   ( '/DMO/CUSTOMER' )
                                   ( '/DMO/CARRIER' )
                                   ( '/DMO/FLIGHT' ) ) ).

      " prepare the test data
      begin_date = cl_abap_context_info=>get_system_date( ) + 10.
      end_date   = cl_abap_context_info=>get_system_date( ) + 30.

      agency_mock_data   = VALUE #( ( agency_id = '070041' name = 'Agency 070041' ) ).
      customer_mock_data = VALUE #( ( customer_id = '000093' last_name = 'Customer 000093' ) ).
      carrier_mock_data  = VALUE #( ( carrier_id = '123' name = 'carrier 123' ) ).
      flight_mock_data   = VALUE #( ( carrier_id = '123' connection_id = '9876' flight_date = begin_date
                                      price = '2000' currency_code = 'EUR' ) ).
    ENDMETHOD.


   Your source code should look like this:



2. Save


   the changes.

3. Implement the ABAP Unit framework standard static method class_teardown which is used to stop the test doubles at the end of the test class execution.

   Replace the method body with the code snippet provided below, format your code your source code, and save


   the changes.
   ABAP

   Copy

    METHOD class_teardown.
      " remove test doubles
      cds_test_environment->destroy(  ).
      sql_test_environment->destroy(  ).
    ENDMETHOD.


   Your source code should look like this:



4. Implement the special instance method setup which is used to reset the test doubles and insert the test data before the execution of the test method - or of each test method of a test class in general.

   Insert the code snippet below in the appropriate method implementation as shown on the screenshot.

   ABAP

   Copy

   METHOD setup.
     " clear the test doubles per test
     cds_test_environment->clear_doubles(  ).
     sql_test_environment->clear_doubles(  ).
     " insert test data into test doubles
     sql_test_environment->insert_test_data( agency_mock_data   ).
     sql_test_environment->insert_test_data( customer_mock_data ).
     sql_test_environment->insert_test_data( carrier_mock_data  ).
     sql_test_environment->insert_test_data( flight_mock_data   ).
   ENDMETHOD.


   The source code should look like this:



5. Implement the special instance method teardown which is used to rollback any changes in the involved entities after the execution the test method.

   Replace the method body with the code snippet provided below and format your code your source code.

   ABAP

   Copy

   METHOD teardown.
    " clean up any involved entity
    ROLLBACK ENTITIES.
   ENDMETHOD.

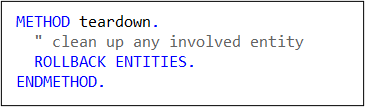

   The source code should look like follows.



6. Save


   the changes.

Implement your BO test. The present code under test (CUT) is an EML statement that will create a Travel instance and execute the action acceptTravel on it. This scenario will include CREATE, EXECUTE and COMMIT EML statements.

1. Implement the test method create_with_action.

   Insert the code snippet provided below in the method body and replace all occurrences of ### with your group ID.

   ABAP

   Copy

   METHOD create_with_action.
      " create a complete composition: Travel (root)
      MODIFY ENTITIES OF ZRAP100_R_TravelTP_###
       ENTITY Travel
       CREATE FIELDS ( AgencyID CustomerID BeginDate EndDate Description TotalPrice BookingFee CurrencyCode )
         WITH VALUE #( (  %cid = 'ROOT1'
                          AgencyID      = agency_mock_data[ 1 ]-agency_id
                          CustomerID    = customer_mock_data[ 1 ]-customer_id
                          BeginDate     = begin_date
                          EndDate       = end_date
                          Description   = 'TestTravel 1'
                          TotalPrice    = '1100'
                          BookingFee    = '20'
                          CurrencyCode  = 'EUR'
                       ) )

       " execute action `acceptTravel`
       ENTITY Travel
         EXECUTE acceptTravel
           FROM VALUE #( ( %cid_ref = 'ROOT1' ) )

      " execute action `deductDiscount`
       ENTITY Travel
         EXECUTE deductDiscount
           FROM VALUE #( ( %cid_ref = 'ROOT1'
                           %param-discount_percent = '20' ) )   "=> 20%

       " result parameters
       MAPPED   DATA(mapped)
       FAILED   DATA(failed)
       REPORTED DATA(reported).

      " expect no failures and messages
      cl_abap_unit_assert=>assert_initial( msg = 'failed'   act = failed ).
      cl_abap_unit_assert=>assert_initial( msg = 'reported' act = reported ).

      " expect a newly created record in mapped tables
      cl_abap_unit_assert=>assert_not_initial( msg = 'mapped-travel'  act = mapped-travel ).

      " persist changes into the database (using the test doubles)
      COMMIT ENTITIES RESPONSES
        FAILED   DATA(commit_failed)
        REPORTED DATA(commit_reported).

      " no failures expected
      cl_abap_unit_assert=>assert_initial( msg = 'commit_failed'   act = commit_failed ).
      cl_abap_unit_assert=>assert_initial( msg = 'commit_reported' act = commit_reported ).

      " read the data from the persisted travel entity (using the test doubles)
      SELECT * FROM ZRAP100_R_TravelTP_### INTO TABLE @DATA(lt_travel). "#EC CI_NOWHERE
      " assert the existence of the persisted travel entity
      cl_abap_unit_assert=>assert_not_initial( msg = 'travel from db' act = lt_travel ).
      " assert the generation of a travel ID (key) at creation
      cl_abap_unit_assert=>assert_not_initial( msg = 'travel-id' act = lt_travel[ 1 ]-TravelID ).
      " assert that the action has changed the overall status
      cl_abap_unit_assert=>assert_equals( msg = 'overall status' exp = 'A' act = lt_travel[ 1 ]-OverallStatus ).
      " assert the discounted booking_fee
      cl_abap_unit_assert=>assert_equals( msg = 'discounted booking_fee' exp = '16' act = lt_travel[ 1 ]-BookingFee ).

   ENDMETHOD.


   The source code should look like this:



   Short explanation:

   • The complete CUT is a complex EML Statement comprising a MODIFY ENTITIES statement CREATE and EXECUTE additions, and a COMMIT ENTITIES statement.

   • The class CL_ABAP_UNIT_ASSERT is used in test method implementations to check/assert the test assumptions. It offers various static methods for the purposes - e.g. assert_equals(), assert_initial(), assert_not_initial(), and assert_differs().

   • Block (1)
     CUT: MODIFY ENTITIES statement, including the following

     • a CREATE addition which creates a travel instance (root).
     • an EXECUTE addition which calls the action acceptTravel on the travel instance.
     • an EXECUTE addition which calls the action deductDiscount on the travel instance.
       First assertion block on the result parameters - before committing the changes
     • An assertion used to check for eventual failures and messages during the creation of the instances and the execution of the action.
     • An assertion used to check the returned mapped table for the created travel and booking instances.

   • Block (2)

     • CUT: COMMIT ENTITIES statement which persists the changes to the database (test doubles).
     • The second assertion block checks for an eventual failure of the performed commit by examining the return parameters commit_failed and commit_reported.
   • Block (3)
     • Third assertion block to check the successful persistence of the data in the test doubles.
     • For that, the committed data is first read via a SELECT statement on the base BO view ZRAP100_R_TravelTP_####; The data is read from the configure test double.
     • Various assertion checks are performed. Please read the comment lines in the code snippet for more explanation.

2. Save


   and activate

   the changes.

You are through with writing your BO test. Go ahead and execute it.

Run your implemented ABAP Unit test.

1. Execute the implemented unit test.

   For that, right-click on either the test method name create_with_action or the test class name in the Outline or Project Explorer view, and select Run as > ABAP Unit Test from the context menu or simply press Ctrl+Shift+F10.

   Your result should look like this:



2. Now, run the unit test from the related behavior definition ZRAP100_R_TravelTP_###.

   In the 8.1 - Create the ABAP Unit Test Class of this document, you’ve specified the test relation to your behavior definition ZRAP100_R_TravelTP_### using the special ABAP Doc comment "! @testing BDEF:ZRAP100_R_TravelTP_###, where ### is your group ID.

   This means that every ABAP Unit tests implemented in this test class can be executed from the behavior definition


   ZRAP100_R_TravelTP_####.

   Select your BO behavior definition


   ZRAP100_R_TravelTP_### in the Project Explorer, right-click on it, and select Run as > ABAP Unit Test (Ctrl+Shift+F10) from the context menu to executed all its related unit tests; Currently only one.

   All units tests related to this behavior definition are executed and displayed under Foreign Tests in the ABAP Unit view.



   That’s it for this exercise!
