Use Redis in the Kyma Runtime to Store and Retrieve Data
Details

Use Redis in the Kyma Runtime to Store and Retrieve Data

May 7, 2021
Created by
December 3, 2020
Deploy Redis and configure two serverless functions to cache and retrieve data from the Redis instance within the Kyma runtime.

You will learn

  • How to deploy a microservice using the Kyma Console
  • How to deploy functions using the Kyma Console
  • How to create Service Instances
  • How to bind Service Instances to a Serverless Functions
QR code

This sample provides a Redis deployment and two serverless functions that interact with it. The function cache-order will be set to subscribe to an order.created event provided by the Commerce mock application. Once triggered, the function will perform an API call to the Commerce mock to obtain additional details regarding the order and then cache the information into Redis. The function get-order, exposed as an API, is used to then retrieve the order details from the Redis cache.


Step 1: Clone the Git repository
  1. Go to the kyma-runtime-extension-samples repository. This repository contains a collection of Kyma sample applications which will be used during the tutorial.

  2. Download the code by choosing the green Code button, and then choosing one of the options to download the code locally.

You can instead run the following command using your CLI at your desired folder location:

git clone https://github.com/SAP-samples/kyma-runtime-extension-samples
Log on to answer question
Step 2: Bind application to namespace

In this step, you will bind the Commerce Mock application to the dev namespace. This will allow the APIs and Events of the mock application to be used within the namespace.

  1. In the Kyma home workspace, choose Integration > Applications/Systems.

  2. Choose the mp-commerce-mock application by clicking on the name value shown in the list.

  3. Choose the option Create Binding.

  4. In the Namespace select list choose the option dev and then choose Create.

    Bind Mock
Log on to answer question
Step 3: Create the Events service instances

In this step, you will create service instances of the Events the Commerce Mock application exposes. This will allow the events to be consumed from resources within the namespaces such as functions or microservices.

  1. In the Kyma home workspace, choose Namespace.

  2. Choose the dev namespace.

    Open namespace
  3. Within the dev namespace, choose Service Management > Catalog.

  4. Choose the tile mp-commerce-mock to view the Service Class Plans of the application.

    Service Catalog
  5. Choose the Service Class Plan for SAP Commerce Cloud - Events.

    Service Catalog
  6. Choose Add and then Create to create a Service Instance of the SAP Commerce Cloud - Events

    Service Catalog
  7. This will then navigate you to the newly created service instance.

    Service Catalog
Log on to answer question
Step 4: Create API service instances

In this step, you will create a service instance of the Commerce Webservices the Mock application exposes. The service instance will expose the APIs to resources within the namespace such as functions and microservices.

  1. In the dev namespace, choose Service Management > Catalog.

  2. Choose the tile mp-commerce-mock to view the Service Class Plans of the application.

    Service Catalog
  3. Choose the Service Class Plan for SAP Commerce Cloud - Commerce Webservices.

    Service Catalog
  4. Choose Add and then Create to create a Service Instance of the SAP Commerce Cloud - Commerce Webservices.

    Service Catalog
  5. This will then navigate you to the newly created service instance.

    Service Catalog

Log on to answer question
Step 5: View service instances

In this step we will view the SAP Commerce Cloud - Events and the SAP Commerce Cloud - Commerce Webservices service instances created in the previous two steps.

  1. In the dev namespace, choose Service Management > Instances. This view will list the service instances existing in the namespace.Service Instances
Log on to answer question
Step 6: Deploy resources

In this step, you will deploy three resources into the Kyma runtime that were obtained in [Step 1](Clone the Git repository). These resources include:

  • cache-order: This function will subscribe to an event published by the Commerce mock application. Once triggered, it will call back to the Commerce mock application to obtain the totalPriceWithTax and then cache the information into Redis.
  • get-order: This function will be exposed as an API allowing retrieval of data stored within the Redis cache.
  • redis-deployment: This deployment defines the Redis cache configuration and the associated Kubernetes service which exposes the Redis instance to the two Serverless functions.
  1. In the dev namespace, choose Workload > Overview.

  2. Choose Deploy new workload > Upload YAML. using the Browse option choose the file redis-function/k8s/cache-order.yaml and choose Deploy.

  3. Repeat the steps to deploy the files redis-function/k8s/get-order.yaml and redis-function/k8s/redis-deployment.yaml.

    Deploy Resources
  4. After completing the deployment of the resources, the Healthy Resources panel found in Workload > Overview will report the status of the deployments and the pods they generate. The chart indicates the amount Ready vs the Total. An equal relation means everything is ready.

    Deployment Status
Log on to answer question
Step 7: Add event subscription to function

In this step, you will configure the function cache-order, deployed in the previous step, to run when the order.created event is fired from the Commerce Mock application.

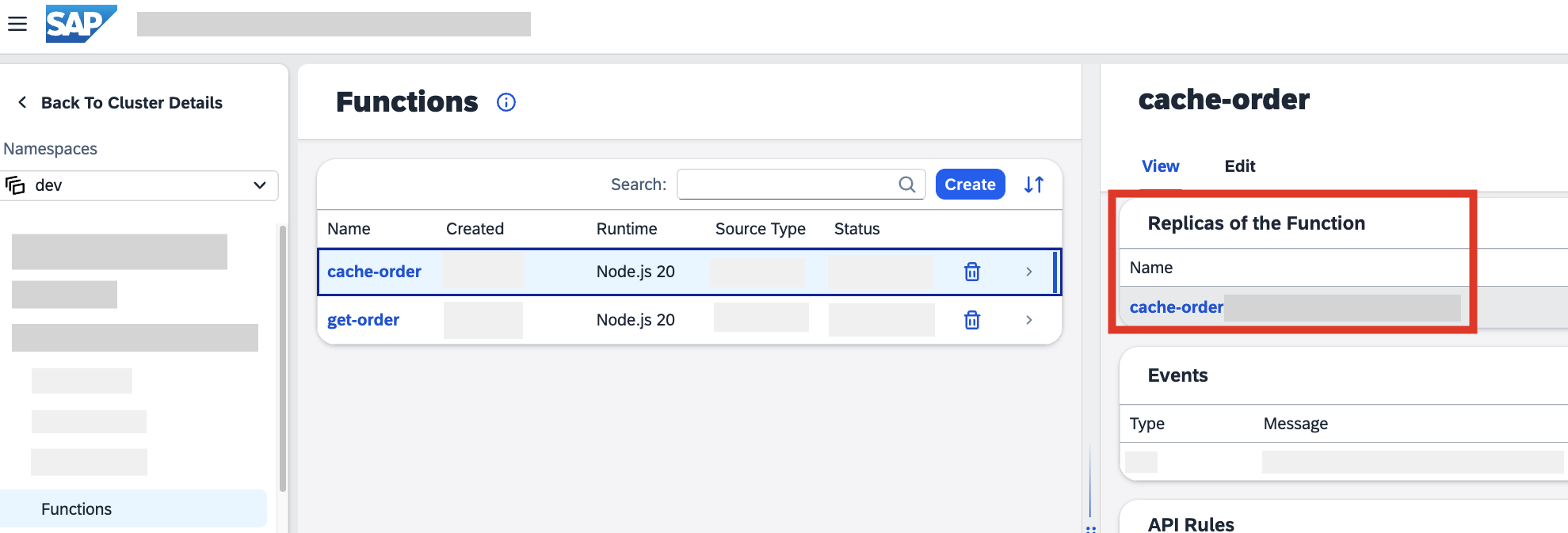

  1. In the dev namespace, choose Workload > Functions.

  2. Choose the function cache-order.

    Cache Order
  3. Choose the tab Configuration.

    Cache Order
  4. In the Configuration scroll down and choose Create Event Subscription.

  5. Choose the event order.created and then choose Add

    Add Event
Log on to answer question
Step 8: Add service instance to function

In this step, you will add a service instance to the function cache-order allowing it to easily call the related API.

  1. In the function cache-order, choose the tab Configuration.

  2. In the Configuration scroll down and choose Create Service Binding.

  3. Choose the Service instance created in the previous step from the drop down list. The name of your service instance will differ from what is shown in the screenshot.

  4. Choose Create.

    Bind Service
Log on to answer question
Step 9: Adjust function code
  1. In the function cache-order choose the Code tab.

  2. On line three, replace the value <REPLACE WITH GATEWAY_URL> with the GATEWAY_URL found in the Environment Variables below the function code. This value will defer from what is shown in the screenshot.

  3. Choose Save. Choosing Save will cause the function to be rebuilt and deployed. The Status field will indicate when the function is Running again after this process completes.

    Adjust Code
What is the status of the function after it successfully builds?
×
Step 10: Test event consumption

With the configuration steps completed, you can now test the scenario to validate that it is working as intended.

  1. Open the mock application in the browser by choosing Discovery and Network > APIRules from the menu.

  2. Choose the Host entry for the commerce-mock APIRule to open it in the browser. This URL should be similar to:
    https://commerce.*******.kyma.shoot.live.k8s-hana.ondemand.com

    APIRule Commerce
  3. Choose the Remote APIs tab.

    Test the Scenario
  4. Choose the SAP Commerce Cloud - Events option.

  5. For the Event Topics, choose order.created.v1.

  6. Modify the orderCode value as desired and choose Send Event. Make sure to remember the orderCode value, it will be used in a later step.

    Test the Scenario
Log on to answer question
Step 11: Review output in function logs

In this step, we will view the logs outputted by the function to verify that the scenario is working.

  1. In the dev namespace, choose Workload > Functions.

  2. Choose the function cache-order.

  3. Expand the Logs viewer by clicking on the arrow found at the bottom of the function viewer.

  4. Search for the value orderCode.

  5. The output should be similar to:

    Function Log
Log on to answer question
Step 12: Get output from API rule function

In this step, we use the get-order function to perform a read request of the data cached in the Redis database.

  1. Choose Discovery and Network > APIRules from the menu.

  2. Choose the Host entry for the get-order APIRule to open the application in the browser. When first opened you will received the message

    {"error":"No orderCode received!"}

    APIRule Get Order
  3. Append the value ?orderCode=12331231 to the URL where the value is the same as used when sending the event, for example

    https://get-order.*********.kyma-stage.shoot.live.k8s-hana.ondemand.com/?orderCode=12331231

  4. This should output the value saved when the event was submitted.

    {"orderCode":"12331231","Date":"Tue Nov 17 2020 19:28:42 GMT+0000 (Coordinated Universal Time)","Value":"100"}

What process exposes the Events and APIs of a connected system to a namespace?
×

Congratulations! You have successfully completed the mission.
