Add Transactional Behavior to Your Core Data Services

Create a behavior implementation in SAP BTP, ABAP Environment.
You will learn
  • How to define a behavior implementation
mervey45Merve TemelJuly 22, 2022

Prerequisites

  • You need an SAP BTP, ABAP Environment trial user or a license.
  • Business Catalog SAP_CORE_BC_EXT_TST assigned to your business user
  • Initial development setup

In this tutorial, wherever XXX appears, use a number (e.g. 000).

For the unmanaged implementation type, the application developer must implement essential components of the REST contract manually. For the managed scenario, all required standard operations (create, update, delete) must only be specified in the behavior definition to obtain a ready-to-run business object.

  • Step 1
    1. Go to your ABAP package Z_BOOKING_XXX and open your data definition ZI_BOOKING_XXX to add following statement:
      root.

      Open Eclipse

      The root entity is of particular importance, since it defines the top node in a business object’s structure and serves as a representation of the business object.

    2. Save and activate.

      Open Eclipse
  • Step 2

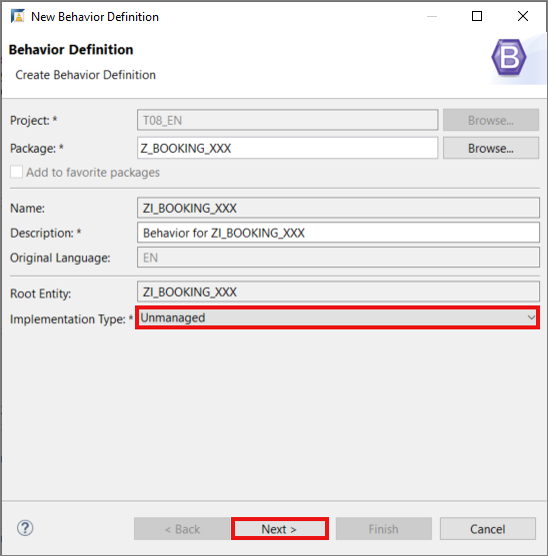

    1. Right-click on your data definition ZI_BOOKING_XXX and select New Behavior Definition.

      Create behavior definition
    2. Provide a description, make sure, that your implementation type is unmanaged and click Next >.

      Create behavior definition
    3. Click Finish to complete your transport request.

      Create behavior definition
    4. Check result. An empty behavior definition for unmanaged implementation is created.

      Create behavior definition
  • Step 3
    1. Provide an alias (booking) and specify the lock master. Define the table field LastChangedAt for the ETag handling. Replace the following coding:
      ABAP
      Copy
      unmanaged implementation in class zbp_i_booking_xxx unique;
      //strict; //Comment this line in to enable strict mode. The strict mode is prerequisite to be future proof regarding syntax and to be able to release your BO.

      define behavior for ZI_BOOKING_XXX alias booking
      //late numbering
      lock master
      authorization master ( instance )
      etag master LastChangedAt
      {
        create;
        update;
        delete;
      }

    2. Save and activate.
      Implement behavior definition
  • Step 4
    1. In your behavior definition ZI_Booking_XXX, set the cursor before z_i_booking_xxx and press CTRL + 1. Select Create behavior implementation class z_i_booking_xxx.

      Create behavior implementation
    2. Provide the name Z_I_BOOKING_XXX and a description and click Next.

      Create behavior implementation
    3. Provide a transport request if required and click Finish.

      Create behavior implementation
  • Step 5
    1. In your implementation class ZBP_I_BOOKING_XXX, replace your code in local types with following:

      ABAP
      Copy
      CLASS lhc_buffer DEFINITION.
      * 1) define the data buffer
        PUBLIC SECTION.

          TYPES: BEGIN OF ty_buffer.
              INCLUDE TYPE   ztbooking_xxx AS data.
          TYPES: flag TYPE c LENGTH 1,
                 END OF ty_buffer.

          TYPES tt_bookings TYPE SORTED TABLE OF ty_buffer WITH UNIQUE KEY booking.

          CLASS-DATA mt_buffer TYPE tt_bookings.
      ENDCLASS.

      CLASS lcl_handler DEFINITION final INHERITING FROM cl_abap_behavior_handler.
        PRIVATE SECTION.
          METHODS modify FOR BEHAVIOR IMPORTING
            roots_to_create    FOR CREATE booking
            roots_to_update    FOR UPDATE booking
            roots_to_delete    FOR DELETE booking.

          METHODS read FOR BEHAVIOR
            IMPORTING it_booking_key FOR READ booking RESULT et_booking.

          METHODS lock FOR BEHAVIOR
            IMPORTING it_booking_key FOR LOCK booking.
      ENDCLASS.

      CLASS lcl_handler implementation.
        METHOD modify.

          " %cid = control field

          LOOP AT roots_to_delete INTO DATA(ls_delete).
            IF ls_delete-booking IS INITIAL.
              ls_delete-booking = mapped-booking[ %cid = ls_delete-%cid_ref ]-booking.
            ENDIF.

            READ TABLE lhc_buffer=>mt_buffer WITH KEY booking = ls_delete-booking ASSIGNING field-symbol(<ls_buffer>).
            IF sy-subrc = 0.
              IF <ls_buffer>-flag = 'C'.
                DELETE TABLE lhc_buffer=>mt_buffer WITH TABLE KEY booking = ls_delete-booking.
              ELSE.
                <ls_buffer>-flag = 'D'.
              ENDIF.
            ELSE.
              INSERT VALUE #( flag = 'D' booking = ls_delete-booking ) INTO TABLE lhc_buffer=>mt_buffer.
            ENDIF.
          ENDLOOP.

          " handle create
          IF roots_to_create IS NOT INITIAL.

            SELECT SINGLE MAX( booking ) FROM ztbooking_xxx INTO @DATA(lv_max_booking).
          ENDIF.

          LOOP AT roots_to_create INTO DATA(ls_create).
            ADD 1 TO lv_max_booking.
            ls_create-%data-booking = lv_max_booking.
            GET TIME STAMP FIELD DATA(zv_tsl).
            ls_create-%data-lastchangedat = zv_tsl.
            INSERT VALUE #( flag = 'C' data = CORRESPONDING #( ls_create-%data ) ) INTO TABLE lhc_buffer=>mt_buffer.

            IF ls_create-%cid IS NOT INITIAL.
              INSERT VALUE #( %cid = ls_create-%cid  booking = ls_create-booking ) INTO TABLE mapped-booking.
            ENDIF.
          ENDLOOP.

          " handle update
          IF roots_to_update IS NOT INITIAL.
            LOOP AT roots_to_update INTO DATA(ls_update).
              IF ls_update-booking IS INITIAL.
                ls_update-booking = mapped-booking[ %cid = ls_update-%cid_ref ]-booking.
              ENDIF.

              READ TABLE lhc_buffer=>mt_buffer WITH KEY booking = ls_update-booking ASSIGNING <ls_buffer>.
              IF sy-subrc <> 0.

                SELECT SINGLE * FROM ztbooking_xxx WHERE booking = @ls_update-booking INTO @DATA(ls_db).
                INSERT VALUE #( flag = 'U' data = ls_db ) INTO TABLE lhc_buffer=>mt_buffer ASSIGNING <ls_buffer>.
              ENDIF.

              IF ls_update-%control-customername IS NOT INITIAL..
                <ls_buffer>-customername = ls_update-customername.
              ENDIF.
              IF ls_update-%control-cost  IS NOT INITIAL..
                <ls_buffer>-cost = ls_update-cost.
              ENDIF.
              IF ls_update-%control-dateoftravel   IS NOT INITIAL..
                <ls_buffer>-dateoftravel  = ls_update-dateoftravel .
              ENDIF.
              IF ls_update-%control-currencycode  IS NOT INITIAL..
                <ls_buffer>-currencycode = ls_update-currencycode.
              ENDIF.
              GET TIME STAMP FIELD DATA(zv_tsl2).
              <ls_buffer>-lastchangedat = zv_tsl2.
            ENDLOOP.
          ENDIF.
        ENDMETHOD.

        METHOD read.
          LOOP AT it_booking_key INTO DATA(ls_booking_key).
            " check if it is in buffer (and not deleted).
            READ TABLE lhc_buffer=>mt_buffer WITH KEY booking = ls_booking_key-booking INTO DATA(ls_booking).
            IF sy-subrc = 0 AND ls_booking-flag <> 'U'.
              INSERT CORRESPONDING #( ls_booking-data ) INTO TABLE et_booking.
            ELSE.
              SELECT SINGLE * FROM ztbooking_xxx WHERE booking = @ls_booking_key-booking INTO @DATA(ls_db).
              IF sy-subrc = 0.
                INSERT CORRESPONDING #( ls_db ) INTO TABLE et_booking.
              ELSE.
                INSERT VALUE #( booking = ls_booking_key-booking ) INTO TABLE failed-booking.
              ENDIF.
            ENDIF.
          ENDLOOP.
        ENDMETHOD.

        METHOD lock.
         "provide the appropriate lock handling if required
        ENDMETHOD.

        METHOD get_instance_authorizations.
        ENDMETHOD.

      ENDCLASS.


      CLASS lcl_saver DEFINITION INHERITING FROM cl_abap_behavior_saver.
        PROTECTED SECTION.
          METHODS finalize          REDEFINITION.
          METHODS check_before_save REDEFINITION.
          METHODS save              REDEFINITION.
      ENDCLASS.

      CLASS lcl_saver IMPLEMENTATION.

        METHOD save.
          DATA lt_data TYPE STANDARD TABLE OF ztbooking_xxx.

          lt_data = VALUE #(  FOR row IN lhc_buffer=>mt_buffer WHERE  ( flag = 'C' ) (  row-data ) ).
          IF lt_data IS NOT INITIAL.
            INSERT ztbooking_xxx FROM TABLE @lt_data.
          ENDIF.
          lt_data = VALUE #(  FOR row IN lhc_buffer=>mt_buffer WHERE  ( flag = 'U' ) (  row-data ) ).
          IF lt_data IS NOT INITIAL.
            UPDATE ztbooking_xxx FROM TABLE @lt_data.
          ENDIF.
          lt_data = VALUE #(  FOR row IN lhc_buffer=>mt_buffer WHERE  ( flag = 'D' ) (  row-data ) ).
          IF lt_data IS NOT INITIAL.
            DELETE ztbooking_xxx FROM TABLE @lt_data.
          ENDIF.
        ENDMETHOD.

        METHOD finalize.
        ENDMETHOD.

        METHOD check_before_save.
        ENDMETHOD.
      ENDCLASS.

    2. Save and activate.

      Open SAP Fiori elements view
    3. Go back to your service binding ZI_BOOKING_XXX and open the preview for SAP Fiori elements app on the right side.

      Open SAP Fiori elements view
    4. Refresh and test your application in the browser. Now you are able to delete, add and edit objects in your application.

      Check result
  • Step 6

    Where do you implement your class?
