Query Databases Using the SQL Console in SAP HANA Cloud Central

This step demonstrates how a SQL console can quickly be opened from within SAP HANA Cloud Central and how to change the SQL console’s credentials and schema.

1. In SAP HANA Cloud Central open a SQL console by selecting SQL Console in the left pane. Notice that the SQL console is not associated with a database when opened in this way.



   Additional SQL consoles can also be opened by selecting the + icon.

2. This time select Instances, select a database, and choose Open SQL Console from the actions menu.



   Notice that it is now connected to the instance named HC_HDB as shown by the name of the tab and the instance label.



3. The currently connected user can be seen by executing the SQL statement below.

   SQL

   Copy

   SELECT CURRENT_USER FROM DUMMY;




4. If you wish to connect to the database using a different set of credentials, select the Connect this SQL console to a different instance icon, select the current database and uncheck Use cached credentials if possible.



   The Enter Credentials dialog will then ask for the new credentials to be used.



   You can also use the following SQL for an SAP HANA database to change and change the connected user.

   SQL

   Copy

   CONNECT USER1 PASSWORD Password1;
   SELECT CURRENT_USER FROM DUMMY;




   The SQL to view the current user for a data lake Relational Engine is shown below.

   SQL

   Copy

   SELECT CURRENT USER;

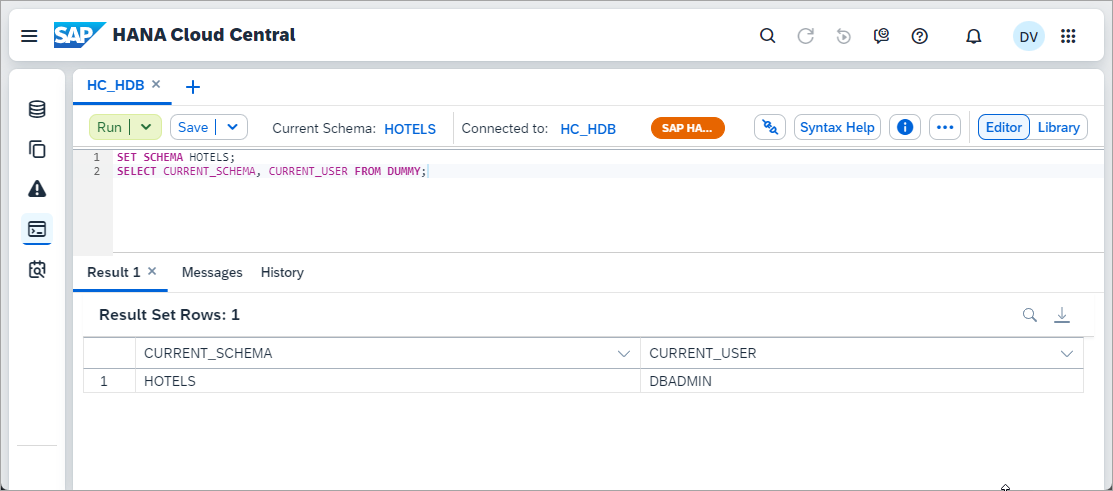

5. The current schema can be set and viewed for a SAP HANA database using the SQL statements below.

   SQL

   Copy

   SET SCHEMA HOTELS;
   SELECT CURRENT_SCHEMA, CURRENT_USER FROM DUMMY;




   For data lake Relational Engine instances, the current schema can be set and viewed as shown below.

   SQL

   Copy

   SET SCHEMA HOTELS;
   SELECT CURRENT SCHEMA, CURRENT USER;




6. Multiple light and dark themes are available.

   Click on the SAP HANA Cloud Central settings icon. Then select Settings > Appearance. The default theme is SAP Morning Horizon.



This step demonstrates how to execute a SQL query, examine the statement help, view the query results, messages, and history tabs within a SQL console.

1. Execute the following SQL statements.

   SQL

   Copy

   SELECT * FROM HOTELS.CUSTOMER;
   SELECT * FROM NON_EXISTENT_TABLE;
   SELECT * FROM NON_EXISTENT_TABLE2;
   SELECT * FROM HOTELS.HOTEL_ROOMS_VIEW;


   The following error dialog appears. Select Skip All.



   Notice that there is an error marker beside the lines that could not be executed. Pressing Alt+E will display further details and advances to the next error when pressed more than once.



   Notice that two result tabs are shown, one for each SQL statement that generated a result.

2. Results can be downloaded as shown below.



   Options are provided on how to format the data.



   Rows can also be selected and then copied to the clipboard by pressing Ctrl+C.



3. Place the cursor on line four and open the Syntax Help panel.



   Notice that for SAP HANA Cloud, SAP HANA databases, links to the related documentation and details on the objects used in the SQL statement are shown.

4. Commonly used shortcut keys are listed below. Try a few of them out.

   Action	Shortcut
   Add Comment Block	Ctrl+Shift+/
   Comment/Uncomment Line	Ctrl+/
   To Uppercase	Ctrl+Alt+U
   To Lowercase	Ctrl+Shift+U
   Go to Next Error	Alt+E
   Go to Previous Error	Alt+Shift+E
   Go to Line	Ctrl+L
   Jump to Matching Brackets	Ctrl+P
   Run All	F8
   Run Statement	F9
   Text Completion	Ctrl+Space

   The shortcut keys may vary depending on the OS and browser used.

   For the complete list see Common Keyboard Shortcuts for the SQL Console.

5. Examine the Messages tab.



   Notice that details of the statements executed are shown including metrics information such as the amount of memory consumed.

6. Examine the History tab.



   Notice that the statements can be located using a search and that a selected item can be inserted back into the SQL console or copied.

7. Examine the SQL Console Settings.



   • Execute the following SQL which is used to illustrate the result behavior settings.

     SQL

     Copy

     SELECT * FROM M_SYSTEM_INFORMATION_STATEMENTS;

     SELECT COUNT(*) FROM SYS.TABLE_COLUMNS;
     SELECT * FROM TABLE_COLUMNS;


     Notice that only the first 1024 bytes from the column STATEMENT are displayed in the results view for the Blocked Transactions row. These limits can be adjusted in the connection settings dialog.



     Notice that over 6000 rows are in TABLE_COLUMNS.



     The first 1000 are displayed.



   • Execute the following SQL which is used to illustrate the result display display settings.

     SQL

     Copy

     SELECT CURRENT_DATE, CURRENT_TIMESTAMP(7), RAND() * 10 FROM DUMMY;


     The below is the result when this setting is disabled.



     The below is the result when this setting is enabled.




8. Execute the following SQL statements.

   SQL

   Copy

   SELECT HEXTOBIN ('48656C6C6F20776F726C64') BINARY_EXAMPLE FROM DUMMY;

   SELECT '{
       "name":"John",
       "age":30,
       "cars": {
           "car1":"Ford",
           "car2":"BMW",
           "car3":"Fiat"
       }
       }' AS JSON_EXAMPLE
       FROM DUMMY;

   SELECT '<?xml version="1.0" encoding="UTF-8"?>
       <breakfast_menu>
       <food>
           <name>Strawberry Belgian Waffles</name>
           <price>$7.95</price>
           <description>
           Light Belgian waffles covered with strawberries and whipped cream
           </description>
           <calories>900</calories>
       </food>
       <food>
           <name>French Toast</name>
           <price>$4.50</price>
           <description>
           Thick slices made from our homemade sourdough bread
           </description>
           <calories>600</calories>
       </food>
       <food>
           <name>Homestyle Breakfast</name>
           <price>$6.95</price>
           <description>
           Two eggs, bacon or sausage, toast, and our ever-popular hash browns
           </description>
           <calories>950</calories>
       </food>
       </breakfast_menu>' XML_EXAMPLE FROM DUMMY


   Double tapping on a result will open a result viewer.



9. The SQL in a SQL console is not persisted across browser reloads. The SQL can be downloaded and then later imported using the icons shown below.



The statement library is a convenient location in the SQL Console to store and retrieve frequently executed SQL statements. It provides a place to store statements that are used frequently as to not type them in repeatedly.

The library is pre-populated with useful statements called ‘SYSTEM’ statements.

You may also define custom statements that are only available to you. These are ‘USER’ statements.

/*

[DESCRIPTION]

- Future guest check-ins across all hotels

*/

SELECT * FROM RESERVATION
    WHERE ARRIVAL >= CURRENT_DATE;

1. Save your custom statement, add a name and an optional description.




2. View your custom statement in the statement library



3. To run a statement, select one from the statement library and click the Run button.



It is also possible to export and import SQL statements directly to/from the file system

Files can then be shared using a version control system such as git.

User-defined statements can be edited. From the Statement library, select the desired statement, click open, and make the desired changes. Select Save to overwrite the previous statement.

The SQL console within SAP HANA Cloud Central appears similar to the one within the SAP HANA database explorer but there are some differences.

• Opening the SQL console within the SAP HANA Cloud Central can be done much quicker than opening the full SAP HANA database explorer.

• The SQL console that you access from within SAP HANA Cloud Central can only connect to databases that are within the same BTP subaccount as SAP HANA Cloud Central.

• The SQL console in SAP HANA Cloud Central has the following additional features

  • Ability to format results
  • Support for SAP Morning and Evening Horizon themes
  • Additional details such as time of execution, duration, rows returned, and success or failure in the history tab

• The SAP HANA database explorer has some additional functionality

  • Persistency of SQL tabs and their contents
  • SQL debugging
  • Code completion of schema objects
  • SQL formatting
  • Viewer for spatial and graph data
  • Analysis tab for tables and views
  • Ability to show dependent objects
  • Ability to search for database objects across multiple databases
  • Ability to run statements in the background
  • Ability to run statements against multiple instances

Congratulations! You have now used the SQL console in SAP HANA Cloud Central and have become familiar with some of the features it provides.
