Connect to Data Lake Relational Engine Using Python Drivers

Create and debug a Python application that connects to a data lake Relational Engine using the sqlanydb python driver or the pyodbc bridge.
You will learn
  • How to install Python, the sqlanydb, and pyodbc Python drivers
  • How to create, run, and debug a Python application that connects to and queries a data lake Relational Engine database

Prerequisites

  • You have completed the first 2 tutorials in this group

In the 2023 Stack Overflow’s annual developer survey, Python ranked 3rd in the Most popular technologies section. For further information on Python, see Introduction to Python 3 or The Python Tutorial.

The following steps create a simple Python app that can connect to and query an SAP HANA data lake Relational Engine.

  • Step 1

    The first step is to check if Python and pip are installed.

    1. Enter the commands below.

      Shell
      Copy
      python --version
      python3 --version


      If Python is installed, the command will return a value such as Python 3.12.1.

      In some Linux distributions, ‘python’ refers to Python 2, while ‘python3’ refers to Python 3. However, as Python 2 is now obsolete, ‘python’ may refer to Python 3 instead.

      If Python is not installed, it can be downloaded from Python downloads.

      On Microsoft Windows, check the box that says Add Python 3.x to PATH as shown below to ensure that the interpreter will be placed in your path. The Microsoft Windows command prompt or shell will need to be reopened after Python is installed to pick up the path to python.

      python-install

      On OpenSUSE Tumbleweed, yast can be used to install python313. Once it has been installed its version can be seen with the below command.

      Shell (Linux)
      Copy
      python3.13 --version

    2. Enter the commands below.

      Shell
      Copy
      pip --version
      pip3 --version
      pip install --upgrade pip


      If you encounter issues with user permissions, run command prompt as an administrator and try again.

      The standard package installer for Python is pip. The following commands will check the version of pip and attempt to upgrade it to the latest available version. Again, use the pip or pip3 command that returns a version 3.4 or greater of Python.

      On Linux, if you encounter permission issues, one way to solve the issue is to use sudo before the command.


      On Linux, if Python is installed but pip is not, it can be installed on openSUSE using Zypper as shown below.

      Shell (Linux)
      Copy
      zypper install python3-pip

  • Step 2

    The sqlanydb package is the python driver for the data lake Relational Engine and is available as part of the data lake Relational Engine install and is available at PyPI.

    1. Navigate to your Data Lake Client installation folder and enter the following command to install sqlanydb.

      Shell (Microsoft Windows)
      Copy
      cd %IQDIR17%\SDK\Python
      pip install sqlanydb-1.0.14.tar.gz

      Shell (Microsoft Windows)
      Copy
      cd %IQDIR17%\SDK\Python
      python setup.py install


      If the error ‘no module named setuptools’ appears, the following may be used as a workaround until this issue is resolved.

      Shell
      Copy
      pip install setuptools


      On Linux the rest of the steps will be executed in a virtual environment.

      First make a project folder, and create a virtual environment inside it. To do so, open the terminal app, write the following command, and hit return, here pyvenv is the name of the folder that you wish to create the virtual environment in.

      Shell(Linux)
      Copy
      mkdir $HOME/pyvenv


      Now, use the venv command to create a virtual environment inside the given folder, here python-virtualenv is the name of the virtual enviroment that is to be created.

      Shell(Linux)
      Copy
      cd $HOME/pyvenv
      python3 -m venv pyvenv/python-virtualenv


      We now activate the virtual enviroment , which we will use to complete the rest of the steps for linux based systems.

      Shell(Linux)
      Copy
      source pyvenv/python-virtualenv/bin/activate

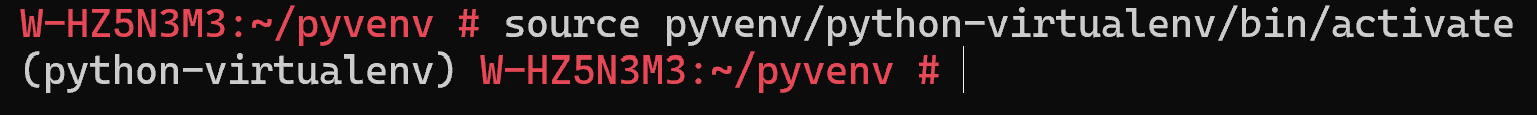

      A successful activation looks like this:-

      python-install

      Depending on which install of the data lake client was used, execute

      Shell (Linux)
      Copy
      cd $IQDIR17/sdk/python
      python3 setup.py install


      or

      Shell (Linux)
      Copy
      cd $IQDIR17/sdk/python
      pip install sqlanydb-1.0.14.tar.gz

    2. On Microsoft Windows for the non developer licensed install, create a user environment variable named SQLANY_API_DLL and set it to %IQDIR17%\Bin64\dbcapi.dll.

      add a variable named SQLANY_API_DLL
  • Step 3
    1. In a shell, create a folder named python-sqlanydb, enter the newly created directory, and open a file name pythonQuery.py in an editor.

      Shell (Microsoft Windows)
      Copy
      mkdir %HOMEPATH%\DataLakeClientsTutorial\python-sqlanydb
      cd %HOMEPATH%\DataLakeClientsTutorial\python-sqlanydb
      notepad pythonQuery.py


      Substitute pico below for your preferred text editor.

      Shell (Linux)
      Copy
      mkdir -p $HOME/DataLakeClientsTutorial/python-sqlanydb
      cd $HOME/DataLakeClientsTutorial/python-sqlanydb
      pico pythonQuery.py

    2. Copy the following code into pythonQuery.py. Replace the host value.

      Python
      Copy
      #Import your dependencies
      import sqlanydb

      #Initialize your connection
      conn = sqlanydb.connect(uid='USER1', pwd='Password1', host='XX.iq.hdl.trial-us10.hanacloud.ondemand.com:443',enc='TLS{tls_type=rsa;direct=yes}')

      #If no errors, print connected
      print('connected')

      curs = conn.cursor()
      sql_command = "select TITLE, FIRSTNAME, NAME from HOTELS.CUSTOMER;"
      curs.execute(sql_command)
      rows = curs.fetchall()
      for row in rows:
          for col in row:
              print ("%s" % col, end=" ")
          print ("  ")

      curs.close()
      conn.close()

    3. Save and close pythonQuery.py. Run the app. Make sure your data lake Relational Engine is running before executing the app.

      Shell
      Copy
      python pythonQuery.py

      python Query

    For further information on the Python Driver, visit Python and Database Access.

  • Step 4

    This is an alternate method of connecting to a data lake Relation Engine from a Python app. The Python ODBC bridge is an open source Python module available on PyPI. The performance characteristics between the two drivers may vary depending on the use case.

    1. Ensure that you have created a connection to the data lake Relational Engine using ODBC as shown in step 1 (Windows) or 2 (Linux) of the Connect to Data Lake Relational Engine Using the ODBC Driver tutorial.

    2. The repository that contains Python packages is PyPI and includes a package for the pyodbc driver.

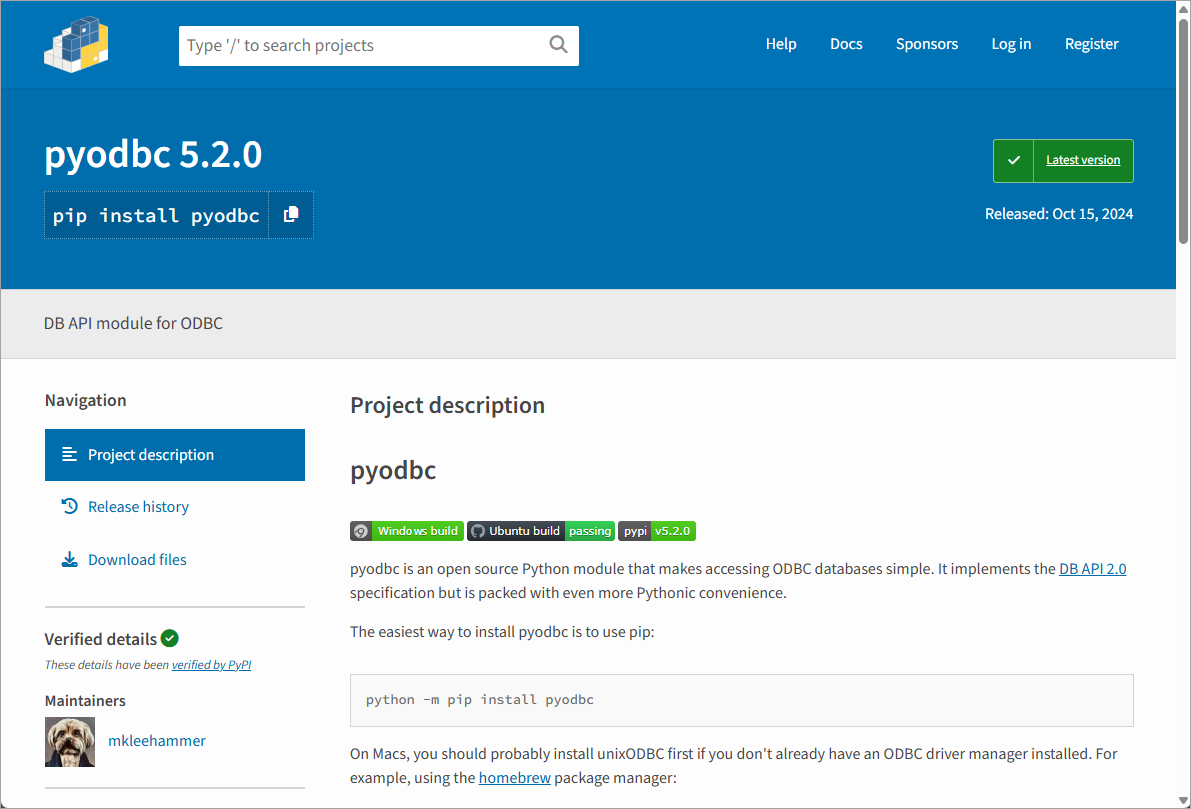

      pyodbc on PyPI
    3. Install pyodbc

      Shell
      Copy
      pip install pyodbc


      If this command fails on Microsoft Windows with an error “Microsoft Visual C++ 14.0 is required”, additional details can be found at Unable to install pyodbc using python 3.10 in windows 10 and Release python 3.10 win wheels for pyodbc.


      If this command fails on Linux, you may need to install gcc-c++, python3-devel, and unixodbc-dev.

  • Step 5
    1. In a shell, create a folder named python-pyodbc, enter the newly created directory, and open a file name pythonQuery.py in an editor.

      Shell (Microsoft Windows)
      Copy
      mkdir %HOMEPATH%\DataLakeClientsTutorial\python-pyodbc
      cd %HOMEPATH%\DataLakeClientsTutorial\python-pyodbc
      notepad pythonQuery.py


      Substitute pico below for your preferred text editor.

      Shell (Linux)
      Copy
      mkdir -p $HOME/DataLakeClientsTutorial/python-pyodbc
      cd $HOME/DataLakeClientsTutorial/python-pyodbc
      pico pythonQuery.py

    2. Copy the following code into pythonQuery.py:

      Python
      Copy
      #Import your dependencies
      import pyodbc

      #Initialize your connection
      conn = pyodbc.connect(uid='USER1',pwd='Password1',dsn='HC_DL')

      #If no errors, print connected
      print('connected')

      curs = conn.cursor()
      sql_command = "select TITLE, FIRSTNAME, NAME from HOTELS.CUSTOMER;"
      curs.execute(sql_command)
      rows = curs.fetchall()
      for row in rows:
          for col in row:
              print ("%s" % col, end= " ")
          print ("  ")

      curs.close()
      conn.close()


      Save and close pythongQuery.py.

    3. The dsn value refers to the data source name in the Microsoft Windows ODBC Administrator or the Linux .odbc.ini file.
      ODBC Administrator

      or

      unix
    4. Run the app.

      Shell
      Copy
      python pythonQuery.py


      On some Linux distributions, python refers to a 2.x version of Python. If so, replace python with python3.

      python Query

    The code in pythonQuery.py uses PEP 249 – Python Database API Specification, which defines a set of methods that provide a consistent database interface, independent of the actual database being used.

  • Step 6

    Visual Studio Code provides plugins for Python and can be used to debug an application.

    1. If you have not already done so, download Visual Studio Code.

    2. If you have not already done so, in Visual Studio Code, choose File | Add Folder to Workspace, and then add the DataLakeClientsTutorial folder.

      Workspace
    3. Open the file pythonQuery.py.

      Python File

      Visual Studio Code will recognize the py file extension and will suggest installing the Python extension. Click Install.

    4. Place a breakpoint on line the line for row in rows:.

    5. Select Run | Start Debugging | Python File Debug the currently active Python file.

      Notice that the program stops running at the breakpoint that was set.

      Observe the variable values in the leftmost pane. Step through code.

      VS Code Debugging
  • Step 7

    Congratulations! You have now created and debugged a Python application that connects to and queries a data lake Relational Engine database.
