Refine the Object Page with Annotations

Clicking on any item of the list report will show the object page for this item. The object page currently shows only some standard buttons and does not contain any further fields or actions.
In this step you will add annotations to show a title and a subtitle in the object page header.

1. Open the metadata extensions for the Travel view ZC_FE_TRAVEL_######. In the previous tutorial Refine the List Report with Additional Annotations you already defined header information in step 3. Now you will enhance the annotation @UI.headerInfo with a title and a description property.

   CDS

   Copy

   ...

   @UI: {
       headerInfo: {
           typeName: 'Travel',
           typeNamePlural: 'Travels',
           title: {
               type: #STANDARD, value: 'Description'
           },
           description: {
               value: 'TravelID'
           }
       },
   ...



   Choose Save and Activate.

2. Refresh the app preview. You will see an object page containing a title and a subtitle in the header and an empty content section.



In this step you will add some key information to the object page header using data points.

1. As in the steps before, open the metadata extensions file for the Travel view ZC_FE_TRAVEL_######.

   Add the @UI.facet annotation with two objects of type #DATAPOINT_REFERENCE.

   CDS

   Copy

   ...
   annotate view ZC_FE_TRAVEL_###### with
   {

       @UI.facet: [
         {
             id: 'TravelHeaderPrice',
             purpose: #HEADER,
             type: #DATAPOINT_REFERENCE,
             position: 10,
             targetQualifier: 'PriceData'
         },
         {
             id: 'TravelHeaderOverallStatus',
             purpose: #HEADER,
             type: #DATAPOINT_REFERENCE,
             position: 20,
             targetQualifier: 'StatusData'
          }
     ]

     @UI.lineItem: [{ position: 10}]
     TravelID;
     ...


2. Annotating properties TotalPrice and OverallStatus with @UI.datapoint using the targetQualifier from the facet definition in step 1 will assign the properties to the header facet accordingly.

   CDS

   Copy

   ...

   @UI.lineItem: [{ position: 70}]
   @UI.dataPoint: { qualifier: 'PriceData', title: 'Total Price'}
   TotalPrice;

   @UI.lineItem: [{ position: 80, criticality: 'OverallStatusCriticality' }]
   @UI.selectionField: [{ position: 30}]
   @UI.textArrangement: #TEXT_ONLY
   @UI.dataPoint: { qualifier: 'StatusData', title: 'Status', criticality: 'OverallStatusCriticality' }
   OverallStatus;

   ...



   Choose Save and Activate.

3. Refresh the app preview. The two new data points show up in the object page header. The labels are taken from property title, the color of Status from property criticality of the datapoint annotations .



In this step you will add a section to the content area of the object page. The section will contain a form with three data fields.

1. Open the metadata extensions file for the Travel view ZC_FE_TRAVEL_###### and enter the facet annotations that define the section General Information as a collection facet, using the type Collection. Add a second facet as a child of General Information with facet type #IDENTIFICATION_REFERENCE to create a form with title General. Add the code from line 8 to line 21 to your existing UI facet definition.

   CDS

   Copy

   ...
   annotate view ZC_FE_TRAVEL_###### with
   {

     @UI.facet: [
     ...

       {
         label: 'General Information',
         id: 'GeneralInfo',
         type: #COLLECTION,
         position: 10
       },
       {
         label: 'General',
         id: 'Travel',
         type: #IDENTIFICATION_REFERENCE,
         purpose: #STANDARD,
         parentId: 'GeneralInfo',
         position: 10
       }
     ]

   ...

   }


2. Add a new property Description and annotate this and the properties AgencyID and CustomerID with @UI.Identification to position these fields under General.

   CDS

   Copy

   annotate view ZC_FE_TRAVEL_###### with
   {

   ...

     @UI.lineItem: [{ position: 10}]
     TravelID;

     @UI.identification: [{ position: 10 }]
     Description;

     @UI.lineItem: [{ position: 20}]
     @UI.selectionField: [{ position: 10}]
     @UI.identification: [{ position: 30 }]
     AgencyID;

     @UI.lineItem: [{ position: 30}]
     @UI.selectionField: [{ position: 20}]
     @UI.identification: [{ position: 20 }]
     CustomerID;
   ...
   }


   Choose Save and Activate.

3. Refresh the app preview. The new form General is shown in section General Information containing the three fields.



A field group contains one or more data fields inside a UI container. In this step you define two field groups in the section General Information.

1. Open the metadata extensions file for the Travel view ZC_FE_TRAVEL_######.

   First, define a field group for the beginning and end date of a travel item and for the prices. The facet type for a field group is #FIELDGROUP_REFERENCE. Add the code from line 8 to line 25 to the end of the @UI.facet section.

   CDS

   Copy

   annotate view ZC_FE_TRAVEL_###### with
   {

     @UI.facet: [
       {

       ...
       {
         id: 'Dates',
         purpose: #STANDARD,
         type: #FIELDGROUP_REFERENCE,
         parentId: 'GeneralInfo',
         label: 'Dates',
         position: 30,
         targetQualifier: 'DatesGroup'
       },
       {
         id: 'Prices',
         purpose: #STANDARD,
         type: #FIELDGROUP_REFERENCE,
         parentId: 'GeneralInfo',
         label: 'Prices',
         position: 20,
         targetQualifier: 'PricesGroup'
       }
     ]
   ...

   }


2. Annotate the properties BeginDate and EndDatewith @UI.fieldGroup. Make sure you use the same field group qualifier DatesGroup but different positions in each annotation. Apply the same for the properties BookingFee and TotalPrice using field group annotations with qualifier PricesGroup.

   CDS

   Copy

    ...

    @UI.lineItem: [{ position: 40}]
    @UI.fieldGroup: [{ qualifier: 'DatesGroup', position: 10 }]
    BeginDate;

    @UI.lineItem: [{ position: 50}]
    @UI.fieldGroup: [{ qualifier: 'DatesGroup', position: 20 }]
    EndDate;

    @UI.lineItem: [{ position: 60}]
    @UI.fieldGroup: [ { qualifier: 'PricesGroup', position: 10} ]
    BookingFee;

    @UI.lineItem: [{ position: 70}]
    @UI.fieldGroup: [{ qualifier: 'PricesGroup', position: 20 }]
    TotalPrice;

    ...


   Choose Save and Activate.

3. Refresh the app preview. There are two additional field groups showing price and date information.



In this step you will add a new section that contains a table with booking information. This requires access to another entity Booking via an association and an additional metadata extensions file.

1. Open the metadata extensions file for the Travel view ZC_FE_TRAVEL_######. In the facet annotation block, add a new facet Booking with type #LINEITEM_REFERENCE. Add the code from line 7 to line 14 to the end of the @UI.facet section. Choose Save and Activate.

   CDS

   Copy

   ...
   annotate view ZC_FE_TRAVEL_###### with
   {
     ...
     @UI.facet: [
       ...
       {
         id: 'Booking',
         purpose: #STANDARD,
         type: #LINEITEM_REFERENCE,
         label: 'Bookings',
         position: 20,
         targetElement: '_Booking'
       }
     ]
   ...



   The property targetElement: _Booking references the association to the booking table that will be shown in the booking section. You can look up the definition of Booking in the projection view of Travel ZC_FE_TRAVEL_######.

2. In the project explorer open the folder Data Definitions, right-click on projection view ZC_FE_BOOKING_###### and create a new metadata extensions file from the context menu. Enter ZC_FE_BOOKING_###### as name and Metadata Extension for Booking view as description.



   Choose Next and then Finish.

3. In the metadata extensions file ZC_FE_BOOKING_###### use @UI.lineItem annotations to add some fields from the Booking view ZC_FE_BOOKING_###### Projection View for Booking to the bookings table. Add textArrangement for CustomerID and CarrierID like you did it for list report. Replace the content of ZC_FE_BOOKING_###### by the following code:

   CDS

   Copy

   @Metadata.layer: #CORE

   annotate view ZC_FE_BOOKING_######
     with
   {
       @UI.lineItem: [ { position: 10 } ]
       BookingID;

       @UI.lineItem: [ { position: 20 } ]
       BookingDate;

       @UI.lineItem: [ { position: 30 } ]
       @UI.textArrangement: #TEXT_ONLY
       CustomerID;

       @UI.lineItem: [ { position: 40 } ]
       @UI.textArrangement: #TEXT_ONLY
       CarrierID;

       @UI.lineItem: [ { position: 50 } ]
       ConnectionID;

       @UI.lineItem: [ { position: 60 } ]
       FlightDate;

       @UI.lineItem: [ { position: 70 } ]
       FlightPrice;

   }


   Choose Save and Activate.

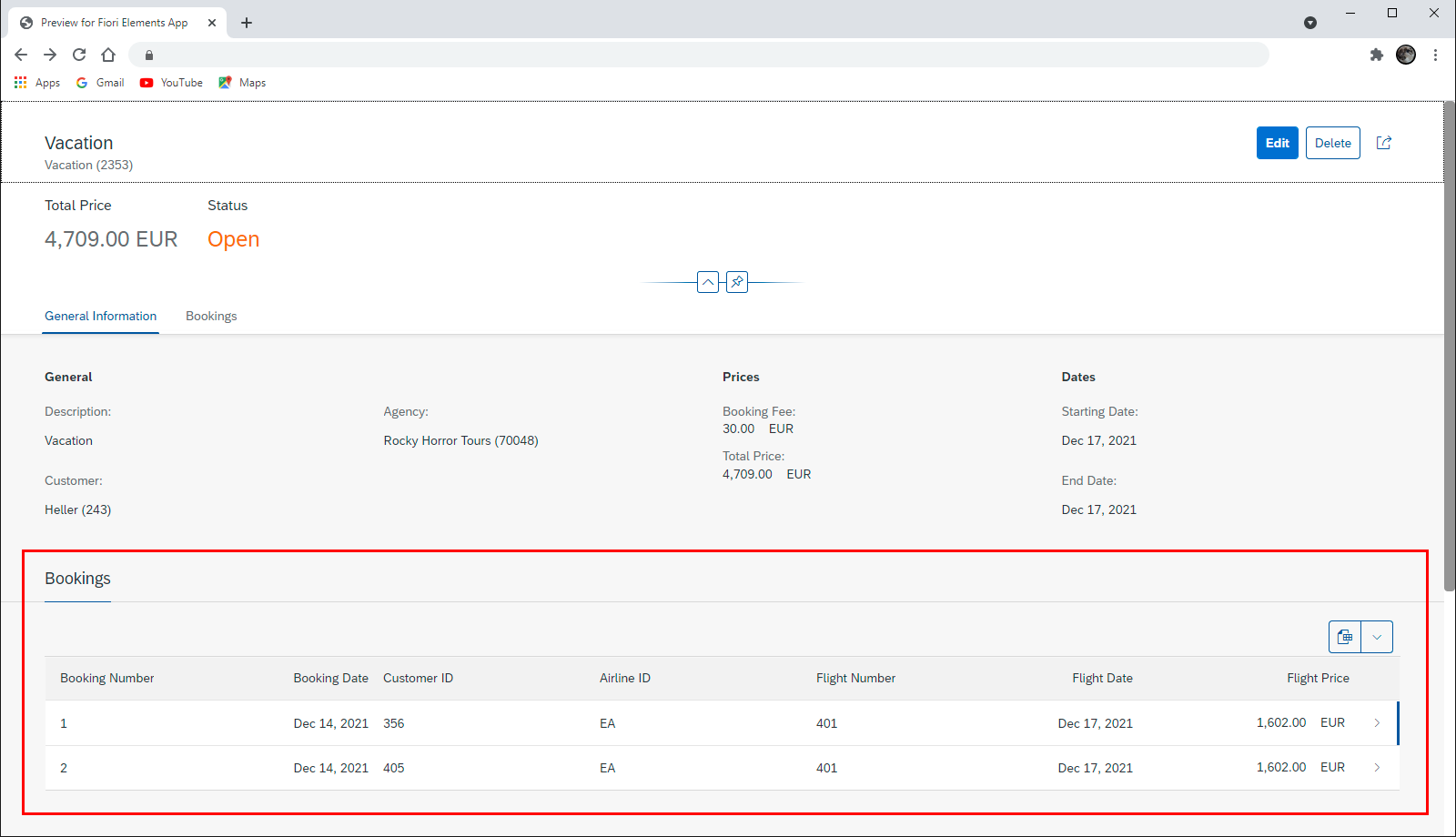

4. Refresh the app preview. The booking table is now displayed in the new Bookings section of the object page.



5. Instead of showing IDs for the fields Customer ID and Airline ID, one would preferably show descriptions or names.

   This will be made possible by using specific annotations which are implemented within the projection view ZC_FE_BOOKING_######. Therefore, open the projection view which contains the root view definitions for the booking entity.

   Add the @ObjectModel and @EndUserText annotations to the fields as shown in the coding fragments below.

   Annotation @EndUserText.label defines the column label for the related fields. Using annotation @ObjectModel.text.element controls the source of the content shown for the related field. Fields CarrierID and CustomerID will get their content through the corresponding association.

   CDS

   Copy

   @EndUserText.label: 'Customer'
   @ObjectModel.text.element: ['LastName']
   CustomerID,
   _Customer.LastName as LastName,


   CDS

   Copy

   @EndUserText.label: 'Airline'
   @ObjectModel.text.element: ['CarrierName']
   CarrierID,
   _Carrier.Name as CarrierName,


   Choose Save and Activate.

6. Refresh the app preview. The booking table is now displayed in the new Bookings section of the object page with descriptions for Customer and Airline.



In this step you will add the airline logo in a new column at the beginning of the booking table.

1. To achieve this, open the metadata extensions file ZC_FE_BOOKING_###### and add the following code lines to the annotation structure.

   CDS

   Copy

       ...
       @UI.lineItem: [ { position: 05, label: ' ', value: '_Carrier.AirlinePicURL' } ]
       _Carrier;
       ...


   Choose Save and Activate.

2. Refresh the app preview. The booking table is now displayed with the airline logo in the first column.



With the flexible column layout you can have the list report and the object page open at the same time without the need to navigate back and forth between them.

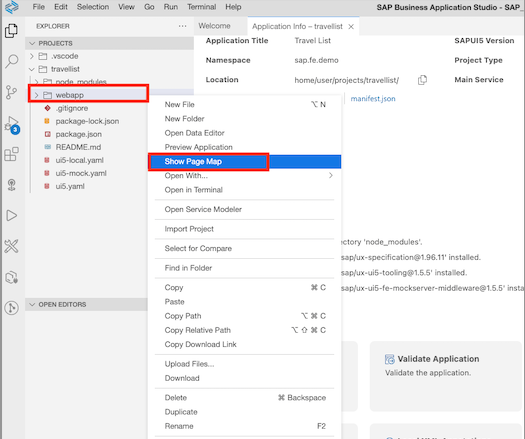

1. In the SAP Business Application Studio open the context menu by right clicking on your webapp folder and select the menu entry Show Page Map.



2. In the left area of the page map you see the UI structure of your application showing the two pages, the list report and the object page. In the right area you can see the property panel with the application settings. Choose option Flexible Column Layout and then select the Mid-Expanded option for the two columns layout. Leave the default for the three columns layout unchanged.



3. The application is refreshed automatically. Choose Go to load data into the list report table. Select any of the items within the table to open the object page.

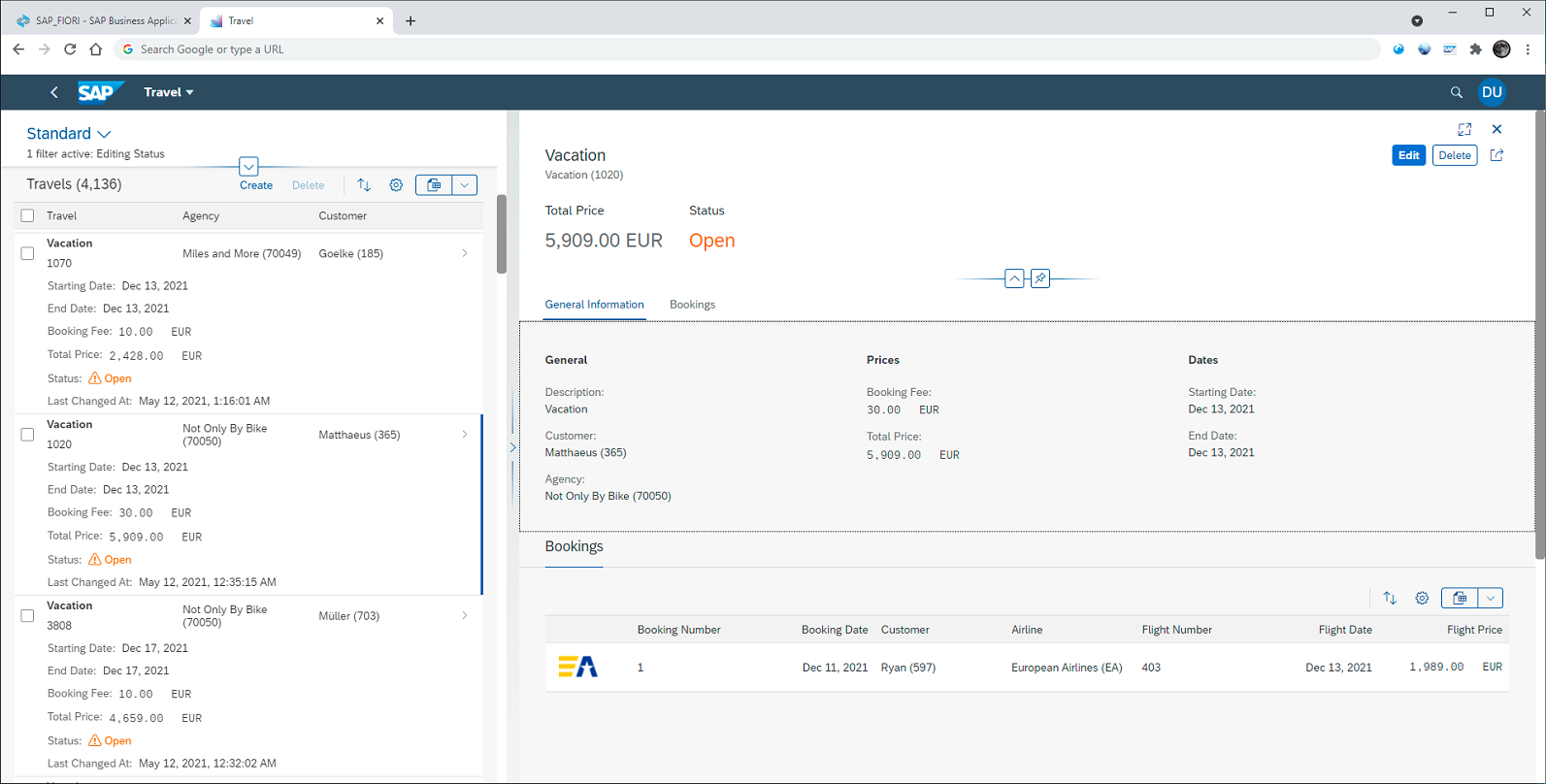

   Now the object page is displayed together with the list report. When you select another item in the list report, the object page is updated.



In this step you will activate the initial load feature that will trigger the loading of data within the list report automatically, i.e. without having to choose Go.

1. Open the page map once again as shown in the previous step by choosing the Show Page Map option in the context menu of your application folder.

2. In the UI structure of your application switch to edit mode of the List Report tile.



3. Now the structure of the list report is shown. Open the properties of the list report table by selecting the Table component.



4. In the list of table properties select the value Enabled for the table property Initial Load. This setting is immediately active without the need of any confirmation.



5. Your application is updated and you will see that the data of the list report table is loaded immediately without choosing Go.





You will need to update the local copy of the metadata in order to work with the annotations locally in Fiori tools extensions such as XML Annotation LSP, Guided Development or Page Editor.

As long as your application preview is based on the real service metadata, you will see the changes you made in the backend without refreshing the local metadata.

You will now learn how to update the metadata with the next steps.

1. Switch to the SAP Business Application Studio with your generated application from second tutorial Generate an SAP Fiori Elements Application based on a RAP-based Service. If the application preview is already running in other browser tab, then you do not need to stop it.

   From the hamburger menu, open View->Command Palette…, type Service Manager, and select Fiori: Open Service Mananger.

   In the main service row click the edit button.



2. Choose Refresh to update local metadata of your application.



   The Service Manager has updated the service metadata in the application’s webapp/localService folder.

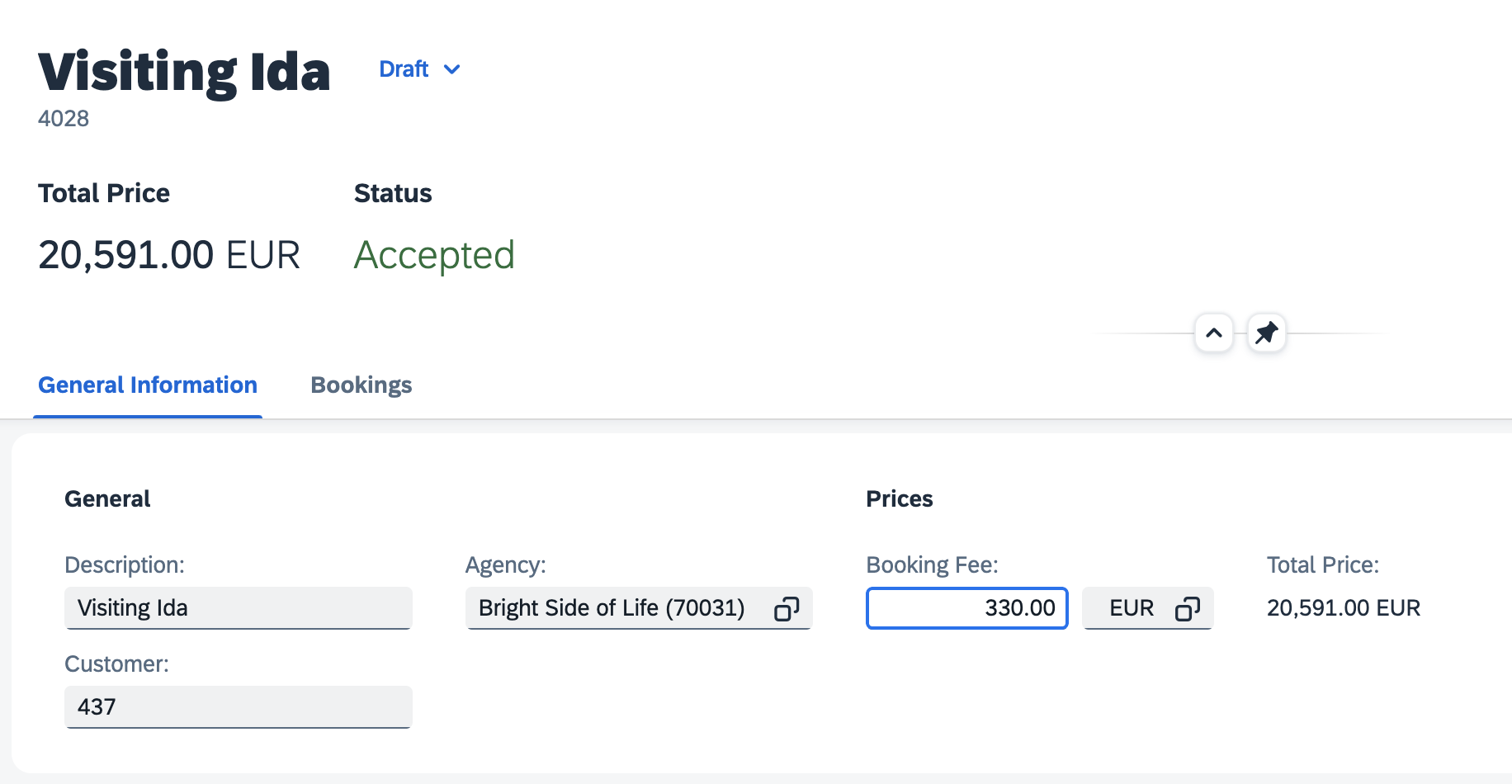

For the managed scenario with draft, you need to define side effects on the travel entity for immediate feedback on the Fiori Elements UI. The side effect will trigger the recalculation of the Total Price on every change of the Booking Fee.

There are several ways to add side effects. One is via the local annotations in the app and another one is directly in the backend via ABAP CDS. Users choose the right one for themselves. In this tutorial we will show you how to add the local annotations using guided development.

But first you need to define the internal action reCalcTotalPrice in the behavior definition and implement it in the behavior implementation class for Travel. The action reCalcTotalPrice is called by determinations if changes on prices in the travel entity itself or in the child entities are executed. The total price on the travel entity is then recalculated.

1. Define the internal action reCalcTotalPrice.

   In Eclipse open the behavior definition for the Travel ZI_FE_TRAVEL_###### in Behavior Definitions folder and add the following code line to define the internal action.

   CDS

   Copy

   define behavior for ZI_FE_Travel_###### alias Travel
   {
   ...
   internal action reCalcTotalPrice;
   ...
   }


   Choose Save and Activate.

   Remember: Internal actions can only be called from BO internal consumers. In our demo scenario, the action is called from determinations on all BO entities, whenever a booking fee or a currency code field is changed.

2. Implement the internal action reCalcTotalPrice in the behavior implementation class for Travel.

   Via a quick fix assist (Ctrl+Shift+1), you can generate the method declaration in the behavior pool directly from the behavior definition editor (your method will be in the implementation class ZBP_I_FE_TRAVEL_######->LHC_TRAVEL).



   The added method declaration will look like:

   ABAP

   Copy

   reCalcTotalPrice FOR MODIFY
           IMPORTING keys FOR ACTION Travel~reCalcTotalPrice,


   Implementation: To determine the total price of a travel, all prices must be converted to the travel currency and then summed up. This is done for each BO entity separately.

   Add the following code lines to the method reCalcTotalPrice. Replace ###### in ZI_FE_Travel_###### with your number.

   ABAP

   Copy

   METHOD reCalcTotalPrice.

       TYPES: BEGIN OF ty_amount_per_currencycode,
               amount        TYPE /dmo/total_price,
               currency_code TYPE /dmo/currency_code,
       END OF ty_amount_per_currencycode.

       DATA: amount_per_currencycode TYPE STANDARD TABLE OF ty_amount_per_currencycode.

       " Read all relevant travel instances.
       READ ENTITIES OF ZI_FE_Travel_###### IN LOCAL MODE
           ENTITY Travel
               FIELDS ( BookingFee CurrencyCode )
               WITH CORRESPONDING #( keys )
           RESULT DATA(travels).

       DELETE travels WHERE CurrencyCode IS INITIAL.

       LOOP AT travels ASSIGNING FIELD-SYMBOL(<travel>).
       " Set the start for the calculation by adding the booking fee.
       amount_per_currencycode = VALUE #( ( amount        = <travel>-BookingFee
                                           currency_code = <travel>-CurrencyCode ) ).

       " Read all associated bookings and add them to the total price.
       READ ENTITIES OF ZI_FE_Travel_###### IN LOCAL MODE
           ENTITY Travel BY \_Booking
           FIELDS ( FlightPrice CurrencyCode )
           WITH VALUE #( ( %tky = <travel>-%tky ) )
           RESULT DATA(bookings).

       LOOP AT bookings INTO DATA(booking) WHERE CurrencyCode IS NOT INITIAL.
       COLLECT VALUE ty_amount_per_currencycode( amount        = booking-FlightPrice
               currency_code = booking-CurrencyCode ) INTO amount_per_currencycode.
       ENDLOOP.


       CLEAR <travel>-TotalPrice.
       LOOP AT amount_per_currencycode INTO DATA(single_amount_per_currencycode).
       " If needed do a Currency Conversion
       IF single_amount_per_currencycode-currency_code = <travel>-CurrencyCode.
           <travel>-TotalPrice += single_amount_per_currencycode-amount.
       ELSE.
           /dmo/cl_flight_amdp=>convert_currency(
               EXPORTING
               iv_amount                   =  single_amount_per_currencycode-amount
               iv_currency_code_source     =  single_amount_per_currencycode-currency_code
               iv_currency_code_target     =  <travel>-CurrencyCode
               iv_exchange_rate_date       =  cl_abap_context_info=>get_system_date( )
           IMPORTING
               ev_amount                   = DATA(total_booking_price_per_curr)
           ).
           <travel>-TotalPrice += total_booking_price_per_curr.
       ENDIF.
       ENDLOOP.
       ENDLOOP.

       " write back the modified total_price of travels
       MODIFY ENTITIES OF ZI_FE_Travel_###### IN LOCAL MODE
       ENTITY travel
           UPDATE FIELDS ( TotalPrice )
           WITH CORRESPONDING #( travels ).
   ENDMETHOD.


   Choose Save and Activate.

3. Define the determination calculateTotalPrice.

   The actual calculation of the total price is done by the action recalcTotalPrice. The determination just executes the action.

   Define a determination on modify with operation trigger create and field triggers BookingFee and CurrencyCode. Also define the field TotalPrice as read only, as the value must no be defined externally.

   In the behavior definition for the Travel ZI_FE_TRAVEL_###### add the following code lines.

   CDS

   Copy

   define behavior for ZI_FE_Travel_###### alias Travel
   {
   ...
   field ( readonly ) TotalPrice;
   determination calculateTotalPrice on modify { create; field BookingFee, CurrencyCode; }
   ...
   }


   Choose Save and Activate.

4. Implement the method calculateTotalPrice.

   Via a quick fix assist (Ctrl+Shift+1), you can generate the method declaration in the behavior pool directly from the behavior definition editor (your method will be in the implementation class ZBP_I_FE_TRAVEL_######->LHC_TRAVEL).

   Implementation: Execute the action recalcPrice when the trigger fields are changed.

   Add the following code lines to the method calculateTotalPrice. Replace ###### in ZI_FE_Travel_###### with your number.

   ABAP

   Copy

   METHOD calculateTotalPrice.
       MODIFY ENTITIES OF ZI_FE_Travel_###### IN LOCAL MODE
           ENTITY Travel
           EXECUTE reCalcTotalPrice
           FROM CORRESPONDING #( keys ).
   ENDMETHOD.



   Choose Save and Activate.

   At this point the backend implementation for the total price recalculation is finished. Now if you start the application preview in SAP Business Application Studio, navigate from List Report to Object Page, click on Edit, change the booking fee and Save the data. The total price is recalculated. Note that Total Price field is read only now.

   With the next steps you will learn how to add side effects to update the total price after changing the booking fee directly. This means, if you change the field booking fee and jump into another field, the total price is already re-calculated without the need to save the data. For this we will use Guided Development.

5. Switch to the SAP Business Application Studio with your generated application.

   From the hamburger menu, open View->Command Palette…, type Guided Development, and select Fiori: Open Guided Development.

   In the Search guides field type side effects and then select the Configure side effects guide. This guide contains two steps.

   In the right upper corner you can use the Fullscreen button, to hide/show the search view.



6. Switch to the first step of the guide. Here you will configure the property BookingFee from Entity Type Travel as a source of the side effect.



   In the code snippet preview you will see the annotations and the file name, which will be changed.

   Choose Insert Snippet.



   The anonnotations.xml file editor opens with newly added annotations for side effect source.



7. Switch to the second step of the guide. Here you will configure the TotalPrice as a side effect target.

   Choose Insert Snippet.



   The anonnotations.xml is adopted with a new lines.



8. Refresh the application and choose Go to load data into the list report table. Select any of the items within the table to open the object page. Choose Edit to start chaning data of the draft.

   Change the amount of Booking Fee and step out of the field. The side effect is triggered and the Total Price is recalculated.



   Self study (OPTIONAL): at this point the recalculation is triggered if the Booking Fee amount is changed. What do you need to change in the backend and side effects to trigger Total Price recalculation, if the Flight Price of a Booking is changed on the UI? Hint: the Travel entity has an association to Booking entity with the property FlightPrice.

   Use the suggested solution in points 9-12 below for the self-check.

9. (OPTIONAL) Define the determination calculateTotalPrice in Booking behavior.

   The actual calculation of the total price is done by the action recalcTotalPrice. You need the determination in Booking behavior to execute the action.

   Define a determination on modify with operation trigger create and field triggers FlightPrice and CurrencyCode.

   In the behavior definition for the Travel ZI_FE_TRAVEL_###### add the following code lines.

   CDS

   Copy

   define behavior for ZI_FE_Booking_###### alias Booking
   {
   ...
   determination calculateTotalPrice on modify { create; field FlightPrice, CurrencyCode; }
   ...
   }


   Choose Save and Activate.

10. (OPTIONAL) Implement the method calculateTotalPrice.

    Via a quick fix assist (Ctrl+Shift+1), you can generate the method declaration in the behavior pool directly from the behavior definition editor (your method will be in the implementation class ZBP_I_FE_BOOKING_######->LHC_TRAVEL class).

    Implementation: Execute the reCalcTotalPrice on root node when the trigger fields are changed.

    Add the following code lines to the method calculateTotalPrice. Replace ###### in ZI_FE_Travel_###### with your number.

    ABAP

    Copy

    METHOD calculateTotalPrice.
        " Read all parent UUIDs
        READ ENTITIES OF ZI_FE_Travel_###### IN LOCAL MODE
        ENTITY Booking BY \_Travel
            FIELDS ( TravelUUID  )
            WITH CORRESPONDING #(  keys  )
        RESULT DATA(travels).

        " Trigger Re-Calculation on Root Node
        MODIFY ENTITIES OF ZI_FE_Travel_###### IN LOCAL MODE
        ENTITY Travel
            EXECUTE reCalcTotalPrice
            FROM CORRESPONDING  #( travels ).
    ENDMETHOD.


    The backend implementations is finished.

    Choose Save and Activate.

11. (OPTIONAL) Switch again to the SAP Business Application Studio and the Configure Side Effects Guide. Configure the property FlightPrice via navigation property Booking as a source and the property TotalPrice remains as a target for the new side effect.

    Change the side effect qulifier name as this will be an additional side effect.



    Choose Insert Snippet for source and then in step 2 insert curresponding snippet for TotalPrice as target.

    The resulting anonnotations.xml file opens with newly added source and target annotations for your second side effect.



12. (OPTIONAL) Refresh the application and choose Edit on object page to start changing data of the draft.

    Now change the amount of Flight Price and step out of the field. The side effect is triggered and the Total Price is recalculated.



Over the past four tutorials, you have used the SAP ABAP RESTful Application Programming Model, SAP Fiori tools and SAP Fiori elements for OData V4 to build this application. You have learned how to:

• Use the wizard-style approach of SAP Fiori tools to generate an application based on an existing service

• Refine a RAP based service with additional annotations to improve the user interface

• Configure the application using the Page Map and Page Editor

• Refresh the local copy of service metadata in SAP Business Application Studio with Service Manager

• Add side effects using Guided Development

All of these tools (and more) can be used with any of the available SAP Fiori elements page types. Enjoy your future projects!
