Create a Customer Detail Page in an MDK App
Details

Create a Customer Detail Page in an MDK App

September 10, 2020
Created by
April 23, 2019
Create a new page for displaying customer details in an MDK app.

You will learn

  • How to create a new page and add some controls to display customer information
  • How to navigate from one page to another page


To enhance your MDK app with customer details information, you need to carry out the following tasks:

  • Create a new customer details page
  • Add some controls to the page to display information like id, name, email, phone, address
  • Create a new navigation action to the customer details page
  • Navigate from customer list page to details page
  • Deploy app metadata to SAP Cloud Platform Mobile Services
  • Update the app with new changes
MDK
Step 1: Create the customer detail page

This page will show related details for a customer. In this page, you will add an Object Header control that is used to display information (like first name, last name, date of birth, email address & phone number) about the header of an object and Static Key Value control to display key value pair items like address, city, postal code & country.

  1. In SAP Business Application Studio project, Right-click the Pages folder | MDK: New Page | Section Page | Next.

    MDK
  2. Enter the Page Name Customers_Detail and click Next and the Finish on the Confirmation step.

    MDK
  3. In the Properties pane set the Caption to Customer Detail.

    MDK
  4. Next, you will add an Object Header container to display information like first name, last name, date of birth, email address & phone number.

    In the Layout Editor, expand the Controls | Container section, drag and drop the Object Header control onto the page area.

    MDK
  5. Now, you will replace the default values of the control’s properties with the values from customer entity.

    In the Properties pane, click the link icon to open the Object Browser for the BodyText property.

    Double click the DateOfBirth property of the Customer entity to set it as the binding expression and click OK.

    MDK
  6. Repeat the above steps binding below Properties:

    Property Value
    Description CustomerId
    FootNote EmailAddress
    HeadlineText LastName
    Status PhoneNumber
    Subhead FirstName

    Make sure to select values for the mentioned properties only from Customer Entity. You may find similar values from other entities. For example,

    MDK
  7. As enough fields have been selected to be displayed on the detail page, SubStatus and Tags are not required for this tutorial. In a real use case, you may need these properties.

    Remove the default value for SubStatus properties.

  8. Also, delete items under Tags.

    MDK

    Page should look like below.

    MDK
  9. In the main area of the page, let’s display some other details like; address, city, postal code, county.

    Drag and drop a Static Key Value container onto the page under the object header.

    MDK
  10. Expand the Container Item section of the Controls palette and drag and drop a Key Value Item onto the Static Key Value container on the page.

    MDK
  11. Repeat the process and drag three more Key Value Items onto the Static Key Value section so you have a total of four when you are done.

    MDK
  12. Select the upper left Key Value Item and set the KeyName to Address.

    MDK
  13. For this tutorial, you will set the value as a combined binding of house number and street. You can find more details about Target Path.

    Start with first part of the binding for Address property.

    Click the link icon next to the Value field to display the Object Browser and change the Format to Binding Target Path.

    Click the checkbox for Current Object and double click HouseNumber to set it as the first part of the binding.

    MDK

    Be careful not to select HouseNumber from Address (ESPM.Address), final expression should be as per above animation.

    Now, set second part of the binding.

    The cursor will be at the end of binding in the Expression field. Add a space and then select Street property and click Insert.

    Click OK to set the binding.

    MDK

    Be careful not to double click Street as that will replace the existing expression with just the Street property.

    Street should be selected from Customer entity.

  14. Select the upper right Key Value Item and set the KeyName to City.

    MDK

    Click the link icon to display the Object Browser. Change the format to Binding and double click the City property of the Customer entity to set it as the binding expression.

    Click OK to set the binding.

    MDK

    Be careful not to select City from Customer.Address (ESPM.Address) collection, final expression should be as per above screenshot.

  15. Repeat the process and set the lower left Key Value Item Key Name to Postal Code and bind the value to the Postal Code entity property.

  16. Repeat the process and set the lower right Key Value Item Key Name to Country and bind the value to the Country entity property.

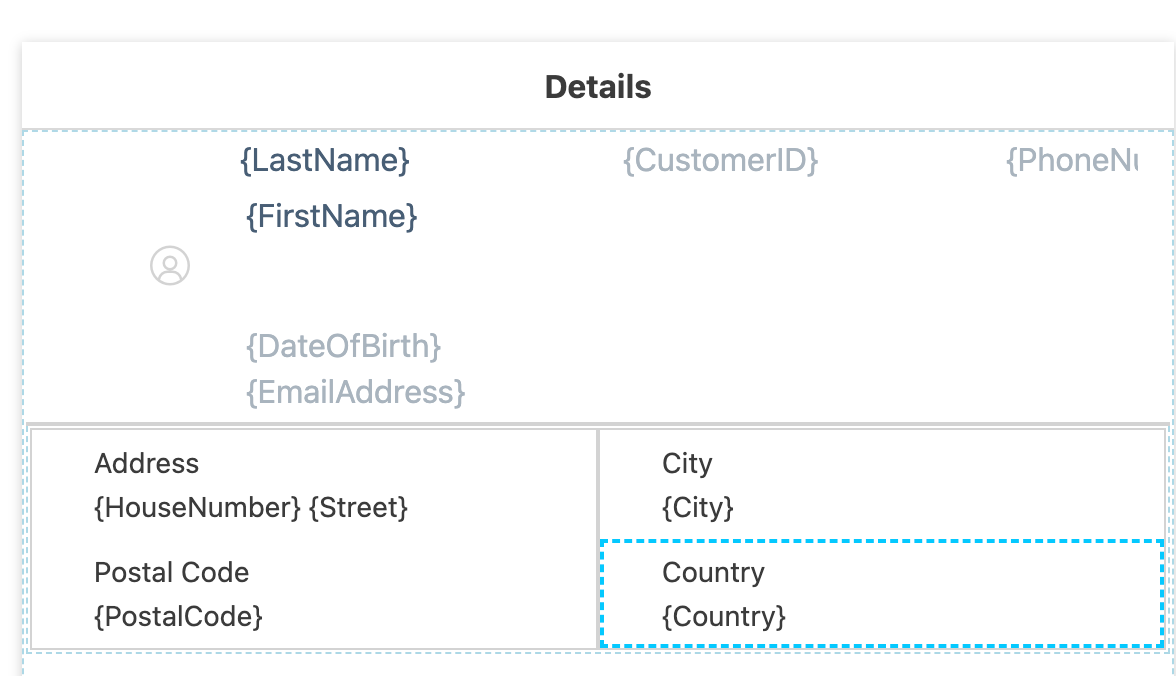

    Be careful not to select Postal Code & City from Customer.Address (ESPM.Address) collection, final expression should be as per below screenshot.

    MDK
Which format did you select while binding value for Address property?
×
Step 2: Create a navigation action

Now, you will create a Navigation action that opens the Customers_Detail.page when called.

  1. In SAP Business Application Studio project, right-click the Actions folder | MDK: New Action | choose MDK UI Actions in Category | click Navigation Action | Next.

    MDK
  2. Provide the below information:

    Field Value
    Action Name NavToCustomers_Detail
    Page to Open Select Customers_Detail.page from the dropdown
    MDK
  3. Click Next and then Finish on the confirmation step.

Log on to answer question
Step 3: Set the OnPress of the customer list
  1. Go back to the Customers_List page and set the OnLoaded event of the Contact Cell table control. You will link the Contact Cell table control to the NavToCustomers_Detail.action so that when an end-user selects a customer, the Customer Detail page will open. MDK automatically passes the selected customer to the detail page.

  2. In Customers_List page, select the Contact Cell Table control, click the link icon under the Events tab for the OnPress property to open the Object Browser.

  3. Double click the NavToCustomers_Detail.action and click OK to set it as the OnPress Action.

    MDK
  4. Save the changes to the Customers_List page.

Log on to answer question
Step 4: Deploy and activate the application

Deploy the updated application to your MDK client.

Right-click Application.app and select MDK: Deploy.

MDK

You should see Deploy Succeeded message.

MDK
Log on to answer question
Step 5: Test the application

Make sure you are choosing the right device platform tab above.

  1. Re-launch the app on your device, you may asked to authenticate with passcode or Fingerprint. You will see a Confirmation pop-up, tap OK.

    MDK
  2. Tap CUSTOMER LIST, you will navigate to Customer List page.

    MDK
  3. Tap any record from the list, you will navigate to it’s detail page.

    MDK
  1. Re-launch the app on your device, you may asked to authenticate with passcode or Touch ID. You will see a Confirmation pop-up, tap OK.

    MDK
  2. Tap Customer List, you will navigate to Customer List page.

    MDK
  3. Tap any record from the list, you will navigate to it’s detail page.

    MDK

Are you wondering how exactly MDK knew that clicking on a record in list page would display respective record in detail page?

The MDK sets the current object to the selected record when running the on press action on the list. The detail page then just needs to reference the correct properties assuming they are part of the object from the list page. You can look at documentation for more details.

Congratulations! You have successfully created a Customer Detail page and you are now all set to Modify a Customer Record in an MDK App.
