Set Up SAP Business Application Studio for Mobile Development
Details

Set Up SAP Business Application Studio for Mobile Development

December 1, 2020
Created by
August 16, 2020
Set up your SAP Business Application Studio to start developing mobile apps.

You will learn

  • How to create a development space in SAP Business Application Studio
  • How to connect to your Cloud Foundry target in SAP Business Application Studio

SAP Business Application Studio is the next-generation web-based IDE hosted on SAP Cloud Platform in the Cloud Foundry environment. In this tutorial, you will set up your SAP Business Application Studio for developing mobile apps.


Step 1: Create a development space
  1. Log into your Business Application Studio and click Create Dev Space.

    BAS Dashboard

    The number of extensions may differ if you are on trial or a production account.

  2. Select SAP Cloud Platform Mobile Services, enter a name (Mobile) for your dev space and click Create.

    BAS New Space

Your dev space will be created and the status will change to running.

What kind of application are your creating?
×
Step 2: Set up your workspace
  1. Click your dev space’s name to open it.

    BAS Enter Space

    Wait till your workspace loads completely.

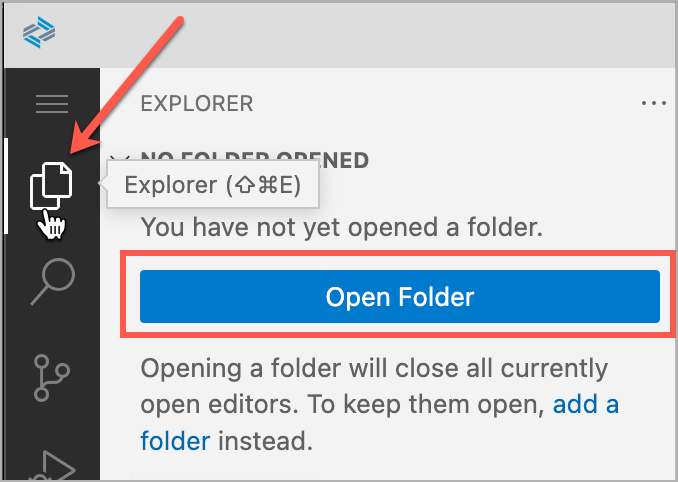

  2. Since there is no workspace opened yet, click Open Workspace.

    BAS Dev View
  3. Select projects, Click Open.

    Select Workpace
Log on to answer question
Step 3: Configure Cloud Foundry environment
  1. In the bottom left corner of your status bar, click the message The organization and space in Cloud Foundry have not been set..

    CF View
  2. Verify the URL and Click Enter on your keyboard.

    CF API End-Point

    SAP Business Application Studio pre-populates the end-point of the environment it is running in.

    If you want to connect to a different environment, modify the API endpoint by copying it from your target SAP Cloud Platform account:

    SAP Cloud Platform Cockpit → Sub-account → API Endpoint

  3. When prompted, enter your e-mail address you use to log in to the SAP Cloud Platform account.

    Email ID prompt
  4. Enter your password you use to log in to the SAP Cloud Platform account.

    Password prompt

    Upon successful login, you will see a toast message at the bottom right corner of your screen.

    Sucess toast message
  5. Select the organisation in which you have enabled Mobile Services.

    Org list
  6. Select the space in which you have enabled Mobile Services.

    Space list

    Upon successful setup, you will see a toast message at the bottom right corner of your screen, and the bottom status bar will highlight CF connection details.

    Success toast message
Log on to answer question

Congratulations! You have successfully configured SAP Business Application Studio to build mobile apps.

You can now build Mobile Development Kit apps or SAP Mobile Cards apps using Business Application studio.
