Create Custom Template for Purchase Order Documents
Details

Create Custom Template for Purchase Order Documents

November 5, 2021
Created by
October 18, 2021
Create a custom template for your purchase order documents to extract information from similar documents using the Document Information Extraction service.

You will learn

  • How to create a template for purchase order documents using your schema
  • How to add sample documents to your template and how to annotate them
  • How to use your template when extracting information from documents
QR code


Step 1: Create template

In Create Custom Schema for Purchase Order Documents, you defined a schema that includes a list of header and line item fields you want to extract from your purchase order documents. In this tutorial, you’ll create a template that uses your schema and additional sample documents. You’ll add annotations to the sample documents to teach the Document Information Extraction service where certain field values are located on the document to improve the accuracy of the extraction prediction for similar documents.

This tutorial uses the following purchase order documents. Download them to follow along (right click on the link, then click Save link as to download the files locally):

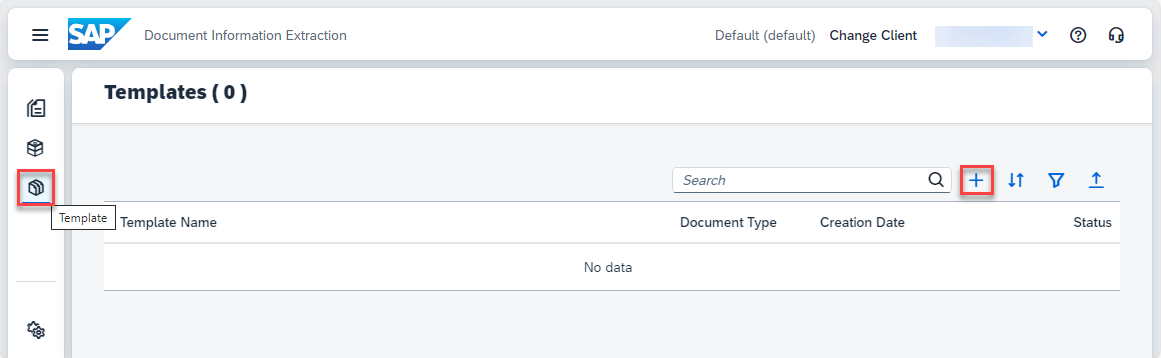

In Document Information Extraction Trial UI, access Template on the left navigation pane and click + to create a new template.

Create Template

In the dialog, proceed as follows:

  1. Enter a name for your template, Custom_purchase_order_template, for instance.

  2. Choose Purchase Order as your Document Type.

  3. Select the schema you created in Create Custom Schema for Purchase Order Documents.

  4. Choose one of the sample documents by clicking Browse. The following images use the Sample Purchase Order 1. Upload the same document in the file dialog to follow along.

  5. Click Create to create your template.

    Create Template Dialog
  6. After your template is created, a confirmation dialog pops up. Click OK to acknowledge it. It will now navigate you to the detail page of your template.

Template Created

Here, you find a list of your sample documents as well as a list of the included extraction fields that you have defined in your schema.

In the next step, you’ll start annotating your sample document.

CAUTION:

Be aware of the following Document Information Extraction Trial UI trial account limitations:​

  • Maximum 40 uploaded document pages per week​ (the documents can have more than 1 page)​
  • Maximum 10 schemas per trial account
  • Maximum 3 templates per trial account (with a maximum of 5 sample documents each)
Log on to answer question
Step 2: Annotate header fields

Click on the row of your sample document to open it.

Sample Document

Next, click Annotations to open the annotations pane on the right side.

Annotations

Two sections appear: the first section includes your header fields with no values yet, and the second section is a blank list to which you add your line items. To start annotating, click Edit.

Edit Annotations

If you now hover your mouse over the document, the mouse pointer changes to a crosshair cursor. This allows you to draw a box around the information on the document.

You may further notice that all the text on the document has a gray background now. This indicates that Document Information Extraction has recognized the text. Now you only have to connect the text with the field, without actually entering the text yourself. Start with the purchaseOrderNumber:

Find the number at the top of the document. Draw a box around it by holding down the left mouse button and moving the cursor diagonally to the opposite corner. Do not include the “No.” in front! If you are on a smaller screen, zoom in and out by using the magnifying glass icons on the top.

Once you drew the bounding box, a dialog appears. Here, you find that the service recognized the actual number of your purchase order and pre-filled the field. Select purchaseOrderNumber as the field to which this value belongs. Then, click Apply.

Annotate Purchase Order Number

Now, the field for the purchaseOrderNumber on the right is filled with the number of your purchase order. Additionally, the number on the document is surrounded by a blue box.

View Purchase Order Number

Continue until you fill out all header fields with a value and a corresponding box. Note that some values may be on the second page of the document. Navigate between the pages using the icons on the top left.

All Header Fields Annotated
Log on to answer question
Step 3: Annotate line item fields

In contrast to header fields, line item fields occur multiple times on a document. To help Document Information Extraction extract those information, you need to annotate at least two lines.

Create the first line item by clicking +.

Add Line Item

This adds a line item with all its corresponding fields in the list below. Now, annotate the SKU number in the first line of the table. In the dialog, select the corresponding field again, skuNumber. Additionally, you have to specify the row of the line item. Here, select 1. Click Apply to create the annotation.

Annotate SKU Number

Proceed with the remaining fields of the first line item until all fields are filled. Now, click + again to add a second line item.

Add Second Line Item

This adds another line item in the list below the first one. If you annotate the fields of the second line item, make sure to select 2 as the row.

Add Second SKU Number

Proceed with the remaining fields similar to the first line item. Once you are done, you successfully annotated the sample document. Click Save to ensure your hard work is not lost.

Save Annotations
What does the row index represent?
×
Step 4: Activate template

The last step that remains is to activate the template. Therefore, click Activate.

Activate Template

Now, the status of your template changes from DRAFT to ACTIVE which means you can use the template to extract information from documents. To make changes to your template (add more sample document files, for example), you have to Deactivate it first.

Congratulations, you have created and activated your first Document Information Extraction schema.

Log on to answer question
Step 5: Use template
  1. Access Document on the left navigation pane and click + to upload a new template.

    Use Template
  2. In the Select Document screen, choose Purchase Order for the Document Type.

  3. Select the Schema and Template you created.

  4. Drop files directly or click + to upload one or more document files. First, use the Sample Purchase Order 2.

  5. Click Step 2.

    Use Template
  6. The selection of header fields and line item fields comes from the schema and cannot be edited. Click Step 3 and then click Review.

  7. Review your selection. Click Edit if you want to change anything. Click Confirm.

    DOX-UI-App

    The document status changes from PENDING to READY.

    DOX-UI-AppDOX-UI-App
  8. Click the document row and Extraction Results to see the information extracted from the document using the schema and template you created.

DOX-UI-App

You can repeat this step using the Sample Purchase Order 3.

Congratulations, you have completed this tutorial.
