12 - Enable App to Select Product by Scanning Barcode

Show some of the native mobile capabilities of SAP Build Apps by allowing users to select a product by scanning a barcode, as part of the SAP Build CodeJam.
You will learn
  • How to get and set up the Mobile Preview App
  • How to enable barcode scanning
thecodesterDaniel WroblewskiJanuary 20, 2025
Created by
thecodester
February 4, 2024
Contributors
thecodester
jmmargo

Prerequisites

One of the best things about SAP Build Apps is that you can easily enable basic but powerful native mobile features – such as access to contacts and photos, the camera, location services and more.

In this tutorial, you will let you scan a barcode in order to select a product, instead of having to select from the list on the home page.

  • Step 1

    To get and set up the SAP Build Apps Mobile Preview App, watch and follow along with this video from Daniel Wroblewski.

  • Step 2
    1. Go to the home page.

      Make sure you are toggled to View.

      Back home
    2. Right now, you have a title component.

      UI title

      Add a Row component just above the title.

      When you drag in a row component, it will automatically contain 2 cells.

      Add row

      Move the existing title component into Cell #1.

      Move title

      In Cell #2, add a container, and in the container add a text and icon component.

      The UI should look like this:

      New UI
    3. Select the row component (use the tree view), and in the Layout tab click the first 50%.

      Alt text

      Set the cell width to 5.

      Cell width

      Now click the other side, now 0%, and then enter for the cell width 3.

      Cell width, again

      This now sets the relative widths of the cells.

      Row widths

      Finally, set Align cell content to align bottoms.

    4. Select the container in Cell #2, and in the Layout tab, in the Layout section, set the layout to Horizontal.

      Container layout
    5. Select the text component (in Cell #2) and set the following.

      • Under Properties, set Content to Click to scan product.

        Text
      • In the Style tab, click the Primary Paragraph dropdown, and click Edit.

        Edit style

        Under Typography, set Text size to Small text.

      • In the Layout tab, in the Layout section, change Text align to right.

    6. Select the icon component (the star in Cell #2), and set the following.

      • Under Properties, in the Icon property, click the word star.

        Select star

        Enter barcode in the search, and click the barcode symbol.

        Icon
      • Under Style, click the Primary Icon dropdown, and click Edit.

        Style edit

        Under Typography, change the binding type for Font size to Static number, and change the font size to 60.

    Your UI should now look like this:

    Final UI
  • Step 3

    Now lets create the logic for handling the tap of the barcode icon.

    1. Select the icon component, open the logic canvas (at the bottom).

      Open icon logic

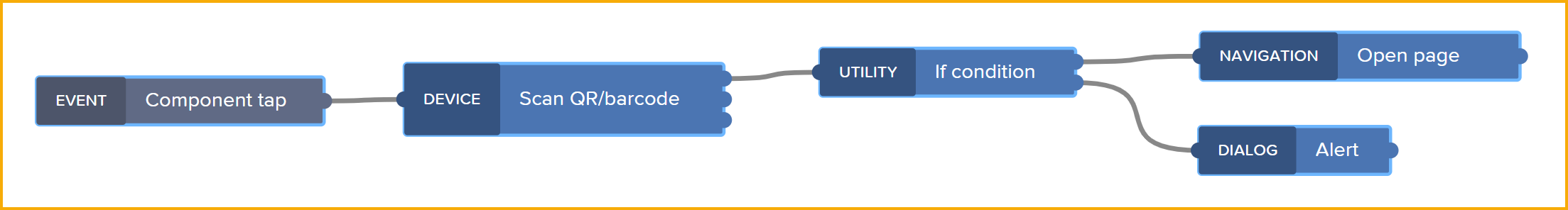

    2. Create the following logic, and connect the flow functions as shown.

      Basic logic

      The logic opens the barcode scanner, and if the user actually selects a barcode, then you test that value.

      • If the value is a product number and in our list of products – held in our data variable – then you navigate to the product details page.

      • If the value is not a product, you just alert the user.

      IMPORTANT: You must connect the top output of he QR code flow function with the If condition flow function.

    3. For the If condition flow function, set the Condition to the following formula:

      JavaScript
      Copy
      IS_IN_ARRAY_BY_KEY(data.Products1, "Id",outputs["Scan QR/barcode"].codeContent)

    4. For the Open page flow function, set the Page to Product Details.

      Open product details

      Set the productID to the Output value of another node > Scan QR/barcode > QR barcode content.

    5. For the Alert flow function, set Dialog title to the following formula:

      JavaScript
      Copy
      "No such product " + outputs["Scan QR/barcode"].codeContent


    The logic should now look like this:

    Final logic
  • Step 4

    Now you will use the mobile preview app so you can use the native functionality of the device.

    Make sure you have installed the preview app on your device.

    1. Click the Launch tab, and then Open preview portal.

      Open launch tab

      You should now get a place to enter a code from your preview app.

      Preview portal
    2. Open the preview app on your device.

    3. Follow one of the following:

      • For US10: If you are on a trial account, likely you are on an SAP BTP account in the US10 region.

        • Click Other login options.

        • Select SAP Build Apps US10, and then click Generate Code.

          A code will be shown.

          Preview on US10
      • For EU10: Just click SAP Build Apps and a code will be shown.

        Preview on EU10
    4. Take the code and enter it in the preview portal in SAP Build Apps.

      Press Enter.

      The pin code can be entered upper or lower case, and you can press Enter instead of clicking Confirm pin.

      Enter code

      If all goes as planned, you will see that you have been authenticated.

      Authenticated

      Your preview app will now update and show all the applications in your tenant. You should see something like this:

      Preview app authenticated
    5. Click the Shopping App tile to open the app.

      Click the barcode icon.

      Barcode icon

      You can scan this barcode for product HT-1020.

      HT-1020

      This should take you to the product details page, where you should see the details for HT-1020.

      Product details
