Use the SAP Cloud SDK in the SAP Cloud Application Programming Model
Details

Use the SAP Cloud SDK in the SAP Cloud Application Programming Model

October 22, 2020
Created by
September 18, 2020
Create a SAP Cloud Application Programming Model project to call OData services using the SAP Cloud SDK on Cloud Foundry.

You will learn

  • How to integrate the SAP Cloud SDK into the SAP Cloud Application Programming Model
  • How to write a custom event handler for CAP Java
  • How to deploy an application to SAP Cloud Platform Cloud Foundry
  • How to create service that reads/writes business partners from S/4HANA and exposes them as SAP Cloud Application Programming Model

Prerequisites

  • SAP Cloud Application Programming Model
  • Basic knowledge of Spring Boot and Java (optional)
  • An account on cloud foundry

SAP Cloud Application Programming Model enables you to quickly create business applications by allowing you to focus on your business domain. It offers a consistent end-to-end programming model for full-stack development on SAP Cloud Platform.

However, this raises the question how this interacts and integrates with other SAP frameworks that SAP has introduced over the past year such as the SAP Cloud SDK.

In particular, you will learn how to integrate the SAP Cloud SDK into the SAP Cloud Application Programming Model. And how the SAP Cloud SDK allows you to develop, extend and communicate with other SAP solutions.


Step 1: Create SAP Cloud Application Programming Model project

For local development, you need to do the following:

  1. Install Node.js from https://nodejs.org (use the latest LTS release).

  2. Install the cds development kit globally:

    npm i -g @sap/cds-dk

  3. Now, run:

    mvn archetype:generate -DarchetypeArtifactId=cds-services-archetype -DarchetypeGroupId=com.sap.cds -DarchetypeVersion=RELEASE \
    -DartifactId=cap-business-service


    This will initialise the application using the maven archetype cds-services-archetype and create your project as follows:

    • The project is named cap-business-service.
    • The db folder stores database-related artifacts.
    • The srv folder stores your Java application.

    project creation done

Find more information about the SAP Cloud Application Programming Model in its documentation.

Log on to answer question
Step 2: Define a data model

CAP applications use Core Data Services (CDS) to describe:

In this step, you’ll define a data model, which defines the entity.

  1. Right-click on the db folder and choose New File.

    new file
  2. Call it datamodel.cds and click OK to create the file.

  3. Add the following service definition to the file.

    namespace my.bookshop;

    entity CapBusinessPartner {
      key ID : String;
      firstName  : String;
      surname  : String;
      sourceDestination: String;
    }

Log on to answer question
Step 3: Define a service

In this step, you’ll define a simple service, which exposes a projection on the entity defined in the data model.

  1. Right-click the srv folder and choose New File.

    new file
  2. Call the file cat-service.cds and click OK.

  3. Add the following service definition to the cat-service.cds:

    using my.bookshop as my from '../db/datamodel';

    service cloud.sdk.capng {
         entity CapBusinessPartner as projection on my.CapBusinessPartner;
    }

  4. Run the following command in the terminal to trigger the maven build process:

    mvn clean install


In your project directory, the data model has auto-generated the classes.

generated file
Log on to answer question
Step 4: Integrate SAP Cloud SDK

For integrating the SAP Cloud SDK in SAP Cloud Application Programming Model, you need to add the following dependency in your parent POM, which you find in the root directory of your project:

<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>com.sap.cloud.sdk</groupId>
            <artifactId>sdk-bom</artifactId>
            <version>use-latest-version-here</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>

Please make sure to always use the latest version available on Maven Central. Check out the release notes.

Since your application is running on SAP Cloud Platform Cloud Foundry, include the following dependencies to your pom.xml in the srv directory:

<dependency>
    <groupId>com.sap.cloud.sdk.cloudplatform</groupId>
    <artifactId>scp-cf</artifactId>
</dependency>

<dependency>
    <groupId>com.sap.cloud.sdk.s4hana</groupId>
    <artifactId>s4hana-all</artifactId>
</dependency>

For more information, visit the documentation of the SAP Cloud SDK.

Log on to answer question
Step 5: Create Java class for event handler
  1. Create a new Java class BusinessPartnerReadListener with the following content:
@Component
@ServiceName("cloud.sdk.capng")
public class BusinessPartnerReadListener implements EventHandler {

    private final HttpDestination httpDestination = DestinationAccessor.getDestination("MyErpSystem").asHttp();

    @On(event = CdsService.EVENT_READ, entity = "cloud.sdk.capng.CapBusinessPartner")
    public void onRead(CdsReadEventContext context) throws ODataException {

        final Map<Object, Map<String, Object>> result = new HashMap<>();
        final List<BusinessPartner> businessPartners =
                new DefaultBusinessPartnerService().getAllBusinessPartner().top(10).execute(httpDestination);

        final List<CapBusinessPartner> capBusinessPartners =
                convertS4BusinessPartnersToCapBusinessPartners(businessPartners, "MyErpSystem");
        capBusinessPartners.forEach(capBusinessPartner -> {
            result.put(capBusinessPartner.getId(), capBusinessPartner);
        });

        context.setResult(result.values());
    }

    @On(event = CdsService.EVENT_CREATE, entity = "cloud.sdk.capng.CapBusinessPartner")
    public void onCreate(CdsCreateEventContext context) throws ODataException {
        final BusinessPartnerService service = new DefaultBusinessPartnerService();

        Map<String, Object> m = context.getCqn().entries().get(0);
        BusinessPartner bp = BusinessPartner.builder().firstName(m.get("firstName").toString()).lastName(m.get("surname").toString()).businessPartner(m.get("ID").toString()).build();

        service.createBusinessPartner(bp).execute(httpDestination);
    }

    private List<CapBusinessPartner> convertS4BusinessPartnersToCapBusinessPartners(
            final List<BusinessPartner> s4BusinessPartners,
            final String destinationName) {
        final List<CapBusinessPartner> capBusinessPartners = new ArrayList<>();

        for (final BusinessPartner s4BusinessPartner : s4BusinessPartners) {
            final CapBusinessPartner capBusinessPartner = com.sap.cds.Struct.create(CapBusinessPartner.class);

            capBusinessPartner.setFirstName(s4BusinessPartner.getFirstName());
            capBusinessPartner.setSurname(s4BusinessPartner.getLastName());
            capBusinessPartner.setId(s4BusinessPartner.getBusinessPartner());
            capBusinessPartner.setSourceDestination(destinationName);

            capBusinessPartners.add(capBusinessPartner);
        }

        return capBusinessPartners;
    }
}

CDS Query Notation (CQN) is the common language in CAP to run queries against services. It can be used to talk to the services defined by your model, but also remote services, such as the database.

The event handler uses the following APIs, which are available for service providers in CAP Java:

  • Event handler classes have to implement the marker interface EventHandler and register themselves as Spring Beans (@Component). The marker interface is important, because it enables the CAP Java runtime to identify these classes among all Spring Beans.
  • Event handler methods are registered with @On, @Before, or @After annotations. Every event, such as an entity creation, runs through these three phases. Each phase has a slightly different semantic.
  • The annotation @ServiceName specifies the default service name all event handler methods apply to. Here this is cloud.sdk.capng, as this was also the name when defining the service in the CDS model.
Log on to answer question
Step 6: Understanding the read and write methods

The above class handles the READ and CREATE events (highlighted above).

  • The READ operation just returns the business partners from the remote OData service.

    Here you are using the OData VDM from SAP Cloud SDK to fetch business partners from the target system. You can call this service getAllBusinessPartner() function to retrieve a list of all the business partners from the system. In this tutorial the destination is called MyErpSystem and you will learn a little later where it is set up.

    Later you will transform BusinessPartner to CapBusinessPartner.

  • The CREATE event extracts the payload from the CQN representation and saves into businessPartner object.

    Here you initialize the BusinessPartnerService instance and then prepare the query and call the execute function which creates the new businessPartner.

Log on to answer question
Step 7: Run the mock server

In order to make a call to an OData service, there needs to be a service to call. You can set up a local mock server that mimics the business partner and a custom service by following the instructions at Extending SAP S/4HANA. This mock server does not support all the features of the actual OData services, but it suffices to try it out locally.

Once it is up and running, you should see the list of services at http://localhost:3000/.

You can run the project on a local mock server. Here, you need to supply the destinations as an environment variable on your local machine.

set destinations=[{name: "MyErpSystem", url: "https://URL", username: "USER", password: "PASSWORD"}]

Please change the URL accordingly. You may use any name you like. If you do decide to change it though, remember to also adapt it in the code above. Make sure the variable has been properly set:

set destinations

Be aware that the variable is only available in your current terminal session.

You can run the project on a local mock server. Here, you need to supply the destinations as an environment variable on your local machine.

export destinations='[{name: "MyErpSystem", url: "https://URL", username: "USER", password: "PASSWORD"}]'

Please change the values URL, USER and PASSWORD accordingly. You may use any name you like. If you do decide to change it though, remember to also adapt it in the code above. Make sure the variable has been properly set:

echo $destinations

Be aware that the variable is only available in your current terminal session.

Log on to answer question
Step 8: Run the application
  1. Go to the root of your project by running the following command in the terminal:

    cd ~/projects/cap-business-service

  2. Start the application:

    mvn clean spring-boot:run


    A notification message saying “A service is listening to port 8080” will appear in the bottom right.

  3. Go to http://localhost:8080.

  4. Choose $metadata from the welcome page to inspect the OData metadata that is automatically served by the CAP Java runtime.

metadata option

Log on to answer question
Step 9: Create/read data through Postman

Do the GET request on http://localhost:8080/odata/v4/cloud.sdk.capng/CapBusinessPartner from Postman. It fetches the businessPartner data from the mock server.

Try to insert some data into the running application. For example, use Postman to do the following post request on same link.

postman post

The POST request causes an OData Insert on the entity CAPBusinessPartner.

The response will be the created record and should look similar to this output:

{
  "@context": "$metadata#CapBusinessPartner/$entity",
  "ID": "1003764",
  "firstName": "abc",
  "surname": "xyz",
  "sourceDestination": "MyErpSystem"
}

You can read the data by doing the GET request on same URL .

Log on to answer question
Step 10: Deploy and configure mock server on cloud foundry

You can configure a mock server instance to Cloud Foundry by going inside the mock server directory and pushing the instance to cloud. Do this by running:

cf push

Now configure the mock server destination in Cloud Foundry.

  1. Navigate to the Cloud Foundry subaccount.

  2. In the menu on the left, go to Connectivity > Destinations.

  3. Click New Destination and enter the following values into the input fields:

    • Name: MyErpSystem
    • URL: URL to your mock server
    • Authentication: choose BasicAuthentication
    • Provide credentials of your technical user in the User and Password fields.
    • Leave the other fields unchanged.
  4. Click Save.

You can get mock server URL by running:

cf app odata-mock-server

You need to bind destination service to your application in order to use it.

Use the Cloud Foundry CLI to create the destination service instance:

cf create-service destination lite MyErpSystem
Log on to answer question
Step 11: Deploy application to Cloud Foundry
  1. Go to the ~/projects/cap-business-service folder and create a new file called manifest.yml.

    Save the file.

  2. Add the following code to the newly created file:

      ---
      applications:
        - name: cap-business-service
          path: srv/target/cds-services-archetype-exec.jar
          random-route: true
      services:
        - MyErpSystem


    The manifest describes the name of the application and the path where the application archive can be found. Spring Boot applications can be deployed from a single JAR archive, which is what you are making use of here.

  3. Open the pom.xml file in the srv directory.

  4. Add the following dependency under the dependencies tag:

      <dependency>
        <groupId>com.sap.cds</groupId>
        <artifactId>cds-feature-cloudfoundry</artifactId>
      </dependency>
      <dependency>
        <groupId>com.sap.cds</groupId>
        <artifactId>cds-feature-hana</artifactId>
      </dependency>

  5. Add the following annotation to your Application class:

    @EnableAutoConfiguration(exclude = DataSourceAutoConfiguration.class)


    This will allow you to deploy to Cloud Foundry without any database service binding.

  6. Build your application once by running:

    mvn clean
    install

  7. Push the application to the cloud by running:
    cf push


    The manifest will be automatically picked up.

    Provide the credentials you usually log in to SAP Cloud Platform if you are asked to log in.

    You can see the following, if the application was successfully deployed.

    applicationDeployed

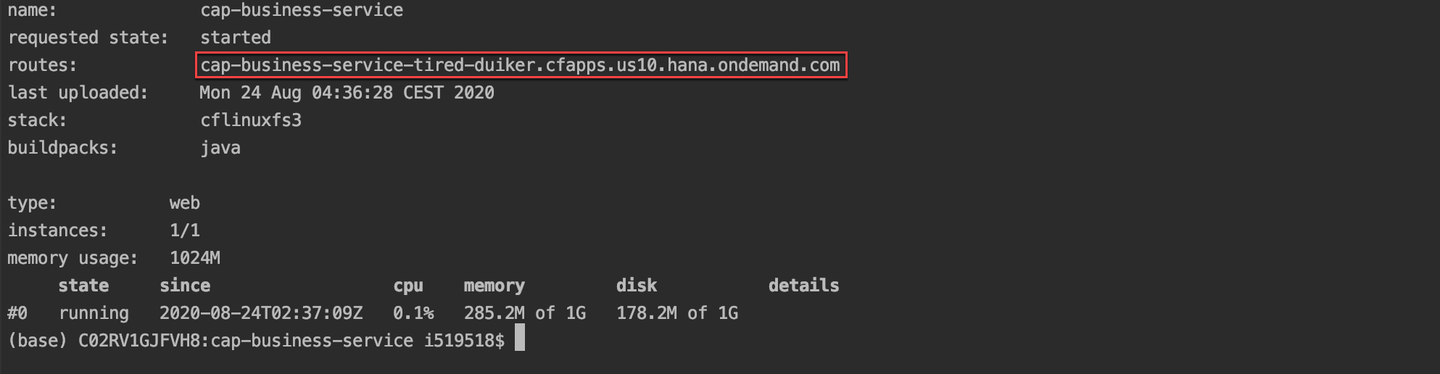

  8. To retrieve the application URL run the following command:

    cf app cap-business-service


    You can find URL, next to routes.

    applicationURL

Now you can do the GET / POST request in the same way as described in step 9.
