Build Your First Chatbot with SAP Conversational AI

test
0 %
Build Your First Chatbot with SAP Conversational AI
Details

Build Your First Chatbot with SAP Conversational AI

December 2, 2020
Created by
September 22, 2019
Create a simple chatbot that can recognize greetings, understand when asked for a joke, provide a joke, and recognize the user's reaction to the joke.

You will learn

  • How to get an account with SAP Conversational AI
  • How to create a chatbot project
  • How to train your chatbot (to understand people)
  • How to give your chatbot skills


Step 1: Create SAP Conversational AI account

Go to https://cai.tools.sap/, and click Sign Up in the upper-right corner.

Follow the instructions for creating an account.

Sign up

You will get an email with a link to validate your account.

Log on to answer question
Step 2: Create new bot project
  1. Do one of the following:

    If you just validated your account by clicking the link in your email, click Start with a Template.

    New user

    If you are returning:

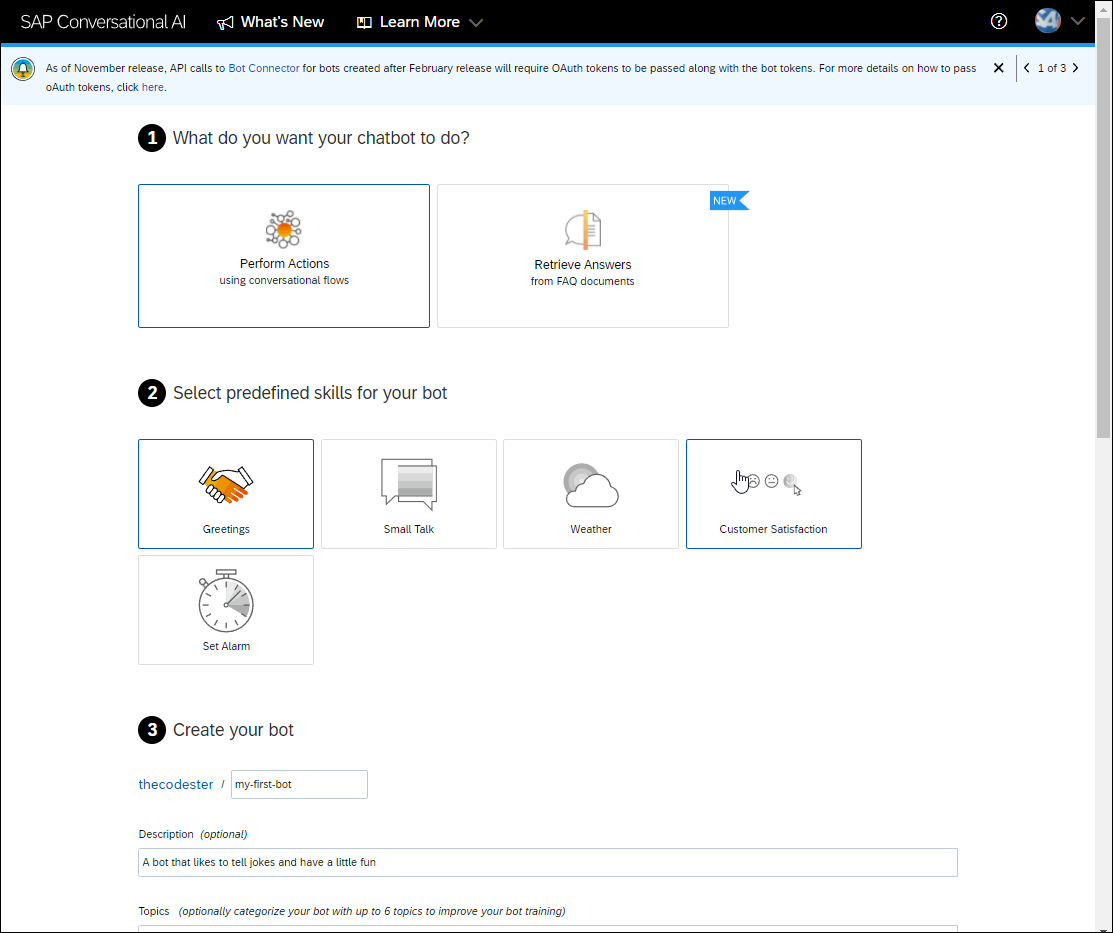

  2. Fill in the following:

    • Select Perform Actions.

      With a standard Perform Actions bot, the developer is responsible for creating entities and intents with expressions. The developer is also responsible for building and managing the conversational flow that pulls information from back-end systems to help simplify processes for the chatbot end user.

      An FAQ bot retrieves answers to users’ questions from one or more documents (.csv files) that you upload. The document must include predefined pairs of questions and answers. This allows your bot to map the user’s query to the best match and retrieve an answer without interpreting the intent of the question.

      To ease the complexity of the FAQ bot, the intents and entities are predefined and hidden, and the bot includes a set of predefined skills. However, you can design the bot responses as per your business needs.

    • For the predefined skills, choose Greetings.

    • In the Create your bot section, enter the following:

      Field Name Value
      Bot name my-first-bot
      Description A bot that likes to tell jokes and have a little fun
    • For Data Policy:

      • Select Non-personal.

      • Select Non-vulnerable.

    • For Bot visibility, select Public.

    New bot form

  3. Click Create a bot.

Log on to answer question
Step 3: The 4 stages of a bot's life

There are 4 stages in your bot’s life:

  • Train: Teach your bot what it needs to understand.

    Here you will create intents – ideas your bot will recognize – using expressions that the bot should recognize coming from the user.

  • Build: Create your conversational flow with our Bot Builder tool. Here you give your bot skills it can perform.

    Here you will create skills – things your bot can do – and define when they will be triggered. Your skills are defined by triggers, requirements (information your bot must collect), and the actions.

  • Connect: Ship your bot to one or several messaging platforms.

  • Monitor: Train your bot to make it sharper, and get insights on its usage.

The 4 phases are represented in the bot project by the 4 tabs.

4 stages
In which step do I define the actions the bot will take?
×
Step 4: Fork intent

Now we will work in the Train tab, where will build intents. Remember, intents are the things people want to tell our bot. Within an intent, we indicate all the possible expressions that a person might use to communicate that intent.

As SAP Conversational AI is collaborative, you do not have to re-create each intent every time. You can “fork” an intent someone has already created and clone it right into your bot.

  1. Go to the Train tab.

  2. In the Search box, enter joke, and press Search.

    Search for intents
  3. Click Fork for the first one.

    There are many existing intents and the choices are always changing.

  4. Explore the intent by clicking on it.

    In the intent we forked, there are 2 expressions to discern if someone wants to be told a joke. In yours, you may receive more expressions.

    Joke intent
Log on to answer question
Step 5: Create new intents

You will be able to reuse many, many intents created by others. But there are times you will want to create your own.

  1. Click on Train tab.

  2. Create an intent for recognizing good reactions to jokes.

    • Click Create.

    Click Create

    • For the name of the intent, enter laughs.

    • For the description, enter A natural reaction to our awesome jokes.

    Create intent

    • Click Create Intent.
  3. Create a second intent, this time for bad reactions to jokes.

    • Click Create.

    • For the name of the intent, enter lame.

    • For the description, enter You can’t succeed every time.

    • Click Create Intent.

Log on to answer question
Step 6: Add expressions

Now that you have created 2 intents, we need to add expressions – things people might say if they had that intent. A golden rule would be to add at least 30 expressions to an intent, and ideally more than 50.

Put yourself in the shoes of the people talking to your bot. What could they possibly ask?

For this tutorial, you do not have to come up with 50 expressions but you will add 4 to each intent.

  1. Click on the @laughs intent.

  2. In the expression field, enter a sentence you want your bot to understand, then press Enter.

    Here are some examples for the laughs intent you added:

    Hahaha that's hilarious
    ROFL you're good!
    That, my friend, was an amazing joke.
    I haven't laughed that much in a long time!

  3. Do the same for the @lame intent (you’ll have to navigate to the intent by click Train tab or navigating the breadcrumb).

    Here are some examples for the lame intent:

    You have no sense of humor whatsoever.
    That's both terrible and offensive.
    What the heck was that?
    Try harder, that was a very bad joke.

Log on to answer question
Step 7: Test bot

We want to now test to see if the bot can detect when a user says something matching the intent we created.

  1. Click the fly-out tab Test on the right.

    Test panel
  2. At the bottom of the panel, enter something that you think should match the intent, like:

    Botty bot, can you tell me a joke please?


If the intent is successfully trained, the test will show that the bot recognized the intent.

Successful test

If the bot did not recognize the intent (or selected the wrong intent), you will need to train your bot some more by adding additional expressions (Step 6).

Log on to answer question
Step 8: Manage conversation flow with skills

Now that your bot knows how to understand people who talk to it, it’s time to give your robot some skills.

Open the Build tab.

Inside, you’ll find the Bot Builder, which helps you construct the conversation flow of your bot.

What is a skill?

Each skill represents one thing that your bot knows how to do. Your skill can be complicated (e.g., manage payment by credit card) or quite simple (e.g., answer a basic question).

Just like intents, you can create a skill from scratch or inherit skills from other bots you’ve created or from other people’s bots.

In our project, choose the predefined skill Greetings.

The Greetings skill – like all skills – has 4 tabs:

  • README.md: A description of the purpose of your skill

  • Triggers: The conditions that must occur – generally the intents that the user must express – for the skill to be executed

  • Requirements: Information that must be collected in order for the skill to be executed

  • Actions: The action to take (basically, this is the skill)

If you navigate through the tabs, you’ll see that the Greetings skill is structured as follows:

  • It is triggered if either the intent @greetings or @goodbye is matched.

  • It has no requirements because it does not need to collect additional information. That means that it will execute actions directly after being triggered.

  • It has two possible actions: If the @greetings intent is matched, it sends a random welcoming message chosen from a list. If the @goodbye intent is matched, it does the same thing, but picks the message from a different list.

Log on to answer question
Step 9: Create new skill

Now let’s build a skill to tell a joke.

  1. Go back to the Build tab – where you see the canvas.

  2. Click Create skill.

    There are 3 types of skills:

    • Business and Floating skills are basically the same, but enable you to label those skills that implement core actions (business) and those that are merely helper skills (floating).

    • Fallback skills trigger when no other skill has their triggers fulfilled after a user message. Most of the time, you’ll have only one of this kind, where you can remind the user what your bot can do, and ask them to rephrase.

  3. Call your skill tell-me-a-joke, set the type as Floating, and click Create Skill.

    Create skill
  4. Click the new tell-me-a-joke skill, and open the Triggers tab.

  5. Add 3 If statements, one for each of the @joke, @laugh, and @lame intents.

    • Click in the empty space right after If, select the @joke intent, and then click Save.

    Skill trigger condition
    • Click on the + sign – Add a new list of conditions – and repeat the above for @laughs and @lame intents.

    • Change the logical conditions to Or between each If statement, simply by clicking And.

    It should now look like this:

    Skill conditions result
  6. Go to the Actions tab.

  7. Click Add New Message Group, then Add Condition.

    After the If, select the @joke intent, and click Save.

  8. Click Send Message, choose the Text format, and type in a really good joke.

    You can define additional jokes, and one of the jokes from the set will be displayed randomly.

    More messages

    You can also set a delay (optional) between two messages, up to 5 seconds. This might be useful when the messages your bot sends are quite long and need time to be read by the user.

  9. Click Save.

Log on to answer question
Step 10: Test by chatting with bot

Before releasing your bot to your audience, chat with it in real situation. This will help show you how the bot will behave in a “real” conversation.

Double-check if there are any errors in the conversation flow (e.g., bad answers, fallback errors, weird behavior) and correct them before sending the bot out.

Chat with your bot as often as you can while you build it, which will make it easier to find problems.

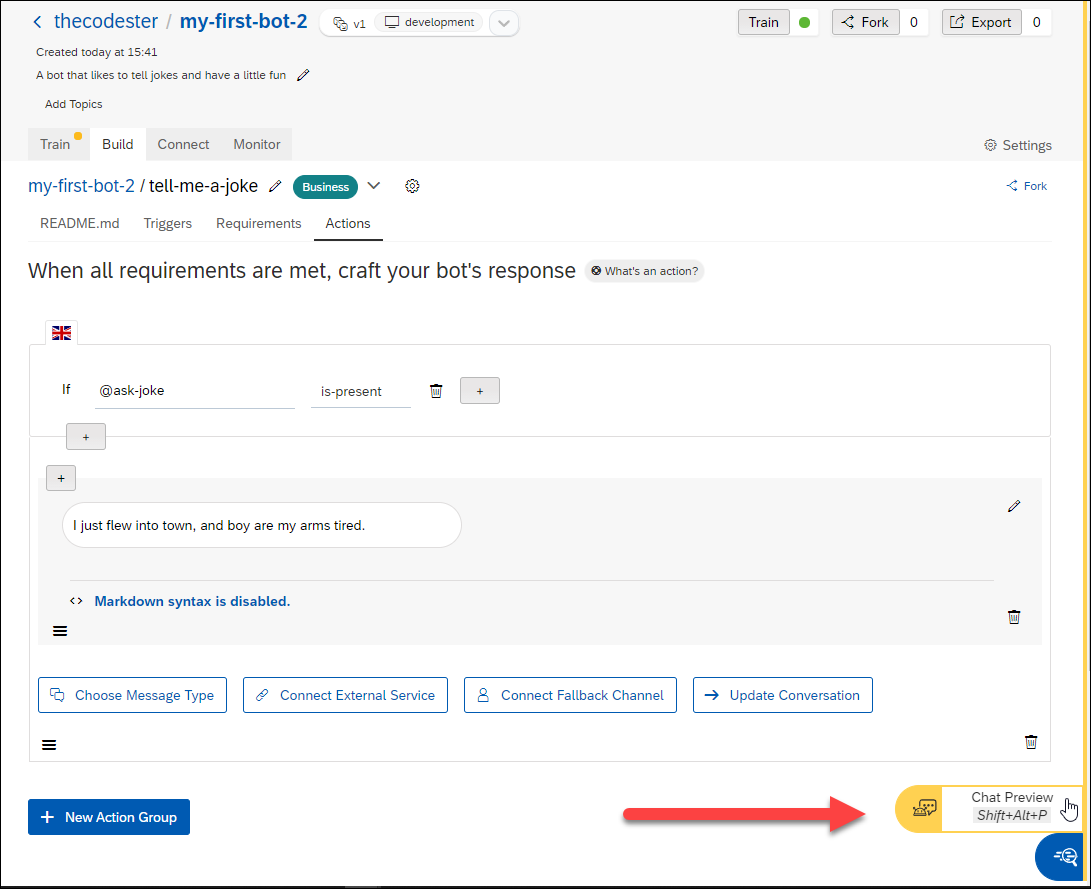

Click on the bottom-right blue button Chat with your bot and start sending messages. Use Clear (at the top of the panel) to refresh the chat.

Start chat
  • If you say Tell me a joke, the bot will tell you a joke.

  • Try other phrases and see how the bot responds. If the bot does not respond properly, then try improving your intent with additional expressions.

Log on to answer question
Step 11: Test yourself

Congratulations! You have created your first bot.

In later tutorials, you will learn how to deploy your bot and monitor it so it gets smarter and smarter.

What does an intent represent?
×
