Extend SAP S/4HANA Cloud on SAP BTP, Cloud Foundry Environment
Details

Extend SAP S/4HANA Cloud on SAP BTP, Cloud Foundry Environment

August 31, 2021
Created by
August 31, 2021
Extend SAP S/4HANA Cloud with an extension application running on SAP BTP, Cloud Foundry environment using automated integration configuration.

You will learn

  • How to extend the functionality of your SAP S/4HANA Cloud system to manage business partners
QR code

Prerequisites

  • Tools:
  • On SAP BTP side:
    • You have either an enterprise or a trial global account in SAP BTP.
    • You have an S-user or P-user (if you are using an enterprise global account), and a trial user (if you are using a trial account). See User and Member Management.
    • You are an administrator of the global account where you want to register your SAP S/4HANA Cloud system.
    • You have enabled the Cloud Foundry capabilities for your subaccount in SAP BTP.
  • On SAP S/4HANA Cloud side:
    • You have a dedicated SAP S/4HANA Cloud tenant with an Identity Authentication tenant configured. You need to use the same Identity Authentication tenant for your subaccount in SAP BTP.
    • To configure the integration on the SAP S/4HANA Cloud system side, you need a business user with the roles:
      • SAP_BR_ADMINISTRATOR that contains the Business Catalog SAP_CORE_BC_COM necessary to access and administer the SAP S/4HANA Cloud tenant.
      • SAP_BR_BPC_EXPERT to be able to maintain the event topics in the SAP S/4HANA Cloud tenant.
        You can check whether your user has the required roles via the Maintain Business Users application in your SAP S/4HANA Cloud tenant. See Maintain Business Roles.

You can extend the functionality of your SAP S/4HANA Cloud system with an extension application deployed in a subaccount in SAP Business Technology Platform (SAP BTP) and at the same time fully integrated in your SAP S/4HANA Cloud system.

In this tutorial, you use the business partner sample application for SAP S/4HANA Cloud is to learn some best practices when building SAP S/4HANA Cloud extension applications on SAP BTP. We recommend to use this sample application only as a proof of concept and a starting point for implementing extensions.

Using this application, you can:

  • View a list of all your business partners
  • Add new business partners

The following diagram shows the technical components that take part in this scenario.

Architecture Diagram


Step 1: Connect SAP S/4HANA Cloud to SAP BTP

To do that, you must register your SAP S/4HANA Cloud system in your global account in SAP BTP. During this process, an integration token is created and then used by the SAP S/4HANA Cloud system tenant administrator to configure the integration on the SAP S/4HANA Cloud system side.

  1. In the SAP BTP cockpit, navigate to your global account, and then choose System Landscape > Systems.

  2. In the Systems panel, choose Register System.

    In the <strong>Systems</strong> panel, choose <strong>Register System</strong>.
  3. In the Register System dialog box:

    • Enter a name for the system you want to register.

      Use only printable ASCII characters.

      Enter a name for the system you want to register.
    • In the Type dropdown list, select the system type.

      In the <strong>Type</strong> dropdown list, select the system type.
    • Choose Register.

      SAP BTP generates an integration token that the tenant administrator of the extended SAP S/4HANA Cloud system uses when configuring the integration between your SAP S/4HANA Cloud system and the cloud platform on the respective SAP S/4HANA Cloud system side.

  4. Copy the integration token. You need it for configuring the integration on the extended SAP S/4HANA Cloud system side.

  5. Close the dialog box.

    The SAP S/4HANA Cloud system appears in the list of registered systems. Its status is Pending because the registration process is not yet completed.

Log on to answer question
Step 2: Trigger registration in SAP S/4HANA Cloud tenant
  1. Log on to the SAP S/4HANA Cloud tenant, go to the Home > Communication Management tab page, and then choose the Maintain Extensions on SAP BTP tile.

  2. On the Maintain Extensions on SAP BTP screen, choose New in the Integrations section.

  3. In the Integration Token field, enter the content of the integration token you have copied in the SAP BTP cockpit.

    In the <strong>Integration Token</strong> input field, paste the integration token.
  4. Choose Save.

    A new entry with status Enabling appears in the table.

  5. After the integration has finished successfully, you can refresh the table.

    The status of the integration should have changed to Enabled.

  6. In the SAP BTP cockpit, check the status of the registration process. To do so, navigate to your global account, and on the Systems page, check if the status of the SAP system has changed to Registered.

    If you are already on the Systems page, refresh the page to check if the status has changed.

    You can register a system only once with the same name per global account.

    Check if the status of the SAP System has changed to <strong>Registered</strong>.
Log on to answer question
Step 3: Make SAP S/4HANA Cloud system accessible in your subaccount

You need to configure the entitlements for the subaccount where the business partner sample application for SAP S/4HANA Cloud will be deployed and assign the api-access service plan for the SAP S/4HANA Cloud Extensibility service instance to the system you registered in the previous step.

  1. In the SAP BTP cockpit, navigate to your global account.

  2. In the navigation area, choose Entitlements > Entity Assignments.

  3. Select your subaccount from the Select Entities: drop down menu, and then choose Go.

    Select your subaccount from the <strong>Select Entities:</strong> drop down menu, and then choose <strong>Go</strong>.

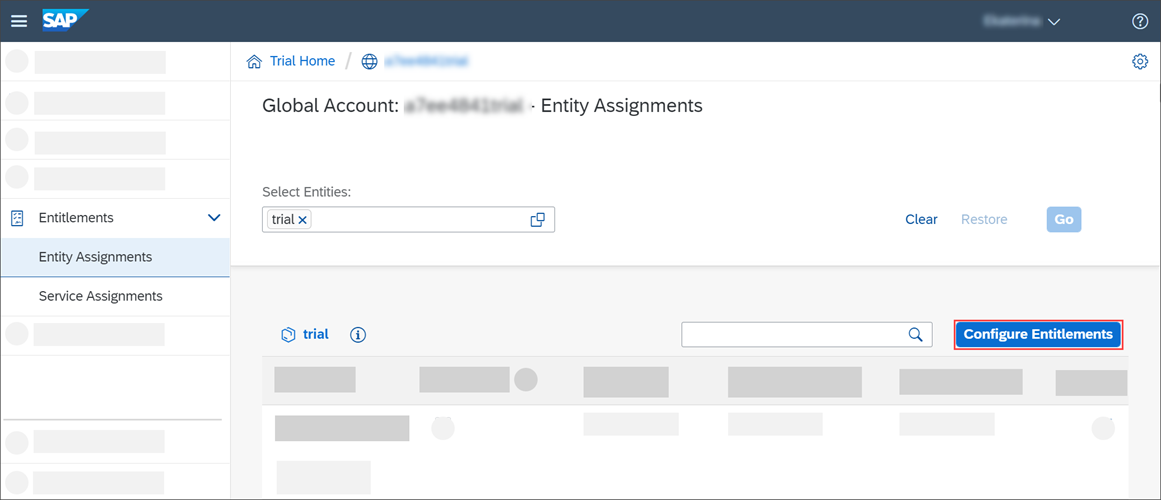

  4. Choose Configure Entitlements.

    Choose <strong>Configure Entitlements</strong>.
  5. Choose Add Service Plans, and then select the SAP S/4HANA Cloud Extensibility service.

    Choose <strong>Add Service Plans</strong>, and then select the <strong>SAP SuccessFactors Extensibility</strong> service.
  6. In the Available Service Plans area, select the system you have registered and the api-access service plan, and then choose Add Service Plan.

    Select the system you have registered and the <strong>api-access</strong> service plan, and then choose <strong>Add Service Plan</strong>.
  7. Save the changes.

Log on to answer question
Step 4: Configure entitlements for SAP BTP, Cloud Foundry runtime
  1. Make sure you are logged on to SAP BTP cockpit as a Cloud Foundry administrator.

  2. In your trial global account, choose Entitlements > Entity Assignments.

  3. If there is no entry for the Cloud Foundry runtime, choose Configure Entitlements, and then Add Service Plans.

  4. In the popup, proceed as follows:

    • Choose Cloud Foundry Runtime.

    • Under Available Service Plans, select the MEMORY checkbox.

    • Choose Add 1 Service Plan.

    Choose <strong>Cloud Foundry Runtime</strong>, select the <strong>MEMORY</strong> service plan and then choose <strong>Add 1 Service Plan</strong>.
  5. On the Entity Assignments screen, choose + on the SAP S/4HANA Cloud Extensibility service row to add at least 1 quota to the subaccount, and then choose Save.

Log on to answer question
Step 5: Clone sample application from GitHub
  1. Clone the GitHub repository:

    git clone https://github.com/SAP/business-partner-sample-app-s4hana-cloud

  2. In the root of the project, locate the s4-hana-cloud.json file, and replace the values of the following parameters:

    • systemName

    Enter the name of the system you registered in step 1.

    • communicationArrangementName

    Enter a name for the communication arrangement. The name you specify here will be the same name of the communication arrangement that is going to be automatically created in your SAP S/4HANA Cloud tenant.

  3. In the root of the project locate the vars.yml file and replace the values of the following parameters:

    • ID.

    Enter your user in SAP BTP. It is either an S-user, a P-user, or a trial user.

    • REGION_HOST.

    Enter eu10.hana.ondemand.com for the trial global account in SAP BTP. To check the <region_host>, go to the SAP BTP cockpit, navigate to the subaccount, go to Overview and copy the API endpoint from the Cloud Foundry section, and remove the https://api.cf.

  4. Open a console and navigate to the root folder of the project that is created on you local file system after cloning the GitHub repository.

    cd <root folder of the project>

  5. Build the application. To do so, use the following command:

    mvn clean install

Log on to answer question
Step 6: Create Destination service instance

To connect the business partner sample application for SAP S/4HANA Cloud to your SAP S/4HANA Cloud tenant, you use a destination. For that, you first need to create a Destination service instance using the lite service plan.

  1. In the cockpit, navigate to your subaccount, choose Service Marketplace, and on the Service Marketplace screen, search for the Destination service.

  2. From the Destination service tile, choose Create and follow the steps in the wizard to create the instance.

    From the <strong>Destination</strong> service tile, choose <strong>Create</strong>.
  3. On the Basic Info step:

    • Make sure to select the lite service plan.

    • In the Runtime Environment field, choose Cloud Foundry.

    • In the Space field, select the space you are working with.

    • In the Instance Name field, enter destination.

    Fill in the fields and choose <strong>Create</strong>.
  4. On the Parameters step, leave the JSON field empty.

  5. Choose Create.

  1. Log on to the cf CLI, using this command:

    cf login -a https://api.cf.eu10.hana.ondemand.com


    The string https://api.cf.eu10.hana.ondemand.com represents the <api_endpoint> of the trial global account in SAP BTP. To check the <api_endpoint>, open the SAP BTP cockpit, navigate to the subaccount, go to Overview and copy the API endpoint from the Cloud Foundry section.

  2. Navigate to your Org by typing in the console the number that corresponds to your Org in the list with Orgs that is displayed after you log on to cf CLI.

  3. If you have more than one space, navigate to your space, by typing in the console the number that corresponds to your space in the list with spaces.

    If you have only one space, you will be redirected to it right after you specify your Org.

  4. Create the Destination service instance, use this command:

    cf create-service destination lite destination

Log on to answer question
Step 7: Create SAP S/4HANA Cloud Extensibility service instance

To consume the SAP S/4HANA Cloud APIs, you create an SAP S/4HANA Cloud Extensibility service instance using the api-access service plan.

During the service instance creation, an HTTP destination on a subaccount level is automatically generated in this subaccount. You use this destination to establish connection to your SAP S/4HANA Cloud system. When creating the service instance, you configure the communication arrangement and the authentication type for the connection in a JSON file.

  1. In the cockpit, navigate to your subaccount, choose Service Marketplace, and on the Service Marketplace screen, search for the SAP S/4HANA Cloud Extensibility service.

  2. From the SAP S/4HANA Cloud Extensibility service tile, choose Create and follow the steps in the wizard to create the service instance.

    From the <strong>SAP S/4HANA Cloud Extensibility</strong> service tile, choose <strong>Create</strong>.
  3. On the Basic Info step:

    • Make sure to select the api-access service plan.

    • In the Runtime Environment field, choose Cloud Foundry.

    • In the Space field, select the space you are working with.

    • In the System Name field, select your registered SAP S/4HANA Cloud system.

    • In the Instance Name field, enter s4-hana-cloud.

    Select the <strong>api-access</strong> service plan and enter <strong><code>s4-hana-extensibility</code></strong> in the <strong>Instance Name</strong> field.
  4. On the Parameters step, upload the s4-hana-cloud.json file.

    The <code>s4-hana-cloud.json</code> file is preconfigured.
  5. Choose Create.

  1. Log on to the cf CLI, using this command:

    cf login -a https://api.cf.eu10.hana.ondemand.com


    The string https://api.cf.eu10.hana.ondemand.com represents the <api_endpoint> of the trial global account in SAP BTP. To check the <api_endpoint>, open the SAP BTP cockpit, navigate to the subaccount, go to Overview and copy the API endpoint from the Cloud Foundry section.

  2. Navigate to your Org by typing in the console the number that corresponds to your Org in the list with Orgs that is displayed after you log on to cf CLI.

  3. If you have more than one space, navigate to your space, by typing in the console the number that corresponds to your space in the list with spaces.

    If you have only one space, you will be redirected to it right after you specify your Org.

  4. Create the SAP SuccessFactors Extensibility service instance, use this command:

    cf create-service s4-hana-cloud api-access s4-hana-cloud -c s4-hana-cloud.json

Log on to answer question
Step 8: Create SAP Authorization & Trust Management service instance

To configure the business partner sample application for SAP S/4HANA Cloud authentication, you create an Authorization and Trust management service instance with application service plan.

  1. In the cockpit, navigate to your subaccount, choose Service Marketplace, and on the Service Marketplace screen, search for the Authorization & Trust Management service.

  2. From the Authorization & Trust Management service tile, choose Create and follow the steps in the wizard to create the service instance.

    From the <strong>Authorization & Trust Management</strong> service tile, choose <strong>Create</strong>.
  3. On the Basic Info step:

    • Make sure to select the application service plan.

    • In the Runtime Environment field, choose Cloud Foundry.

    • In the Space field, select the space you are working with.

    • In the Instance Name field, enter xsuaa.

    Select <strong>application</strong> service plan
  4. On the Parameters step, upload the xsuaa.json file located in the root folder of the s4hana-cloud-ext-business-partner project.

    Upload <code>xsuaa.json</code> file
  1. Log on to the cf CLI, using this command:

    cf login -a https://api.cf.eu10.hana.ondemand.com


    The string https://api.cf.eu10.hana.ondemand.com represents the <api_endpoint> of the trial global account in SAP BTP. To check the <api_endpoint>, open the SAP BTP cockpit, navigate to the subaccount, go to Overview and copy the API endpoint from the Cloud Foundry section.

  2. Navigate to your Org by typing in the console the number that corresponds to your Org in the list with Orgs that is displayed after you log on to cf CLI.

  3. If you have more than one space, navigate to your space, by typing in the console the number that corresponds to your space in the list with spaces.

    If you have only one space, you will be redirected to it right after you specify your Org.

  4. Create the Authorization & Trust Management service instance, use this command:

    cf create-service xsuaa application xsuaa -c xsuaa.json

Log on to answer question
Step 9: Deploy and run sample application

You use Cloud Foundry Command Line Interface (cf CLI) to deploy and run the business partner sample application for SAP S/4HANA Cloud.

  1. Log on to the cf CLI, using the following command:

    cf login -a <api_endpoint>


    For the <api_endpoint>, go to the SAP BTP cockpit, navigate to the subaccount, go to the Overview page and copy the API endpoint from the Cloud Foundry section. For example https://api.cf.eu10.hana.ondemand.com is the <api_endpoint> of the trial global account in SAP BTP.

  2. Navigate to your Org by typing in the console the number that corresponds to your Org in the list with Orgs that is displayed after you log on to cf CLI.

  3. If you have more than one space, navigate to your space, by typing in the console the number that corresponds to your space in the list with spaces.

    If you have only one space, you will be redirected to it right after you specify your Org.

  4. In the cf CLI, push the vars.yml file using the following command:

    cf push --vars-file vars.yml

Log on to answer question
Step 10: Test sample application
  1. In the SAP BTP cockpit, navigate to > Applications, and then choose the approuter-business-partners link to go to the Overview page for the application.

  2. On the approuter-business-partners - Overview page, choose the URL in the Application Routes screen area to open the application in your browser.

  3. The Business Partner Center page opens in your browser and a list of business partners is displayed.

Copy the URL in the Application Routes screen area and paste it here. Make sure to skip the "https://" prefix.
×
