Implement a Business Add-in (BAdI) To Check a Purchase Requisition
Details

Implement a Business Add-in (BAdI) To Check a Purchase Requisition

Julie Plummer
Julie Plummer
October 11, 2021
Created by
Julie Plummer
October 4, 2021
Intermediate
30 min.
ABAP Development, Intermediate, SAP BTP, ABAP environment, Tutorial
Define and implement a developer extension (BAdI), which performs checks during creation of a purchase requisition item.

You will learn

  • How to log on to SAP S/4HANA Cloud ABAP Environment
  • How to create an ABAP package
  • How to find relevant existing BAdI enhancement spots for your line of business, in this case Materials-Management-Purchasing
  • How to implement checks for the field quantity and delivery date during creation of purchase requisition item
QR code

Prerequisites

  • IMPORTANT: It is essential that you are a member of SAP Early Adopter program
  • You have a license for SAP S/4HANA Cloud and have a developer user in this system
  • You have installed SAP ABAP Development Tools (ADT), version 3.16 or later, and have created an ABAP Cloud project for your SAP S/4HANA Cloud System in it
  • You are familiar with the concept of extensions to the SAP standard and with BAdIs in particular. If not, see the More Information section at the end of this tutorial
  • To test the BAdI: In SAP Fiori launchpad, you have the authorization for the app Process Purchase Requisitions - Professional, i.e. SAP_BR_PURCHASER

Defining and implementing the enhancement: Overview

A Business Add-In (BAdI) enables you to implement enhancements to standard SAP applications with out modifying the original code.

In this case, the BAdI is implemented in the SAP Fiori app as follows:

  1. Use an existing enhancement spot MM_PUR_S4_PR, with an existing BADI definition MM_PUR_S4_PR_CHECK
  2. Create a container ( enhancement implementation ) in the enhancement spot
  3. Create a BADI implementation for the BADI definition.

At runtime:

  1. The user creates a purchase requisition.
  2. The enhancement checks:
    • the quantity of items ordered is 10 or fewer
    • the date is 180 days or less in advance
  3. If not, the application returns an error.

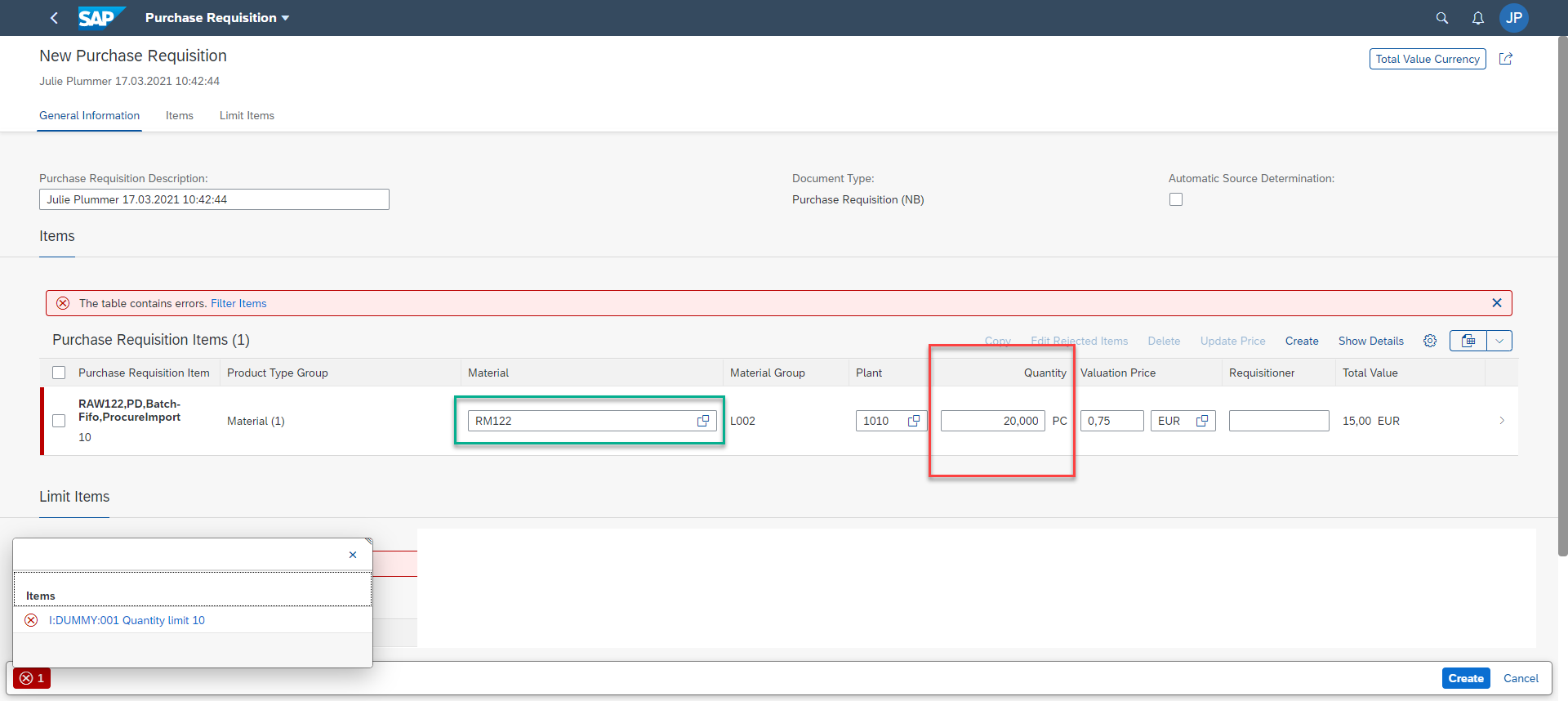

The application will look roughly like this:

step0-app-overview

.

step0-app-w-badi

Throughout this tutorial, objects name include a prefix, such as xx or suffix, such as XXX. Always replace this with your group number or initials.

Step 1: Log on to SAP S/4HANA Cloud ABAP Environment

  1. Open ADT, select File > New > Other.

    logon

  2. Search ABAP Cloud Project, select it and choose Next >.

    logon

  3. Select SAP S/4HANA Cloud ABAP Environment, enter the ABAP service instance URL and choose Next.

    logon

  4. To log on, choose Open Logon Page in Browser, then choose Next. (Alternatively, e.g. if you have an admin user and a developer user in the SAP BTP Cloud landscape, you may need to choose Copy Logon URL… .)

    logonlogon

  5. Check your ABAP service instance connection and choose Finish.

    logon

Your project is available in the Project Explorer.

logon
Done
Log on to answer question
Step 2: Create package

First, create a package for your development objects.

  1. Choose your project, then choose New > ABAP Package from the context menu.

    step1a-package-new

  2. Enter the following.

    • Zxx_MM_PUR_S4_BADI
    • BADIs for MM Purchasing

  3. Choose Add to favorite packages, then choose Next

    step1b-package-name

  4. Choose Create a new request, enter a meaningful description, e.g. Test BADIs MM-PURCHASING then choose Finish.

Done
Log on to answer question
Step 3: Choose enhancement spot

  1. First make sure that the released APIs are displayed by application component: In your project, navigate to Released Objects.The tree should show the Released Objects sorted by Application Component.

    step2b-released-objects

  2. If not, choose Configure Tree from the context menu, then select Application Component from the left side ( Available Tree Levels ) and add it to the right side ( Selected Tree Levels ). Move it to the top. Then choose Finish.

    step2a-tree-configure

    .
    step2b-application-component-add

  3. In the tree, drill down to MM-PUR-REQ > Enhancements > Enhancement Spots > MM_PUR_S4_PR and open it by double-clicking.

    step2c-enhancement-spot-choose

The BAdI enhancement spot appears in a new editor, showing you the available BAdI definitions (1).

To help you create your own enhancements, example classes are provided (2).

step2d-enhancement-spot-editor
Done
Log on to answer question
Step 4: Create enhancement implementation

Now that you have identified the correct enhancement spot, you need a container within this enhancement spot for your BADI implementations. This is known as an enhancement implementation.

  1. Select your package Zxx_MM_PUR_S4_BADI and choose New > Other ABAP Object from the context menu.

    step3a-badi-implem-create

  2. Filter by BAdI, choose BAdI Enhancement Implementation, then choose Next.

  3. Add the following and choose Next.

    • Name: Zxx_BADI_CHECK_PURCH_REQ
    • Description: Check date and quantity in Purchase Requisition
    • Enhancement Spot: MM_PUR_S4_PR
    step3b-badi-enhancement-implem

  4. Choose the transport request, then choose Finish.

Your BAdI enhancement implementation appears in a new editor. It implements the enhancement spot MM_PUR_S4_PR.

step3c-BAdi-enh-impl-editor
Done
Log on to answer question
Step 5: Add `BAdI` Implementation

  1. Choose Add BAdI.

    step4a-badi-enh-implem-add

  2. Add the following, then choose Next:

    • BAdI Definition: MM_PUR_S4_PR_CHECK (Add by clicking on Browse)
    • BAdI Implementation Name: ZXX_IMPL_CHECK_PURCH_REQ
    step5b-badi-input-values

Ignore the error. You will fix this in the next step.

Done
Log on to answer question
Step 6: Create implementing class

  1. Choose Implementing Class.

    step5a-implementing-class-create

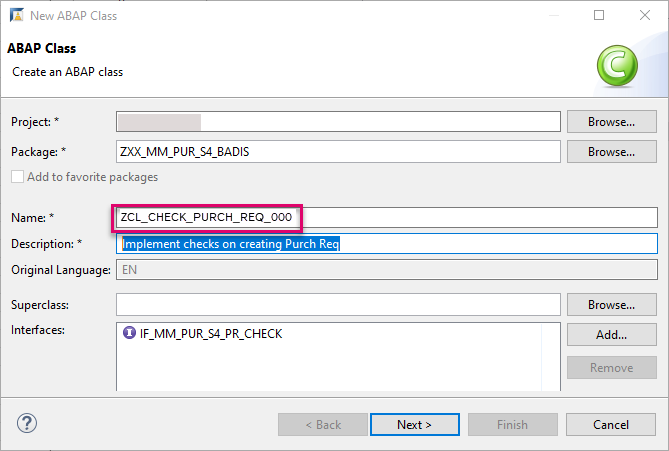

  2. Add the following, then choose Next.

    • Name: ZCL_CHECK_PURCH_REQ_XXX
    • Description: Implement checks on creating Purchase Requisition
    • (Added automatically): Interfaces: IF_MM_PUR_S4_PR_CHECK
    step5b-implementing-class-name

  3. Choose the transport request, then choose Finish.

    The class appears in a new editor with skeleton code.

    step5c-class-editor

  4. Format, save, and activate the class ( Shift+F1, Ctrl+S, Ctrl+F3 ).

  5. Go back to your BAdI implementation ZXX_IMPL_CHECK_PURCH_REQ and activate it too.

The error will disappear.

Done
Log on to answer question
Step 7: Implement code
View Full Instructions

  1. Add the following code to the method implementation if_mm_pur_s4_pr_check~check..

    DATA ls_message TYPE mmpur_s_messages.
**
READ TABLE  purchaserequisitionitem_table  INTO DATA(ls_pur_req_itm) INDEX 1    .

IF ls_pur_req_itm-orderedquantity > 10.
  ls_message-messageid = 'DUMMY'.
  ls_message-messagetype = 'E'.
  ls_message-messagenumber = '001'.
  ls_message-messagevariable1 = ' Quantity limit 10'.           "Place holder
  APPEND ls_message TO messages.

ENDIF.

IF ls_pur_req_itm-deliverydate - ( cl_abap_context_info=>get_system_date( ) ) > 180.
  ls_message-messageid = 'DUMMY'.
  ls_message-messagetype = 'E'.
  ls_message-messagenumber = '001'.
  ls_message-messagevariable1 = 'Delivery date limit 180 days '.           "Place holder
  APPEND ls_message TO messages.

ENDIF.

  2. Format, save, and activate ( Shift+F1, Ctrl+S, Ctrl+F3 ) your code.

Check that yours is the implementation that will be called:

step5d-impl-called
Done
Log on to answer question
Step 8: Test BAdI

Now test that the checks are performed in the app.

  1. In SAP Fiori launchpad, open the app Process Purchase Requisitions (Professional).

    step7a-app-open

  2. Display the existing purchase requisitions by choosing Go, then choose Create.

    step7b-go

  3. In the next screen, choose Create again, then choose Material.

    step7c-create-material

  4. The Details screen appears. From the Material field, choose Value Help.

  5. Then choose the material RM122, Plant 1010.

    step7e-material-rm122-choose

  6. The system fills some fields with default values. Now enter a wrong quantity, e.g. 20, and date, e.g. 09.11.2021.

    step7f-wrong-date-and-quantity

  7. The system shows you 2 errors. To display the errors, select the red box at the bottom left.

    step7g-errors

  8. Enter correct values, choose Apply, then choose Save.

Your new order appears in the Overview List.
.

step7h-new-order
Done
Log on to answer question
Step 9: Test yourself
What is a BAdI enhancement implementation?
×
