SAP HANA XS Advanced, Creating a SAPUI5 user interface to consume XSJS and oData services
You will learn

In this tutorial, you will create a SAPUI5 user interface, including the view and their controllers, to call xsjs and OData services. Be sure to have completed SAP HANA XS Advanced - Consume the OData service in a basic HTML5 module as this tutorial adds the SAPUI5 service to the project and properly wires it into the web module. With this step done we can focus on creating new SAPUI5 interfaces which leverage this work.

jung-thomasThomas JungJanuary 5, 2021
Created by
ccmehil
September 6, 2016
Contributors
jung-thomas
ccmehil

Prerequisites

  • Step 1

    Return to your web module and create a new folder named resources/odataView with an HTML file called index.html

    new file

    Here is the complete coding for the new page.

    HTML
    Copy
    <!DOCTYPE html>
    <html>
    <head>
    	<meta http-equiv="X-UA-Compatible" content="IE=edge" />
    	<meta http-equiv="Content-Type" content="text/html;charset=UTF-8"/>
    	<meta name="viewport" content="width=device-width, initial-scale=1.0" />
       	<link type="image/x-icon" href="/images/favicon.ico" rel="shortcut icon">
        <link type="image/x-icon" href="/images/favicon.ico" rel="icon">
    	<!-- <script id="sap-ui-bootstrap" src="https://sapui5.hana.ondemand.com/resources/sap-ui-core.js" -->
    	<script id="sap-ui-bootstrap" src="{{{sapui5_sb.url}}}/resources/sap-ui-core.js"
    		data-sap-ui-theme="sap_belize_plus"
    		data-sap-ui-xx-bindingSyntax="complex"
    		data-sap-ui-compatVersion="edge"
    		data-sap-ui-preload="async"
    		data-sap-ui-language="en"
    		data-sap-ui-oninit="module:common/index"
    		data-sap-ui-resourceroots='{
            		"common": "../common",
    				"root": "./",
    				"opensap.odataTest": "./"}'
    		data-sap-ui-frameOptions="trusted">
    	</script>
    	<script type="text/javascript" src="/common/error.js" ></script>
    </head>

    <!-- UI Content -->
    <body class="sapUiBody" id="content">
    </body>
    </html>

  • Step 2

    There are three utility JavaScript libraries you reference in this HTML page:
    - common/csrf.js for the handling of CSRF tokens
    - common/error.js for producing error messages
    - common/index.js for bootstrapping the shell

    Create a common folder in resources and add these three files.

    new files

    Here is the coding of csrf.js :

    JavaScript
    Copy
    /*eslint no-console: 0, no-unused-vars: 0, no-use-before-define: 0, no-redeclare: 0*/
    $.ajaxSetup({
    	    beforeSend: function(xhr,settings) {
    	      if (settings && settings.hasOwnProperty("type")
    	          && settings.type !== "GET"){
    	    	  var token = getCSRFToken();
    	        xhr.setRequestHeader("X-CSRF-Token", token);
    	      }
    	    },
    	    complete: function(xhr,textStatus) {
    	        var loginPage = xhr.getResponseHeader("x-sap-login-page");
    	        if (loginPage) {
    	            location.href = loginPage + "?x-sap-origin-location=" + encodeURIComponent(window.location.pathname);
    	        }
    	    }
    	});

    	function getCSRFToken() {
    	    var token = null;
    	    $.ajax({
    	        url: "/xsjs/csrf.xsjs",
    	        type: "GET",
    	        async: false,
    	        beforeSend: function(xhr) {
    	            xhr.setRequestHeader("X-CSRF-Token", "Fetch");
    	        },
    	        complete: function(xhr) {
    	            token = xhr.getResponseHeader("X-CSRF-Token");
    	        }
    	    });
    	    return token;
    	}



    And here is the code for error.js:

    JavaScript
    Copy
    /*eslint no-console: 0, no-unused-vars: 0, no-use-before-define: 0, no-redeclare: 0*/
    /*eslint-env es6 */
    function onErrorCall(jqXHR, textStatus, errorThrown) {
    	sap.ui.require(["sap/ui/core/Core", "sap/m/MessageBox"], function (Core, MessageBox) {
    		if (typeof jqXHR.status === "undefined") {
    			var errorRes = JSON.parse(jqXHR.response.body);
    			MessageBox.show(
    				errorRes.error.innererror.errordetail.DETAIL, {
    					icon: MessageBox.Icon.ERROR,
    					title: "Service Call Error",
    					actions: [MessageBox.Action.OK],
    					styleClass: "sapUiSizeCompact"
    				});
    		} else {
    			if (jqXHR.status === 500 || jqXHR.status === 400) {
    				MessageBox.show(jqXHR.responseText, {
    					icon: MessageBox.Icon.ERROR,
    					title: "Service Call Error",
    					actions: [MessageBox.Action.OK],
    					styleClass: "sapUiSizeCompact"
    				});
    				return;
    			} else {
    				MessageBox.show(jqXHR.statusText, {
    					icon: MessageBox.Icon.ERROR,
    					title: "Service Call Error",
    					actions: [MessageBox.Action.OK],
    					styleClass: "sapUiSizeCompact"
    				});
    				return;
    			}
    		}
    	});
    }

    function onODataError(oError) {
    	sap.ui.require(["sap/m/MessageBox"], (MessageBox) => {
    		if (oError.statusCode === 500 || oError.statusCode === 400 || oError.statusCode === "500" || oError.statusCode === "400") {
    			var errorRes = JSON.parse(oError.responseText);
    			if (!errorRes.error.innererror) {
    				MessageBox.alert(errorRes.error.message.value);
    			} else {
    				if (!errorRes.error.innererror.message) {
    					MessageBox.alert(errorRes.error.innererror.toString());
    				} else {
    					MessageBox.alert(errorRes.error.innererror.message);
    				}
    			}
    			return;
    		} else {
    			MessageBox.alert(oError.response.statusText);
    			return;
    		}
    	});
    }

    function oDataFailed(oControlEvent) {
    	sap.ui.require(["sap/m/MessageBox"], (MessageBox) => {
    		MessageBox.show("Bad Entity Definition", {
    			icon: MessageBox.Icon.ERROR,
    			title: "OData Service Call Error",
    			actions: [MessageBox.Action.OK],
    			styleClass: "sapUiSizeCompact"
    		});
    	});

    	return;
    }



    Finally check that your common folder also has a file named index.js. You likely created this in a previous tutorial. If not, please create it now with the following content:

    JavaScript
    Copy
    /*eslint no-console: 0, no-unused-vars: 0, no-use-before-define: 0, no-redeclare: 0, no-shadow:0*/
    /*eslint-env es6 */
    sap.ui.require(["sap/ui/core/Core", "sap/ui/core/Component"], (oCore, Component) => {

    	function onLoadSession(myJSON) {
    		try {
    			var result = JSON.parse(myJSON);
    			if (result.session.length > 0) {
    				if (result.session[0].familyName !== "") {
    					return result.session[0].givenName + " " + result.session[0].familyName;
    				} else {
    					return result.session[0].UserName;
    				}
    			}
    		} catch (e) {
    			return "";
    		}
    		return "";
    	}

    	function getSessionInfo() {
    		var aUrl = "/node/getSessionInfo";

    		return onLoadSession(
    			jQuery.ajax({
    				url: aUrl,
    				method: "GET",
    				dataType: "json",
    				async: false
    			}).responseText);
    	}

    	Component.create({
    		id: "comp",
    		name: "root",
    		manifestFirst: true,
    		async: true
    	}).then((oComp) => {
    		sap.ui.require(["sap/ui/core/ComponentContainer"], (ComponentContainer) => {
    			let oCont = new ComponentContainer({
    				component: oComp,
    				height: "100%"
    			});

    			let username = "Test User";
    			oCore.loadLibrary("sap.ui.unified", {
    				async: true
    			}).then(() => {
    				let oShell = new sap.ui.unified.Shell({
    					id: "myShell",
    					icon: "/images/sap_18.png",
    					headEndItems: new sap.ui.unified.ShellHeadItem({
    						icon: "sap-icon://log",
    						tooltip: "Logoff",
    						press: () => {
    							window.location.href = "/my/logout";
    						}
    					}),
    					user: new sap.ui.unified.ShellHeadUserItem({
    						image: "sap-icon://person-placeholder",
    						username: username
    					}),
    					content: oCont
    				}).placeAt("content");
    			});
    		});
    	});

    });

  • Step 3

    You also reference some images in this HTML page. They aren’t critical, but if you want you can create an images folder inside resources and then upload these images from our GIT repository:

    1. SAP icon

    2. SAP logo

    new images
  • Step 4

    Next you need to create your Component.js file in the folder web/resources/odataView. Here is the coding of this file:

    JavaScript
    Copy
    /*eslint no-console: 0, no-unused-vars: 0, no-use-before-define: 0, no-redeclare: 0*/
    sap.ui.define([
    	"sap/ui/core/UIComponent",
    	"sap/ui/Device",
    	"opensap/odataTest/model/models"
    ], function(UIComponent, Device, models) {
    	"use strict";

    	return UIComponent.extend("opensap.odataTest.Component", {

    		metadata: {
    			manifest: "json"
    		},

    		init: function() {
    			this.setModel(models.createDeviceModel(), "device");

    			sap.ui.core.UIComponent.prototype.init.apply(
    				this, arguments);
    		},

    		destroy: function() {
    			// call the base component's destroy function
    			UIComponent.prototype.destroy.apply(this, arguments);
    		}
    	});
    });



    Here you initialize the SAPUI5 component and in doing so you create an instance of the JSON configuration model. You also load your first view which you will create in the next step.

  • Step 5

    This file works as an application descriptor. This file provides metadata about the application, such as libraries and other technical details. It also sets the initial view details as well as creates the JSON and OData models.

    JSON
    Copy
    {
    	"_version": "1.4.0",
    	"start_url": "index.html",
    	"sap.app": {
    		"_version": "1.4.0",
    		"type": "application",
    		"resources": "resources.json",
    		"i18n": "i18n/i18n.properties",
    		"id": "odataView",
    		"title": "{{appTitle}}",
    		"description": "{{appDescription}}",
    		"applicationVersion": {
    			"version": "${project.version}"
    		}
    	},
    	"sap.fiori": {
    		"_version": "2.0.0",
    		"registrationIds": [],
    		"archeType": "transactional"
    	},
    	"sap.ui": {
    		"_version": "1.60.0",
    		"technology": "UI5",
    		"icons": {
    			"icon": "./images/favicon.ico",
    			"favIcon": "./images/favicon.ico"
    		},
    		"deviceTypes": {
    			"desktop": true,
    			"tablet": true,
    			"phone": true
    		},
    		"supportedThemes": [
    			"sap_belize",
    			"sap_belize_plus"
    		]
    	},
    	"sap.ui5": {
    		"config": {
    			"sapFiori2Adaptation": true
    		},
    		"rootView": {
    			"viewName": "opensap.odataTest.view.App",
    			"type": "XML",
    			"id": "app",
    			"async": true
    		},
    		"dependencies": {
    			"minUI5Version": "1.60.0",
    			"libs": {
    				"sap.ui.core": {
    					"minVersion": "1.60.0"
    				},
    				"sap.ui.comp": {
    					"minVersion": "1.60.0"
    				},
    				"sap.m": {
    					"minVersion": "1.60.0"
    				},
    				"sap.ui.layout": {
    					"minVersion": "1.60.0"
    				}
    			}
    		},
    		"contentDensities": {
    			"compact": true,
    			"cozy": true
    		},
    		"handleValidation": true,
    		"models": {
    			"": {
    				"type": "sap.ui.model.json.JSONModel",
    				"settings": {
    					"defaultBindingMode": "TwoWay"
    				}
    			},
    			"config": {
    				"type": "sap.ui.model.json.JSONModel"
    			},
    			"i18n": {
    				"type": "sap.ui.model.resource.ResourceModel",
    				"settings": {
    					"bundleUrl": "./i18n/i18n.properties"
    				}
    			}
    		}

    	}
    }


    You can see the reference to this file in the Component.js file. This allows us to separate out a lot of the configuration of our application into a separate manifest.json file (as most modern Fiori based UI5 applications are designed).

  • Step 6

    Create a folder called view inside odataView. This is where you will hold all of your views and controllers. Create the root view named App.view.xml.

    create XML view

    Here is the complete coding of the App.view.xml file. It creates the shell control and the overall flow of your page, but then defers the design of the header and table areas to an XML fragment we will create next.

    xml
    Copy
    <mvc:View xmlns="sap.m" xmlns:mvc="sap.ui.core.mvc" xmlns:core="sap.ui.core" controllerName="opensap.odataTest.controller.App"
    	class="sapUiSizeCompact" height="100%">
    	<Page id="mPage" title="{i18n>appTitle}" titleLevel="H1">
    		<content>
    			<IconTabBar id="iBar" class="iconTabBarPaddingTop" upperCase="true" expanded="true">
    				<items>
    					<IconTabFilter id="tabFilter1" text="{i18n>H1}">
    						<core:Fragment fragmentName="opensap.odataTest.view.MRead" type="XML"/>
    					</IconTabFilter>
    				</items>
    			</IconTabBar>
    		</content>
    	</Page>
    </mvc:View>

  • Step 7

    Create a file named MRead.fragment.xml in the view folder. Here is the complete coding of this file.
    Here you build a panel with your input fields. These fields will allow you to control settings for calling your XSODATA service. You will then have a table control for your purchase order header and another for your purchase order items. The rendering of these two sections are further separated out into two JavaScript based fragments.

    xml
    Copy
    <core:FragmentDefinition xmlns:core="sap.ui.core" xmlns="sap.m">
    	<Panel id="panelMRead" expandable="true" expanded="true" headerText="{i18n>P1}">
    		<List id="listMRead" width="100%">
    			<InputListItem id="itmPath" label="{i18n>L1}">
    				<Input id="mPath" value="{/mPath}"/>
    			</InputListItem>
    			<InputListItem id="itmEntity1" label="{i18n>L2}">
    				<Input id="mEntity1" value="{/mEntity1}"/>
    			</InputListItem>
    			<InputListItem id="itmEntity2" label="{i18n>L3}">
    				<Input id="mEntity2" value="{/mEntity2}"/>
    			</InputListItem>
    		</List>
    		<Button id="btnCallMulti" press="callMultiService" text="{i18n>B1}"/>
    		<Button id="btnExcel" press="callExcel" text="{i18n>B2}"/>
    	</Panel>
    	<core:Fragment fragmentName="opensap.odataTest.view.MTableHead" type="XML"/>
    	<core:Fragment fragmentName="opensap.odataTest.view.MTableItem" type="XML"/>
    </core:FragmentDefinition>


    Create another file called MTableHead.fragment.xml with the following content:

    xml
    Copy
    <core:FragmentDefinition xmlns:core="sap.ui.core" xmlns="sap.m" xmlns:smartTable="sap.ui.comp.smarttable">
    	<VBox id="vboxHead" fitContainer="true">
    		<smartTable:SmartTable id="tblPOHeader" tableType="Table" header="{i18n>POHeader}" showRowCount="true" enableAutoBinding="true"
    			showFullScreenButton="true"></smartTable:SmartTable>
    	</VBox>
    </core:FragmentDefinition>


    And one last fragment called MTableItem.fragment.xml with the following content:

    xml
    Copy
    <core:FragmentDefinition xmlns:core="sap.ui.core" xmlns="sap.m" xmlns:smartTable="sap.ui.comp.smarttable">
    	<smartTable:SmartTable id="tblPOItem" tableType="Table" header="{i18n>POItem}" showRowCount="true" enableAutoBinding="true"
    		showFullScreenButton="true"/>
    </core:FragmentDefinition>


  • Step 8

    Create a file named App.controller.js in a new folder called controller. This file contains all the event handlers for our application. The first event, called onInit is triggered automatically when the page starts up. Some of the initial values are set here.

    Take a look at the comments inside the code to learn what each of the events does.

    JavaScript
    Copy
    /*eslint no-console: 0, no-unused-vars: 0, no-use-before-define: 0, no-redeclare: 0, no-undef: 0*/
    /*eslint-env es6 */
    //To use a javascript controller its name must end with .controller.js
    sap.ui.define([
    	"opensap/odataTest/controller/BaseController",
    	"sap/ui/model/json/JSONModel"
    ], function(BaseController, JSONModel) {
    	"use strict";

    	return BaseController.extend("opensap.odataTest.controller.App", {

    		onInit: function() {

    			var oConfig = this.getOwnerComponent().getModel("config");
    			var userName = oConfig.getProperty("/UserName");

    			var urlMulti = "/xsodata/purchaseOrder.xsodata";
    			this.getOwnerComponent().getModel().setProperty("/mPath", urlMulti);
    			this.getOwnerComponent().getModel().setProperty("/mEntity1", "POHeader");
    			this.getOwnerComponent().getModel().setProperty("/mEntity2", "POItem");

    		},
    		callMultiService: function() {
    			var oTable = this.getView().byId("tblPOHeader");
    			var oTableItem = this.getView().byId("tblPOItem");

    			var mPath = this.getOwnerComponent().getModel().getProperty("/mPath");
    			var mEntity1 = this.getOwnerComponent().getModel().getProperty("/mEntity1");
    			var mEntity2 = this.getOwnerComponent().getModel().getProperty("/mEntity2");

    			var oParams = {};
    			oParams.json = true;
    			oParams.useBatch = true;
    			var oModel = new sap.ui.model.odata.v2.ODataModel(mPath, oParams);
    			oModel.attachEvent("requestFailed", oDataFailed);

    			function fnLoadMetadata() {
    				oTable.setModel(oModel);
    				oTable.setEntitySet(mEntity1);
    				oTableItem.setModel(oModel);
    				oTableItem.setEntitySet(mEntity2);
    				var oMeta = oModel.getServiceMetadata();
    				var headerFields = "";
    				var itemFields = "";
    				for (var i = 0; i < oMeta.dataServices.schema[0].entityType[0].property.length; i++) {
    					var property = oMeta.dataServices.schema[0].entityType[0].property[i];
    					headerFields +=  property.name + ",";
    				}

    				for (var i = 0; i < oMeta.dataServices.schema[0].entityType[1].property.length; i++) {
    						var property = oMeta.dataServices.schema[0].entityType[1].property[i];
    						itemFields +=  property.name + ",";
    				}
    				oTable.setInitiallyVisibleFields(headerFields);
    				oTableItem.setInitiallyVisibleFields(itemFields);
    			}

    			oModel.attachMetadataLoaded(oModel, function() {
    				fnLoadMetadata();
    			});

    			oModel.attachMetadataFailed(oModel, function() {
    				oDataFailed();
    			});
    		},
    		callExcel: function(oEvent) {
    			//Excel Download
    			window.open("/node/excel/download/");
    			return;
    		}
    	});
    });

  • Step 9

    Create a reusable controller for further tutorials. Create a file called BaseController.js in the controller folder with the following code:

    JavaScript
    Copy
    /*global history */
    sap.ui.define([
    		"sap/ui/core/mvc/Controller",
    		"sap/ui/core/routing/History"
    	], function (Controller, History) {
    		"use strict";

    		return Controller.extend("opensap.odataTest.controller.BaseController", {
    			/**
    			 * Convenience method for accessing the router in every controller of the application.
    			 * @public
    			 * @returns {sap.ui.core.routing.Router} the router for this component
    			 */
    			getRouter : function () {
    				return this.getOwnerComponent().getRouter();
    			},

    			/**
    			 * Convenience method for getting the view model by name in every controller of the application.
    			 * @public
    			 * @param {string} sName the model name
    			 * @returns {sap.ui.model.Model} the model instance
    			 */
    			getModel : function (sName) {
    				return this.getView().getModel(sName);
    			},

    			/**
    			 * Convenience method for setting the view model in every controller of the application.
    			 * @public
    			 * @param {sap.ui.model.Model} oModel the model instance
    			 * @param {string} sName the model name
    			 * @returns {sap.ui.mvc.View} the view instance
    			 */
    			setModel : function (oModel, sName) {
    				return this.getView().setModel(oModel, sName);
    			},

    			/**
    			 * Convenience method for getting the resource bundle.
    			 * @public
    			 * @returns {sap.ui.model.resource.ResourceModel} the resourceModel of the component
    			 */
    			getResourceBundle : function () {
    				return this.getOwnerComponent().getModel("i18n").getResourceBundle();
    			},

    			/**
    			 * Event handler for navigating back.
    			 * It there is a history entry we go one step back in the browser history
    			 * If not, it will replace the current entry of the browser history with the master route.
    			 * @public
    			 */
    			onNavBack : function() {
    				var sPreviousHash = History.getInstance().getPreviousHash();

    					if (sPreviousHash !== undefined) {
    					history.go(-1);
    				} else {
    					this.getRouter().navTo("master", {}, true);
    				}
    			}

    		});

    	}
    );

  • Step 10

    We can also have reusable functions like formatters, sorters, and grouping functions. We have prepared these model support tools for you. You can download the model.zip file from Github here: https://github.com/SAP-samples/hana-xsa-opensap-hana7/raw/snippets_2.4.0/ex4/model.zip.

    Please import this file into the odataView/model folder.

    import model helpers
    import model helpers
  • Step 11

    We want to put our text strings into a text bundle. Create a folder inside odataView named i18n and then a file named i18n_en.properties.

    Add the following text strings to this i18n_en.properties file:

    properties
    Copy
    # This is the resource bundle for OData View Exercise
    # __ldi.translation.uuid=1aadca5c-73bb-4086-ae70-98149af3cde1

    #XTIT: Application name
    appTitle=Workshop OData Test

    #YDES: Application description
    appDescription=Workshop OData Test

    H1=Multi-Entity Read
    P1=Multi-Entity Service Selection
    L1=Service Path
    L2=Header Entity Name
    L3=Item Entity Name
    B1=Execute Service
    B2=Download Excel
    POHeader=PO Header Data
    POItem=PO Item Data
    #~~~ Not Found View ~~~~~~~~~~~~~~~~~~~~~~~

    #XTIT: Not found view title
    notFoundTitle=Not Found

    #YMSG: The not found text is displayed when there was an error loading the resource (404 error)
    notFoundText=The requested resource was not found

    #~~~ Error Handling ~~~~~~~~~~~~~~~~~~~~~~~

    #YMSG: Error dialog description
    errorText=Sorry, a technical error occurred! Please try again later.

  • Step 12

    So now run the web module. It will need to rebuild and redeploy all the newly added artifacts.

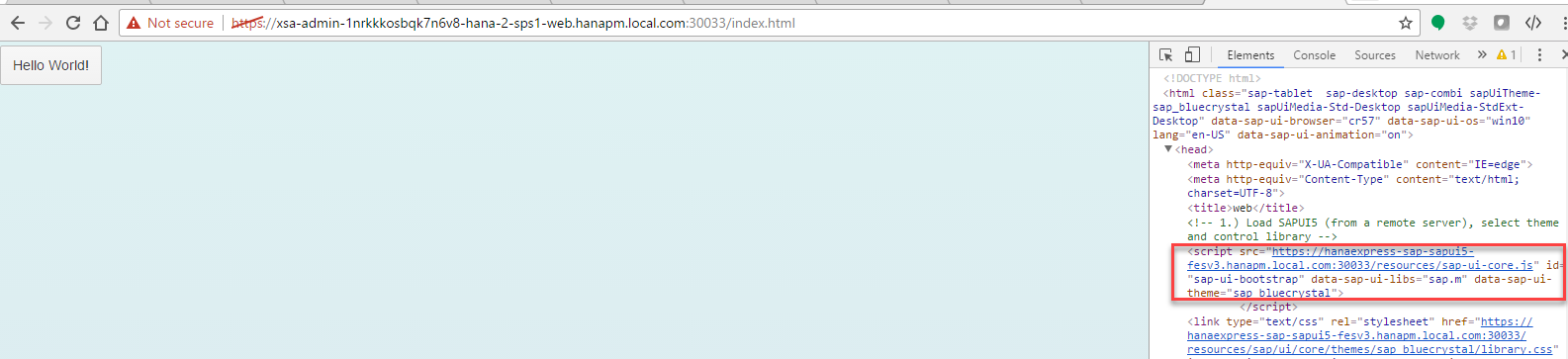

    In the running tab, you should see the index.html from earlier. Adjust the URL and add /odataView.

    Test the Execute Service button

    results
Back to top
