Consume an OData Service with Create Option

Consume an OData Service with Create Option
You will learn
  • How to consume an OData service with create option
jung-thomasThomas JungJanuary 5, 2021
Created by
ccmehil
September 6, 2016
Contributors
jung-thomas
ccmehil

Prerequisites

  • Step 1

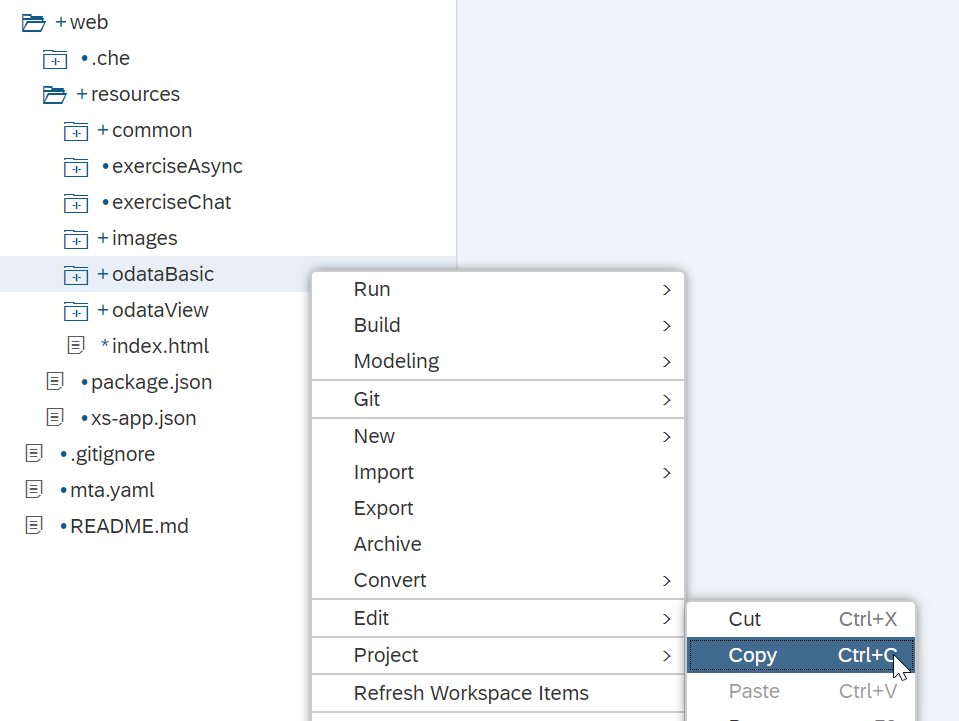

    You will begin by making a copy of the previous exercise.

    copy

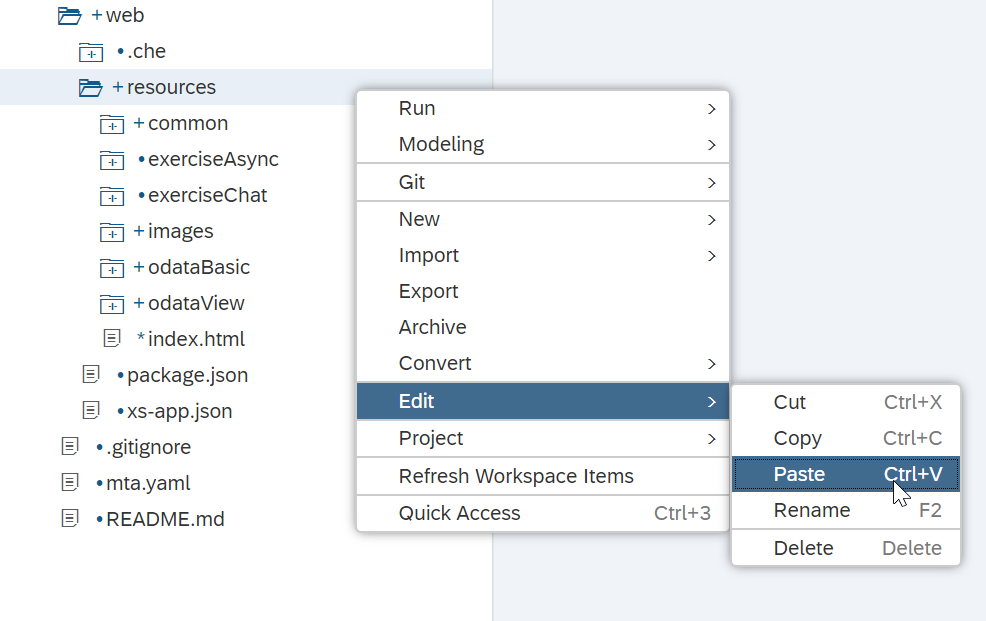

    Right-click on the resources folder. Choose Paste.

    paste

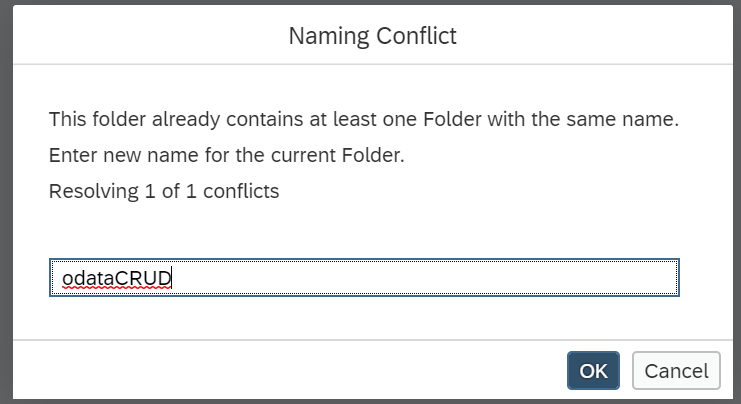

    In the copy folder dialog, give the new Name as odataCRUD.

    copy folder
  • Step 2

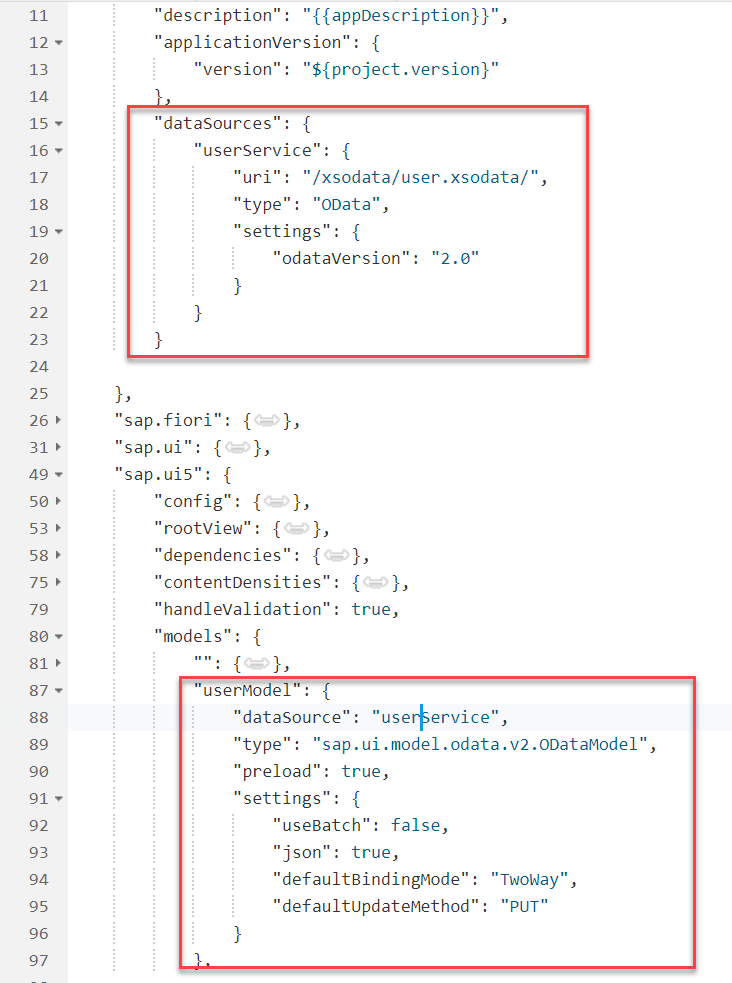

    Go into the manifest.json file and switch the service to the existing user.xsodata service. Also adjust the name of the datasource in the model configuration:

    Adjust manifest
  • Step 3

    Use the following code to replace the existing code for your XML view:

    XML
    Copy
    <mvc:View xmlns="sap.m" xmlns:mvc="sap.ui.core.mvc" xmlns:core="sap.ui.core"
    	xmlns:smartTable="sap.ui.comp.smarttable" controllerName="opensap.odataBasic.controller.App" height="100%">
    	<Page id="mPage" title="{i18n>appTitle}" titleLevel="H1">
    		<content>
    			<ScrollContainer id="sc1" height="100%" width="100%" horizontal="true" vertical="true">
    				<Panel id="panel" headerText="New User Record Details" expandable="true" expanded="true">
    					<List id="list" width="400px">
    						<InputListItem id="itmFName" label="{i18n>FName}">
    							<Input id="fName" value="{/FirstName}"/>
    						</InputListItem>
    						<InputListItem id="itmLName" label="{i18n>LName}">
    							<Input id="lName" value="{/LastName}"/>
    						</InputListItem>
    						<InputListItem id="itmEmail" label="{i18n>EMail}">
    							<Input id="email" value="{/Email}"/>
    						</InputListItem>
    					</List>
    					<Button id="btnCall" text="{i18n>B3}" press="callUserService"/>
    					<Button id="btnUpdate" text="{i18n>B4}" press="callUserUpdate"/>
    				</Panel>
    				<VBox fitContainer="true">
    					<smartTable:SmartTable id="userTable" header="{i18n>UList}" editable="false" entitySet="Users" showRowCount="true" enableAutoBinding="true"
    						showFullScreenButton="true" tableType="Table">
    						<Table>
    							<columns>
    								<Column id="UserId">
    									<customData>
    										<core:CustomData key="p13nData" value='\{"columnKey": "UserId", "leadingProperty": "UserId", "sortProperty": "UserId", "columnIndex":"1"}'/>
    									</customData>
    									<Text text="{i18n>UserId}"/>
    								</Column>
    								<Column id="FirstName">
    									<customData>
    										<core:CustomData key="p13nData" value='\{"columnKey": "FirstName", "leadingProperty": "FirstName", "maxLength": "40","columnIndex":"2"}'/>
    									</customData>
    									<Text text="{i18n>FName}"/>
    								</Column>
    								<Column id="LastName">
    									<customData>
    										<core:CustomData key="p13nData" value='\{"columnKey": "LastName", "leadingProperty": "LastName", "maxLength": "40","columnIndex":"3"}'/>
    									</customData>
    									<Text text="{i18n>LName}"/>
    								</Column>
    								<Column id="Email">
    									<customData>
    										<core:CustomData key="p13nData" value='\{"columnKey": "Email", "leadingProperty": "Email", "maxLength": "40","columnIndex":"4"}'/>
    									</customData>
    									<Text text="{i18n>EMail}"/>
    								</Column>
    							</columns>
    							<items>
    								<ColumnListItem>
    									<cells>
    										<Input value="{UserId}" name="PERS_NO"/>
    										<Input value="{FirstName}" name="FIRSTNAME"/>
    										<Input value="{LastName}" name="LASTNAME"/>
    										<Input value="{Email}" name="E_MAIL"/>
    									</cells>
    								</ColumnListItem>
    							</items>
    						</Table>
    					</smartTable:SmartTable>
    				</VBox>
    			</ScrollContainer>
    		</content>
    	</Page>
    </mvc:View>

  • Step 4

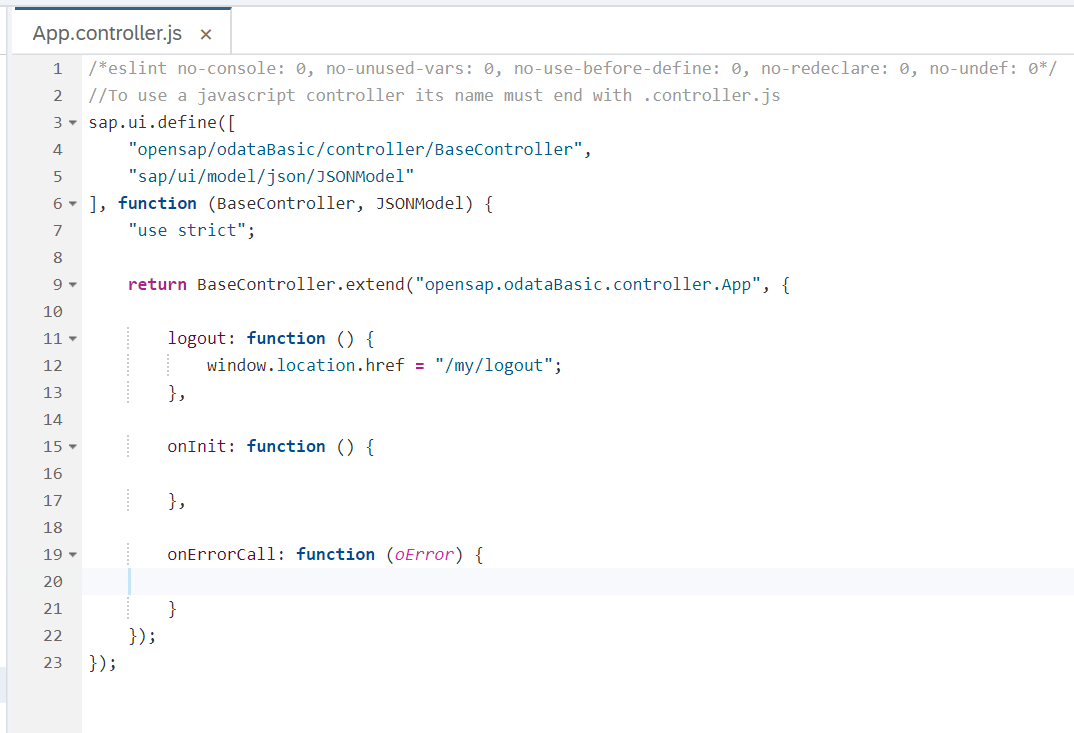

    Event handlers are within the controller file for your view. You can delete the implementation of the functions onInit and onErrorCall, as you will implement new logic:

    delete handler implementation

    Add the following code to the onInit function:

    javascript
    Copy
    this.getView().addStyleClass("sapUiSizeCompact"); // make everything inside this View appear in Compact mode
    var oConfig = this.getOwnerComponent().getModel("config");
    var userName = oConfig.getProperty("/UserName");
    var userModel = this.getOwnerComponent().getModel("userModel");
    var oTable = this.getView().byId("userTable");
    oTable.setModel(userModel);



    Add a function called callUserService:

    javascript
    Copy
    callUserService: function () {
      var oModel = this.getOwnerComponent().getModel("userModel");
      var result = this.getView().getModel().getData();
      var oEntry = {};
      oEntry.UserId = "0000000000";
      oEntry.FirstName = result.FirstName;
      oEntry.LastName = result.LastName;
      oEntry.Email = result.Email;

      oModel.setHeaders({
        "content-type": "application/json;charset=utf-8"
      });
      var mParams = {};
      mParams.success = function () {
        sap.ui.require(["sap/m/MessageToast"], function (MessageToast) {
          MessageToast.show("Create successful");
        });
      };
      mParams.error = onODataError;
      oModel.create("/Users", oEntry, mParams);
    },


    Take a look at the code you have just added. You can see it is creating a JSON object with the service fields.

    Add a new function called callUserUpdate

    javascript
    Copy
    callUserUpdate: function () {
      var oModel = this.getOwnerComponent().getModel("userModel");
      oModel.setHeaders({
        "content-type": "application/json;charset=utf-8"
      });

      var mParams = {};
      mParams.error = onODataError;
      mParams.success = function () {
        sap.ui.require(["sap/m/MessageToast"], function (MessageToast) {
          MessageToast.show("Update successful");
        });
      };

      oModel.submitChanges(mParams);
    }

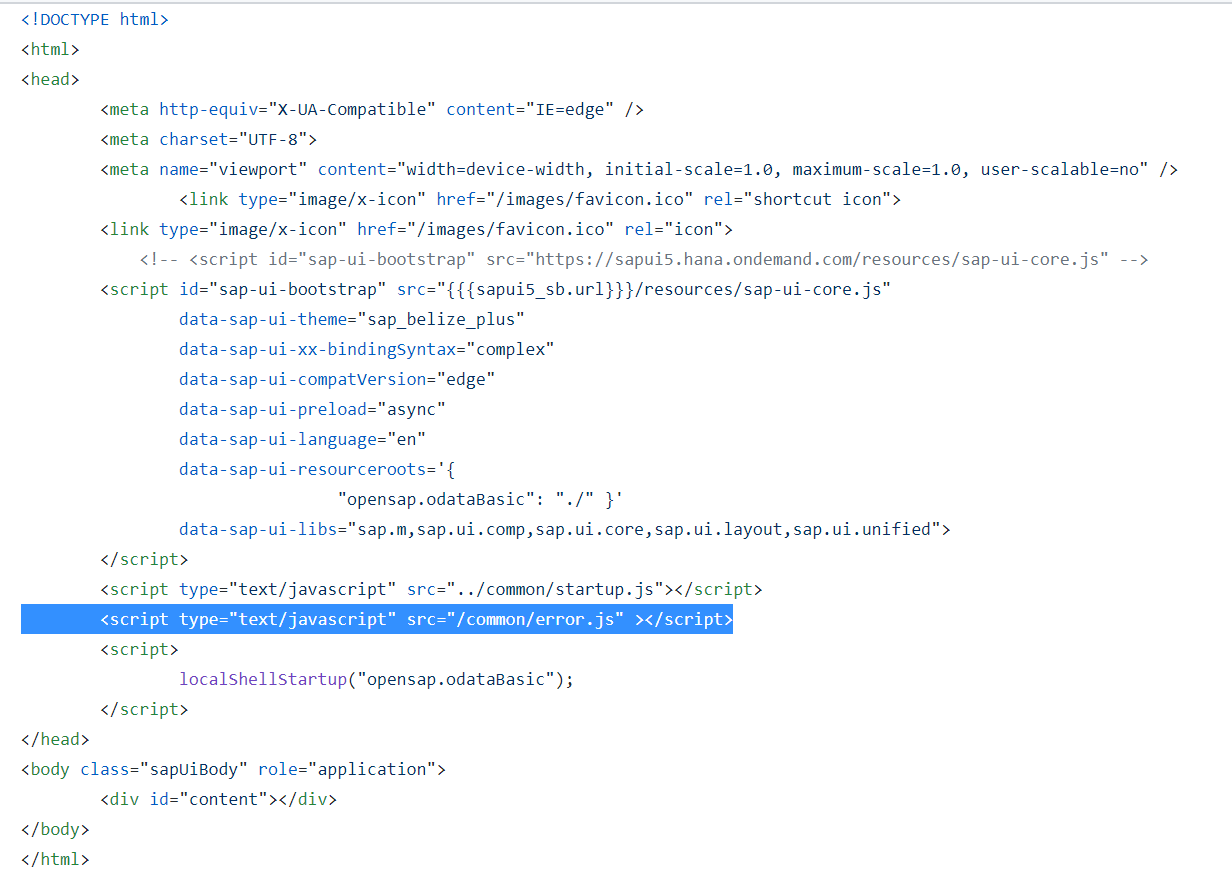

    Finally, delete the error handling function as we will use the reusable function from common/error.js which was created earlier. But we also need add this error.js reference to our index.html

    html
    Copy
    	<script type="text/javascript" src="/common/error.js" ></script>

    Add error.js
  • Step 5

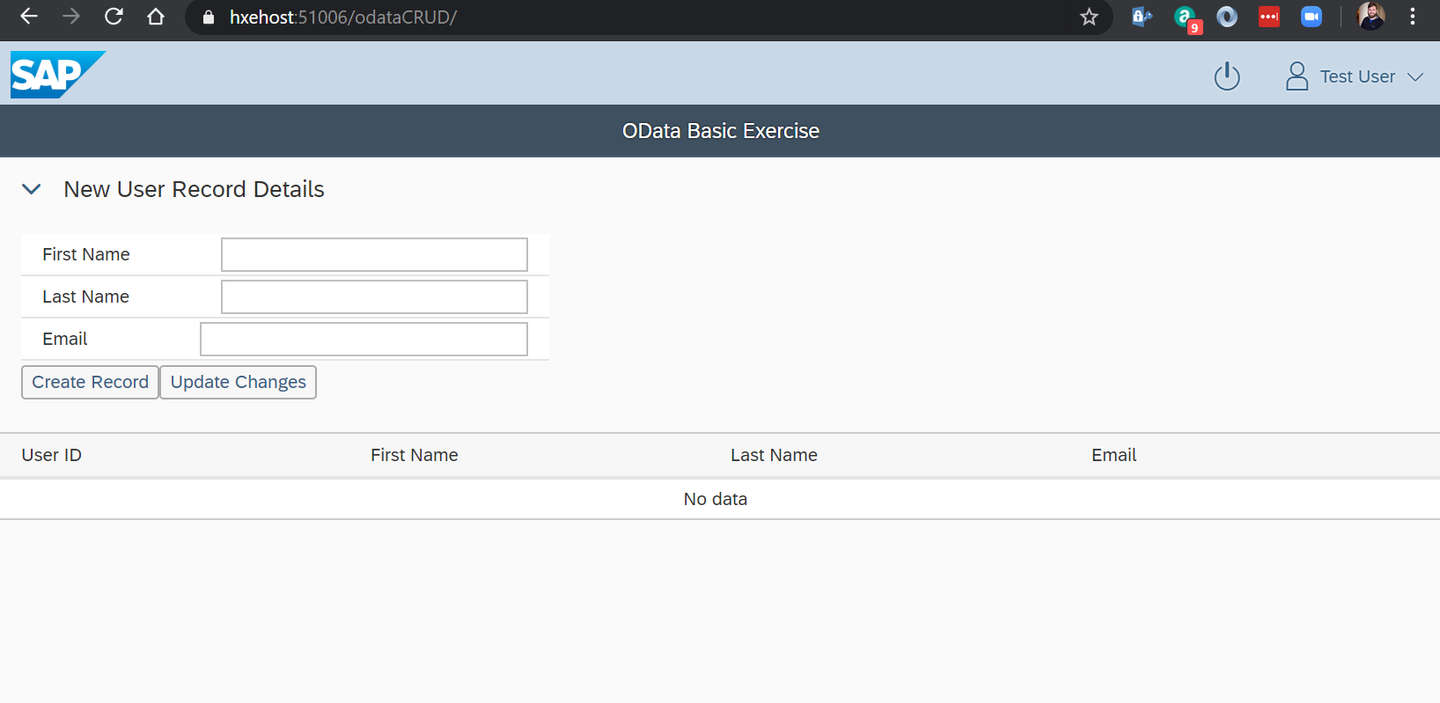

    Run the web module. When the new tab opens, adjust the URL to include the /odataCRUD path:

    results

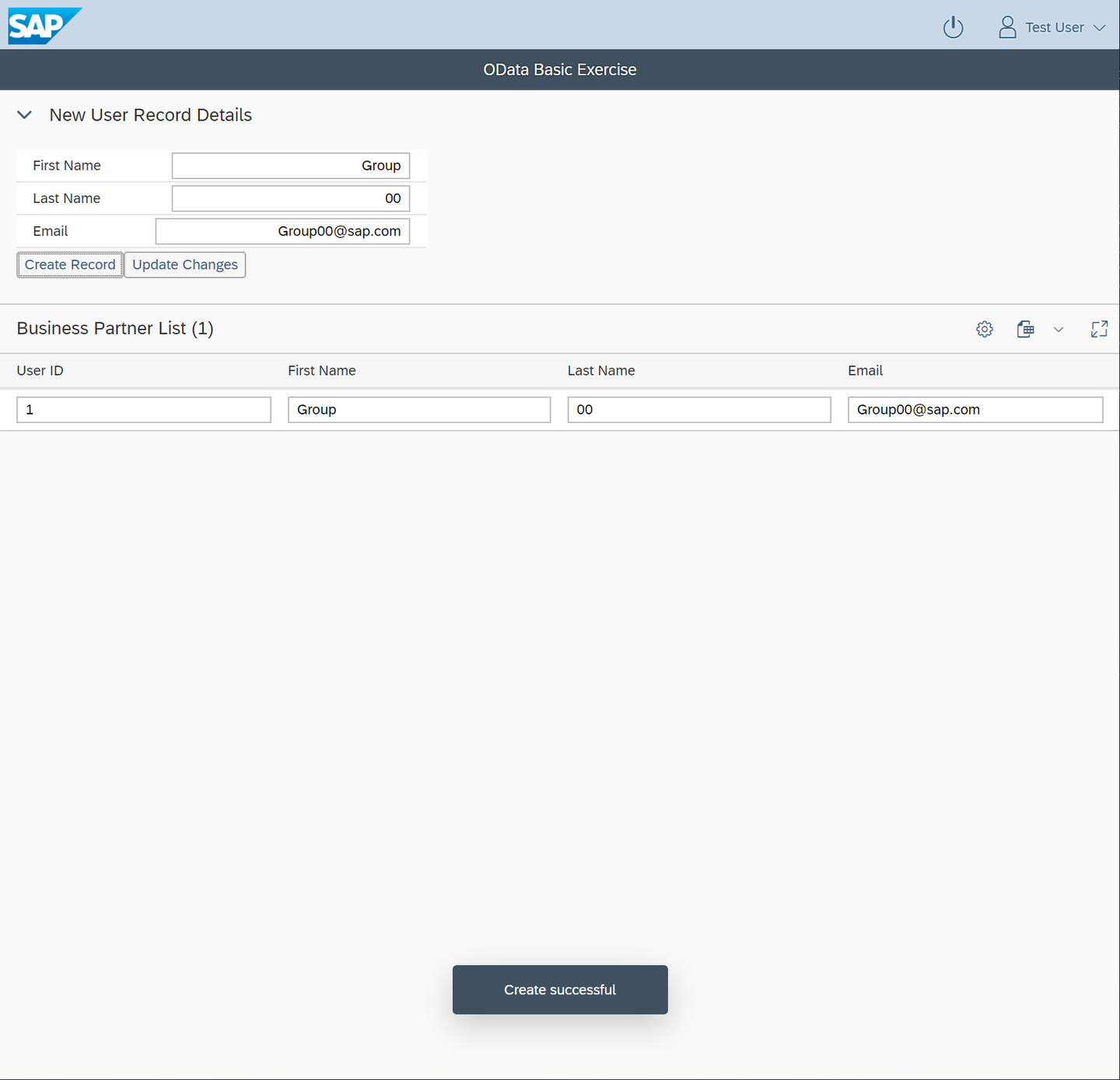

    Try creating a new record:

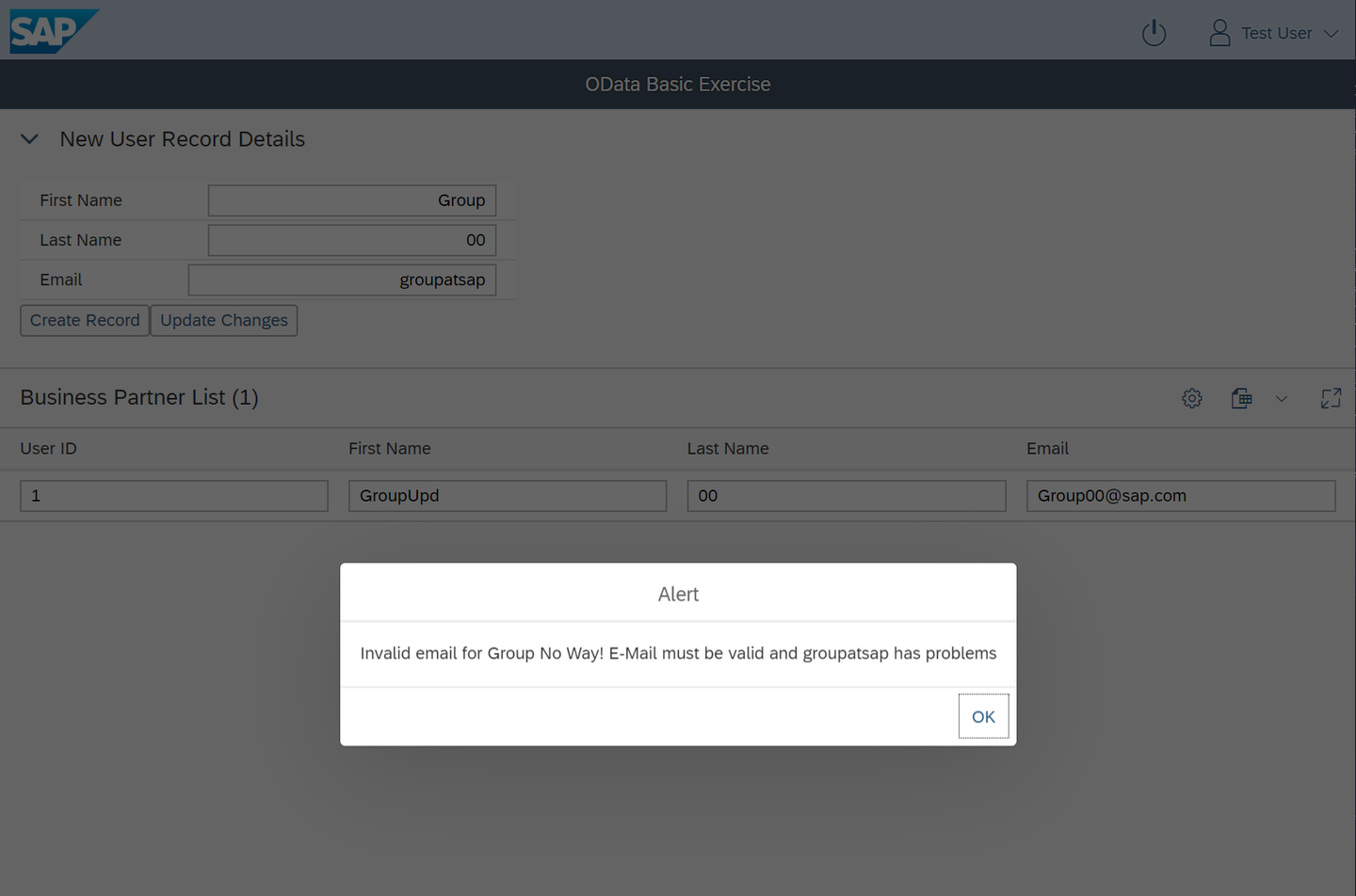

    Try both creating a new record and editing existing records. Also try creating a record with an invalid email address.

    results
    exception
