SAP HANA XS Advanced - Web Sockets within Node.js SAP HANA applications

Using web sockets with Node.js and SAP HANA
You will learn

This section will demonstrate the ease at which you can tap into the powerful web sockets capabilities of Node.js You will use web sockets to build a simple chat application. Any message sent from the SAPUI5 client side application will be propagated by the server to all listening clients.

jung-thomasThomas JungJanuary 5, 2021
Created by
ccmehil
September 16, 2016
Contributors
jung-thomas
ccmehil

Prerequisites

  • This tutorial is designed for SAP HANA on premise and SAP HANA, express edition. It is not designed for SAP HANA Cloud.
  • Tutorials: Text Bundles
  • Step 1

    Add an express route handler for this chatServer module and pass the server variable in as well.

    JavaScript
    Copy
    /*eslint no-console: 0, no-unused-vars: 0, no-undef:0, no-process-exit:0*/
    /*eslint-env node, es6 */
    "use strict";

    module.exports = (app, server) => {
    	app.use("/node", require("./routes/myNode")());
    	app.use("/node/excAsync", require("./routes/exerciseAsync")(server));
    	app.use("/node/textBundle", require("./routes/textBundle")());
    	app.use("/node/chat", require("./routes/chatServer")(server));

    	app.use( (err, req, res, next) => {
    		console.error(JSON.stringify(err));
    		res.status(500).send(`System Error ${JSON.stringify(err)}`);
    	});
    };

  • Step 2

    Create a file called chatServer.js inside your routes folder with the following code:

    JavaScript
    Copy
    /*eslint no-console: 0, no-unused-vars: 0, new-cap: 0*/
    /*eslint-env node, es6 */
    "use strict";
    var WebSocketServer = require("ws").Server;
    var express = require("express");

    module.exports = function (server) {
    	var app = express.Router();
    	app.use((req, res) => {
    		var output =
    			`<H1>Node.js Web Socket Examples</H1></br>
    			<a href="/exerciseChat">/exerciseChat</a> - Chat Application for Web Socket Example</br>`;
    		res.type("text/html").status(200).send(output);
    	});
    	var wss = new WebSocketServer({
    		//	server: server,
    		noServer: true,
    		path: "/node/chatServer"
    	});

    	server.on("upgrade", function upgrade(request, socket, head) {
    		const url = require("url");
    		const pathname = url.parse(request.url).pathname;

    		if (pathname === "/node/chatServer") {
    			wss.handleUpgrade(request, socket, head, function done(ws) {
    				wss.emit("connection", ws, request);
    			});
    		}
    	});

    	wss.broadcast = (data) => {
    		wss.clients.forEach(function each(client) {
    			try {
    				client.send(data);
    			} catch (e) {
    				console.log("Broadcast Error: %s", e.toString());
    			}
    		});
    		console.log("sent: %s", data);

    	};

    	wss.on("connection", (ws) => {
    		console.log("Connected");
    		ws.on("message", (message) => {
    			console.log("received: %s", message);
    			wss.broadcast(message);
    		});
    		ws.send(JSON.stringify({
    			user: "XS",
    			text: "Hello from Node.js XS Server"
    		}));
    	});

    	return app;
    };



    Note: You can find more information on the WebSockets module and how it works the their GitHub repository

  • Step 3

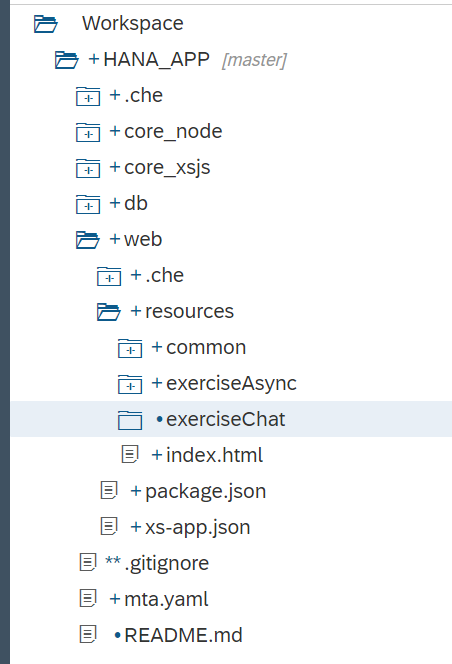

    The file structure for this interface will be simple as it is not the focus for this tutorial. Create a folder called exerciseChat in your web module, in resources:

    folder

    Create a folder called view within that folder. It will contain one file, with the following name and code:

    view/App.view.xml

    XML
    Copy
    <mvc:View controllerName="sap.xs.chat.controller.App" xmlns="sap.m" xmlns:l="sap.ui.layout" xmlns:mvc="sap.ui.core.mvc" height="100%">
    	<Page title="{i18n>appTitle}">
    		<content>
    			<ScrollContainer height="100%" width="100%" horizontal="true" vertical="true">
    				<Panel headerText="Node.js WebSocket Chat" expandable="true" expanded="true">
    					<l:VerticalLayout class="sapUiContentPadding" width="100%">
    						<l:content>
    							<Input id="uName" value="{chatModel>/user}"/>
    						</l:content>
    						<l:content>
    							<TextArea id="chatInfo" value="{chatModel>/chat}" cols="60" rows="8" editable="false"/>
    						</l:content>
    						<l:content>
    							<Input id="message" value="{chatModel>/message}" placeholder="Enter Chat Text Here..."/>
    						</l:content>
    					</l:VerticalLayout>
    					<Button text="Send" press="sendMsg"/>
    				</Panel>
    			</ScrollContainer>
    		</content>
    	</Page>
    </mvc:View>


    Now create a folder named controller. We will create two files within this folder.

    controller/App.controller.js

    javascript
    Copy
    /*eslint no-console: 0, no-unused-vars: 0, no-use-before-define: 0, no-redeclare: 0, no-undef: 0, no-sequences: 0, no-unused-expressions: 0*/
    //To use a javascript controller its name must end with .controller.js
    sap.ui.define([
    	"sap/xs/chat/controller/BaseController",
    	"sap/ui/model/json/JSONModel"
    ], function(BaseController, JSONModel) {
    	"use strict";
    	jQuery.sap.require("sap.ui.core.ws.WebSocket");
    	var connection = new sap.ui.core.ws.WebSocket("/node/chatServer");
    	return BaseController.extend("sap.xs.chat.controller.App", {

    		onInit: function() {

    			this.getView().addStyleClass("sapUiSizeCompact"); // make everything inside this View appear in Compact mode

    			// server messages
    			connection.attachMessage(function(oControlEvent) {
    				var oModel = sap.ui.getCore().getComponent("comp").getModel("chatModel");
    				var result = oModel.getData();

    				var data = jQuery.parseJSON(oControlEvent.getParameter("data"));
    				var msg = data.user + ": " + data.text,
    					lastInfo = result.chat;

    				if (lastInfo.length > 0) {
    					lastInfo += "\r\n";
    				}
    				oModel.setData({
    					chat: lastInfo + msg
    				}, true);

    				// scroll to textarea bottom to show new messages
    			//	$("#comp---app--chatInfo-inner").scrollTop($("#comp---app--chatInfo-inner")[0].scrollHeight);
    			});

    			// error handling
    			connection.attachError(function(oControlEvent) {
    				sap.m.MessageToast.show("Websocket connection error");
    			});

    			// onConnectionClose
    			connection.attachClose(function(oControlEvent) {
    				sap.m.MessageToast.show("Websocket connection closed");
    			});

    			sap.ui.getCore().byId("comp---app--message").onsapenter = function(e) {
    				if (sap.m.InputBase.prototype.onsapenter) {
    					sap.m.InputBase.prototype.onsapenter.apply(this, arguments);
    				}
    				var oController = sap.ui.getCore().byId("comp---app").getController();
    				oController.sendMsg();
    			};
    		},

    		// send message
    		sendMsg: function() {
    			var oModel = this.getOwnerComponent().getModel("chatModel");
    			var result = oModel.getData();
    			var msg = result.message;
    			if (msg.length > 0) {
    				connection.send(JSON.stringify({
    					user: result.user,
    					text: result.message
    				}));
    				oModel.setData({
    					message: ""
    				}, true);
    			}
    		},

    		onErrorCall: function(oError) {
    			if (oError.statusCode === 500 || oError.statusCode === 400 || oError.statusCode === "500" || oError.statusCode === "400") {
    				var errorRes = JSON.parse(oError.responseText);
    				if (!errorRes.error.innererror) {
    					sap.m.MessageBox.alert(errorRes.error.message.value);
    				} else {
    					if (!errorRes.error.innererror.message) {
    						sap.m.MessageBox.alert(errorRes.error.innererror.toString());
    					} else {
    						sap.m.MessageBox.alert(errorRes.error.innererror.message);
    					}
    				}
    				return;
    			} else {
    				sap.m.MessageBox.alert(oError.response.statusText);
    				return;
    			}

    		}
    	});
    });


    controller/BaseController.js

    JavaScript
    Copy
    /*global history */
    sap.ui.define([
    		"sap/ui/core/mvc/Controller",
    		"sap/ui/core/routing/History"
    	], function (Controller, History) {
    		"use strict";

    		return Controller.extend("sap.xs.chat.controller.BaseController", {
    			/**
    			 * Convenience method for accessing the router in every controller of the application.
    			 * @public
    			 * @returns {sap.ui.core.routing.Router} the router for this component
    			 */
    			getRouter : function () {
    				return this.getOwnerComponent().getRouter();
    			},

    			/**
    			 * Convenience method for getting the view model by name in every controller of the application.
    			 * @public
    			 * @param {string} sName the model name
    			 * @returns {sap.ui.model.Model} the model instance
    			 */
    			getModel : function (sName) {
    				return this.getView().getModel(sName);
    			},

    			/**
    			 * Convenience method for setting the view model in every controller of the application.
    			 * @public
    			 * @param {sap.ui.model.Model} oModel the model instance
    			 * @param {string} sName the model name
    			 * @returns {sap.ui.mvc.View} the view instance
    			 */
    			setModel : function (oModel, sName) {
    				return this.getView().setModel(oModel, sName);
    			},

    			/**
    			 * Convenience method for getting the resource bundle.
    			 * @public
    			 * @returns {sap.ui.model.resource.ResourceModel} the resourceModel of the component
    			 */
    			getResourceBundle : function () {
    				return this.getOwnerComponent().getModel("i18n").getResourceBundle();
    			},

    			/**
    			 * Event handler for navigating back.
    			 * It there is a history entry we go one step back in the browser history
    			 * If not, it will replace the current entry of the browser history with the master route.
    			 * @public
    			 */
    			onNavBack : function() {
    				var sPreviousHash = History.getInstance().getPreviousHash();

    					if (sPreviousHash !== undefined) {
    					history.go(-1);
    				} else {
    					this.getRouter().navTo("master", {}, true);
    				}
    			}

    		});

    	}
    );


    Outside this folder, in the exerciseChat folder, add an index.html file with the following code to call your view:

    html
    Copy
    <!DOCTYPE html>
    <html>
    <head>
    	<meta http-equiv="X-UA-Compatible" content="IE=edge" />
    	<meta charset="UTF-8">
    	<meta name="viewport" content="width=device-width, initial-scale=1.0, maximum-scale=1.0, user-scalable=no" />
    	    <!-- <script id="sap-ui-bootstrap" src="https://sapui5.hana.ondemand.com/resources/sap-ui-core.js" -->
    	<script id="sap-ui-bootstrap" src="{{{sapui5_sb.url}}}/resources/sap-ui-core.js"
    		data-sap-ui-theme="sap_belize_plus"
    		data-sap-ui-xx-bindingSyntax="complex"
    		data-sap-ui-compatVersion="edge"
    		data-sap-ui-preload="async"
    		data-sap-ui-language="en"
    		data-sap-ui-resourceroots='{
    				"sap.xs.chat": "./",
    				"view": "./view" }'
    		data-sap-ui-libs="sap.m,sap.ui.comp,sap.ui.core,sap.ui.layout,sap.ui.unified">
    	</script>
    	<script type="text/javascript" src="../common/startup.js"></script>
    	<script>
    		localShellStartup("sap.xs.chat");
    	</script>
    </head>
    <body class="sapUiBody" role="application">
    	<div id="content"></div>
    </body>
    </html>


    Create a Component.js file with the following code:

    JavaScript
    Copy
    /*eslint no-console: 0, no-unused-vars: 0, no-use-before-define: 0, no-redeclare: 0*/
    sap.ui.define([
    	"sap/ui/core/UIComponent"
    ], function(UIComponent) {
    	"use strict";

    	return UIComponent.extend("sap.xs.chat.Component", {

    	metadata: {
    		manifest: "json"
    	},

    	init: function(){
    		jQuery.sap.require("sap.m.MessageBox");
    		jQuery.sap.require("sap.m.MessageToast");

    		sap.ui.core.UIComponent.prototype.init.apply(
    			this, arguments);

    		// Chat Model
    		var oModel = this.getModel("chatModel");
           	var names = ["Student1","Student2","Student3","Student4","Student5","Student6"];
          	oModel.setData({
          		user: names[Math.floor(names.length * Math.random())],
            	chat: "",
            	message: ""
          	});
    	},

    	destroy: function() {
    			// call the base component's destroy function
    			UIComponent.prototype.destroy.apply(this, arguments);
    	}

    	});

    });


    Finally create a file named manifest.json in the exerciseChat folder. This is its content.

    JSON
    Copy
    {
      "_version": "1.4.0",
      "start_url": "index.html",
      "sap.app": {
      	"_version": "1.4.0",
    	"type": "application",
    	"resources": "resources.json",
      	"i18n": "i18n/i18n.properties",
      	"id": "exerciseChat",
      	"title": "{{appTitle}}",
      	"description": "{{appDescription}}",
      	"applicationVersion": {
    			"version": "${project.version}"
    	}
      },
      "sap.fiori": {
    	"_version": "2.0.0",
    	"registrationIds": [],
    	"archeType": "transactional"
      },
      "sap.ui": {
      	"_version": "1.40.0",
    	"technology": "UI5",
      	 "icons":  {
      	 	"icon": "/images/favicon.ico",
      	 	"favIcon": "/images/favicon.ico"
      	 },
      	"deviceTypes": {
    		"desktop": true,
    		"tablet": true,
    		"phone": true
    	},
    	"supportedThemes": [
    			"sap_hcb",
    			"sap_bluecrystal",
    			"sap_belize"
    	]
      },
      "sap.ui5": {
        "config": {
          "sapFiori2Adaptation": true
        },
        "rootView": {
        	"viewName": "sap.xs.chat.view.App",
        	"type": "XML",
        	"id": "app"
        },
        "dependencies": {
    			"minUI5Version": "1.40.0",
    			"libs": {
    				"sap.ui.core": {
    					"minVersion": "1.40.0"
    				},
    				"sap.ui.comp": {
    					"minVersion": "1.40.0"
    				},
    				"sap.m": {
    					"minVersion": "1.40.0"
    				},
    				"sap.ui.layout": {
    					"minVersion": "1.40.0"
    				}
    			}
    		},
    	"contentDensities": {
    		"compact": true,
    		"cozy": true
    	},
        "handleValidation": true,
        "models": {
        	"chatModel": {
        		"type": "sap.ui.model.json.JSONModel",
        		"settings": {
        			"defaultBindingMode": "TwoWay"
        		}
        	},
        	"config": {
        		"type": "sap.ui.model.json.JSONModel"
        	},
        	"i18n": {
        		"type": "sap.ui.model.resource.ResourceModel",
        		"settings": {
        			"bundleUrl": "./i18n/i18n.properties"
        		}
        	}
        }

      }
    }

  • Step 4

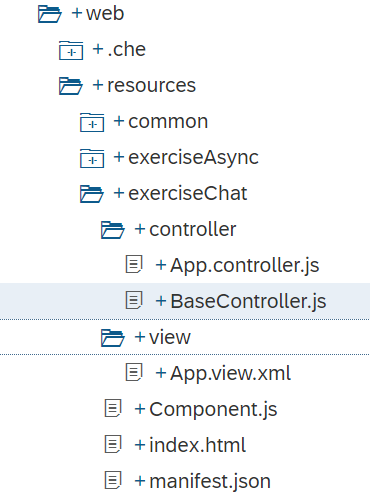

    This is what the file structure for the web module should look like.

    web module

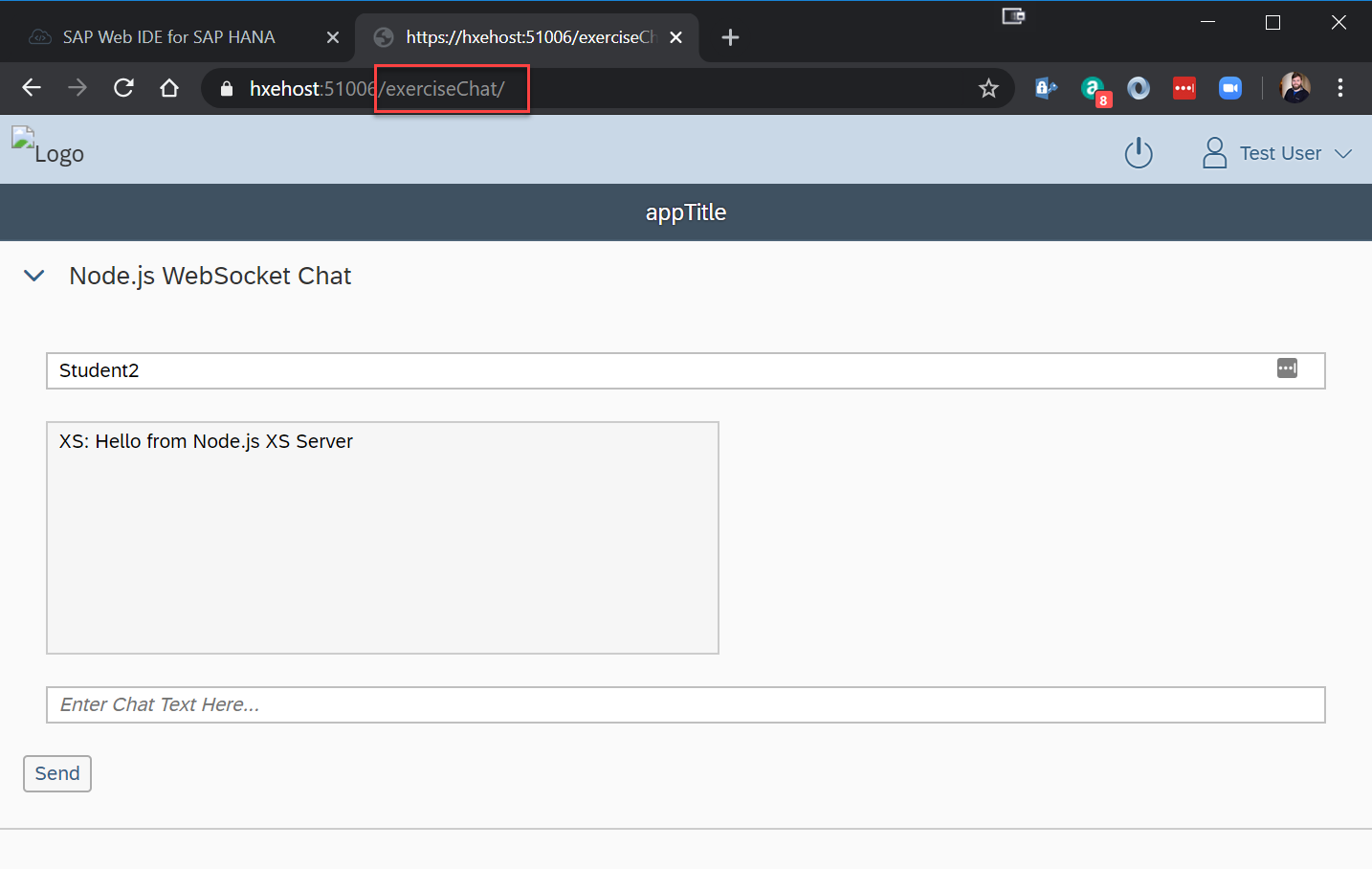

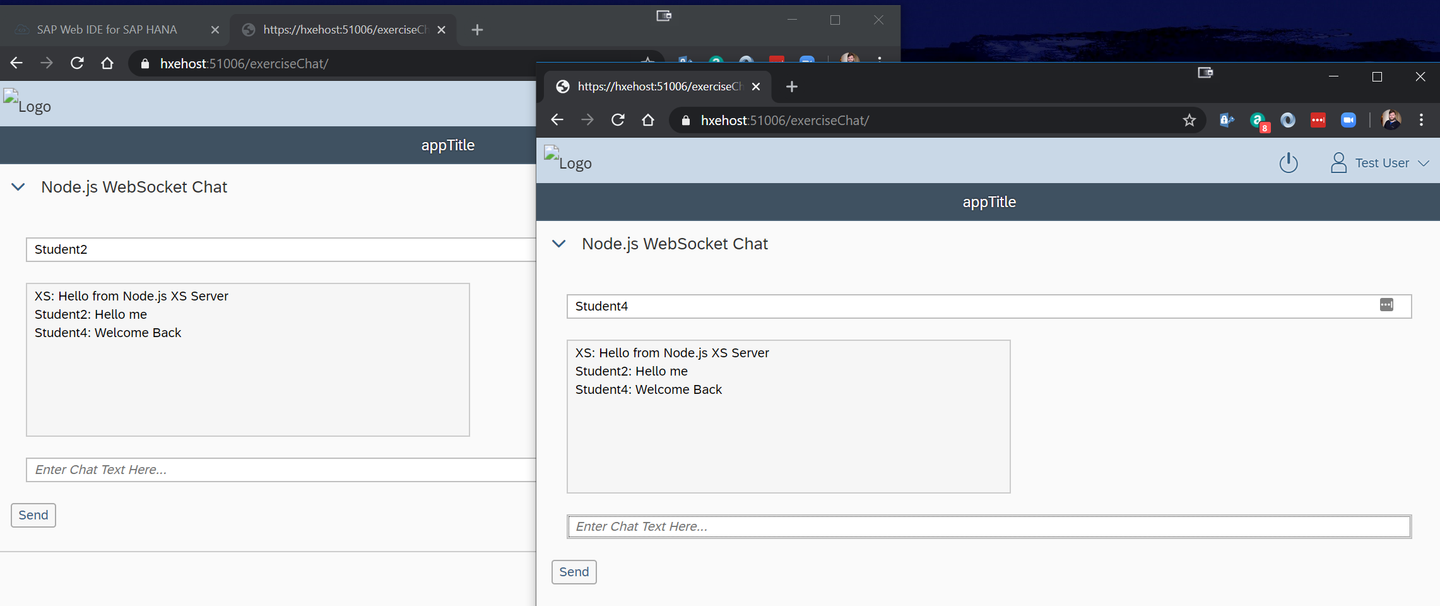

    Run the core_node module first and then run the web module. Remember to change the path to see the new web module:

    web module
  • Step 5

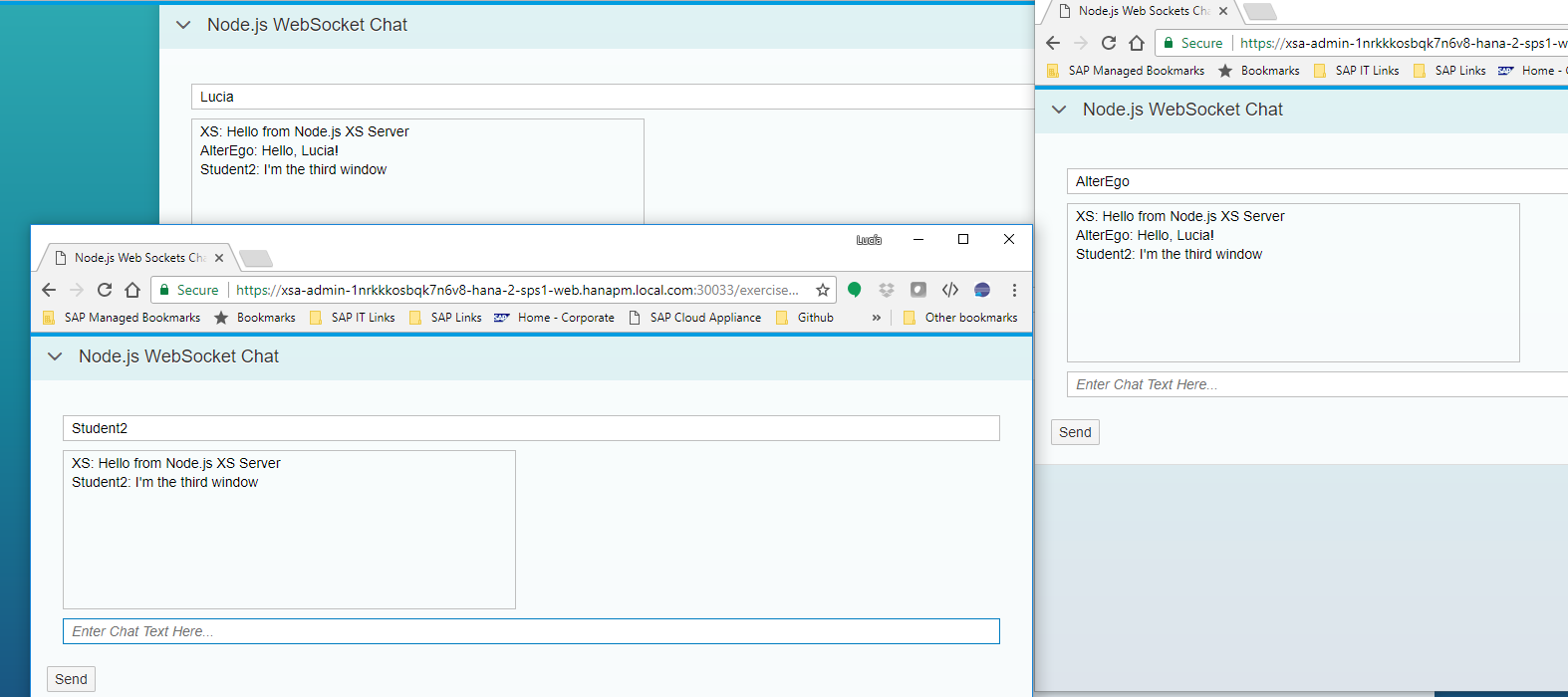

    Open a second web browser with the same URL. You can test the chat by chatting with yourself:

    test Chat

    All messages are being pushed out into all listeners. You can open a third chat window to test this.

Back to top
