XS Advanced, Add User Authentication to Your Application

07/29/2019

Define security and enable user authentication and authorization.

You will learn

  • How to create an instance of the User Authentication and Authorization service
  • How to incorporate security into the routing endpoint of your application

This tutorial can be completed in SAP HANA, express edition SPS03 or higher.


Step 1: Define the security model for your application

You will first define the different roles a user could have when using your application. As the developer of the application, you will define the roles. Then, an administrator would create the roles and assign them to the different users. In this tutorial, it is assumed you are the administrator of your instance so you will be performing this task, too.

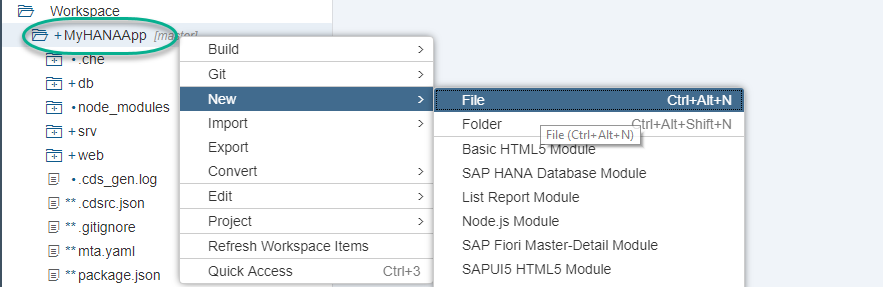

Create a file called xs-security.json in the root folder of your application.

Add UAA

Paste the following content into the file and save it


{ "xsappname": "myHanaApp", "scopes": [{ "name": "$XSAPPNAME.Display", "description": "display" }, { "name": "$XSAPPNAME.Create", "description": "create" }, { "name": "$XSAPPNAME.Edit", "description": "edit" }, { "name": "$XSAPPNAME.Delete", "description": "delete" }, { "name": "xs_authorization.read", "description": "Read authorization information from UAA" }, { "name": "xs_authorization.write", "description": "Write authorization information to UAA" }], "attributes": [{ "name": "country", "description": "country", "valueType": "s" }], "role-templates": [{ "name": "Viewer", "description": "View all records", "scope-references": [ "$XSAPPNAME.Display" ], "attribute-references": [ "country" ] }, { "name": "Editor", "description": "Edit and Delete records", "scope-references": [ "$XSAPPNAME.Create", "$XSAPPNAME.Edit", "$XSAPPNAME.Delete", "$XSAPPNAME.Display" ] }] }

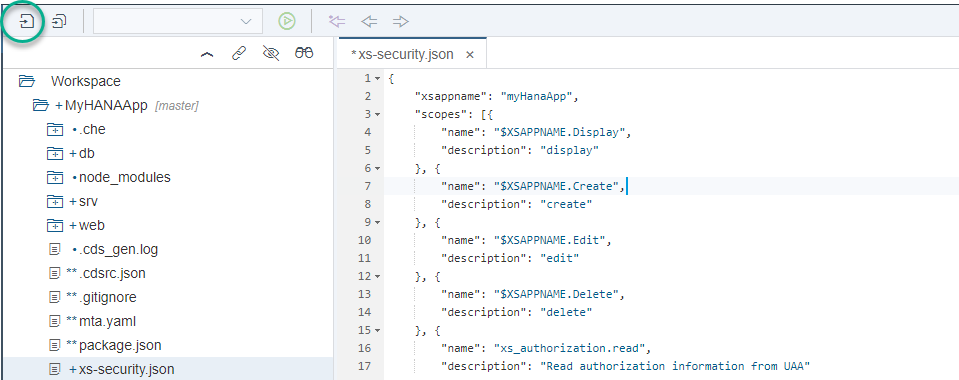

Save the file.

Save xs-security file
Log on to answer question
Step 2: Create an instance of the UAA service

The User Authentication and Authorization service is a backing service. You will create an instance of it and attach it to your application so that a user needs to authenticate before accessing it through your web module.

Navigate to Tools > SAP HANA XS Advanced Cockpit

Alternatively, log in to the command line interface to find out the URL for the XS Advanced Cockpit. For example:

xs login -a https://hxehost:39030 -u XSA_ADMIN
xs apps | grep xsa-cockpit

You will get the host and port in which the XS Advanced Cockpit is running.

Log in as XSA_DEV.

Use XSA Admin

Navigate into the organization and the development space. Click Service > Service marketplace and then click Authorization and Trust Management.

Click New Instance.

New instance

Choose plan space and click Next.

New instance

Plan space means the scope of the instance is restricted to the space. Default means the instance can be used across different spaces.

Copy the content of xs-security.json from SAP Web IDE and paste in the parameters. Then click Next.

New instance

Call your instance app-uaa. Click Finish.

New instance

What is going on?

You are creating an instance of the UAA service so that users authenticate and have different access restricted depending on the roles that are assigned to them.


Plan space means the scope of the instance is restricted to the space. Default means the instance can be used across different spaces.

The User Authentication and Authorization service is a backing service. You will create an instance of it and attach it to your application so that a user needs to authenticate before accessing it through your web module.

You will need to either upload the file xs-security.json to a location where you can use it from the it or locate it in the filesystem with the find command.

Log in to the Command Line Interface as XSA_ADMIN, switch to the development space and create the service.

xs login -u XSA_ADMIN
xs target -s development
xs create-service xsuaa space app-uaa -c xs-security.json

For example:

Add UAA through CLI

What is going on?

You are creating an instance of the UAA service so that users authenticate and have different access restricted depending on the roles that are assigned to them.


Plan space means the scope of the instance is restricted to the space. Default means the instance can be used across different spaces.

Log on to answer question
Step 3: Add UAA as a resource

You now need to declare the instance of the UAA service as a dependency in the deployment descriptor. During the deployment process, this will tell the platform that the instance is needed for some of the micro-services to run. It will also bind the service to the application.

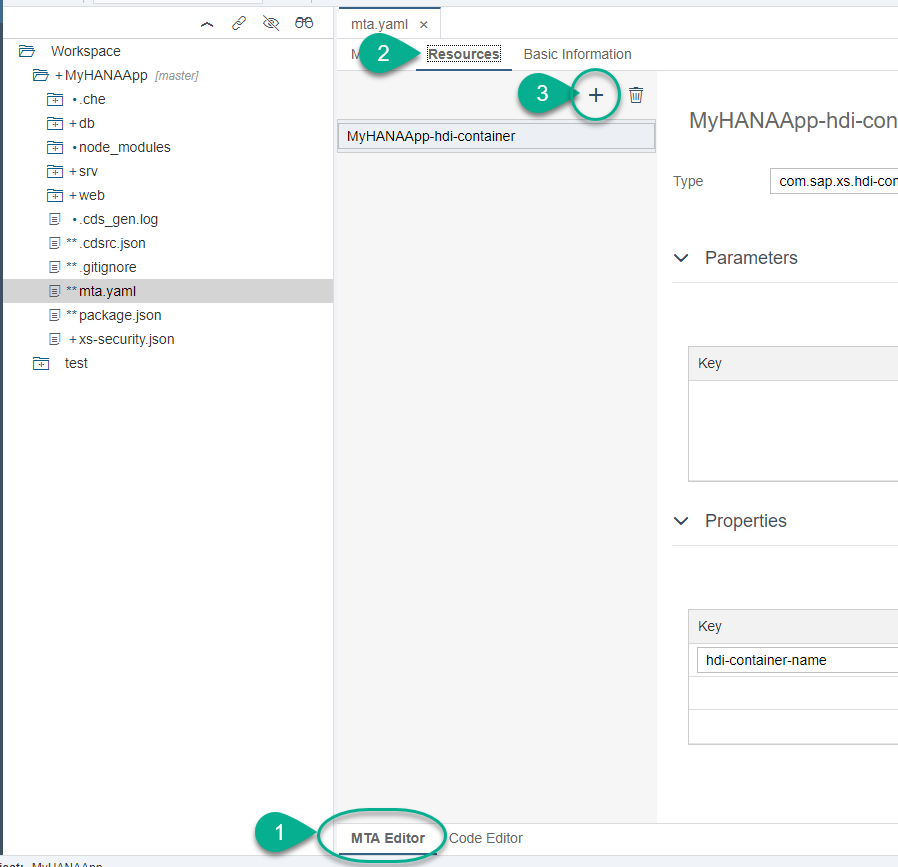

Open the MTA editor in graphical mode and click Resources. Use the + button to create a new resource.

Configure dependencies

Call the resource app-uaa and choose type com.sap.xs.uaa-space.

Configure dependencies

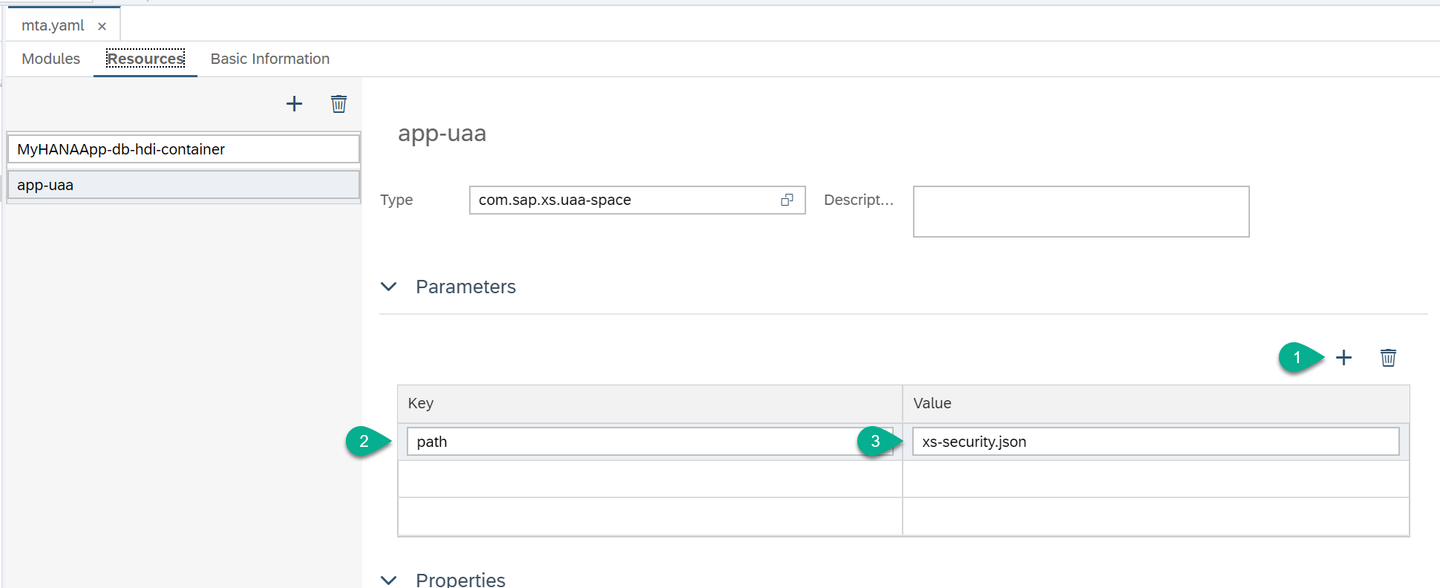

Under Parameters, use the following key-value pair:

  • Key: path
  • Value: ./xs-security.json
Configure dependencies

Save the changes.

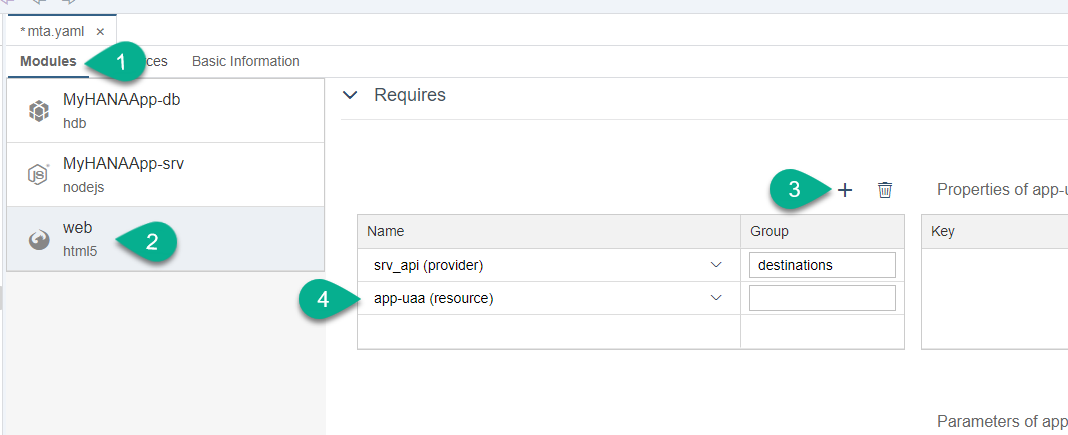

Add the service instance as a dependency to the web application.

Configure dependencies

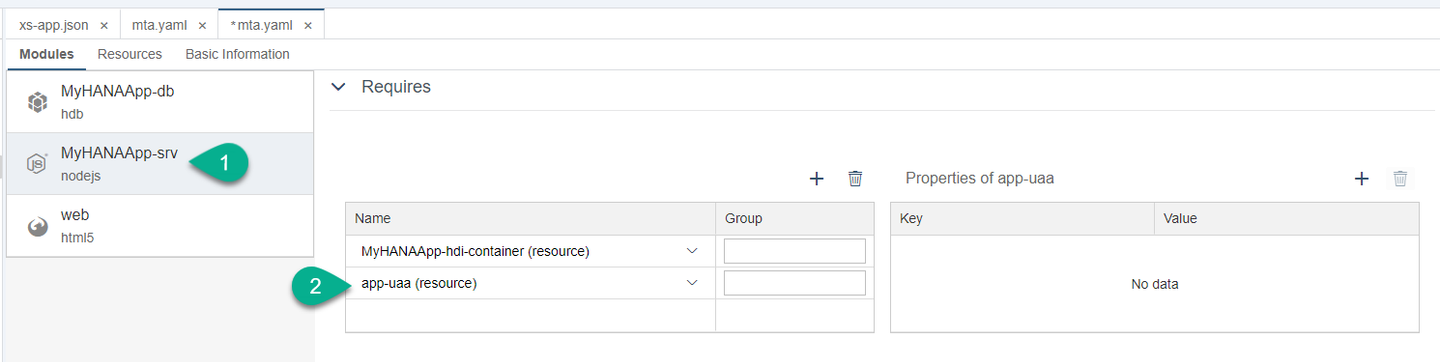

Add the dependency to the srv application, too.

Configure dependencies

Remember to Save.

Configure dependencies

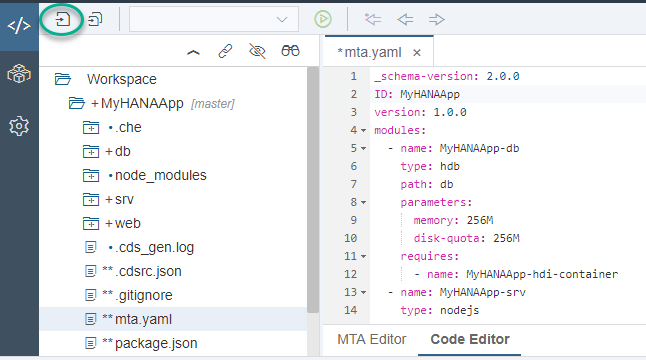

For further reference, here is an example of what the MTA.yaml file looks lie:

_schema-version: 2.0.0
ID: MyHANAApp
version: 1.0.0
modules:
  - name: MyHANAApp-db
    type: hdb
    path: db
    parameters:
      memory: 256M
      disk-quota: 256M
    requires:
      - name: MyHANAApp-hdi-container
  - name: MyHANAApp-srv
    type: nodejs
    path: srv
    parameters:
      memory: 512M
      disk-quota: 256M
    provides:
      - name: srv_api
        properties:
          url: '${default-url}'
    requires:
      - name: MyHANAApp-hdi-container
      - name: app-uaa
  - name: web
    type: html5
    path: web
    requires:
      - name: srv_api
        group: destinations
        properties:
          name: srv_api
          url: '~{url}'
          forwardAuthToken: true
      - name: app-uaa
resources:
  - name: MyHANAApp-hdi-container
    type: com.sap.xs.hdi-container
    properties:
      hdi-container-name: '${service-name}'
  - name: app-uaa
    type: com.sap.xs.uaa-space
    parameters:
      path: ./xs-security.json
Log on to answer question
Step 4: Modify routing

The web module will be the entry endpoint to the service modules, which in turn expose access to the database.

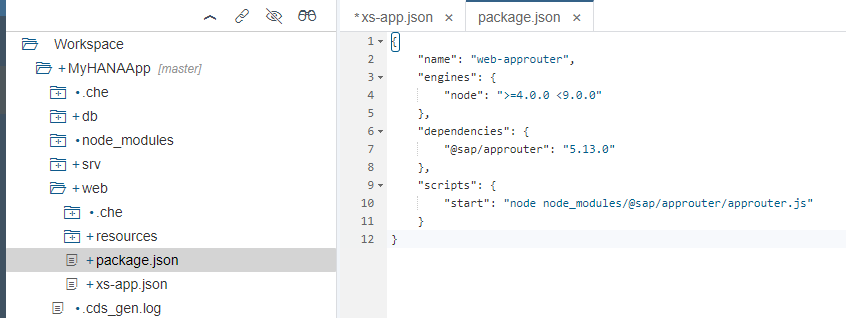

If you expand the web module, in package.json, you will see the start command calls a library from the SAP repository called approuter. This module will receive the requests and evaluate to which backend application they need to be routed. This module will also call the authentication service if the route is defined as needing authentication.

Approuter call

You will now modify the routing to add authentication. Open the file xs-app.json and change the authenticationMethod to route.

Add a comma after the last key-value pair and add the following within the route:

"authenticationType": "xsuaa"
Approuter call

Save the changes.

This will tell the approuter module that each route will define its own authentication method and that the Node.js module, referred to as the srv_api destination, needs authentication. This means that an authentication token will be needed before the request can be routed to and responded by the srv_api destination.

As a reminder of what you modified in the previous tutorial, the mta.yaml file is declaring the destination and allowing the authentication token to be forwarded.

Approuter call

Some more information about how routing works can be found in this blog post.

Log on to answer question
Step 5: Test the application

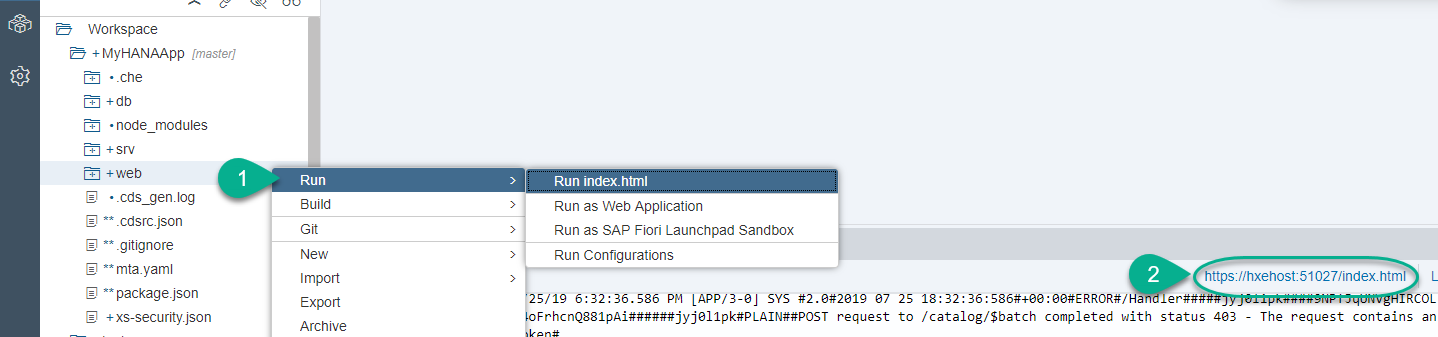

Before adding authentication, when you created the CDS services and user interface, you could access the web module without authentication. Run the web module again and use the URL in a different browsing mode (e.g., incognito) or a different browser in which you are not logged in.

Approuter call
What happens when you access the URL for the web module from another browser?
×

Next Steps

Prerequisites

  • You have created a user interface.
  • You have administration access to the XS Advanced cockpit in SAP HANA (e.g., like user XSA_ADMIN in SAP HANA, express edition).
