Translate a Java App

Requires Customer/Partner License
Use SAP Translation Hub to translate the UI texts for a Java app that you develop in Eclipse.
You will learn
  • How to translate the properties file of a Java app using the file upload scenario in SAP Translation Hub

Prerequisites

  • Step 1

    In your Eclipse window, locate the i18n.properties file that contains your app texts.

    Locate i18n.properties file
  • Step 2

    Before you get started with the translation process, open the i18n.properties file to look at the texts that you’re going to translate.

    Open i18n.properties file
  • Step 3

    In the SAP BTP cockpit, choose the tile for your account in the SAP BTP Neo environment.

    access menu to open service catalog
  • Step 4

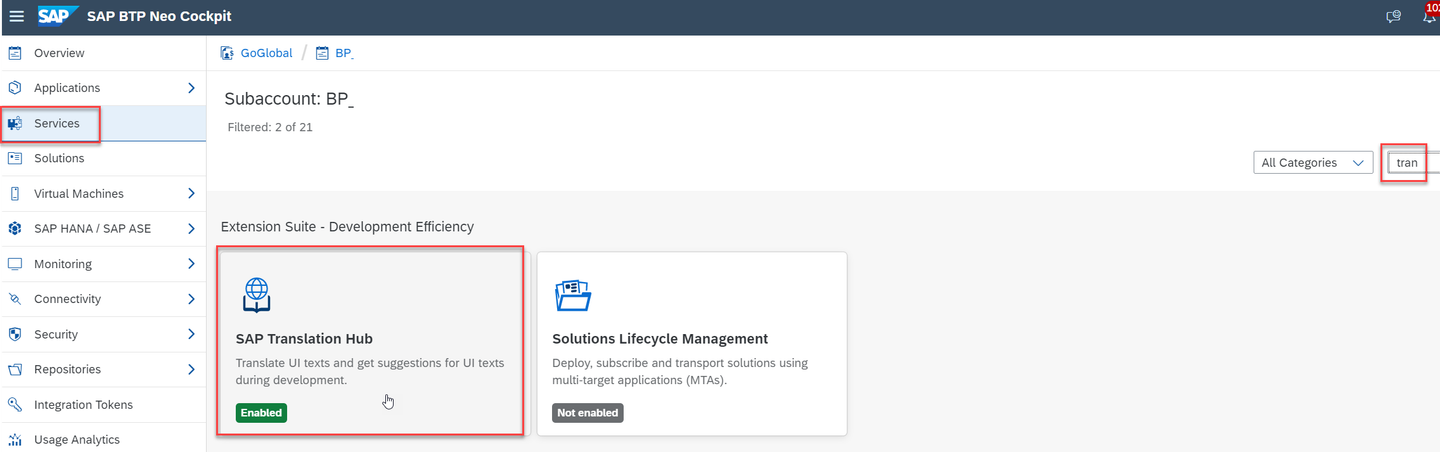

    Choose Services in the navigation area on the left. Search for the SAP Translation Hub service by entering trans and then choose the SAP Translation Hub tile.

    open service catalog
  • Step 5

    To access the SAP Translation Hub, UI, choose Go to UI for Translation Workflow.

    Go to SAP Translation Hub service
  • Step 6

    Create a File Project for the .properties file that you’re going to upload.

    Create translation project
  • Step 7

    Enter the following details about your file translation project:

    Field Name Value
    Project Name espmcloud
    File Type Java Properties File
    Domain Sales
    Source Language English
    Target Languages Enter the languages of your choice, such as French and Italian

    Choose Proceed to upload file(s).

    Create project
  • Step 8

    You can upload the properties file in two ways: there’s the drag & drop option, which automatically starts the translation process, and there’s the more traditional file selection option, which requires you to select the file and start the translation process. The end result is the same, it’s just a matter of how you prefer to work.

    Drag & Drop Option

    Simply drag the file from your Eclipse project to the translation project screen. SAP Translation Hub uploads your properties file to the translation project.

    File Selection Option

    1. On the translation project screen, choose Upload File:
    2. Navigate to the folder on your local PC that contains the i18n.properties file and open it:
      Select properties file

    3. Choose Upload:
      Select properties file

    Regardless of the option you choose, you need to start the translation step by selecting Translate without Download or Translate and Download:

    Start translation
  • Step 9

    To review the translated texts, choose the Translations tab.
    On this screen, you can switch between target languages and view information about the translation provider and quality rating:

    Choose translations tab
  • Step 10

    To better plan the language review process, you can filter translations by the quality rating. For example, this enables you to see only those translations that have a quality rating below a certain threshold, such as 50.
    Choose the filter icon above the Quality Index column:

    Choose filter button

    Choose Quality Index:

    Choose quality index button

    Enter 50 as the upper limit or move the right slider bubble to the center of the scale:

    Adjust quality index slider

    The following success message confirms your filter setting:

    Confirm quality index filter
  • Step 11

    If you want to update any translations, make the changes in the Translated Text column and choose Save Changes:

    Save translation project
  • Step 12

    Now it’s time to download your translations so that you see your Java app in other languages. Choose Download Translations:

    Download translations

    SAP Translation Hub prepares a zip file that contains properties files for each of the target languages in your translation project; save the zip file on your local PC and make a note of its location. You’ll need to navigate to this file later in the tutorial.

    Confirm zip download
  • Step 13

    Now it’s time to head back to your Eclipse window and import the translations into the project for your Java app.

    Ensure that you’re looking at the Java perspective:

    Choose Java perspective

    In the Package Explorer, navigate to your i18n folder, by choosing espm-cloud-web > src > main > webapp > webshop.
    Right-click the i18n folder and choose Import….

    Choose import in Eclipse

    Choose Archive File:

    Choose archive file for import

    At the top of the Import window, browse to the zip file that you downloaded from the SAP Translation Hub UI and choose Finish:

    Select zip file to import

    The properties files per target language appear in the i18n folder:

    Show target language properties files
  • Step 14

    To see the translations in your Java app, you need to restart the Java server. In Eclipse, switch to the Git perspective:

    Choose Git perspective

    Choose the Servers tab:

    Choose Servers tab

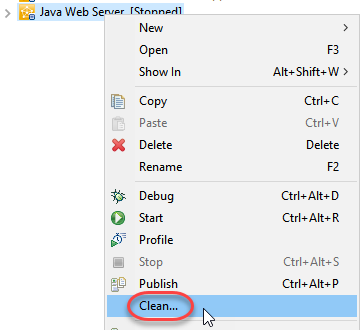

    Right-click Java Web Server and choose Clean…:

    Choose Servers tab

    Confirm the clean process by choosing OK:

    Confirm clean process

    Depending on system performance, it can take several minutes for the Java server to be cleaned and restarted. When the process is complete, the status of the Java Web server changes to Started, Synchronized:

    Server started
  • Step 15

    To see your app in the translated languages, enter the following address in a browser; the last two letters denote the language of your app: http://localhost:8080/espm-cloud-web/webshop/?sap-language=fr

    Enter local host address in browser

    The French version of the app appears:

    Display French version of app

    Which project types are available to create a translation project in SAP Translation Hub?
