Key User Adaptation for SAPUI5 Applications - Custom Actions, Views and Embedded Content

Beginner

15 min.

Learn advanced SAPUI5 flexibility key user adaptation features using an SAP Fiori elements application: custom actions, views and embedding external content.

You will learn

How to use custom actions - like changing the filters in an SAP Fiori elements application.
Creating and configuring tailored views.
How to embed external content on an Object Page.

Vitor SeifertJune 23, 2025

Created by

December 10, 2024

Contributors

So far you have learned how easy it is to adapt applications using intuitive “what you see is what you get” actions like move, rename and add controls. You have also learned about UI changes and how to use the different modes available in key user adaptation. In this tutorial, you will learn how to use custom actions, which enable you to, for example, change filters and layouts in SAP Fiori elements applications. With this feature, you will create a view that displays only products in stock. Finally, you will look at how to embed external content to Object Pages by adding a section containing search results for the product.

Step 1
Go again to the SAPUI5 Demo Kit, and this time open the Key User Adaptation for SAP Fiori Elements demo app under SAPUI5 Flexibility Demo Apps.

Start key user adaptation by clicking on the upper right DU icon and selecting Adapt UI. Make sure to select Original App on the Version drop down (left side of the toolbar). This will load the app without any previous UI changes so you can start a new draft.

In SAPUI5 Fiori elements apps, UI changes are usually saved in views. The default is a Standard view, which is delivered with the application.

Now let’s say you are interested in seeing only products that are in stock. You can create a view tailored for this purpose. Right-click on the filter area and choose Adapt Filters.

Notice that you can’t select single filter fields to execute actions directly on them like you did with form fields in the previous tutorials. Every change on the filters is created using the Adapt Filters custom action in this application.

On the dialog, first press Show Values so you can define pre-selected values for the filters.

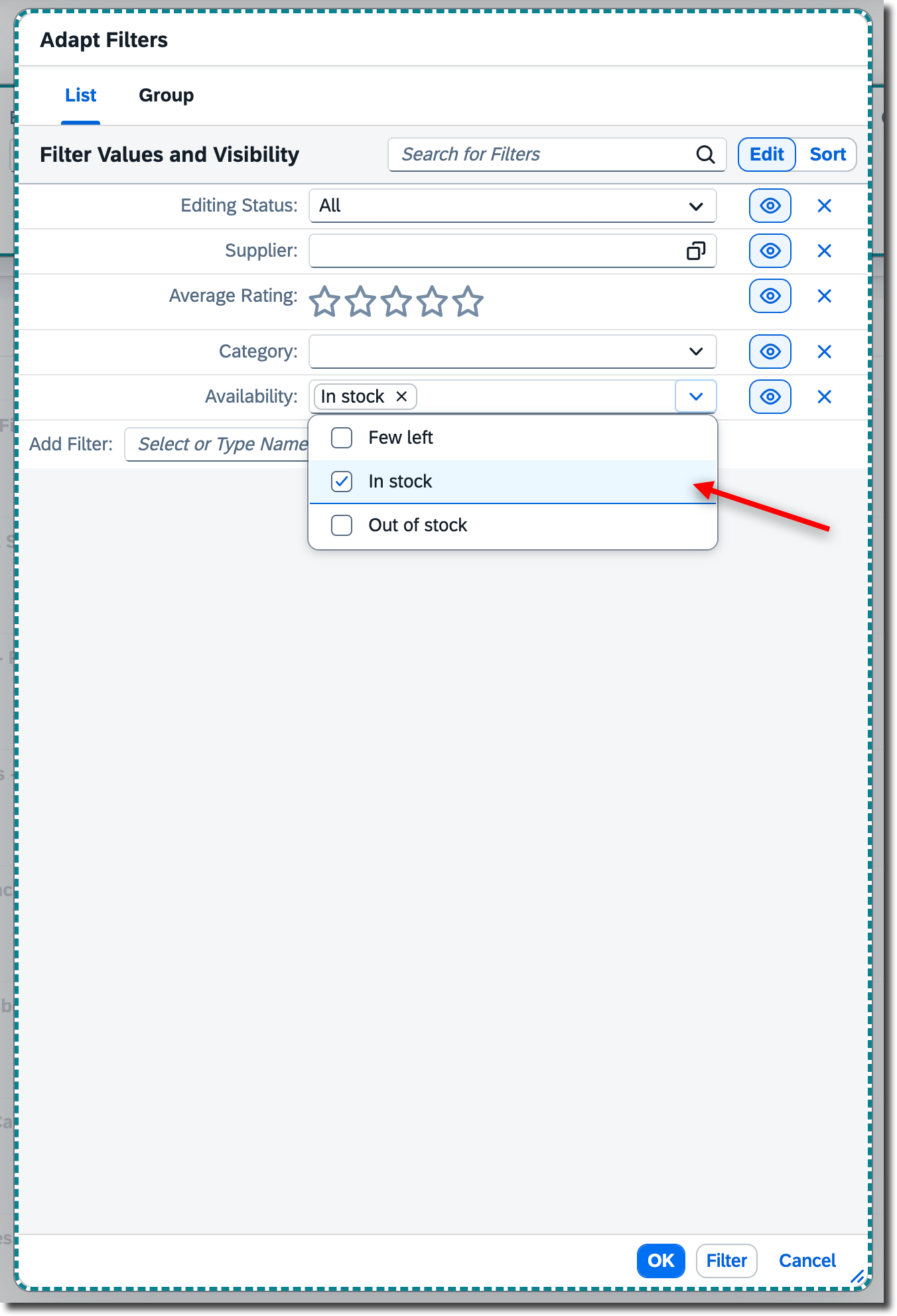

Now, select Availability and de-select all other fields. Then choose only the value In Stock from the available values.

Now press OK. You will receive a warning saying that the view is protected: when you make a change on a filter, it becomes part of the view. However, the Standard view cannot be modified in some applications, meaning you need to create a new view for your changes. Simply press Save as New View and call it In Stock. Here you can also decide if the view should be the default view (displayed when the application starts) and if it should be applied automatically (meaning that the search will be executed when the view is selected). For our example, let’s select Apply Automatically. Finally, press Save.

Your new view will be selected, and the results will be displayed on the table.

At this point you might be asking: as an end user I can also adapt filters and create views - why would I do it in key user adaptation mode? The difference is that the views you create as key user will be available to all end users - while the views created by each end user will only be visible to that end user. The views you create as key user have no influence over existing end user views.

By right-clicking on the view name, you can see the available actions for views. Let’s modify this view by selecting Manage Views.

In this dialog you can rename the views you created, as well as decide whether they should be a favorite (visible in the list of selectable views) by clicking on the star on the left side of the view name (by default every new view is marked as a favorite). You can also choose which view will be displayed when the application starts - the default view. Furthermore, you can change whether the view should be applied automatically and see who created the view. Finally, by clicking on the X you can delete a view. For now, let’s simply make our new In Stock view the default view.

Notice that, when you mark a view as default, it automatically becomes a favorite. The Standard view is always a favorite and cannot be deleted. A view not marked as favorite is still accessible via the Manage Views dialog.

Before you proceed, save your changes in a new version. Version names can help you keep track of what was done in different versions. Press the Activate New Version button on the left of the top toolbar and name it Added In Stock View. Only key users can see version names - they are not visible nor relevant to end users. Press Confirm to activate the new version.

In this app, you can also make changes to the table, giving you many options for creating optimized views for your use cases. Views are not exclusive to SAP Fiori elements apps, but they are very commonly used in them.

Congratulations! You created a new view that displays all products in stock and made it the default view.
Regarding views, select the correct statements:
If I create a new view as a key user and activate a new version, the views created by end users will be deleted.
As a key user I can make the views I create available to all end users.
In some applications, the Standard view cannot be changed. But it is always possible to create a new view and make it the default view.
Only filters and their values can be changed in SAPUI5 Fiori elements applications.
Step 2
Go to Navigation mode and select the first item from the table (Product AR-FB-1013). This will navigate you to the Object Page displaying details about this product.

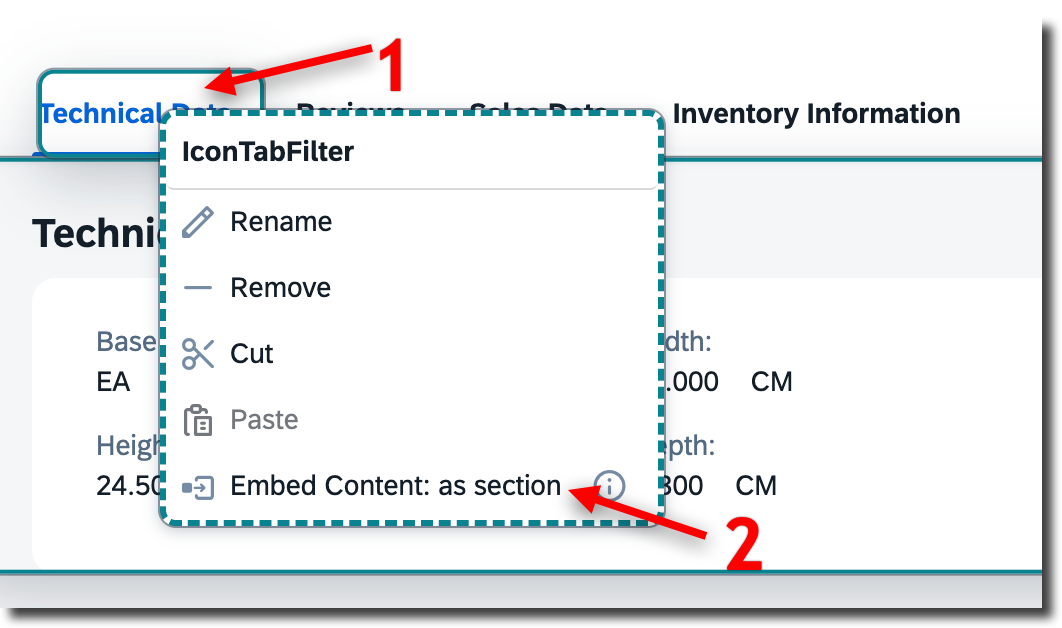

Now go back to UI Adaptation mode, right-click on the section name Technical Data and select Embed Content: as section.

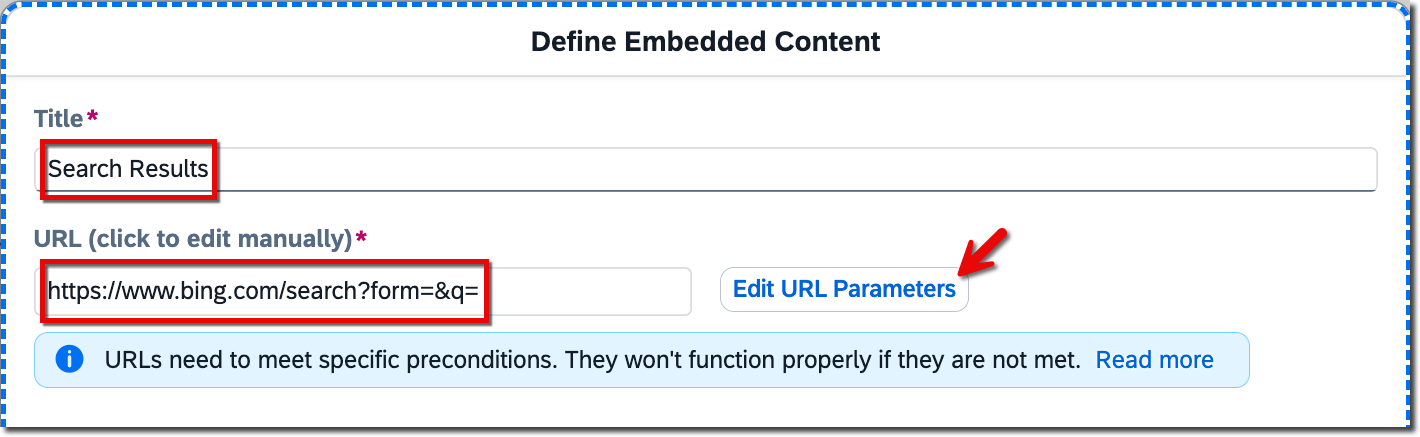

This will open the Define Embedded Content dialog, where you can configure what will be displayed in the new section. Our goal is to add search results for the product name in Bing. Write Search Results as title. Then go to the URL field and type in: https://www.bing.com/search?form=&q=. This is the base URL for searches in Bing, to which you will add a product specific value.

Notice that, on the left side of the URL field, there is a table called Available Values. These values are retrieved from the underlying data model for this Object Page. By selecting one of these parameters to be part of the URL, you can use a dynamic value retrieved from the currently displayed product. In this case, you want to search with the product name, so scroll down the table and find the parameter Name. When you click on it, the parameter will be added to the URL in the position of the cursor (or at the end, if nothing is selected) between curly braces. The final URL should be https://www.bing.com/search?form=&q={Name}.

You can easily check if your URL is correct by pressing Show Preview.

Which shows you what the section will look like:

If everything looks good, press Save. This will close the dialog and you will see the new section with the search results for the product name.

Finally, let’s activate a new version with this new section. Go to Activate New Version, name it Added Search Results and press Confirm. You can now leave key user adaptation by pressing the Exit button on the toolbar and try out the application with your adaptations.

Some systems do not support versioning. In this case, just press Save, and exit key user adaptation.

If you navigate to different products from the product table (where you created the new view), you will see that the current product name is passed as parameter to the embedded content.

Good job! You now know how to create tailored views in SAP Fiori elements applications and use embedded content to easily add more features to existing applications.

For the SAPUI5 Demokit apps, the key user changes are saved in your browser’s local storage. If you create too many versions and want to get a clean state, you can remove all entries starting with sap.ui.fl from your browser’s local storage.
Step 3
We hope you enjoyed this series of tutorials and feel confident to adapt SAPUI5 applications. Here are some key points to take away:

As a key user you tailored this app to end user’s requirements, without the need to involve IT or developers.

Each end user can work efficiently without the need to personalize the app themselves.

Customers or partners can offer such a ‘standard’ solution with flexibility for key users.

In general, SAPUI5 flexibility is a consistent technology for adaptations

not only for key users, but also for developers and end users,

custom changes are handled with a stable lifecycle,

it works with SAP Fiori elements as well as freestyle SAPUI5 apps, and

apps do not need any predefined extension points.

Remembering everything you've learned so far, select the correct statements:
Changes saved as draft are not visible to end users. Only an activated version is visible to end users.
If I add a custom field to the underlying data model of an app, the correct way to make it visible in the app is using embedded content.
When embedding content, the parameters used in the URL will always have the same value no matter what data is loaded.
Not every key user adaptation action is available for every control. For example, it might not be possible to hide a certain button if it is critical for the app functionality.
