Connect SAP Private Link Service to Microsoft Azure Private Link Service

Requires Customer/Partner License
Connect SAP Private Link service to Microsoft Azure Private Link Service with Cloud Foundry CLI and bind the service instance to your app or create a service key.
You will learn
  • How to create a SAP Private Link service instance to connect to your Microsoft Azure Private Link Service using Cloud Foundry CLI
  • How to bind the service instance to your application using Cloud Foundry CLI
Madeline SchaeferAugust 11, 2022
Created by
iwonahahn
June 24, 2021
Contributors
AnnikaGonnermann
iwonahahn

Prerequisites

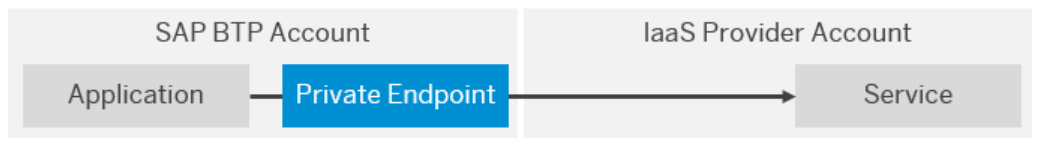

SAP Private Link service establishes a private connection between applications running on SAP BTP and selected services in your own IaaS provider accounts. By reusing the private link functionality of our partner IaaS providers, you can access your services through private network connections to avoid data transfer via the public internet.

Overview of Link service functionality

Congratulations! You have successfully completed the tutorial.

  • Step 1

    After you’ve logged in as described in Install the Cloud Foundry Command Line Interface (CLI), access the Service Marketplace of SAP BTP. Open a command prompt on your computer and type in the following:

    Shell/Bash
    Copy
    cf marketplace


    You can now see the offering, the plan, and the description, as is shown in this example:

    Shell/Bash
    Copy
    $ cf marketplace
    Getting all service offerings from marketplace in org ... / xy… trial as admin...

    offering      plans      description
    privatelink   standard    Link service establishes a private connection between selected SAP BTP services and selected services in your own IaaS provider accounts.


    Make sure you can see privatelink in the sample output.

  • Step 2

    To create and enable a private link, you need to define the connection to the service first. To do so, you need the Resource-ID Azure service:

    1. Go to the Azure portal.
    2. Navigate to the Azure resource for which you want to find out the Resource ID, for example: Private Link Center > Private link services.
    3. Click on Overview in the menu on the left side of your screen.
      Overview
    4. Click on JSON View in the upper right corner of the overview page.

    5. Search for the Resource ID in a field at the top of the resulting view in a text box labelled Resource ID.
      ResourceID
  • Step 3

    Currently, you do not have any service instances enabled. Therefore, you need to create one. To create a new private link, you need the following information:

    • offering (privatelink),
    • plans (standard),
    • a unique name (for instance, privatelink-test),
    • and the Resource-ID from Microsoft Azure (for example, /subscriptions/<subscription>/resourceGroups/<rg>/providers/Microsoft.Network/privateLinkServices/<my-private-link-service>).

    Enter cf create-service and add that information. Your command should look like this:

    Shell/Bash
    Copy
    cf create-service privatelink standard privatelink-test -c '{"resourceId": "Resource-ID"}'


    Example:
    cf create-service privatelink standard privatelink-test -c '{"resourceId":"/subscriptions/<subscription>/resourceGroups/<rg>/providers/Microsoft.Network/privateLinkServices/<privatelink-test>"}'

    If the creation of the service instance was accepted, you receive a success message telling you to proceed.

    Tip: You can add an optional description to your CF CLI cf create service command, for example "requestMessage": "Please approve ASAP." to provide some extra context.

  • Step 4

    To check the current status of the newly created service instance, you need the name of your service instance (in this example privatelink-test). Type in the following:

    Shell/Bash
    Copy
    cf service privatelink-test


    Under “message”, you can see the current status. Renew the command after approximately one minute. You should see the following message:

    Shell/Bash
    Copy
    Showing status of last operation from service verify-privatelink...

    status:    create in progress
    message:   Please approve the connection for Private Endpoint 'privatelink-test' in your Azure portal


    Execute this command again, in case there’s no change in the current status. If you receive an error message, go back to the previous steps.

    Copy the endpoint-name from the success message. You need it in the next step.

    Security Info: In a scenario in which the initiator of the private link connection doesn’t have access to the Azure Portal to approve the newly private endpoint connection him- or herself, please reach out to the person responsible for approving the connection and share the endpoint name responsibly.

  • Step 5

    Return to Microsoft Azure portal:

    1. Select Settings > Private endpoint connections.
    2. Search for the name of the private endpoint you received from the success message in the previous step.
    3. Select the private end point and click Approve.
    Approve your private endpoint

    You should now receive a success message that the approval is pending.

    Security Info: In a scenario in which the person that approves the private endpoint connection wasn’t the one that created the Private Link service in the first place, please verify that the connection originated from a trustworthy origin (for instance, a colleague asking for approval via e-mail). This verification process prevents malicious misuse of resource ids. See also Best Practices for Secure Endpoint Approval.

  • Step 6

    To check the current status of the newly created service instance, you need the name of your service instance (in this example privatelink-test). Type in the following:

    Shell/Bash
    Copy
    cf service privatelink-test


    You should see the following success message:

    Shell/Bash
    Copy
    status:    create succeeded

    message:    Private Endpoint 'privatelink-test' to ResourceID 'resource-id' successfully provisioned, ready for binding.
    started:   <date>
    updated:   <date>

  • Step 7

    Upon the creation of a binding between a CF application and a private link service instance, Private Link service creates a space-scoped Cloud Foundry application security group that enables network access to the IP address associated with the Private Endpoint.

    To bind the service instance to your application, You need to know the name of your application and your service instance (in this example privatelink-test). Then, execute the following command:

    Shell/Bash
    Copy
    cf bind-service "app-name" "privatelink-test"


    If you do not have an app that you’d like to bind to your service instance, you can create a service key by running cf create-service-key <service-instance-name> <key-name>.
    After the creation of your service binding, your application receives the information on how to connect via the binding credentials. See the following example for binding credentials:

    JSON
    Copy
    {
        "privatelink": [
            {
                "instance_name": "privatelink-test",
                "label": "privatelink", // can be used to look up the bound instance programmatically
                "credentials": {
                    "hostname": "<private-link hostname>", // internal hostname to connect to the service
                    "additionalHostname": "<private-link additional hostname>" // additional internal hostname to connect to the service
                },
                "tags": [
                    "privatelink",
                    "privatelinkservice"
                ]
            }
        ]
    }


    Which of the following command lines do you need to create your private endpoint? You can select more than one answer.
