Apply a Simple Promotion with SAP Omnichannel Promotion Pricing

Use SAP Omnichannel Promotion Pricing to calculate the effective sales price for a product in a specific location by applying promotional rules on top of the regular sales price.
You will learn
  • How to use the SAP Omnichannel Promotion Pricing trial on SAP BTP
  • How to upload master data (regular sales prices and promotional rules) with the help of the SAP API Business Hub
  • How to view the uploaded master data
  • How to create a calculation request to determine the effective sales price
Ulrike20Ulrike MuenchFebruary 16, 2022
Created by
Ulrike20
April 20, 2021
Contributors
Ulrike20

Prerequisites

  • You have registered for a trial account on SAP BTP.
  • You should be familiar with the SAP BTP trial landscape and terminology (see Take a Tour of SAP BTP Trial).
  • You have a subaccount in the Cloud Foundry environment, with Microsoft Azure as provider and the Singapore region (AP21).
  • You have set up SAP Omnichannel Promotion Pricing as described in Set Up SAP Omnichannel Promotion Pricing

This tutorial includes steps and screenshots based on the classic design of the SAP API Business Hub. To use the classic design, navigate to the upper right corner and disable the New SAP API Business Hub option.
Switch API Business Hub Layout

What to Do Next

Navigate to the intermediate group Set up Complex Promotions with SAP Omnichannel Promotion Pricing and continue with the next tutorial Apply Mix-and-Match Promotion with SAP Omnichannel Promotion Pricing.

Additional Information

  • Step 1

    Use the Calculation service of SAP Omnichannel Promotion Pricing in your sales channel applications to calculate effective sales prices by applying promotional rules. These rules can be applied to single products, product combinations and transactions. With this, you can drive a seamless buying experience because you provide the same calculation based on the same promotion and price data across all sales channels.

    • Business goal: You want to promote the product sunglasses (material number: CHA2111010) in your Heidelberg store (business unit ID: FC01) to free up space for the next season. You have created the following promotion: Buy sunglasses and get 40% off.
    • The regular sales price for the sunglasses is 10 Euro.
    • Your promotion is valid from January 1st, 2021 until January 7th, 2021.
    • Your customer put sunglasses in the shopping cart.
    • You call the Calculation service with the shopping cart information (store, product, date, time).
    • The Calculation service calculates the effective sales price (regular sales price minus promotional discount) for the sunglasses.
  • Step 2

    With the service instances and corresponding credentials that you set up (as described in Set Up SAP Omnichannel Promotion Pricing ), you can set up the environments in the SAP API Business Hub for each SAP Omnichannel Promotion Pricing service.

    Data Upload service

    1. Navigate to SAP Omnichannel Promotion Pricing on SAP API Business Hub. Log on with the same login information you use for your SAP BTP account.

    2. Select Data Upload.

      API Business Hub Starting Page
    3. Choose the Configure Environment icon.

      Data Upload Configure Environment
    4. Choose Create New Environment.

      Data Upload Configure Environment2
    5. In the following screen, enter the information from the table below:

      Data Upload Configure Environment 3
    Field Name Value
    Starting URL https://ppservice-inbound-cf-oppstrialap21-trial.cfapps.ap21.hana.ondemand.com/
    Display Name for Environments Enter any name, for example OPPS trial data upload.
    Authentication Type Application Flow
    Client Id clientid **
    Secret clientsecret **
    Identity Zone identityzone **
    region ap21
    Apply this environment to all APIs in this package that are not yet configured Please make sure that this is NOT selected.
    • Select Save this environment for future sessions.
    • Choose Save.

    ** From the service key that you have created for the Data Upload service in your SAP BTP account. For a detailed description, go to step 4 in the tutorial Set Up SAP Omnichannel Promotion Pricing.

    Service Key

    You have now created the trial environment for the Data Upload service in the SAP API Business Hub. Repeat the sub-steps 1-5 for the Data Access service and the Calculation service, using the credentials from their respective service keys.

    For which services do you have to create a trial environment in the SAP API Business Hub to complete this tutorial?

  • Step 3

    Having created the trial environments in the SAP API Business Hub, you can now start uploading the master data with the Data Upload service. The uploaded master data serves as the basis for calculating the effective sales price in step 5 of this tutorial.

    Navigate to the Data Upload service of SAP Omnichannel Promotion Pricing on SAP API Business Hub. Log on with the same login information that you use for your SAP BTP account.

    Upload regular sales price

    Data Upload Regular Sales Price 1
    Data Upload Regular Sales Price 1b
    1. For API Environment, select the trial environment you have just created for the Data Upload service.
    2. On the left-hand side, choose Upload prices using OAuth2.
    3. Open the POST request /idocinbound
    4. Choose Try Out.
    5. For the Request body, choose application/xml.
    6. Copy the following raw data and paste it into the body:

      XML
      Copy
      <?xml version="1.0" encoding="UTF-8"?>
      <_-ROP_-BASE_PRICE01>
      <IDOC BEGIN="1">
      	<EDI_DC40 SEGMENT="1">
      		<IDOCTYP>/ROP/BASE_PRICE01</IDOCTYP>
      	</EDI_DC40>
      	<_-ROP_-E1_BASE_PRICE SEGMENT="1">
      		<LOGSYS>ABCCLNT999</LOGSYS>
      		<BU_TYPE>1040</BU_TYPE>
      		<PRICE_CLASSIFIC>PRICE_VAT</PRICE_CLASSIFIC>
      		<_-ROP_-E1_BUSINESS_UNIT SEGMENT="1">
      			<BU_ID>FC01</BU_ID>
      		</_-ROP_-E1_BUSINESS_UNIT>
      		<_-ROP_-E1_ITEM SEGMENT="1">
      			<ITEM_ID>CHA2111010</ITEM_ID>
      			<_-ROP_-E1_ITEM_PRICE SEGMENT="1">
      				<PRICE_AMT>10.00000</PRICE_AMT>
      				<COND_SPR_UNIT>1</COND_SPR_UNIT>
      				<EFFECTIVE_DATE>20200908000000</EFFECTIVE_DATE>
      				<EXPIRY_DATE>20210910235959</EXPIRY_DATE>
      				<UOM_ISO_CODE>PCE</UOM_ISO_CODE>
      				<CURRENCY_ISO_CODE>EUR</CURRENCY_ISO_CODE>
      			</_-ROP_-E1_ITEM_PRICE>
      		</_-ROP_-E1_ITEM>
      	</_-ROP_-E1_BASE_PRICE>
      </IDOC>
      </_-ROP_-BASE_PRICE01>

    7. Choose Execute.

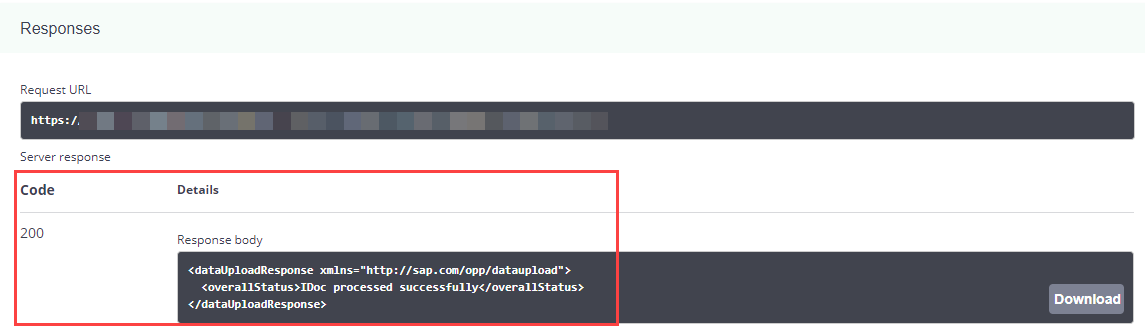

    8. Make sure you get the HTTP response 200.
    Data Upload Regular Sales Price 2

    With this, you uploaded the regular sales price of 10 Euro for the product sunglasses (material number: CHA2111010) for the Heidelberg store (business unit ID: FC01) and the validity period September 8th, 2020 to September 10th, 2021.

    Upload promotional rule

    Data Upload Regular Promotional Rule 1
    Data Upload Regular Promotional Rule 1b
    1. For API Environment, select the trial environment you have just created for the Data Upload service.
    2. On the left-hand side, choose Upload promotions using OAuth2.
    3. Open the POST request /idocinbound.
    4. Choose Try Out.
    5. For the Request body, choose application/xml.
    6. Copy the following raw data and paste it into the body:

      XML
      Copy
      <?xml version="1.0" encoding="UTF-8"?>
      <_-ROP_-PROMOTION02>
      <IDOC BEGIN="1">
      	<EDI_DC40 SEGMENT="1">
      		<IDOCTYP>/ROP/PROMOTION02</IDOCTYP>
      	</EDI_DC40>
      	<_-ROP_-E1_PROMOTION SEGMENT="1">
      		<CHANGED_ON>20200717080000</CHANGED_ON>
      		<CHANGE_INDICATOR>U</CHANGE_INDICATOR>
      		<EFFECTIVE_DATE>20210101000000</EFFECTIVE_DATE>
      		<EXPIRY_DATE>20210107235959</EXPIRY_DATE>
      		<EXTERN_PROMO_ID>000000000000000000000000000000000006</EXTERN_PROMO_ID>
      		<LOGSYS>ABCCLNT999</LOGSYS>
      		<MIN_PPS_RELEASE>0</MIN_PPS_RELEASE>
      		<OFFER_ID>6CAE8B74B1721EE5AD8B6CF0A5B310A9</OFFER_ID>
      		<ORIGIN>01</ORIGIN>
      		<PROMOTION_ID>1429</PROMOTION_ID>
      		<PROMOTION_TYPE>01</PROMOTION_TYPE>
      		<STATUS_TCD>AC</STATUS_TCD>
      		<_-ROP_-E1_PROMOTION_BU SEGMENT="1">
      			<BU_ID>FC01</BU_ID>
      			<BU_TYPE>1040</BU_TYPE>
      		</_-ROP_-E1_PROMOTION_BU>
      		<_-ROP_-E1_PROMOTION_RULE SEGMENT="1">
      			<ELIGIBILITY_ID>1180547</ELIGIBILITY_ID>
      			<PRICE_RULE_ID>1180547</PRICE_RULE_ID>
      			<PROMO_RULE_ID>1180547</PROMO_RULE_ID>
      			<RESOLUTION>0</RESOLUTION>
      			<SALE_RETURN_TCD>00</SALE_RETURN_TCD>
      			<SEQUENCE>10</SEQUENCE>
      			<_-ROP_-E1_ELIGIBILITY SEGMENT="1">
      				<EFFECTIVE_DATE>20210101000000</EFFECTIVE_DATE>
      				<ELIGIBILITY_ID>1180547</ELIGIBILITY_ID>
      				<EXPIRY_DATE>20210107235959</EXPIRY_DATE>
      				<INTERVAL_AMT>0.00000</INTERVAL_AMT>
      				<INTERVAL_QTY>1.000</INTERVAL_QTY>
      				<ITEM_ID>CHA2111010</ITEM_ID>
      				<LIMIT_AMT>0.00000</LIMIT_AMT>
      				<LIMIT_QTY>9999999999.000</LIMIT_QTY>
      				<MERCH_SET_ID>0</MERCH_SET_ID>
      				<PARENT_ELIGIB_ID>1180547</PARENT_ELIGIB_ID>
      				<PROMO_RULE_ID>1180547</PROMO_RULE_ID>
      				<ROOT_ELIGIB_ID>1180547</ROOT_ELIGIB_ID>
      				<STATUS_TCD>AC</STATUS_TCD>
      				<THRESHOLD_AMT>0.00000</THRESHOLD_AMT>
      				<THRESHOLD_QTY>1.000</THRESHOLD_QTY>
      				<THRESHOLD_TCD>QUTI</THRESHOLD_TCD>
      				<TRANS_TOTAL_AMT>0.00000</TRANS_TOTAL_AMT>
      				<TYPE_CODE>ITEM</TYPE_CODE>
      				<UOM_ISO_CODE>PCE</UOM_ISO_CODE>
      			</_-ROP_-E1_ELIGIBILITY>
      			<_-ROP_-E1_PRICE_RULE SEGMENT="1">
      				<CALCULATION_BASE>00</CALCULATION_BASE>
      				<CALC_BASE_SEQUENCE>1-</CALC_BASE_SEQUENCE>
      				<CONSIDER_PREVIOUS_RULES>X</CONSIDER_PREVIOUS_RULES>
      				<COUPON_VALIDITY>0</COUPON_VALIDITY>
      				<CURRENCY_ISO_CODE>EUR</CURRENCY_ISO_CODE>
      				<DISC_METHOD_TCD>00</DISC_METHOD_TCD>
      				<EX_PRICE_RULE_ID>0000000000000000000</EX_PRICE_RULE_ID>
      				<ITEM_METHOD>00</ITEM_METHOD>
      				<MAM_LIMIT_CNT>0.000</MAM_LIMIT_CNT>
      				<NEW_PRICE_AMT>0.00000</NEW_PRICE_AMT>
      				<NEW_SET_PRCE_AMT>0.00000</NEW_SET_PRCE_AMT>
      				<PRICE_MODIF_AMT>0.00000</PRICE_MODIF_AMT>
      				<PRICE_MODIF_CODE>RP</PRICE_MODIF_CODE>
      				<PRICE_MODIF_PERC>40.000</PRICE_MODIF_PERC>
      				<PRICE_RULE_ID>1180547</PRICE_RULE_ID>
      				<ROUNDING_METHOD>00</ROUNDING_METHOD>
      				<ROUND_DECIMALS>2</ROUND_DECIMALS>
      				<ROUND_DESTINATION>1</ROUND_DESTINATION>
      				<RULE_CTRL_CODE>PO</RULE_CTRL_CODE>
      				<STATUS_TCD>AC</STATUS_TCD>
      				<TYPE_CODE>RB</TYPE_CODE>
      			</_-ROP_-E1_PRICE_RULE>
      		</_-ROP_-E1_PROMOTION_RULE>
      		<_-ROP_-E1_PROMOTION_TEXT SEGMENT="1">
      			<DESCRIPTION>Buy product sunglasses for 40% off.</DESCRIPTION>
      			<NAME>CHA_EXAMPLE1</NAME>
      			<SPRAS_ISO>EN</SPRAS_ISO>
      		</_-ROP_-E1_PROMOTION_TEXT>
      	</_-ROP_-E1_PROMOTION>
      </IDOC>
      </_-ROP_-PROMOTION02>

    7. Choose Execute.
    8. Make sure you get the HTTP response 200.

    With this you uploaded the promotional rule “Buy sunglasses and get 40% off” (promotion ID: 1429) for the Heidelberg store (business unit ID: FC01) and the validity period January 1st, 2021 to January 7th, 2021.

  • Step 4

    You can use the Data Access service for checking your uploaded data.

    Navigate to the Data Access service of SAP Omnichannel Promotion Pricing on the SAP API business Hub.

    Check uploaded regular sales price

    Data Access Service Base Price 1
    Data Access Service Base Price 1b
    1. For API Environment, select your trial environment for the Data Access service.
    2. On the left-hand side, choose Regular Prices to read the list of regular sales prices.
    3. Select Try Out.
    4. Choose Execute.
    5. Make sure you get the HTTP response 200.
    6. Check the data in the Response Body. For this, scroll down in the response body until you find the respective entry.
    Data Access Service Base Price 2

    Check uploaded promotional rule

    Data Access Service Promotional Rule 1
    Data Access Service Promotional Rule 1b
    1. For API Environment, select your trial environment for the Data Access service.
    2. On the left-hand side, choose PromotionTexts.
    3. Select Try Out.
    4. Choose Execute.
    5. Make sure you get the HTTP response 200.
    6. Check the data in the Response Body. For this, scroll down in the response body until you find the respective entry.
    Data Access Service Promotional Rule 2
  • Step 5

    You can now calculate the effective sales price based on the data you have uploaded in the previous steps.

    Scenario: A customer has one pair of sunglasses (material number: CHA2111010) in the shopping cart. The customer wants to purchase it on January 5th, 2021 in the Heidelberg store (business unit ID: FC01).

    Desired Result: The effective sales price for the sunglasses should be 6 Euro: 10 Euro (regular sales price) minus 40% discount, as the customer is eligible for the promotion “Buy sunglasses and get 40% off”.

    Let’s check if this is the case:

    Calculation
    Calculation2b
    1. Navigate to the Calculation service on the SAP API Business Hub.
    2. For API Environment, select your trial environment for the Calculation service.
    3. Open the POST request /restapi/{tenantName} and choose Try Out.
    4. In the field tenantName enter the identityzone from the service key you have created for the Calculation service in your SAP BTP account.

      If you need a more detailed description, go to step 4 in the tutorial Set Up SAP Omnichannel Promotion Pricing.

    5. For the Request body, choose application/xml.

    6. Copy the following raw data and paste it into the body:
    XML
    Copy
    <PriceCalculate xmlns="http://www.sap.com/IXRetail/namespace/" InternalMajorVersion="2" InternalMinorVersion="1">
    	<ARTSHeader ActionCode="Calculate" MessageType="Request">
    		<MessageID>123456789</MessageID>
    		<DateTime>2016-05-04T18:13:51.0</DateTime>
    		<BusinessUnit TypeCode="RetailStore">FC01</BusinessUnit>
            <MasterDataSourceSystemID>ABCCLNT999</MasterDataSourceSystemID>
    	</ARTSHeader>

       <PriceCalculateBody TransactionType="SaleTransaction" NetPriceFlag="false">
    	  <TransactionID>3456789</TransactionID>
    	  <DateTime>2021-01-05T00:00:00.0</DateTime>
        <ShoppingBasket>
          <LineItem>
             <SequenceNumber>0</SequenceNumber>
             <Sale ItemType="Stock" NonDiscountableFlag="false" FixedPriceFlag="false">
                <TaxIncludedInPriceFlag>false</TaxIncludedInPriceFlag>
                <NonPieceGoodFlag>false</NonPieceGoodFlag>
                <PriceTypeCode>00</PriceTypeCode>
                <NotConsideredByPriceEngineFlag>false</NotConsideredByPriceEngineFlag>
                <ItemID>CHA2111010</ItemID>
                <Quantity Units="1" UnitOfMeasureCode="PCE">1</Quantity>
               </Sale>
          </LineItem>
        </ShoppingBasket>
       </PriceCalculateBody>
    </PriceCalculate>


    Make sure you get the HTTP response 200.

    The response should look similar to this:

    JSON
    Copy
    {
      "ARTSHeader": {
        "MessageID": {
          "value": " "
        },
        "DateTime": [
          {
            "value": " "
          }
        ],
        "Response": {
          "RequestID": "123456789",
          "ResponseTimestamp": " ",
          "ResponseCode": "OK"
        },
        "BusinessUnit": [
          {
            "value": "FC01",
            "TypeCode": "RetailStore"
          }
        ],
        "MasterDataSourceSystemID": "ABCCLNT999",
        "ActionCode": "Calculate",
        "MessageType": "Response"
      },
      "PriceCalculateBody": [
        {
          "TransactionID": {
            "value": "3456789"
          },
          "DateTime": {
            "value": "2021-01-05T00:00:00.000"
          },
          "ShoppingBasket": {
            "LineItem": [
              {
                "Sale": {
                  "ItemID": [
                    {
                      "value": "CHA2111010"
                    }
                  ],
                  "RegularSalesUnitPrice": {
                    "value": 10,
                    "Currency": "EUR"
                  },
                  "ExtendedAmount": {
                    "value": 6,
                    "Currency": "EUR"
                  },
                  "ExtendedDiscountAmount": {
                    "value": 4,
                    "Currency": "EUR"
                  },
                  "Quantity": [
                    {
                      "value": 1,
                      "Units": 1,
                      "UnitOfMeasureCode": "PCE"
                    }
                  ],
                  "RetailPriceModifier": [
                    {
                      "PriceDerivationRule": [
                        {
                          "PriceDerivationRuleID": "1180547",
                          "PromotionDescription": "Buy product sunglasses for 40% off.",
                          "PromotionDescriptionMultiLanguage": [
                            {
                              "value": "Buy product sunglasses for 40% off.",
                              "Language": "EN"
                            }
                          ],
                          "PromotionPriceDerivationRuleSequence": 10,
                          "PromotionPriceDerivationRuleResolution": 0,
                          "TransactionControlBreakCode": "PO",
                          "PromotionOriginatorTypeCode": "01",
                          "TriggerQuantity": 0,
                          "DiscountMethodCode": "00",
                          "FrequentShopperPointsFlag": false,
                          "CustomerGroupLoyaltyPointsDefaultQuantity": 0,
                          "ProhibitPrintFlag": false,
                          "PointsConversionAmount": {
                            "value": 0.01,
                            "Currency": "EUR"
                          },
                          "NoEffectOnSubsequentPriceDerivationRulesFlag": false,
                          "ProhibitTransactionRelatedPriceDerivationRulesFlag": false,
                          "ExclusiveFlag": false,
                          "AppliedCount": 1,
                          "ExternalPromotionID": "000000000000000000000000000000000006",
                          "PrintoutValidityPeriod": 0,
                          "PromotionType": "01",
                          "CalculationBaseSequence": "1-",
                          "ApplicationType": "DiscountPercent"
                        }
                      ],
                      "ExtraAmount": {
                        "value": 0,
                        "Currency": "EUR"
                      },
                      "ExternalSystemOriginatorFlag": false,
                      "SequenceNumber": 0,
                      "Amount": {
                        "value": 4,
                        "Currency": "EUR",
                        "Action": "Subtract"
                      },
                      "Percent": {
                        "value": 40,
                        "Action": "Subtract"
                      },
                      "PreviousPrice": {
                        "value": 10,
                        "Currency": "EUR"
                      },
                      "NewPrice": {
                        "value": 6,
                        "Currency": "EUR"
                      },
                      "PromotionID": {
                        "value": "1429"
                      },
                      "Quantity": {
                        "value": 1
                      },
                      "Rounding": {
                        "value": 0,
                        "Currency": "EUR"
                      }
                    }
                  ],
                  "ItemType": "Stock",
                  "NonDiscountableFlag": false,
                  "FixedPriceFlag": false,
                  "TaxIncludedInPriceFlag": false,
                  "NonPieceGoodFlag": false,
                  "FrequentShopperPointsEligibilityFlag": false,
                  "PriceTypeCode": "00",
                  "NotConsideredByPriceEngineFlag": false,
                  "PromotionPriceDerivationRuleReference": [
                    {
                      "PromotionID": "1429",
                      "PriceDerivationRuleID": "1180547",
                      "ReferenceQuantity": 1
                    }
                  ]
                },
                "SequenceNumber": [
                  0
                ]
              }
            ]
          },
          "RegularSalesUnitPriceRoundingRule": {
            "RoundingMethod": "Commercial",
            "Multiple": 0.01
          },
          "TransactionType": "SaleTransaction",
          "NetPriceFlag": false,
          "CalculationMode": "Basket"
        }
      ],
      "InternalMajorVersion": 2,
      "InternalMinorVersion": 1
    }


    What is the calculated effective sales price that you get as a result?

Back to top
