Continue Your OData Exploration with EPM

Continue your exploration of OData with the Enterprise Procurement Model (EPM) data set in the Gateway demo system.
You will learn
  • How to explore an OData service in your browser
  • How to use navigation paths
  • What the common query options are and how to use them
  • How to switch to a JSON output format
qmacroDJ AdamsJuly 13, 2020
Created by
September 14, 2018

The Enterprise Procurement Model (EPM) represents a typical business scenario that is complex enough to have meaning in an enterprise context but still simple enough to use for exploring technologies and techniques at a beginner level.

EPM exists as data in a set of related tables and views, and there are also various OData services that marshal that data and provide business functionality. The EPM and the related OData services are available in the SAP Gateway demo system, and there is a specific EPM OData service, intended for use in a reference app called “Shop”, that will be used in this tutorial.

  • Step 1

    In this step you’ll find the EPM OData service by looking for it via the maintenance transaction for the Internet Communication Framework (ICF), to understand how web-based resources in general and OData services in particular are managed within an ABAP system.

    Log on to the SAP Gateway Demo system via the Web GUI. If necessary, use the arrow button to make the OK Code field appear, so you can enter transaction codes.

    menu option to show the OK Code field

    Enter transaction code SICF into the OK Code field to start the “Define Services” transaction. In the Service Path field enter /sap/opu/odata and then select the Execute function.

    executing SICF with /sap/opu/odata

    You will be presented with display of the ICF node hierarchy filtered to display only those nodes starting with the path /sap/opu/odata, which represents the root of the OData services. Feel free to explore the hierarchy of nodes available within the odata branch, and in particular the sap node, which is where you’ll see a number of sub nodes representing OData services.

    the ICF node hierarchy for /sap/opu/odata

    Now scroll down to find this OData service node:


    This is the OData service you will explore. It is an EPM based service for a reference app called “Shop”, which explains most of the node’s name. The last part, SRV, short for “service”, is common for OData services served from ABAP systems. This is similar to the convention you may have noticed with the Northwind service in the tutorial Learn about OData fundamentals where the end part of the OData service name was svc.

    Use the information in the node hierarchy that leads down to the EPM_REF_APPS_SHOP_SRV node to form the part of the OData service URL that will be relative to the SAP Gateway demo system base URL:

    Enter your credentials for the SAP Gateway demo system if prompted.

    basic authentication

    The resource returned is the OData service document, showing the collections available, such as Suppliers, MainCategories and so on.

    OData service document

    How many collections are described in the service document for the EPM_REF_APPS_SHOP_SRV OData service?

  • Step 2

    At a very high level, the entity types and their relationships in this OData service look like this:

    entity types and their relationships

    There are corresponding entity sets for each of the entity types. If you want to confirm this for yourself, look at the service’s metadata document at this URL to see those relationships (look particularly at the NavigationProperty, Association and EntitySet elements for details):$metadata

    You should now explore the Products entity set and see how a specific product relates to its supplier.

    First, look at all of the products, using this URL for the Products entity set:

    Now, find the product entry with the ID HT-1001 and the name “Notebook Basic 17”.

    If there isn’t a product entry with this specific ID, you can choose another one - the IDs follow a similar pattern.

    Use the entry’s ID to navigate directly to that product, as an entity:'HT-1001')

    Now you’re looking at an individual product, in the form of a single entity (Products('HT-1001')) rather than all the products via the entire entity set (Products).

    Note the difference between the Products entity set resource and the resource for this specific Product entity - the former is represented by the root XML element feed, and the latter by the root XML element entry.

    Next, follow the link from this product to its supplier, using the information in the relevant link element:

    link from product to supplier

    In other words, specify this URL:'HT-1001')/Supplier

    You should see data for a single supplier, Becker Berlin, described inside a root XML entry element, denoting a single entity:

    single supplier Becker Berlin

    It is also possible to navigate to individual properties within an entity. Try this now. Select the supplier’s web address, by specifying this URL:'HT-1001')/Supplier/WebAddress

    What other properties are available in the Supplier entity?

  • Step 3

    OData has system query options $top and $skip that facilitate paging through large entity sets.

    First, find out how many Suppliers there are, using the $count system query option:$count

    At the time of writing, the number of suppliers in the Suppliers entity set for this service is 45. You may find there is a different number, but it doesn’t matter.

    Request the first 5 suppliers, using $top, like this:$top=5

    The system query options like $top and $skip are part of the query string of the URL which itself is introduced with the ? symbol.

    Now get the next 5 suppliers, by using $skip in conjunction with $top:$top=5&$skip=5

    Certain frameworks that process OData, like the SAP UI5 toolkit, use these system query options internally to allow comfortable paging through large data sets in list or table situations.

  • Step 4

    Instead of navigating from an entity to a related entity or entity set using two requests (one for the original entity and then another for the related data), the $expand system query option allows for related data to be returned in-line with resources retrieved, in a single request.

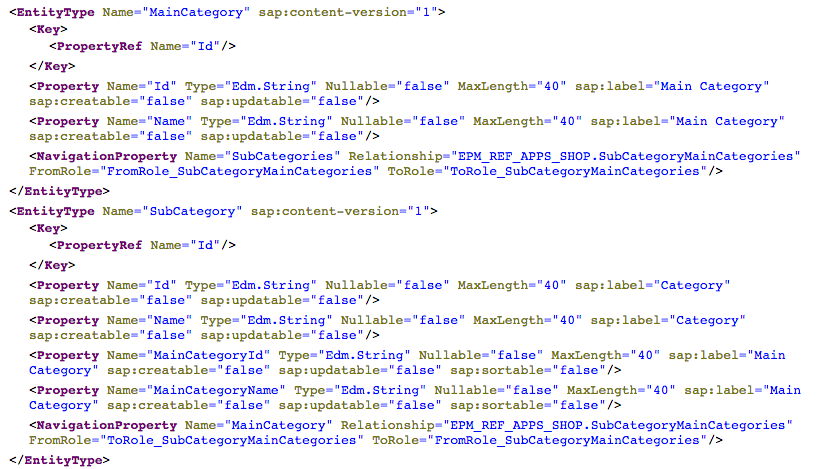

    Try this out, by looking at another couple of EPM entities exposed in this OData service - the product categories. There’s a MainCategory entity type, with a navigation property to a list of entities of type SubCategory. Have a quick look at the metadata document to confirm this:$metadata

    main and sub category entity types

    Request a list of all the main categories, and ask for their sub categories to be returned in-line in the response, using the $expand system query option:$expand=SubCategories

    If you look closely at the response, you’ll see that there is a feed XML element at the root, containing entry elements. A typical entity set response. However, inside each entry element there is a nested feed element, itself containing further entry elements.

    nested feeds with $expand

    The SubCategory entities related to each MainCategory entity are returned in-line, in the response to the request for the MainCategories entity set.

    Which of these are sub categories for the Computer Systems main category?

  • Step 5

    You may have found looking through the nested XML structures in the previous step quite tedious. XML is human-readable, but not necessarily human-friendly. The OData specification describes an alternative format in JavaScript Object Notation (JSON). This is a more lightweight format and somewhat easier to read, if you have a browser extension that will format JSON for you.

    First, install a JSON formatter extension for your Chrome browser. The JSONView extension is a good choice. Go to the JSONView extension page and add it to your Chrome browser.

    Now, reload the main and sub category structure from the previous step with this URL:$expand=SubCategories

    Next, append the OData system query option $format=json to the query string, like this:$expand=SubCategories&$format=json

    Adding more system query options to the query string of an OData URL is just like adding query parameters to any other URL query string - they are concatenated with the ‘&’ symbol. Don’t forget the ‘$’ prefix on each of the OData system query options, though!

    The response is returned in JSON, and formatted by the JSONView is considerably easier to read:

    categories response in JSON

    While the entity set and entity responses can be returned in JSON format, the service document and metadata document of an OData service, at least a V2 OData service, cannot - they only exist in XML format.

  • Step 6

    An OData service may contain a definition of an entity type that has a large number of properties. If the consumer of the service really only needs a couple of them, transferring the rest is an unnecessary load on network traffic and can increase response times. The OData system query option $select allows you to specify a smaller list of properties that should be returned.

    Looking at the metadata document of the OData service, you will see that the Product entity type is one that has many properties.

    First, take a look at all the properties and some sample values by requesting the first entity in the Products entity set with this URL:$top=1&$format=json

    Even in the more lightweight JSON format it’s still a lot of data, especially if an entire entity set is requested:

    a single product entity in JSON format

    Now reduce the number of properties down to just a few: AverageRating, Name and StockQuantity using the $select system query option:$top=1&$format=json&$select=AverageRating,Name,StockQuantity

    You’ll get a response that looks something like this - a whole lot smaller!

    product with a reduced number of properties

    The $select system query option can also be used to specify properties that are part of entities that are returned in-line with $expand. The Product entity type has a Supplier navigation property as well as a Reviews navigation property - these can be returned in-line with $expand, and a restricted set of their properties can be specified in $select as well.

    Specify this URL, to request the first product, along with the name of its supplier, and also the names of the users who have reviewed that product:$top=1&$format=json&$expand=Supplier,Reviews&$select=AverageRating,Name,StockQuantity,Supplier/Name,Supplier/FormattedAddress,Reviews/UserDisplayName

    Depending on how the data has been modified in this demo system, you may find that the first product sometimes has no reviews. In that case, search for one using combinations of the $top and $skip that you learned about in a previous step.

    The query string portion of this URL is quite long and getting difficult to read. Broken down into its parts, we have the following:

    • Get the first entity:

    • Return the response in JSON format

    • Include in-line the related Supplier and Reviews data as well

    • Only return these specific properties

    Notice the format for specifying properties in related entity types, such as Supplier/Name and Reviews/UserDisplayName.

    This request brings back exactly what we asked for:

    review and supplier detail for a product

    If you chose to also have the SubCategory data returned in-line, what would you need to add to the $select to have the sub category name property returned?

  • Step 7

    The $filter system query option can be used to filter the entities according to criteria that can be expressed by a broad set of operators.

    Refer back to the properties of the first product in the Products entity set, as shown in the screenshot in the previous step. Any of the properties here can be used with the $filter system query option.

    First, count how many products there are, using $count:$count

    This may well vary, but at the time of writing, this shows 125.

    Now, use the $filter system query option in conjunction with $count to find out how many products are in the “Computer Systems” main category:$count?$filter=MainCategoryId%20eq%20%27Computer%20Systems%27

    This should return a count value less than the total, earlier. At the time of writing, the value is 34.

    If you’re wondering about the strange characters in this URL, they’re just URL encoded versions of the space and single-quote characters, in other words %20 and %27 respectively. You can actually type the original space and single-quote values into the browser address bar like this: $filter=MainCategoryId eq 'Computer Systems' and the characters will be encoded automatically.

    You can double check the results by removing the $count part from the URL to see that each of the product entities returned really do belong to the ‘Computer Systems’ main category:$filter=MainCategoryId%20eq%20%27Computer%20Systems%27

    products in the Computer Systems main category

    Operators can be combined. Try this, by finding out whether there are any products in the “Software” main category where the stock is low (10 units or fewer), restricting the results to just show the product name and stock information, in JSON format:$filter=MainCategoryId%20eq%20%27Software%27%20and%20StockQuantity%20le%2010&$select=StockQuantity,Name&$format=json

    Again, to break this down, we have the following (before the special characters are URL encoded):

    • Restrict entries to those where the MainCategoryId value is “Software” and where the StockQuantity value is less than or equal to 10:
      $filter=MainCategoryId eq 'Software' and StockQuantity le 10

    • Return only the values for the StockQuantity and Name properties:

    • Return the response in JSON format:

    You can learn more about the different operators available in the Filter System Query Option ($filter) documentation on the OASIS OData website. You’ll see that there are functions available for use with $filter too, functions such as substringof and startswith.

    Given that the Supplier entity type has a FormattedAddress property with values like this: "Dietmar-Hopp-Allee 16, 69190 Walldorf, DE" that contain a 2 character country name at the end, what $filter system query option might you use to find suppliers in Great Britain (GB)?

  • Step 8

    The final system query option to examine in this tutorial is $orderby, which takes the specification of a list of one or more properties, and optional indicators to specify whether ascending order (the default) or descending order is desired.

    Use the $orderby system query option to list the products sorted by average rating, with the most highly rated appearing first, showing the product name, price and the average rating score:$format=json&$orderby=AverageRating%20desc&$select=Name,Price,CurrencyCode,AverageRating

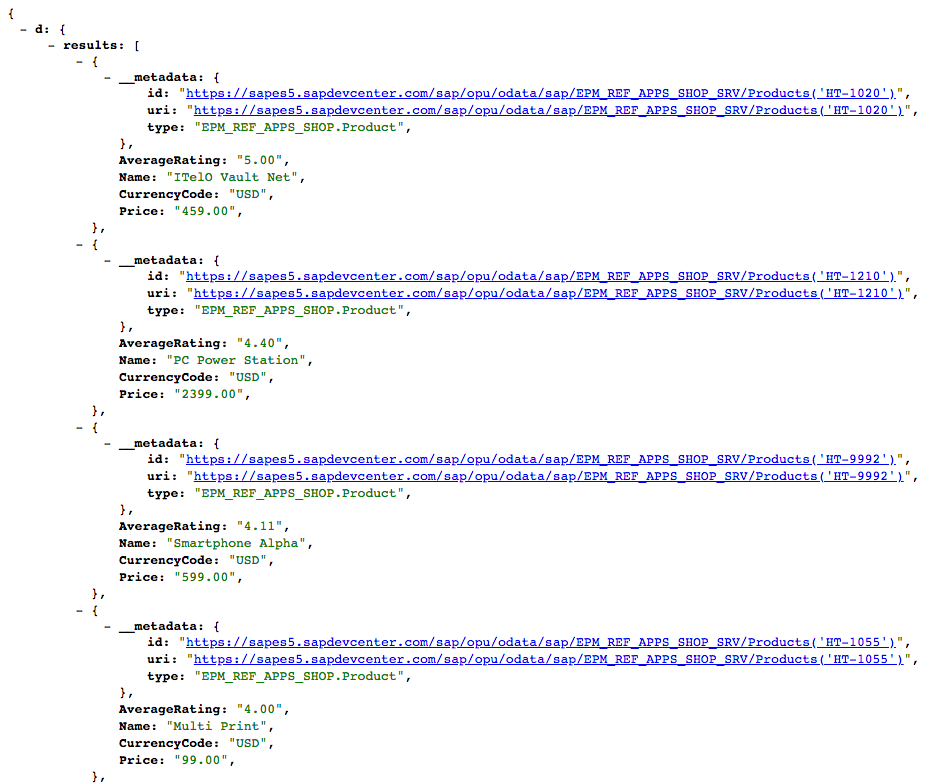

    This is the first part of what’s returned - looks good:

    products sorted by average rating

    There are more system query options, but what you’ve seen in this tutorial are the main ones. You’ve been using them primarily in the context of the OData “query” operation, which makes a lot of sense. Some of the system query options are used implicitly in frameworks such as UI5 as stated earlier, but all of them are useful to know to explore, “by hand”, an OData service, especially when you intend to use it in building an app.
