Learn How to Modernize RFC Receiver Communications into API-Based Protocols in Cloud Integration

A Service Provider is created when your requirement is to expose a Web Service implementation from a source system to ABAP backend system. In this tutorial example, it is when you have an RFC Receiver integration via SAP Process Orchestration, and after the migration to Cloud Integration, you want to switch this RFC Receiver communication to the SOAP Receiver protocol.

1. Access the transaction SE80 and create an Enterprise Service object.



2. Select object type Service Provider select Continue to proceed.



3. There are different ways of generating the Service Provider. In this tutorial, we will use the option Existing ABAP Object (Inside Out) which allow us to refer directly the Function Module.



4. Give a name and description to your Service Definition and select Continue to proceed.



5. Select the option Function Module and select Continue to proceed.



6. Put the name of the Function Module and check the option Map Name. In this tutorial, we will use the Function Module FLIGHT_LIST.



7. Select the security profile as per your requirements. In this tutorial, we will use basic authentication.



8. Select the Package, Request/Task, and Prefix. Please create a Request/task if this is not created yet.



9. Select Complete to proceed.



10. Activate the created object.



    Please note that by doing this, you don’t have to re-implement your code on the new service or similar. The new Web Service will wrap the existing Function Module code.

1. To use the newly created Service Provider as a SOAP Receiver message to be consumed afterwards by Cloud Integration, for instance, proceed to the transaction SOAMANAGER.



2. Go to the Simplified Web Service Configuration Page.



3. Search by the Service Provider created, mark the option User Name/Password (Basic) and click on Save.



4. Click on the display button to get the details of the access endpoint.



5. The Access URL is the endpoint that you want to use on your Cloud Integration when configuring the SOAP Receiver adapter.

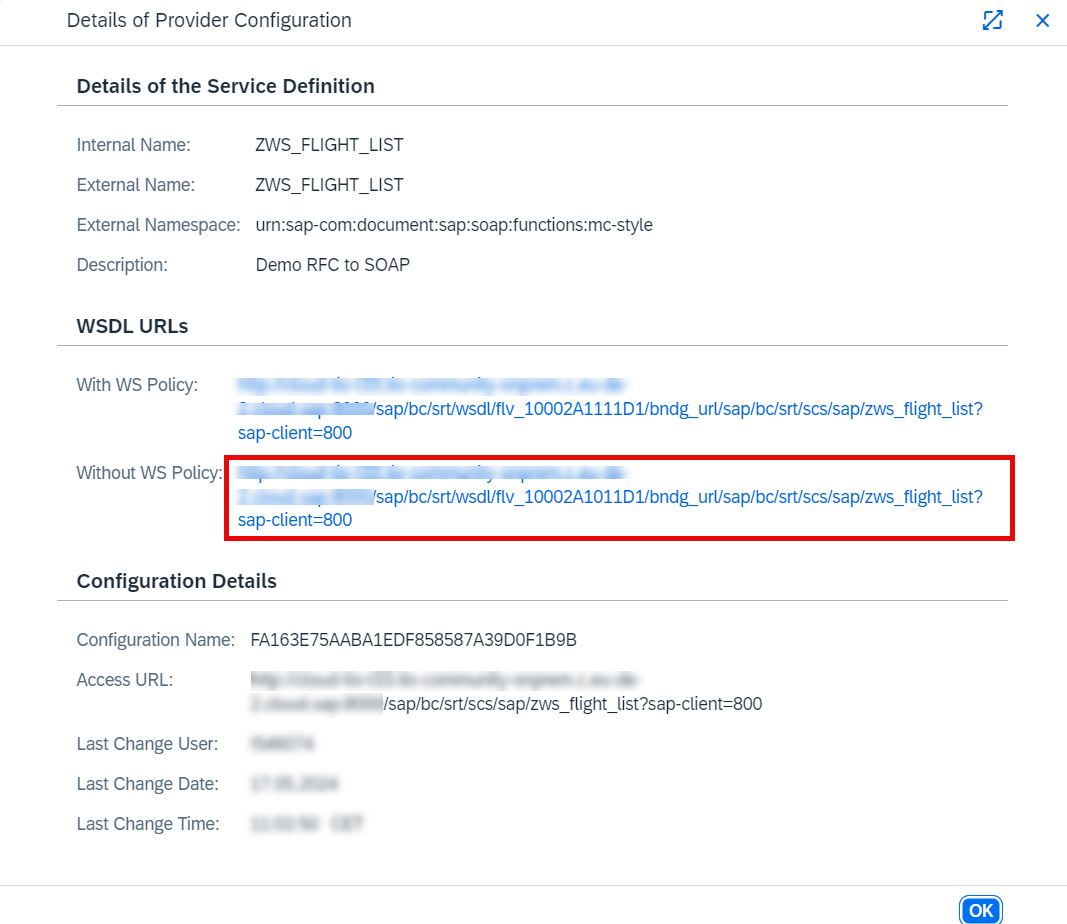

6. Additionally, click on the following endpoint to access the WSDL file. Save the file in your local PC. You need to import it later on your integration flow.




1. With the service binding created, go back to the created object, and navigate to Proxy > Test menu.



2. Click on executeto proceed.



3. On the next screen, you can edit the test request payload, and after executing the interface, you should get the response message as below.




1. With the WSDL file from your service binding, you should import it into your integration flow.

   To do this, download the WSDL file using the URL previously used to generate the Service Consumer (i.e., http://demosystem.sap:8000/sap/bc/soap/wsdl11?services=FLIGHT_LIST) and import the WSDL into the resources tab.



2. Select the WSDL as described below.



If you need to update the structures of your Web Service, proceed as described below.

1. Update your Function Module structures as your requirement.

2. Navigate to the Service Provider object in edit mode, and navigate to Service Definition > Check > Syntax menu.



3. Confirm the operation and activate the object.
