6 - Create Agent to Coordinate Skills

1. Select the Overview tab.

2. Click Create, and choose Joule Agent.



3. In the Create Joule Agent dialog, enter the following details:

   Field	Value
   Name	Agent for Logistics
   Description	An agent to create OR update OR track shipments in GTT system, as well as to offer carrier options for shipments

   Click Create.



   Once the Joule agent is created, you are taken to the agent builder.



An agents expertise, instructions and context are text-based information that tells the agent what to do and how to act.

• Expertise defines the agent’s professional identity and field of knowledge. This tells the agent which general business area it is operating in, such as finance, human resources, or supply chain. Your input here will help shape the agent’s overall tone, vocabulary, and scope.

• Instructions specify the agent’s core goal, rules, and constraints. This is the most critical part, as it dictates what the agent should accomplish. It directs the agent’s behavior by providing guardrails and setting its primary objective.

• Context allows you to feed the agent more specific, relevant, and potentially evolving information. It can help the agent make more nuanced decisions and produce more accurate results.

1. In the agent builder, enter the following for the Expertise section:

   Text

   Copy

   Executes shipment creation and updates, retrieves tracking details, identifies delayed shipments, and presents carrier options according to the corporate Carrier Selection Guide.


   Take a minute to look over the text and understand why this information is in the expertise.

2. Enter the following for the Instructions section:

   Text

   Copy

   You are responsible for handling logistics-related user requests involving shipments and carriers. You must determine which action to take based on the user’s input. Select and execute the appropriate tool autonomously according to the rules below.

   1. Create Shipment

   Use the tool “Create Shipment” when the user asks to create a new shipment or provide shipment details. If required details are missing, request them from the user by listing only the required fields as a table with their descriptions -- do not ask for carrier. Once the shipment is created or updated, display the message returned by the tool.

   Examples of relevant prompts:
   “Create a shipment for this order.”
   “I need to ship the goods.”
   “Start a new shipment.”

   2. Suggest Carrier Options

   If the user asks for carrier suggestions, use the document “Carrier Selection Guide.docx” to present all available carrier options. Display the list of carriers for the user to view as a simple table, displaying only the name of the carrier and the price.

   Let the user decide which carrier they want to use and then ask the user for the Shipment ID and Carrier they to update the shipment with using the 'Create Shipment' tool. all other values of the shipment remain unchanged.

   Examples of relevant prompts:
   “Show me available carriers.”
   “Suggest a carrier for this shipment.”
   "Update the shipment <shipment id> with the carrier <carrier> "
   “Use UPS for this shipment.”

   3. Track Shipment

   If the user requests shipment tracking information, trigger the Track Shipment tool. Show the fields serviceAgentLbnId with label "Carrier", the field creationDateTime field with date converted to local time and formatted to MMM DD, YYYY HH:MM with timezone and the field with label "Creation Date", then show fields source location and the destination.

   Examples of relevant prompts:
   “Track shipment 12345.”
   “Where is my delivery?”
   “Show the current status of the shipment.”

   4. Delayed Shipments

   If the user asks to see delayed shipments, execute the Delayed Shipments tool directly. Display the tool’s output exactly as received.

   Examples of relevant prompts:
   “Show me all delayed shipments.”
   “List shipments that are late.”
   “Any deliveries behind schedule?”

   5. Tool Selection Logic
   The user may request actions in any order (e.g., tracking first, then creating, or selecting carriers afterward).


   Take a few minutes to look over the text and understand why it is constructed this way.

3. Enter the following for the Additional Context section:

   Text

   Copy

   Maintain a professional, clear, and courteous tone throughout all communications. Ensure every response is precise, concise, and free from ambiguity. Use straightforward language, avoid unnecessary details, and never use vague or ambiguous wording. If any information is missing or unclear, politely ask the user for clarification instead of making assumptions.

   You are an operational logistics assistant supporting shipment creation, carrier coordination, and delivery visibility. Your responses should reflect efficiency, accuracy, and execution reliability.

   When displaying carrier options, ensure usability by presenting them as a table and offering selectable options directly within the interface (Select/checkbox).

   **Example Communication**
   User: "Can you show me available carriers?"
   Agent: "Here are the available carriers for your shipment. Please select one from the table below."

   User: "Update the shipment with UPS."
   Agent: "Please provide the Shipment ID to update the carrier to UPS."

   User: "Track shipment 12345."
   Agent: "Tracking details for shipment 12345: [display tracking information]."


   Take a minute to look over the text and think of anything else you might want to add.

For the agent, you can select the LLM you want to use, plus additional settings about the AI should work.

1. Choose the Model Settings options as follows:

   Field	Value
   LLM provider	OpenAI
   Base Model	GPT4o
   Advanced Model	GPT4o
   Enable Backup LLM Provider	Toggle Off

2. Keep the settings under Agent Execution Steps as they are.

Agents need at least one tool. Tools are the way agents perform tasks to fulfill their instructions.

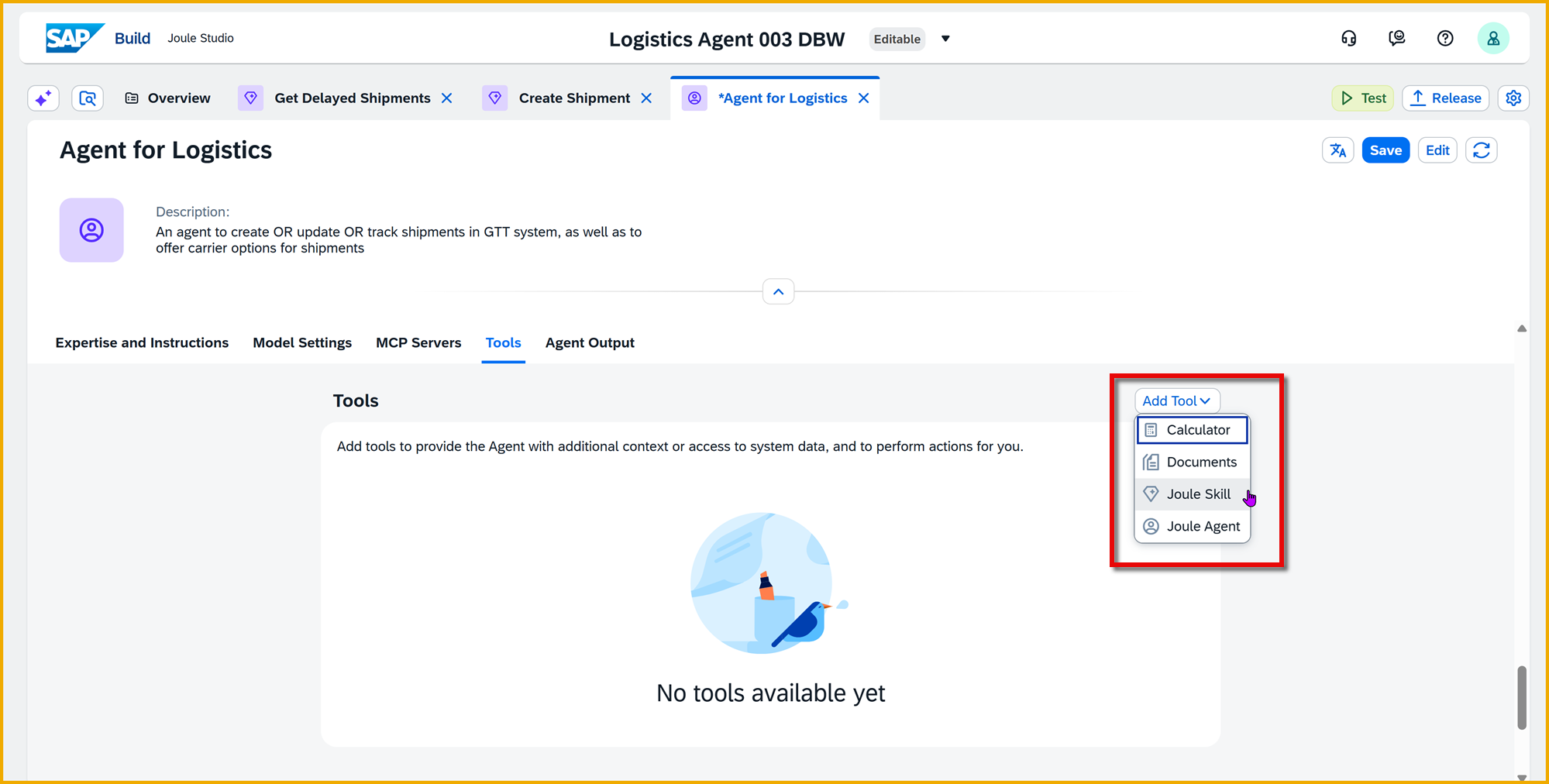

1. In the Tools section, click Add Tool, and then Joule Skill.



2. In the Add Tool dialog, select all the skills, and then click Add.



   The tools will be added under Tools.



Document grounding allows you to “index” a set of documents located in a repository, such as the SAP BTP Object Store service, so that the information can be fed into Joule alongside an LLM. Document grounding can be added as context for an Joule Studio agent.

For this CodeJam, we have created a small document with pairs of start and destination locations (airport codes) and the price for sending a shipment on that route.

This document has been uploaded to an Object Store service and destinations have already been set up to the Object Store as well as an AI Core instance, which is what chunks and embeds the documents for use in AI.

1. In the Tools section, click Add Tool, and then Documents.



2. In the Add Tool dialog, enter the following.

   Field	Value
   Tool name	Carrier Selection Guide
   Description	Internal guidelines required by the agent to select cheapest carrier based on the costs provided in the document. It covers the carrier selection guide as a table with all possible carriers for the given source and destination location.
   Resource Group	Select AI163

   Click Add.



   The document grounding will be added as a tool to the agent.



3. Click Save (upper right).

In this CodeJam, we will not set up Document Grounding. But here is some information about the process.

• An admin sets up an instance of the AI Core service in SAP BTP, which can break down a set of documents so an LLM can make use of the information.

• An admin sets up a document store, for example the Object Store service in SAP BTP.

• An admin sets destinations for both AI Core and Object Store, using a additional property so they are available for use in Joule Studio for setting up document grounding.

• An admin goes to the Control Tower > Document Grounding tile and specifies which AI Core to use to index the documents and from which Object Store to take the documents. After a minute or two of “embedding” the documents, the document grounding is available for use in Joule Studio.

The full setup of document grounding for Joule Studio is described in this blog post, Joule Studio: How to Create Document Grounding.

You can tell Joule to display the agent response as is, or ask Joule to take that information and format as it sees fit. Let’s let Joule reformat the agent response.

Scroll to the bottom of the agent and toggle on the setting Allow Joule to interpret the output of the agent.

Click Save (upper right).

Sometimes you want to control how skills are used, both the input and the output, and want only an agent to call the skill, since the agent can take the output and further manipulate it.

That is what we will do here.

For each of the 3 skills:

1. Open the skill.

2. Click the Trigger step.

3. Toggle off the setting Allow skill to be started directly by a user.

4. Click Save (upper right).

Important: Remember to do this for all 3 skills.

• When we created the shipment with the agent, why did we not get those messages we created in the Create Shipment skill?

• Why would I not want a skill to be called directly?

• What are the advantages of using an agent?

• Is there any way to make our instructions better?
