3 - Create Skill to Track Shipments

A Joule Studio project contains a set of custom skills, agents, and data types deployed together.

1. From the SAP Build Lobby, click Create.



2. On the next screen, choose the Joule Agent and Skill tile, and click Next.



3. In the Create Project dialog, enter the following details.

   IMPORTANT: In the project name, use your unique user number and your initials.

   So if your user is 003 and initials DBW, the name of the project should be Logistics Agent 003 DBW.

   Field	Value
   Name	Logistics Agent <UserID> <INITIALS>
   Description	Joule skills for GTT shipment management.



4. After filling in the details, click Review, then click Create.

Your project will open to the Overview tab, where you can start adding skills and agents.

You will create a new artifact to the project, a skill.

1. Click Create, and then choose Joule Skill.



2. In the Create Joule Skill dialog, enter the following details.

   Field	Value
   Name	Track Shipment
   Description	A skill to track shipments in the GTT System.

   Click Create.



   The identifier is autopopulated based on the skill name.

Once you create a new skill, the skill builder canvas opens for you to design the skill.

If you have any experience with SAP Build Process Automation, you will be familiar with the layout, which is used for designing processes.

To the flow, you click the plus icon and add steps, then configure each step.

You can define parameters that are required by the skill.

Joule will try to understand the values from the context. If any required input parameters are missing Joule will automatically prompt the user to enter them (or sometimes derive them without input). In the parameter description, you can define rules for the parameter, such as format.

1. Click open the right-side panel, which is used to define the skill settings and parameters.

   You can also open the panel by clicking the Trigger step.

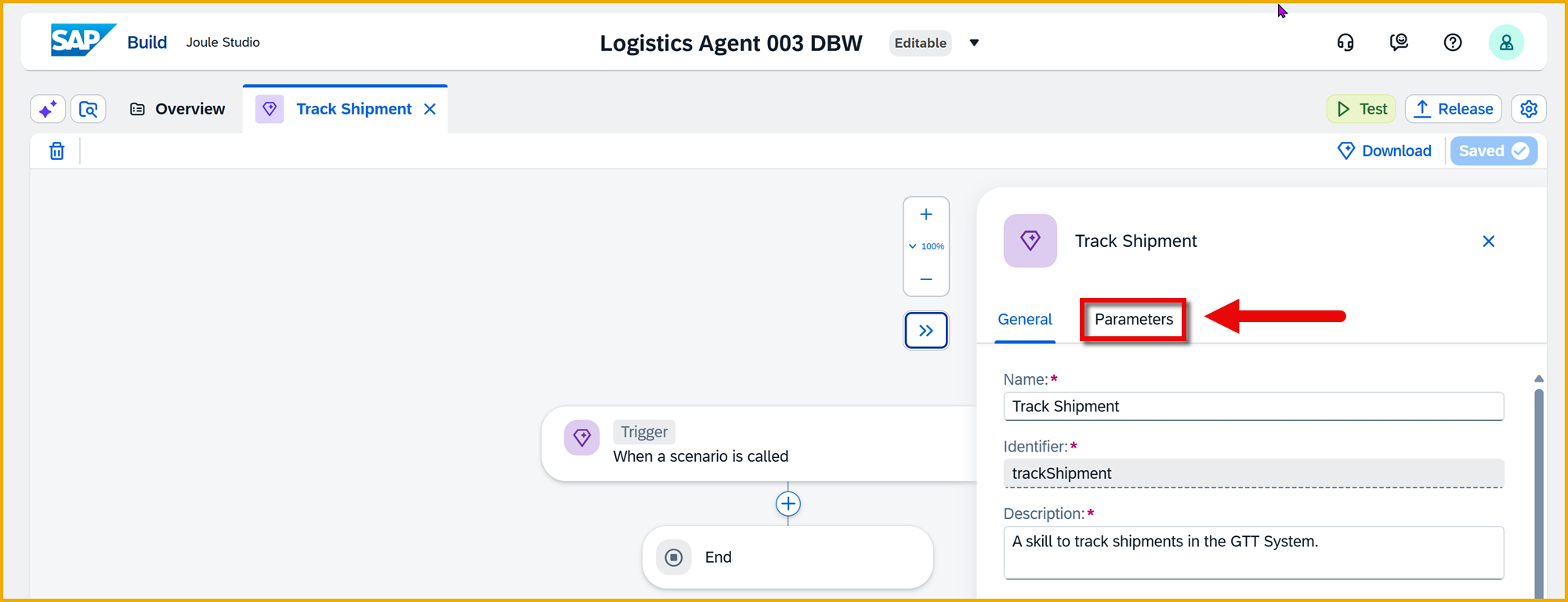

2. Click the Parameters tab.



3. Next to Skill Inputs, click Configure.



   Skill Inputs: Data derived from the conversation.

   Skill Outputs: Data sent into the conversation context.

   Skill Variables: Temporary data stored during the skill execution, which can be set with a Set Variable step.

4. In the Configure Skill Inputs dialog, click Add Input and enter the following details:

   Name	Identifier (auto-populated)	Description	Required
   trackingID	trackingid (autopopulated)	Tracking Number	✅

   The identifier is autopopulated based on the skill name.

   Click Apply.



   You should now see the new input parameter in the side panel.



5. Click Save (upper right).

Actions let skills retrieve data from a backend. Here, we want to retrieve info about a particular shipment.

1. In the skill builder, click the + icon under the trigger step.



   Choose Call Action.



2. Click Browse All Actions.



   Find the action getReadquery



   If there are a lot of actions, you can filter by GTTReadService (the name of the action project).

   Click Add to the right of the action.

   The action is added to the skill flow.



By adding a skill, you automatically add to the project a dependency to the action project that contains the action.

You can see this by opening up the project settings. Click the cog.

Under Dependencies, you can see the action project you added.

Actions define a specific API call. But each time you add the action you can provide different inputs and also specify different destinations so the call reaches different backends.

1. Make sure the action is selected.

2. In the first, General tab, click inside the Destination Variable field, and then click Create Destination Variable.



3. In the Create Destination Variable dialog, enter the following details.

   Field	Value
   Identifier	GetFromGTT
   Description	Destination to fetch data from the GTT System

   Click Create.



4. The variable is created but it likely will not be selected or even visible in the Destination Variable field.

   Important: To see the destination, you may need to:

   1. Close the configuration panel.

   2. Click the action again, which will reopen the configuration panel, and now you will see the destination.



   You can also refresh the page and then navigate back to your skill and then action.

   Select the new GetFromGTT variable for the action.



   The destination should then appear in the field.



5. To specify the shipment to track, we will add some filter data to the action.

   With the action selected, select the Input tab on the right pane.

   Click inside the $filter field, and select Apply a Formula. The formula editor opens.



   Enter the following formula in the box:

   JavaScript

   Copy

   ConcatenateStrings(["trackingId eq ", <Tracking ID>, ""], "'")




   The formula editor will show that the syntax is invalid.

   In the formula editor, you need to replace <Tracking ID> with a reference to the input paramter. Select <Tracking ID> and then double-click Skill Inputs > trackingID from the left side, so that the formula looks like this:



   Now the formula editor will show the syntax is valid (green).

   This creates the same input value we used to test the action in the first tutorial, except now the shipment ID will be taken from the input parameter, which takes it from the conversation.

   Click Apply.



You need to create output parameters so that the skill returns data to Joule (or to an agent if it is inside an agent – more on that later). Joule can then use this output parameter to determine the correct response to the user.

1. Click the Trigger step.

2. Click the Parameters tab, and the next to Skill Outputs click Configure.



3. Click Add Ouput three times and add the following output parameters.

   Name	Description	Type	Required	List
   gttstatus	Status	String	⬜ Unchecked	⬜ Unchecked
   destinationcity	Destination City	String	⬜ Unchecked	⬜ Unchecked
   json	JSON	Any	⬜ Unchecked	⬜ Unchecked

   The identifiers are autopopulated.

   Click Apply.



4. Click Save (upper right).

You created the output parameters to send data back to Joule or the agent. Now we need to supply the data.

1. Click the End activity.



2. For each output parameter, bind the following by clicking inside the parameter field and selecting the corresponding mapping:

   Field Name	Mapped Value
   destinationcity	getReadquery > result > d > list - results > arrivalLocationId
   gttstatus	getReadquery > result > d > results > plannedEvents > list - results > eventStatus_code
   json	getReadquery > result



3. Click Save (upper right).

A nice feature of Joule Studio is that you can test your project without having to release and deploy it, right from within the design-time project itself.

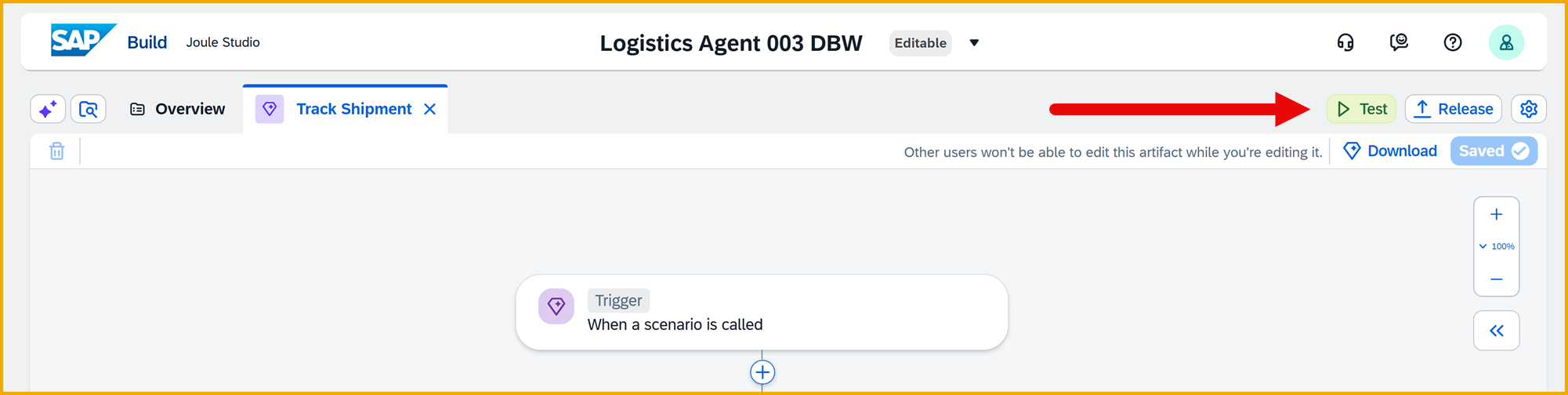

1. Click Test in the upper-right.



2. In the Test Project dialog, enter the following details.

   Field	Value
   Environment	Select the email address of your user
   Environment variables > GetFromGTT	Select gttGetService

   Click Continue.



   A new browser tab opens with Joule.

   The first time you run the test, it might take a couple of minutes for the browser tab to open.

3. As a prompt, enter:

   Prompt

   Copy

   I want to track the shipment 91001DBW.




   Joule will output information from shipment 91001DBW.



   The exact format varies, since the skill returns data back to Joule and specified that Joule design the output. If we wanted to control the output, we could have specified a Send Response step and designed the output more precisely.

4. Enter the prompt again.

   Prompt

   Copy

   I want to track the shipment 91001DBW


   The response will likely be formatted differently.



5. Notice that Timeline information on the right of the screen, which gives you information on how the response was derived.

   The response is connected to Joule object message. If you open this you will information about how Joule handled the prompt.

   For example, the first node Joule selected a scenario to execute shows which skill or agent was selected in response to the prompt.



   The scenario trackShipment is called with parameters shows you which skill was triggered with what input parameters.



   And Dialog function trackShipment finished will show the actual data that was returned from the backend by the action.



6. Once you are done testing, click Stop Testing.



You can talk to Joule in your language, though the responses are still in English.

1. Start the testing again.

2. Enter a prompt in your language.

   For example, in Italian, type in:

   Prompt

   Copy

   Voglio tracciare la spedizione 91001DBW


   You should get the same response as before.



• Was there a faster way than what was written to create a project?

• Why would I want Joule to make the messages and not me?

• There are 2 places in this skill where you see output fields. What are they?

• When you added output parameters, this caused an error on the End step. Why?

• If you don’t save the project, what happens when you try to test?

• When we tested, we got different formats and different fields for the same prompt. Why is that, based on AI and based on our actual project?
