Migrate Records in Related Tables Using Stored Procedures
- How to create a stored procedure to migrate records in related tables as a single transaction.
- How to call a stored procedure.
Prerequisites
- Step 1
In order to ensure that the migration script runs correctly, we will start by refreshing the data in the tables that will be used in this tutorial section. Run the script below to restore data. Replace “
<SID>
” with your system’s System Id.SQLCopyTRUNCATE TABLE "TPCH"."LINEITEM_DT"; TRUNCATE TABLE "TPCH"."ORDERS_DT"; TRUNCATE TABLE "TPCH"."LINEITEM_CS"; DELETE FROM "TPCH"."ORDERS_CS"; IMPORT FROM CSV FILE '/hana/shared/<SID>/HDB00/work/TPCH_DATA/Orders.csv' INTO TPCH.ORDERS_CS WITH THREADS 8 BATCH 10000; IMPORT FROM CSV FILE '/hana/shared/<SID>/HDB00/work/TPCH_DATA/LineItem.csv' INTO TPCH.LINEITEM_CS WITH THREADS 8 BATCH 10000;
ORDERS_CS
cannot be truncated unlike the other tables due to foreign key constraints. Therefore a “DELETE
” statement is used instead.Verify everything executed correctly.
- Step 2
Observe the script below. This script copies records older than 2015-1-1 from the in-memory
LINEITEM_CS
table to the extended tableLINEITEM_DT
in dynamic tiering. Next, it will delete the moved records from theLINEITEM_CS
table to free up storage space in-memory now that the data has been copied to dynamic tiering. The “WHERE” statement in the script is used to selectively choose data. In this script specifically, the “WHERE” statement is used to select data from theLINEITEM_CS
table whoseL_SHIPDATE
is before January 1st, 2015.SQLCopyINSERT INTO "TPCH"."LINEITEM_DT" (SELECT * FROM "TPCH"."LINEITEM_CS" WHERE "TPCH"."LINEITEM_CS"."L_SHIPDATE" < '2015-1-1'); DELETE FROM "TPCH"."LINEITEM_CS" WHERE "TPCH"."LINEITEM_CS"."L_SHIPDATE" < '2015-1-1';
Copy and paste the script above into the SQL console. Press the Execute button to execute the migration.
IMPORTANT: Though this works as intended there can be unintended consequences. Since the “INSERT” and “DELETE” operations occur as separate transactions, if data is manipulated between the transactions, we may see unexpected results.
Take this scenario for example: we run the script which copies records prior to January 1st, 2015 from the CS table into the DT table. Then, someone adds a record before January 1st, 2015 into the CS table, after which the “DELETE” operation deletes all records from the CS table prior to January 1st, 2015.
In this case, that added record is lost as it gets deleted before being moved into the DT table. - Step 3
The hazard of executing an “INSERT” and “DELETE” operation as separate transactions is outlined in the previous step. To combat this issue, we must take a look at commits and isolation.
By default, SQL Console connections from HANA Web IDE to your HANA system are created with the Auto Commit option turned “On”. The Auto Commit option automatically issues a commit after each statement that is executed against the server. We will use a stored procedure to execute two statements as a single atomic transaction.
Similarly, database isolation levels determine how the database server handles concurrency when multiple users may be reading and writing to the database at the same time. The default isolation level is “READ COMMITTED” which ensures that any given statement only sees committed records. The “READ COMMITTED” isolation level does not ensure consistency between statements even within a single transaction.
Since the process of migrating data between in-memory and extended tables requires both an insert and a delete statement, we must create (and then call) a stored procedure using Web IDE to ensure consistency across multiple statements within a single transaction.
- Step 4
Now we will properly accomplish the previous task of migrating aged records from an in-memory table to a DT table. Since we already altered the LINEITEM tables, we must reset them for this task by using the script below (fill in your SID). Copy, paste, and execute the script, making sure it executes successfully.
SQLCopyTRUNCATE TABLE "TPCH"."LINEITEM_DT"; TRUNCATE TABLE "TPCH"."LINEITEM_CS"; IMPORT FROM CSV FILE '/hana/shared/<SID>/HDB00/work/TPCH_DATA/LineItem.csv' INTO TPCH.LINEITEM_CS WITH THREADS 8 BATCH 10000;

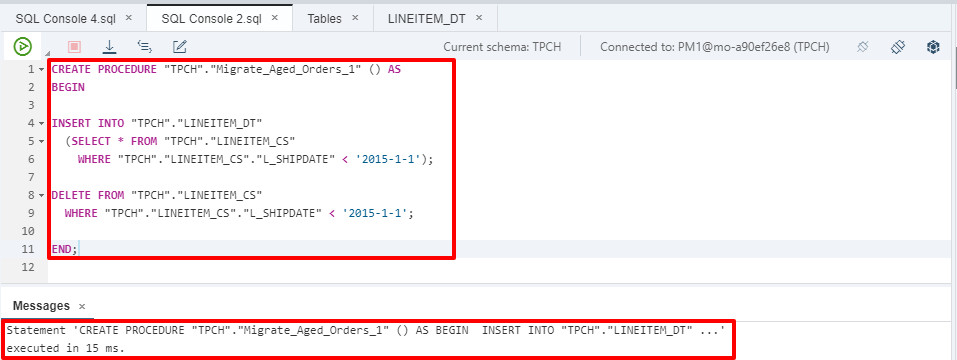

Next, we will create the stored procedure. Copy and paste the script below into an SQL console. The script creates a stored procedure, which, when called, executes the entire procedure as one transaction - avoiding the commit issues explained previously.
SQLCopyCREATE PROCEDURE "TPCH"."Migrate_Aged_Orders_1" () AS BEGIN INSERT INTO "TPCH"."LINEITEM_DT" (SELECT * FROM "TPCH"."LINEITEM_CS" WHERE "TPCH"."LINEITEM_CS"."L_SHIPDATE" < '2015-1-1'); DELETE FROM "TPCH"."LINEITEM_CS" WHERE "TPCH"."LINEITEM_CS"."L_SHIPDATE" < '2015-1-1'; END;
- Step 5
Now that the store procedure is created, you can execute the stored procedure by calling it using the script below. Run the script below in a SQL console and make sure it executed correctly.
SQLCopyCALL "TPCH"."Migrate_Aged_Orders_1"();
Verify that the data has been inserted into the
LINEITEM_DT
table either by executing the query below or by right clicking on the table in the catalogue and choosing Open Data.SQLCopySELECT * FROM "TPCH"."LINEITEM_DT";
Verify that the data has been deleted from the
LINEITEM_CS
table by executing the query below and confirming that no records are returned.SQLCopySELECT * FROM "TPCH"."LINEITEM_CS" WHERE "TPCH"."LINEITEM_CS"."L_SHIPDATE" < '2015-1-1';
- Step 6
Now that we’ve created a simple procedure to accomplish the task of migrating aged data past a specified date, we will build on this by creating a more complex procedure.
First, we must refresh the “ORDERS” and “LINEITEM” in-memory and DT tables using the script below. Replace “
” with your system’s System Id, run it and ensure it executes successfully. SQLCopyTRUNCATE TABLE "TPCH"."LINEITEM_DT"; TRUNCATE TABLE "TPCH"."ORDERS_DT"; TRUNCATE TABLE "TPCH"."LINEITEM_CS"; DELETE FROM "TPCH"."ORDERS_CS"; IMPORT FROM CSV FILE '/hana/shared/<SID>/HDB00/work/TPCH_DATA/Orders.csv' INTO TPCH.ORDERS_CS WITH THREADS 8 BATCH 10000; IMPORT FROM CSV FILE '/hana/shared/<SID>/HDB00/work/TPCH_DATA/LineItem.csv' INTO TPCH.LINEITEM_CS WITH THREADS 8 BATCH 10000;
ORDERS_CS
cannot be truncated unlike the other tables due to foreign key constraints. Therefore a “DELETE” statement is used instead.Next, we will create the
Migrate_Aged_Orders2
stored procedure. In this procedure, we will use a variable to migrate data older than a year from the in-memory tables over to the dynamic tiering tables. TheMigrate_Aged_Orders2()
stored procedure migrates historical data from both the in-memoryORDERS_CS
andLINEITEM_CS
tables to the dynamic tiering tablesORDERS_DT
andLINEITEM_DT
respectively. Copy and paste the script below into a SQL console. Then press the green execute button to create the procedure and verify it executed correctly.SQLCopyCREATE PROCEDURE "TPCH"."Migrate_Aged_Orders2" () AS BEGIN DECLARE varAgedDate DATE := ADD_YEARS(CURRENT_DATE, -1); INSERT INTO "TPCH"."ORDERS_DT" ( SELECT * FROM "TPCH"."ORDERS_CS" WHERE "TPCH"."ORDERS_CS"."O_ORDERDATE" < :varAgedDate ); INSERT INTO "TPCH"."LINEITEM_DT" SELECT "LINEITEM_CS".* FROM "TPCH"."LINEITEM_CS", "TPCH"."ORDERS_CS" WHERE "TPCH"."ORDERS_CS"."O_ORDERDATE" < :varAgedDate AND "LINEITEM_CS"."L_ORDERKEY" = "TPCH"."ORDERS_CS"."O_ORDERKEY"; DELETE FROM "TPCH"."LINEITEM_CS" WHERE "TPCH"."LINEITEM_CS"."L_ORDERKEY" IN ( SELECT "TPCH"."LINEITEM_CS"."L_ORDERKEY" FROM "TPCH"."LINEITEM_CS", "TPCH"."ORDERS_CS" WHERE "TPCH"."ORDERS_CS"."O_ORDERDATE" < :varAgedDate AND "LINEITEM_CS"."L_ORDERKEY" = "TPCH"."ORDERS_CS"."O_ORDERKEY" ); DELETE FROM "TPCH"."ORDERS_CS" WHERE "TPCH"."ORDERS_CS"."O_ORDERDATE" < :varAgedDate; END;
The declaration of
varAgedDate
at the beginning dynamically gives a year prior to today’s date. As well, it ensures that each data modification statement is referencing the same date value and does not change through out the execution of the stored procedure. Otherwise, an execution during midnight might produce unexpected results.
TheINSERT
andDELETE
statements are executed in a specific order to comply with the declared foreign key relationship between the in-memoryORDERS_CS
andLINEITEM_CS
tables. - Step 7
Now that the store procedure is created. You can execute the stored procedure by calling it. Run the script below in a SQL console and make sure it executed correctly.
SQLCopyCALL "TPCH"."Migrate_Aged_Orders2"();
As mentioned previously, the stored procedure is a single statement, resulting in the entire store procedure executing as a single atomic transaction even-though the procedure itself contains multiple statements.
Verify that the data has been inserted into the
LINEITEM_DT
table either by executing the query below or by right clicking on the table in the catalogue and choosing Open Data.SQLCopySELECT * FROM "TPCH"."LINEITEM_DT";
Verify that the data has been deleted from the
LINEITEM_CS
table by executing the query below and confirming that no records are returned.SQLCopySELECT * FROM "TPCH"."LINEITEM_CS" WHERE "TPCH"."LINEITEM_CS"."L_SHIPDATE" < '2015-1-1';
You can run the same tests on both the
ORDERS_CS
andORDERS_DT
tables.Why do we use a stored procedure to migrate (INSERT and DELETE) records (Select all that apply)?
