Implement Action Sheet and Image Picker

10/10/2019

Implement an Action Sheet and Popover (for regular size class on iPad) to pick an image from Photo Library or Camera; the Image will later be fed to the Core ML Image Classification Model.

You will learn

  • How to implement and Action Sheet and make sure it will automatically be replaced with a Popover when running on regular size class on iPad
  • How to implement an Image Picker using Camera or Photo Library


Step 1: Add a Bar Button Item to Overview View Controller

In order for the user to pick an image for the classification you will implement a Bar Button Item bringing up an Action Sheet or a Popover when running on Regular mode on iPad.

To do so open the Main.storyboard and locate the Overview View Controller. Use the Object Library to drag a Bar Button Item onto the Navigation Item of the Overview View Controller.

Bar Button Item

Open the Assistant Editor in Xcode and create an IBOutlet for the Bar Button Item in the OverviewViewController.swift class by control + drag into the View Controller class, name it actionListButton and place it directly below the tableView outlet.

Bar Button Item

Next you will need an IBAction for handling user’s interaction with that button.

Create an IBAction in the OverviewViewController.swift class by control + drag into the View Controller class, choose Action this time instead of Outlet, name the action didPressActionListButton.

Bar Button Item
Log on to answer question
Step 2: Implement a UIImagePickerController

Close the Assistant Editor if not done already and open the class OverviewViewController.swift. Add two properties for holding the UIImagePickerController and the picked image.

Add the following lines of code below the segue property:


private let pickerController = UIImagePickerController() private var pickedImage: UIImage!

Next implement a method with the name setupImagePicker below the just added IBAction:


private func setupImagePicker() { pickerController.delegate = self pickerController.allowsEditing = false // Only allow images here pickerController.mediaTypes = ["public.image"] }

Next call that just added method in the viewDidLoad(:) right above the loadInitialData() method call:


setupImagePicker()

The compiler will currently complain because the OverviewViewController.swift is not conforming to the UIImagePickerControllerDelegate or the UINavigationControllerDelegate.

Add an extension below the Table View extension extension OverviewViewController: UITableViewDelegate, UITableViewDataSource, read the inline comments for more information:


extension OverviewViewController: UIImagePickerControllerDelegate, UINavigationControllerDelegate { // If the Image Picker Controller did get cancelled, just dismiss the Image Picker Controller public func imagePickerControllerDidCancel(_ picker: UIImagePickerController) { picker.dismiss(animated: true, completion: nil) } // If the user picked an image check if the image can be unwrapped to an UIImage, if not log an error and dismiss the Image Picker public func imagePickerController(_ picker: UIImagePickerController, didFinishPickingMediaWithInfo info: [UIImagePickerController.InfoKey: Any]) { guard let image = info[.originalImage] as? UIImage else { logger.error("Image is nil! Please check UIImagePicker implementation.") return picker.dismiss(animated: true, completion: nil) } // If all went good, please assign the picked image to the pickedImage property, dismiss the the Image Picker and perform the segue to the classification View Controller pickedImage = image picker.dismiss(animated: true) { self.performSegue(withIdentifier: self.showProductClassificationSegue, sender: self) } } }

Continue to the next step to implement a segue to a new Table View Controller. The compile errors will then go away.

Log on to answer question
Step 3: Create segue and Product Classification Table View Controller

Select the SalesAssistant group in the Project Navigator and create a new UITableViewController with the name ProductClassificationTableViewController.

Product Classification VC

Next open the Main.storyboard and use the Object Library to create a Table View Controller right above the Overview View Controller.

Product Classification VC

Select the newly added Table View Controller and set it’s custom class to ProductClassificationTableViewController in the Identity Inspector.

Product Classification VC

The Table View Controller has to have a Navigation Bar so let’s embed the ProductClassificationTableViewController in a Navigation Controller by selecting the ProductClassificationTableViewController and then click on Editor -> Embed In -> Navigation Controller.

Product Classification VC

Last step is to create the segue from the Bar Button Item inside the Overview View Controller to the Product Classification Table View Controller.

Select the OverviewViewController and control + drag to the Product Classification Table View Controller, choose Present Modally as we want to display this Table View Controller in a modal fashion.

Product Classification VC

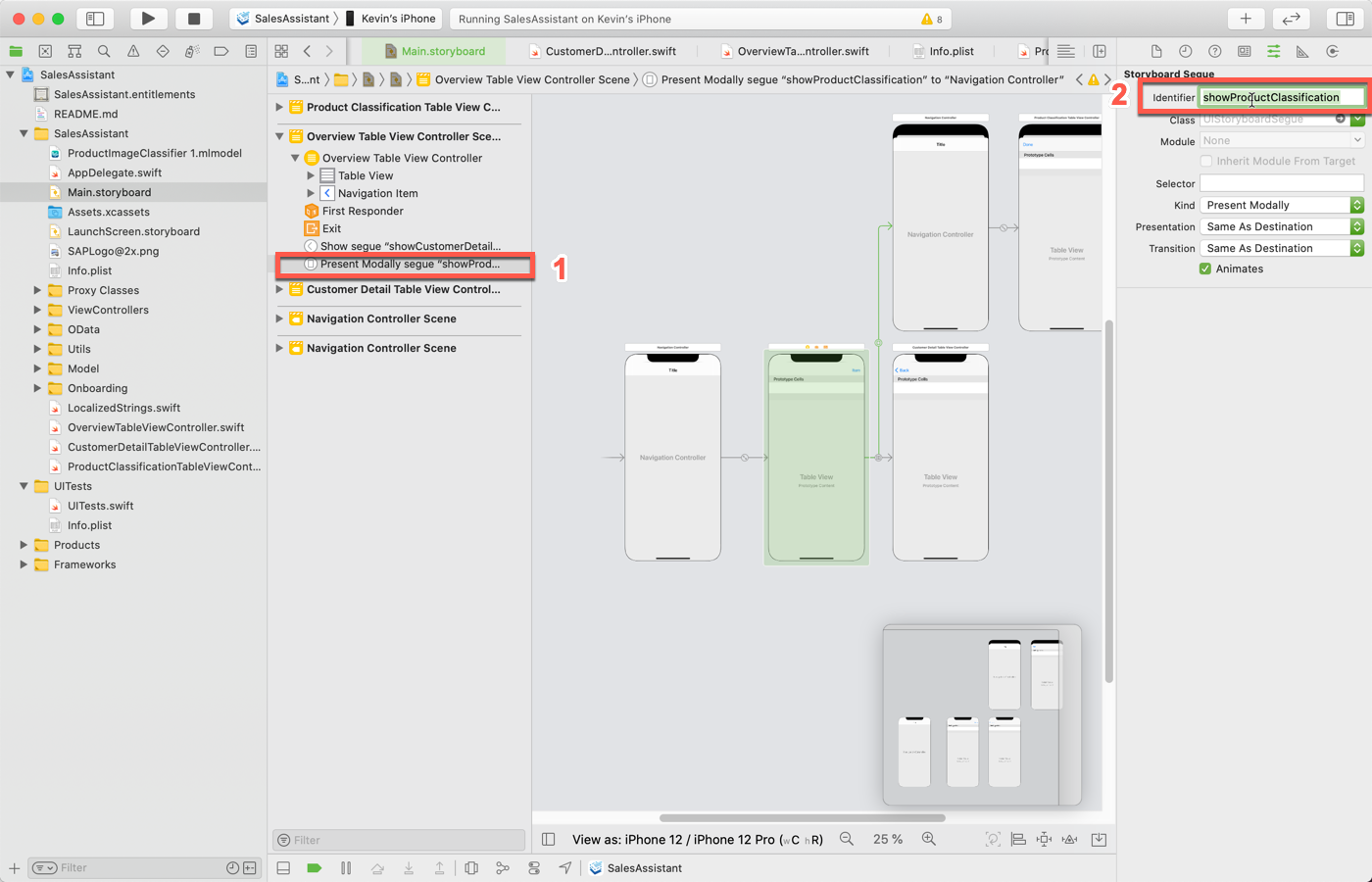

Now select the created segue and set the identifier to showProductClassification in the Attributes Inspector.

Product Classification VC

The final step is to create a constant in the OverviewViewController.swift class holding that identifier.

Close the Main.storyboard and open the OverviewViewController.swift class, add the following line of code directly below the private let showCustomerDetailSegue = "showCustomerDetails" line:


private let showProductClassificationSegue = "showProductClassification"

You have to make sure that the selected image later on get’s passed on to the ProductClassificationTableViewController for the classification process.

Locate the prepare(for:sender:) method and add a new if statement to it:


if segue.identifier == showProductClassificationSegue { let navController = segue.destination as! UINavigationController let productPredictionVC = navController.children.first! as! ProductClassificationTableViewController productPredictionVC.image = pickedImage }

Your prepare(for:sender:) should look like this now:


override func prepare(for segue: UIStoryboardSegue, sender: Any?) { // Implement a switch over the segue identifiers to distinct which segue get's called. if segue.identifier == showCustomerDetailSegue { // Show the selected Customer on the Detail view guard let indexPath = self.tableView.indexPathForSelectedRow else { return } // Retrieve the selected customer let selectedEntity = self.customers[indexPath.row] // Get an instance of the CustomerDetailTableViewController with asking the segue for it's destination. let detailViewController = segue.destination as! CustomerDetailTableViewController // Check if the customer ID is set, if not handle the errors and notify the user. guard let customerID = selectedEntity.customerID else { AlertHelper.displayAlert(with: "We're having issues displaying the details for the customer with name \(selectedEntity.lastName ?? "")", error: nil, viewController: self) self.logger.error("Unexpectedly customerID is nil! Can't pass customerID into CustomerDetailViewController.") return } // Set the customer ID at the CustomerDetailTableViewController. detailViewController.customerId = customerID // Set the title of the navigation item on the CustomerDetailTableViewController detailViewController.navigationItem.title = "\(self.customers[indexPath.row].firstName ?? ""), \(self.customers[indexPath.row].lastName ?? "")" } if segue.identifier == showProductClassificationSegue { let navController = segue.destination as! UINavigationController let productPredictionVC = navController.children.first! as! ProductClassificationTableViewController productPredictionVC.image = pickedImage } }

Remember that we want to pass on the selected image to the ProductClassificationTableViewController. You have to implement that property to the ProductClassificationTableViewController class first to make the compiler happy.

Open the ProductClassificationTableViewController class and add the following line of code right above the viewDidLoad(_:) method:


var image: UIImage!
Log on to answer question
Step 4: Implement action for Bar Button Item

When the user taps on the Bar Button Item it should show an Action Sheet or a Popover when running on Regular mode on the iPad. For that you will implement that code in the didPressActionListButton(_:) method. Before doing that you will add one more line of code to the viewDidLoad(_:) to make sure the Bar Button Item shows an Icon instead of just the word Item.

Open the OverviewViewController.swift class and add the following line of code to the viewDidLoad(_:):


// Using the FUI Icon Library actionListButton.image = FUIIconLibrary.system.more

Now add the following lines of code to the didPressActionListButton(_:) method, read the inline comments carefully:


// You will use an Action Sheet and Pop-Over on regular mode on iPad // Create an UIAlertController with the preferred style actionSheet let alertController = UIAlertController(title: nil, message: nil, preferredStyle: .actionSheet) // Define the image sources as a tuple having a description and the actual source type let imageSources = [ ("Using Camera", UIImagePickerController.SourceType.camera), ("Based on Photo", UIImagePickerController.SourceType.photoLibrary) ] // Iterate over the tuple and create an UIAlertAction accordingly. Add those actions to the alertController for (sourceName, sourceType) in imageSources where UIImagePickerController.isSourceTypeAvailable(sourceType) { alertController.addAction(UIAlertAction(title: "Find Product \(sourceName)", style: .default) { _ in self.pickerController.sourceType = sourceType self.present(self.pickerController, animated: true) }) } // Add a cancel action as well for the user to cancel the alertController alertController.addAction(UIAlertAction(title: "Cancel", style: .cancel)) // If in a regular layout on iPad, show as a popover if let popoverController = alertController.popoverPresentationController { popoverController.barButtonItem = sender } // Present the alertController self.present(alertController, animated: true)

All the needed code is now implemented for the user to choose a picture from the Photo Library or if running on an actual device take a picture with the device’s camera.

Log on to answer question
Step 5: Add permissions to Info.plist file

Because iOS is a privacy focused operation system, you have to ask the user for permission to access both camera and photo library within your app. Those permissions are maintained in the Info.plist file.

Open the Info.plist and add the following two information properties to it by clicking on the small + icon.

Property Value
Privacy - Photo Library Usage Description Please permit using Photo Library
Privacy - Camera Usage Description Please permit using Camera

That’s it, the first time your app will try to access the Camera or Photo Library, the user will get asked for permission to perform this action.

Log on to answer question
Step 6: Add back navigation

Right now the user has no possibility to navigate back from the Product Classification Table View Controller.

Open the Main.storyboard and add a Bar Button Item to the left-side of the Navigation Item of the ProductClassificationTableViewController.

Product Classification VC

In the Attributes Inspector for the Bar Button Item, select the System Item to be Done.

Product Classification VC

Again you will need an IBAction for that Bar Button Item, open the Assistant Editor and control + drag from the Bar Button Item to the Table View Controller class, select Action as type and doneButtonTapped as Name and click Create.

Close the Assistant Editor and open the ProductClassificationTableViewController.swift class. Locate the doneButtonTapped(_:) method and add the following line of code, responsible for dismissing this modally presented Table View Controller:


self.dismiss(animated: true)
Log on to answer question
Step 7: Run app to see results of your work

You have implemented all necessary steps to choose or take a picture using an Action Sheet or Popover, make the needed navigations and passing on the selected image. Now it is time to test if your code works.

Run the app and click on the Bar Button Item in the Overview View Controller.

Product Classification VC
When using an Action Sheet on iPhone what controller do you have implement for iPad in regular mode? Please select the correct one.
×

Next Steps

Prerequisites

  • Development environment: Apple Mac running macOS Mojave or higher with Xcode 11 or higher
  • SAP Cloud Platform SDK for iOS: Version 4.0 SP00
