Adapt Your App to the Needs of a MacOS Application

In the last tutorial you made changes to your Xcode project settings to enable Mac Catalyst for your app project. This tutorial is about making some changes to the project to fit better on MacOS without changing the appearance on iPhone or iOS.

You are going to cover the basics for Mac Catalyst and the SAP BTP SDK for iOS but using the previously mentioned documentation in combination with this tutorial series you should be well suited to build great business apps.

In the beginning you want to change the app flow to have a split view in place when running on Mac Catalyst. The split view or Split View allows Mac Catalyst to display a sidebar similar to Apple’s Music or Stocks applications on MacOS.

If you look at the current app structure the user will end up on the Overview screen right after finishing the onboarding process. On MacOS this is going to be the same way with the difference that the user will have a sidebar available where he or she can switch between Overview, Customer and Product list directly.

To implement the new flow you can attach our current app flow in storyboard to a standard Split View Controller.

1. Open the Main.storyboard and select the Navigation Controller, open the Attributes Inspector to uncheck the Is Initial View Controller. This is necessary because the new main entry point is going to be the Split View Controller.

   !



2. Use the Object Library to search for Split View Controller and drag + drop it next to the navigation controller.

   !



3. With that in place you can connect the Split View Controller with our current app flow. Delete the View Controller Scene of the Split View Controller in Storyboard first.

   !



   After deleting your storyboard should look like this now:

   !



4. Drag the Navigation Controller of the app flow right next to the Split View Controller and create a storyboard segue between the Split View Controller and the Navigation Controller. As the segue type, select secondary view controller and safe.

   !



5. Make the Main Split View Controller the initial view controller for the app by selecting the View controller and using the Attributes Inspector to check the box for Is Initial View Controller.

   !



   Let’s quickly go over what you did here. First you added a new Split View Controller which is a standard Apple UI control. Then you added our app flow to the Split View Controller through a detail view controller segue. This allows the Split View Controller to automatically manage your Split View lifecycle. You leave the Navigation Controller in as you want to maintain our regular app flow.

   Because the Main View Controller is the new initial view controller you have to change the ApplicationUIManager code accordingly.

   To ensure that you will see the standard app flow while running on iOS and displaying the Split View when running on Mac Catalyst you can use environmental conditions to distinct different initialization code.

   Swift Copy

   #if targetEnvironment(macCatalyst)
   #else

6. Open the ApplicationUIManager.swift file and locate the showApplicationScreen(completionHandler:) method. Right now you can see that you’re initializing the Navigation Controller as our initial screen but you have to change that to be adaptable to Mac Catalyst. Change the implement code to the following and read the inline comments carefully:

   Swift[12-25] Copy

      func showApplicationScreen(completionHandler: @escaping (Error?) -> Void) {
          // Check if an application screen has already been presented
          guard isSplashPresented else {
              completionHandler(nil)
              return
          }

          // set rootViewController only once ie after onboarding when app screen is about to be shown
          // for restore, remove covering views previously added
          let appViewController: UIViewController
          if isOnboarding {
   #if targetEnvironment(macCatalyst)
              let splitViewController = UIStoryboard(name: "Main", bundle: Bundle.main).instantiateInitialViewController() as! UISplitViewController

              splitViewController.modalPresentationStyle = .currentContext
              splitViewController.preferredDisplayMode = .allVisible
              appViewController = splitViewController

              // If running on iOS show the OverviewTableViewController
   #else
              let overviewTVC = UIStoryboard(name: "Main", bundle: Bundle.main).instantiateViewController(withIdentifier: "OverviewTableViewController") as! OverviewTableViewController
              appViewController = overviewTVC
   #endif

              isOnboarding = false
              coveringViews.removeAll()

              // maintain this boolean since no splash screen is present now
              isSplashPresented = false
              window.rootViewController = appViewController
          } else {
              removeCoveringViews()
          }

          completionHandler(nil)
      }

   Show all 36 lines Show less

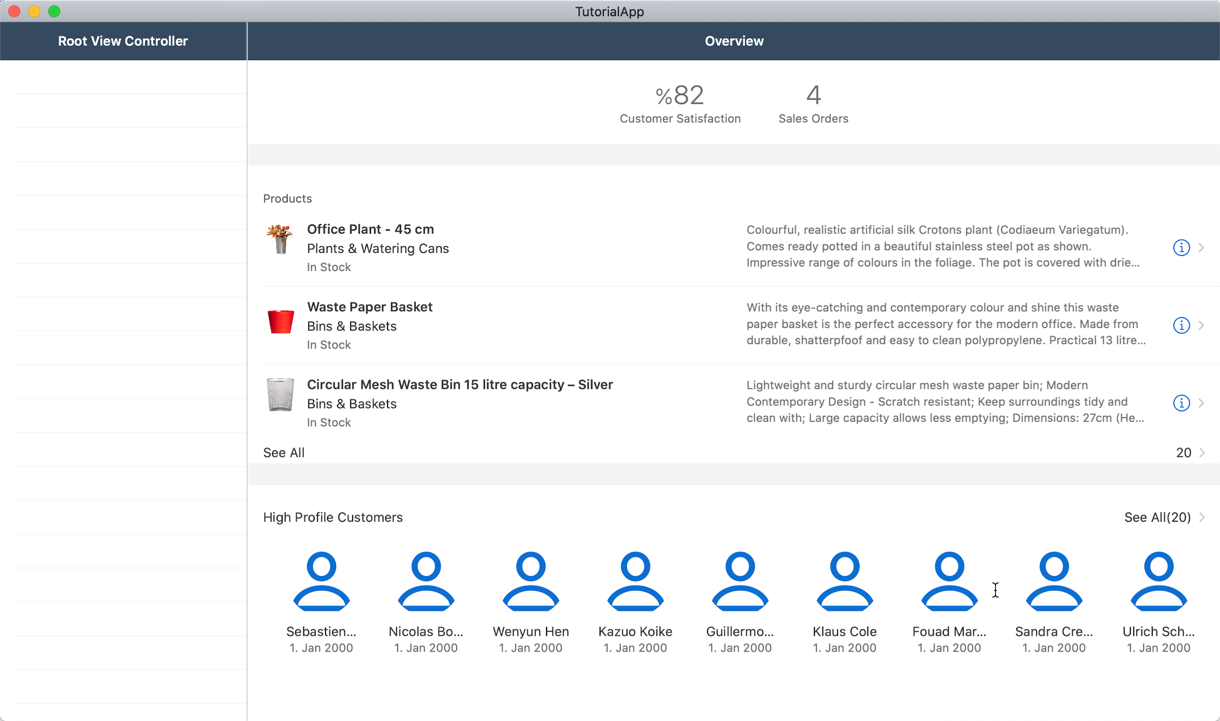

7. Run the app on the My Mac scheme and you should see you app being in Split View now and you can see that beautiful empty sidebar. Also if you have noticed the system automatically knows that your app wants to receive Push Notifications and the Mac Catalyst makes sure that MacOS displays it accordingly.

   In case you run into the issue “Apple Development Identity is Ambiguous. Multiple Certificates are found in your keychain for identity Apple Development”, you can follow this blog post for resolution of the problem Handling Ambiguous Apple Developer Identity.

   !



The Root View Controller represents the list you can see in the sidebar. This is a standard UI Table View Controller which allows you to have all the freedom you want to implement that.

You’re going to display a list with three cells containing the navigation possibilities for the user including a nice system image using SF Symbols.

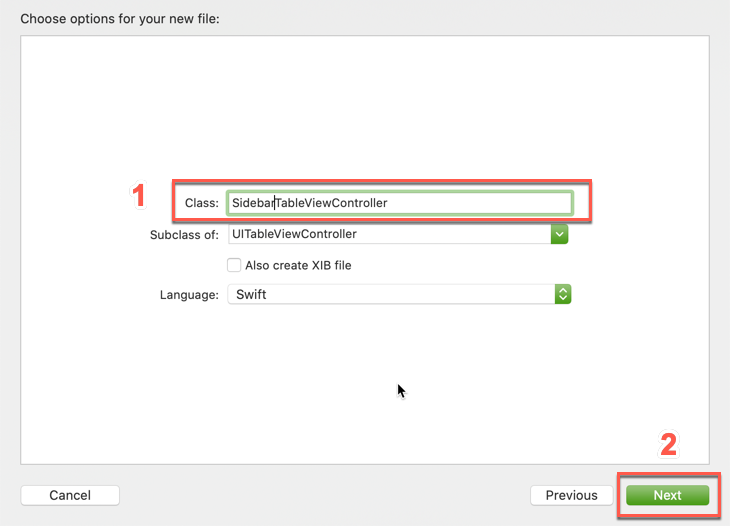

1. Create a new Table View Controller Cocoa Touch Class using the project navigator and make sure it inherits of UITableViewController and name it SidebarTableViewController.

   !

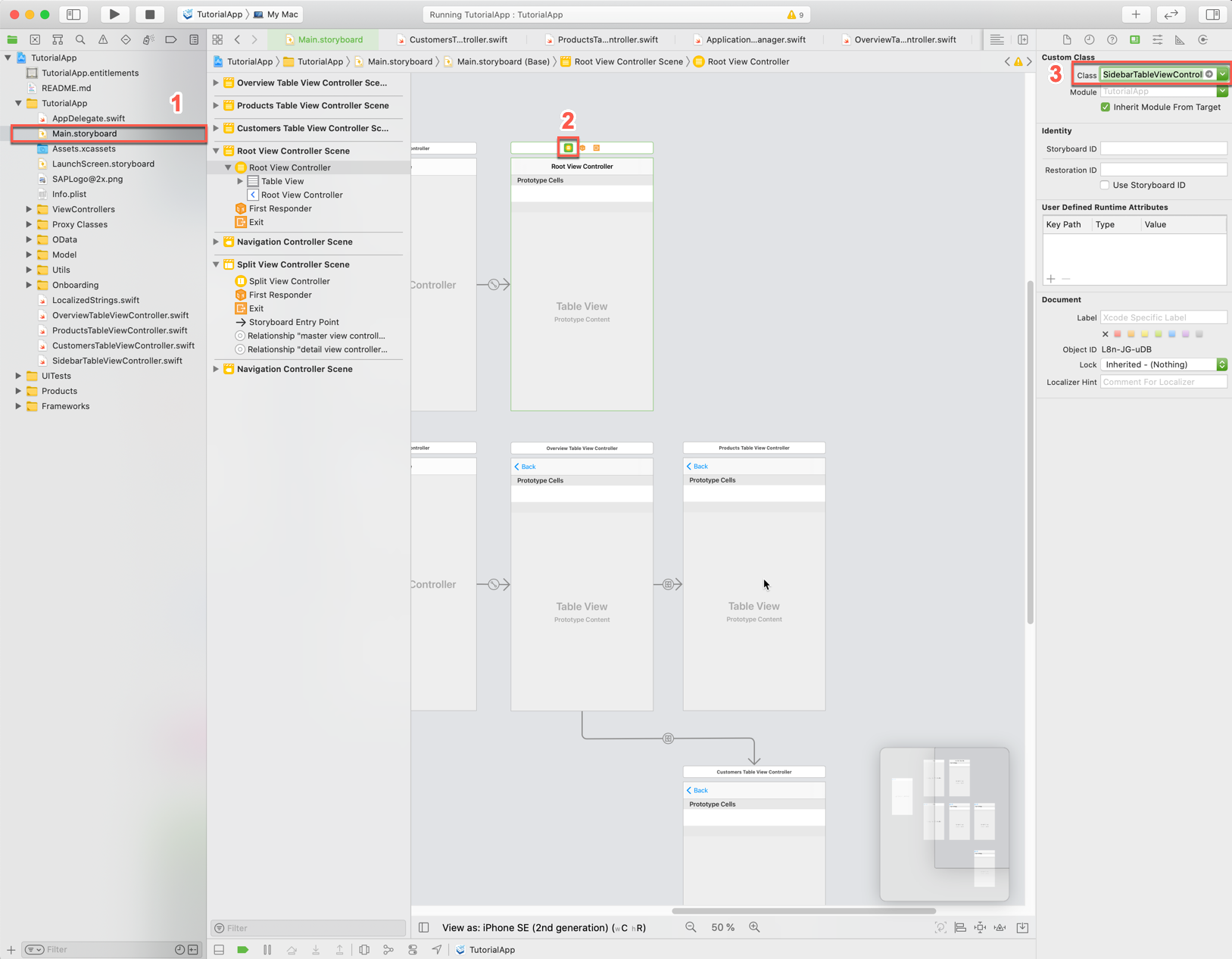

2. Open the Main.storyboard and set the SidebarTableViewController as Custom Class on the Root View Controller.

   !



3. Switch back to the SidebarTableViewController.swift file to implement the views logic.

4. First import the SAPFiori and SAPCommon frameworks, leave the UIKit statement:

   Swift Copy

   import SAPFiori
   import SAPCommon

5. Next retrieve a new logger instance like you did before:

   Swift Copy

   private let logger = Logger.shared(named: "SidebarTableViewController")

6. In the viewDidLoad() method register an FUIObjectTableViewCell to be used by the Table View:

   Swift[4] Copy

   override func viewDidLoad() {
       super.viewDidLoad()

       tableView.register(FUIObjectTableViewCell.self, forCellReuseIdentifier: FUIObjectTableViewCell.reuseIdentifier)
   }

   This should all be familiar to you, you see building an app is really easy.

7. Now let’s implement the table view’s data source first add the numberOfSections(in:) method:

   Swift Copy

   override func numberOfSections(in tableView: UITableView) -> Int {
       return 1
   }

   You only need one section for this view so just return 1.

8. Directly below implement the tableView(_:numberOfRowsInSection:) method:

   Swift Copy

   override func tableView(_ tableView: UITableView, numberOfRowsInSection section: Int) -> Int {
       return 3
   }

   You’re going to display three cells for the Overview, the customer list and the product list.

9. Let’s not forget about the tableView(_:cellForRowAt:) method:

   Swift Copy

   override func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
       let cell = tableView.dequeueReusableCell(withIdentifier: FUIObjectTableViewCell.reuseIdentifier) as! FUIObjectTableViewCell

       // Define a UIImage SymbolConfiguration with the scaling factor of small. This allows the system to scale the SF Symbol accordingly.
       let smallConfiguration = UIImage.SymbolConfiguration(scale: .small)

       // Switch Statement to go over the different rows. Set the headline text and the detail image using SF Symbols.
       switch indexPath.row {
       case 0:
           cell.headlineText = NSLocalizedString("Overview", comment: "")
           cell.detailImage = UIImage(systemName: "globe", withConfiguration: smallConfiguration)
       case 1:
           cell.headlineText = NSLocalizedString("Products", comment: "")
           cell.detailImage = UIImage(systemName: "tv", withConfiguration: smallConfiguration)
       case 2:
           cell.headlineText = NSLocalizedString("Customers", comment: "")
           cell.detailImage = UIImage(systemName: "person", withConfiguration: smallConfiguration)
       default:
           return UITableViewCell()
       }

       return cell
   }

10. If you run the app now you should see the cell being displayed in the sidebar.

    !



In order to let the user have interactions with the list items you have to write some code.

1. In the SidebarTableViewController add the following method below the data source methods. Read the inline comments carefully:

   Swift Copy

   // CollectionType selection helper
   private func viewSelected(at indexPath: IndexPath) {
       // Load the EntityType specific ViewController from the specific storyboard"
       var viewController: UIViewController!

       let mainStoryboard = UIStoryboard(name: "Main", bundle: nil)

       // Decide which View Controller to instantiate.
       switch indexPath.row {
       case 0:
           viewController = mainStoryboard.instantiateViewController(identifier: "OverviewTableViewController")
       case 1:
           viewController = mainStoryboard.instantiateViewController(identifier: "ProductsTableViewController")
       case 2:
           viewController = mainStoryboard.instantiateViewController(identifier: "CustomersTableViewController")
       default:
           viewController = UIViewController()
       }

       // Load the NavigationController and present with the EntityType specific ViewController
       let rightNavigationController = mainStoryboard.instantiateViewController(withIdentifier: "SubNavigationController") as! UINavigationController
       rightNavigationController.viewControllers = [viewController]

       // Display the Detail View Controller
       splitViewController?.showDetailViewController(rightNavigationController, sender: nil)
   }

   Show all 26 lines Show less

2. You have to make sure that the viewSelected(at:) method gets called as soon as the user clicks on a list item. Add the following table view delegate method directly below the data source methods:

   Swift Copy

   override func tableView(_: UITableView, didSelectRowAt indexPath: IndexPath) {
       viewSelected(at: indexPath)
   }

   This will make sure that the correct index path gets passed into the viewSelected(at:) method.

3. Last step is to set those above implemented storyboard identifiers for the respective view controllers is necessary to instantiate the screens.

   Open the Main.storyboard and select the Overview Table View Controller. Open the Identity Inspector and set the Identity to OverviewTableViewController.

   !



4. Repeat that procedure for the Products Table View Controller with ProductsTableViewController and Customers Table View Controller with CustomersTableViewController.

   !



5. Important is that you set an identity for the original Navigation Controller. In the Main.storyboard, select the Navigation Controller which is the detail view controller for the split view controller. Change the Identity to SubNavigationController.

   !



   And that’s it, you have a working split view controller with a sidebar and working navigation.

6. The last step you want to do is change the navigation item’s title from SidebarTableViewController to Navigation. Add the following line of code to the viewDidLoad() method:

   Swift Copy

   navigationItem.title = NSLocalizedString("Navigation", comment: "")

7. Compile and run the app on My Mac and try your hard work.

   !



You have our basic layout but now it would be interesting what else you could do to be more MacOS conform. As mentioned in the last tutorial Mac Catalyst gives you a Menu Bar for free, but how do you access the menu bar and make changes to it?

There is an API provided by Apple allowing us to modify the Menu Bar in the app delegate.

You can create an extension swift file containing an AppDelegate extension containing a buildMenu(with:) override method.

This would be also the way to generically have the Table View Data Source implemented.

1. Use the Project Navigator to create a Swift file and name it AppDelegate+MenuBuilder.

   !



2. Open the AppDelegate+MenuBuilder.swift file and change the import statement from Foundation to UIKit:

   Swift Copy

   import UIKit

3. The override buildMenu(with:) allows us to manipulate and create menu items for the menu bar. Implement the buildMenu(with:) method inside an extension and read the inline comments carefully:

   Swift Copy

   extension AppDelegate {
       // MARK: - Mac Catalyst Menu Bar
       override func buildMenu(with builder: UIMenuBuilder) {
           super.buildMenu(with: builder)

           // Remove the Format menu because this is not needed for this app.
           builder.remove(menu: .format)

           // Create an menu item and give it a selector method from some class. In this case OverviewTableViewController.
           let reloadMenuItem = UIKeyCommand(title: NSLocalizedString("Synchronize...", comment: ""),
                                                action: #selector(OverviewTableViewController.loadData),
                                                input: "r",
                                                modifierFlags: .command)

           // Create a Menu and add it an identifier, also define that it should be shown in line. Give it the menu item as children. You could add far more items here if you wanted to.
           let reloadDataMenu = UIMenu(title: "",
                                       image: nil,
                                       identifier: UIMenu.Identifier("com.sap.example.MySampleAppCatalyst.Synchronize"),
                                       options: .displayInline,
                                       children: [reloadMenuItem])

           // Tell the UIMenuBuilder where to insert the menu.
           builder.insertChild(reloadDataMenu, atEndOfMenu: .file)
       }
   }

4. Save the file and open the OverviewTableViewController.swift class and change the loadData() method declaration to internal and add the @objc attribute. The @objc allows to make method callable for the Objective-C runtime:

   Swift Copy

   @objc func loadData() { ... }

5. Run the app on My Mac scheme.

   !



   Of course you can add all sorts of menu entries as long as they make sense being there. Usually you want to have more global tasks in there. If you’re interested in more about the menu bar on MacOS visit the official documentation Adding Menus and Shortcuts to the Menu Bar and User Interface.

Every Mac user expects a preferences menu in the menu bar so you should provide, if available, settings via a settings bundle. The reason for this is that using a settings bundle will give you the preferences menu for free.

Here you’re going to implement some settings with help of the settings bundle.

1. Use the Project Navigator to open the context menu and click on New File…. In the search field of the upcoming dialog, search for Settings, select the Settings Bundle and click on Next and then Create.

   !



   As a result you will get a brand new settings.bundle file in the project navigator.

2. If you run the app now and open the app’s preferences you should see the preferences screen displayed below.

   !



3. You can see that the Root.plist file contains all the settings for the displayed preferences. You can go and change the different preferences now.

   In the Root.plist locate the Title of Item 0 (Group - Group) and change it to Sales Assistant Preferences.

   Leave Item 1 (Text Field - Name) as is and delete the remaining items.

   !



4. Run the app now and open the preferences you should see the title has changed and the other items are gone.

   !



Maybe you have noticed that the app’s title is still TutorialApp, let’s change this now.

1. Open the TutorialApp.xcproj file and click on the General tab if not already there.

2. Change the Display Name in the Identity section to Sales Assistant.

   !



3. Of course you might want to change the bundle identifier as well to match the display name or create the whole project with the correct name in the beginning. As you’re extending the app created in the prerequisites, you just change the display name here.

   !



   This is our finished app now. From here go ahead and look through different tutorials to maybe enhance this app more or go ahead and implement a detail screen for the products using the Human Interface Guideline of SAP Fiori for iOS.
