Implement Create Entity and Linking Entities in an MDK App
Details

Implement Create Entity and Linking Entities in an MDK App

November 3, 2020
Created by
August 5, 2019
Create relationship between two OData entities.

You will learn

  • How to create relationship between parent and child entities
  • How to create a local child entity to an existing parent entity
  • How to create a local parent entity first and then a local child entity
  • How to implement dynamic data subscription

You may clone an existing project from GitHub repository to start with this tutorial.


For this tutorial, you will use Mobile Services sample backend (step 3) which has parent-child relationship setup among entities. For example, A customer can have n (>=0) number of sales orders.

To create an entity and then link it to another entity, you need to carry out the following tasks:

  • Create a new page for creating an order
  • Add an action bar item to the new page for cancelling the current activity
  • Create a new CreateRelatedEntity OData action to create a new sales order
  • Create a new message action for displaying failure message if order creation fails
  • Create a navigation action to show order creation page from Customer detail page
  • Implement data subscription to update count value when a new sales order is created
MDK
Step 1: Create new page for new Sales order record

In this step, you will create the Create Order page as a Form Cell Page. This type of page allows for form input style changes. The page will provide only a subset of items available on the Customer Detail page. You will add the fields that will be editable by the end-user.

  1. Right-click the Pages folder | MDK: New Page | Form Cell Page | Next.

    MDK

    A Form Cell Page is suitable for pages that generate new objects or modify existing objects. It includes a form cell container by default. You can add form sections, multiple containers or action controls to this page. Under each container section, you can add various container items.

  2. Enter the Page Name SalesOrderHeaders_Create and click Next and the Finish on the Confirmation step.

    MDK
  3. In the Properties pane, set the Caption to Create Order.

    MDK
  4. Now, you will add the fields (like Currency Code, Net Amount, Tax Amount, Gross Amount, Life cycle status, Life cycle status name and order creation date) for creating a new sales order record by the end-user.

    In the Layout Editor, expand the Control | Container Item section. Drag and drop a Simple Property onto the Page area.

    MDK
  5. Drag and drop five additional Simple Property controls and one Date Picker control onto the page so you have seven total controls.

    MDK
  6. Select the first Simple Property control and provide the below information:

    Property Value
    Name FCCreateCurrencyCode
    Caption CurrencyCode
    Value EUR
    MDK

    Under Value property, you can set some default values.

  7. Select the second Simple Property control and provide the below information:

    Property Value
    Name FCCreateNetAmount
    Caption NetAmount
    Value 18.010
    MDK
  8. Select the third Simple Property control and provide the below information:

    Property Value
    Name FCCreateTaxAmount
    Caption TaxAmount
    Value 108.010
    MDK
  9. Select the forth Simple Property control and provide the below information:

    Property Value
    Name FCCreateGrossAmount
    Caption GrossAmount
    Value 126.02
    MDK
  10. Select the fifth Simple Property control and provide the below information:

    Property Value
    Name FCCreateLifeCycleStatus
    Caption LifeCycleStatus
    Value N
    MDK
  11. Select the sixth Simple Property control and provide the below information:

    Property Value
    Name FCCreateLifeCycleStatusName
    Caption LifeCycleStatusName
    Value New
    MDK
  12. Select the last control Date Picker and provide the below information:

    Property Value
    Name FCCreatedate
    Caption Creation Date
    Mode Select datetime from the dropdown
    MDK
Log on to answer question
Step 2: Add cancel button on create customer page

Now, you will add a button on the Create Order page and set its onPress to CloseModalPage_Cancel.action.

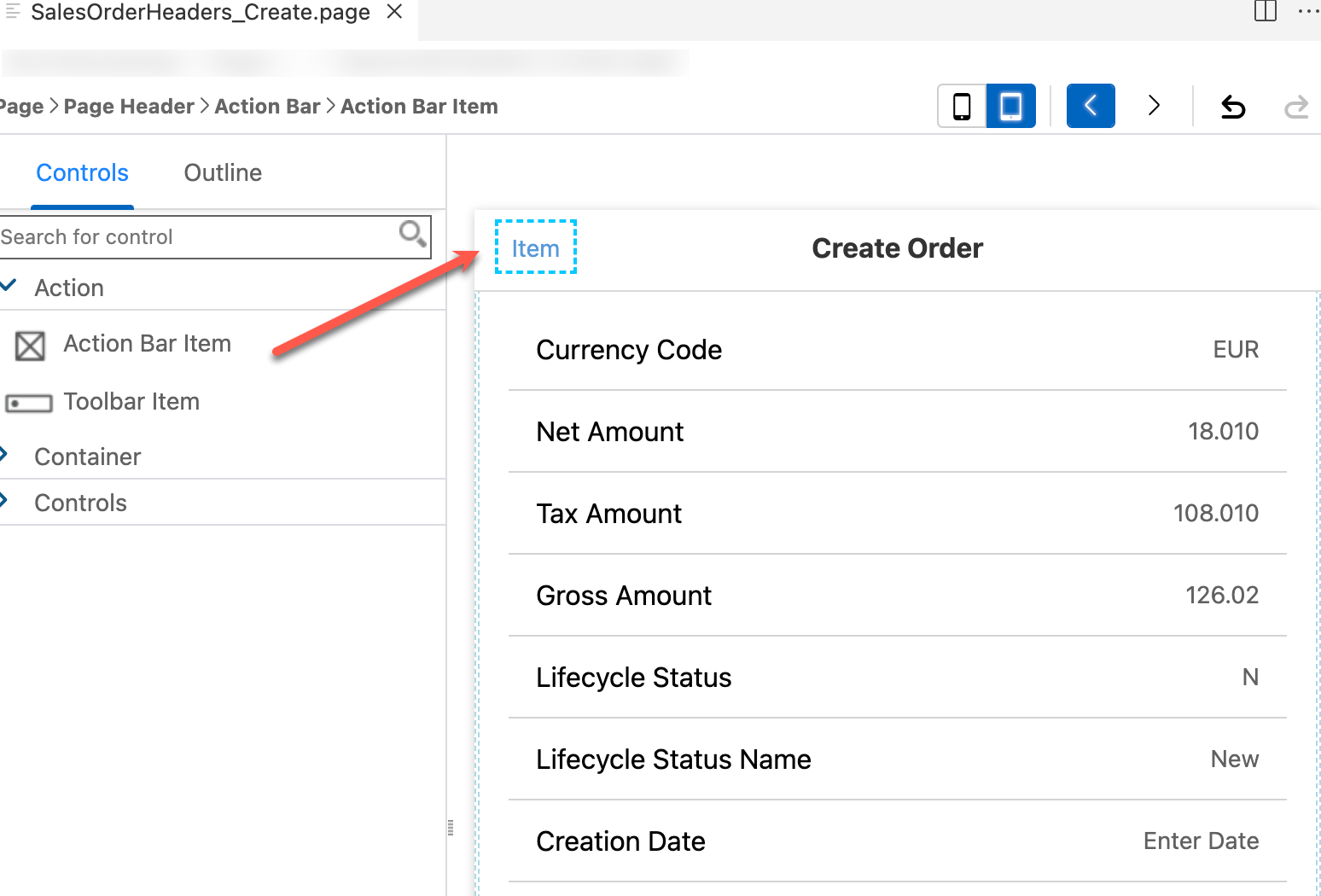

  1. Drag and drop an Action Bar Item to the upper left corner of the action bar.

    Action Bar Item is a button that users can use to fire actions when pressed. You can add an Action Bar Item only to the Action Bar (at the top of the page).

    MDK
  2. In the Properties pane, click the link icon to open the object browser for the System Item property.

    Double click the Cancel type and click OK.

    MDK

    System Item are predefined system-supplied icon or text. Overwrites Text and Icon if specified.

  3. Now, you will set the onPress event to CloseModalPage_Cancel.action.

    In Events tab, click the link icon for the OnPress property to open the object browser.

    Double click the CloseModalPage_Cancel.action and click OK to set it as the OnPress Action.

    MDK
Log on to answer question
Step 3: Create navigation action
  1. Now, create a navigation action that will open the SalesOrderHeaders_Create.page when executed.

    Right-click the Actions folder | MDK: New Action | choose MDK UI Actions in Category | click Navigation Action | Next.

    MDK
  2. Provide the below information:

    Property Value
    Action Name NavToSalesOrderHeaders_Create
    PageToOpen Select SalesOrderHeaders_Create.page from the dropdown
    ModalPage Select true from the dropdown
    MDK
  3. Click Next and then Finish on the confirmation step.

Log on to answer question
Step 4: Add toolbar item (Create Order) to customer detail page

You will add a toolbar item to the Customers_Detail.page called Create Order. You will link this button to the navigation action you just created. This event will open the SalesOrderHeaders_Create.page when the Add button is pressed by the end-user.

  1. In Customers_Detail.page, drag and drop a Toolbar Item to the lower left of the page.

    MDK
  2. In the Properties pane, set Caption to Create Order.

    MDK

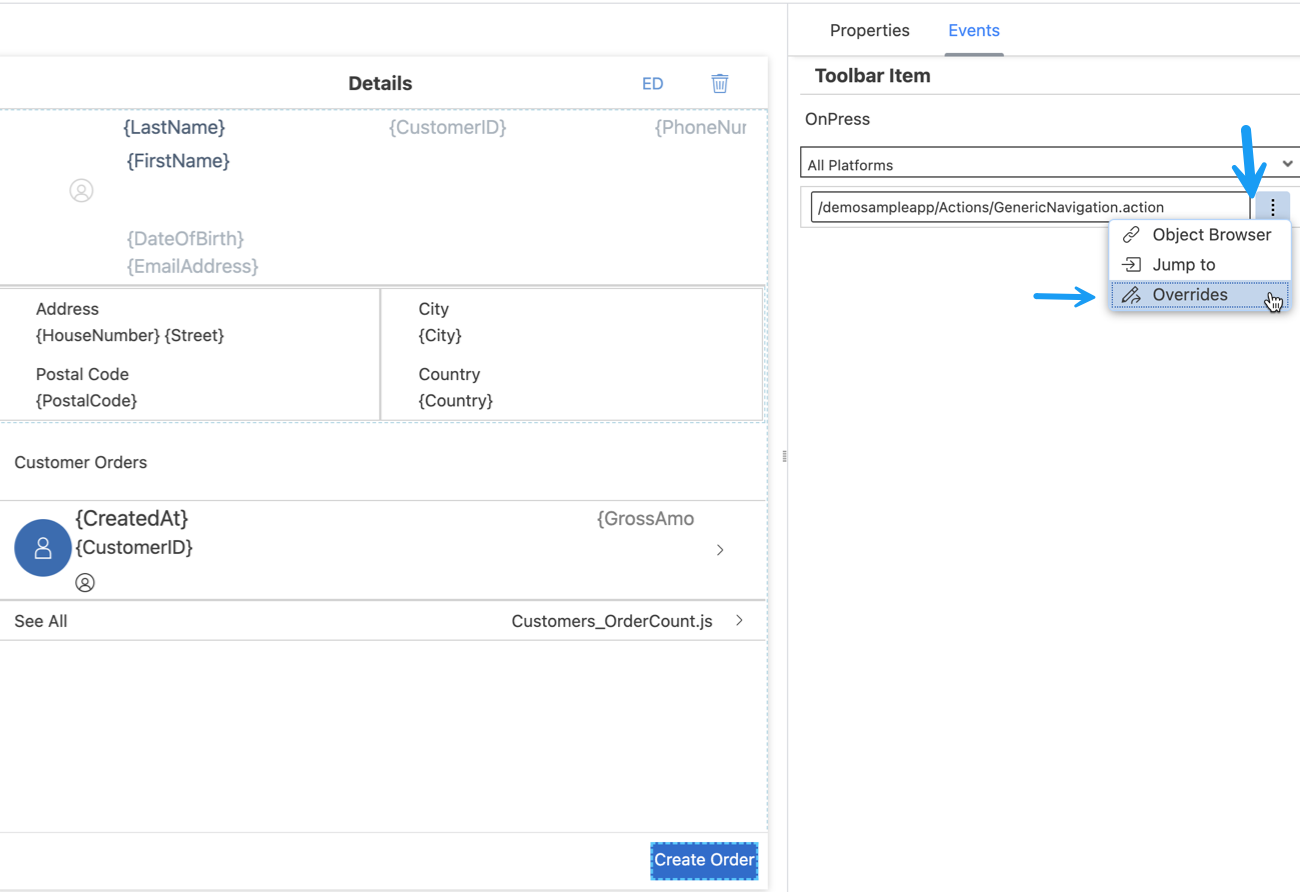

  3. In the Properties pane, click the Events tab, click the link icon for the OnPress property to open the object browser.

    Double click the NavToSalesOrderHeaders_Create.action and click OK to set it as the OnPress Action.

    MDK
Log on to answer question
Step 5: Store the created data locally

The next step is to store newly created record locally for an offline application or send the new record directly back to the backed for online applications. You will now create an action to map the changes received from the Create Order page to the corresponding field in the OData service. You will also show a failure message if the create action fails to save the changes.

  1. Define a failure message.

    Right-click the Actions folder | MDK: New Action | choose MDK Message Actions in Category | click Message Action | Next.

    MDK

    Provide the below information:

    Property Value
    Action Name CreateSalesOrderHeaderEntityFailureMessage
    Type Select Message from the dropdown
    Message Failed to Create Sales Order record
    Title Create Sales Order
    OKCaption OK
    OnOK --None--
    CancelCaption leave it blank
    OnCancel --None--
    MDK

    Click Next and then Finish on the Confirmation step.

  2. You will create the OData action to create a sales order entity.

    You can find more details about Create Related Entity Action.

    Right-click the Actions folder | MDK: New Action | choose MDK Data Actions in Category | click OData Action | Next.

    MDK

    Provide the below information:

    Property Value
    Action Name SalesOrderHeaders_CreateEntity
    Type Select CreateRelatedEntity from the dropdown
    Service Select Sample.service from the dropdown
    EntitySet Select SalesOrderHeaders from the dropdown
    MDK

    CreateRelatedEntity action creates the new entity against the navigation property of an existing entity with which the relationship is to be established.

  3. Click Next.

  4. In next step, provide the below information:

    Property Value
    ParentLink LinkItem Reference
    Target EntitySet Select Customers from the dropdown
    ReadLink click link icon and double click readLink
    Property Select SalesOrders from the dropdown
    MDK

    In Mobile Services sample backend, click Metadata URL and you will find SalesOrders navigation property for Customers entity.

  5. Since in SalesOrderHeaders_Create.page, we have defined seven properties (Currency Code, Net Amount, Tax Amount, Gross Amount, Life Cycle Status, Life Cycle Status Name and Creation Date) to be added, now in Properties section, you will bind them to respective UI Controls.

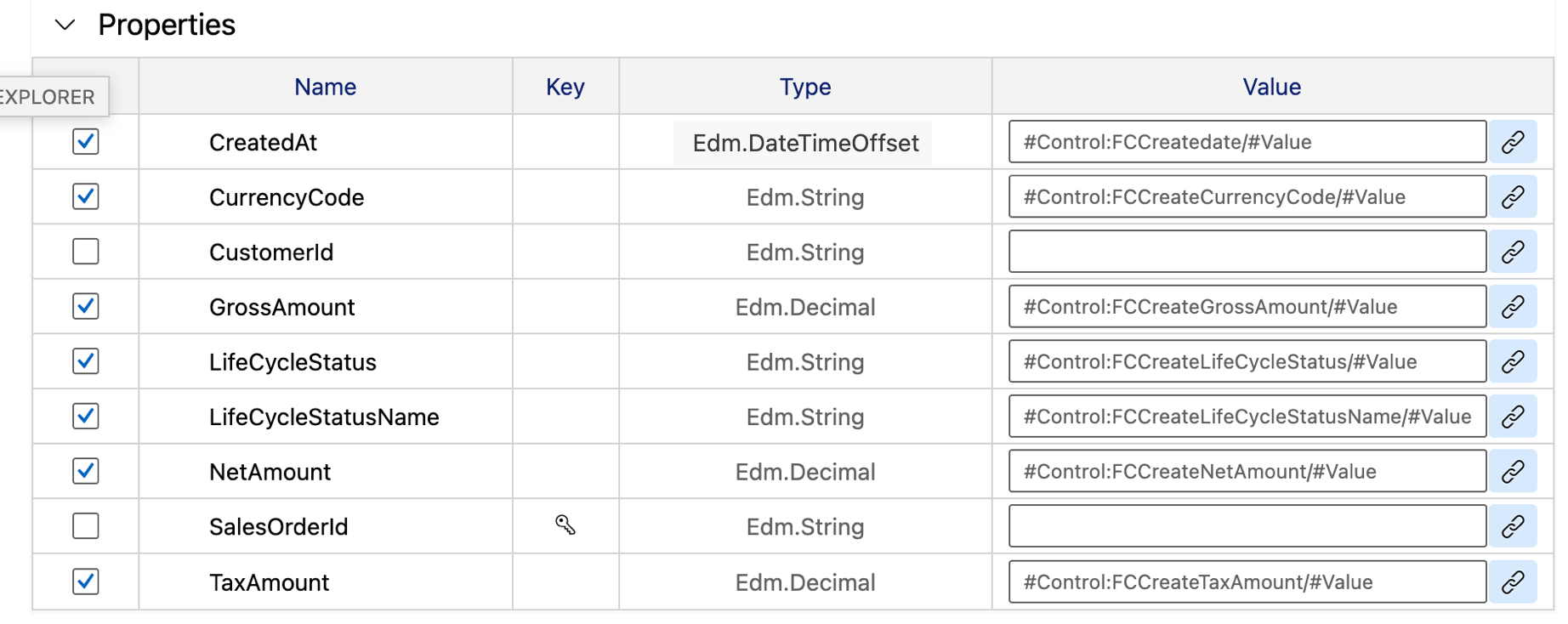

    Check the CreatedAt property and click the link icon to open the object browser.

    Change the drop down in the object browser to Controls & ClientData, click the Current Page radio button.

    In the search box start typing the control name FCCreatedate. The list will filter down to show the matching values. Double click the Value (Value) entry under the FCCreatedate field and click OK to set binding.

    MDK
  6. Repeat the above step for remaining properties: CurrencyCode, GrossAmount, LifeCycleStatus, LifeCycleStatusName, NetAmount and TaxAmount.

    MDK

    Click Next and Finish on the confirmation screen. The action editor will open with the SalesOrderHeaders_CreateEntity.action loaded.

  7. Define Success and Failure actions for SalesOrderHeaders_CreateEntity.action.

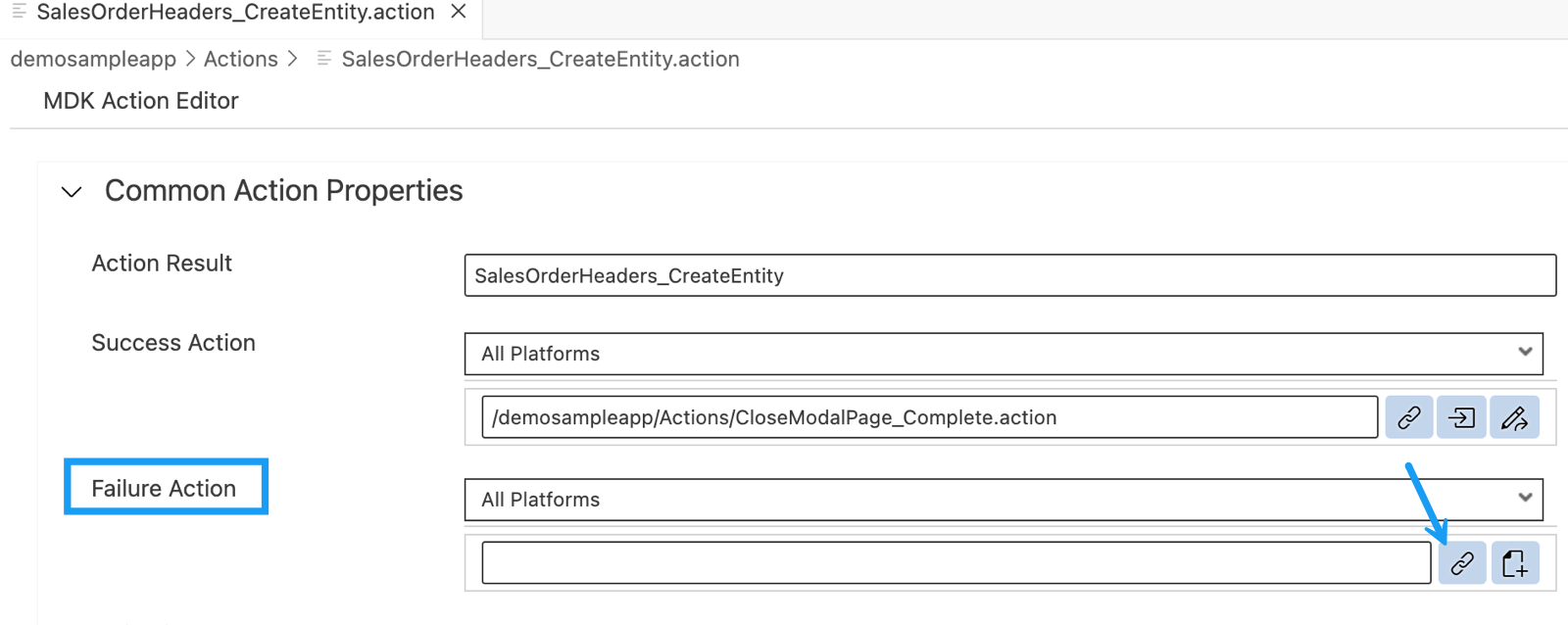

    In the action editor for the new action, expand the Common Action Properties and provide the below information:

    Property Value
    Success Action Select CloseModalPage_Complete.action from the dropdown
    Failure Action Select CreateSalesOrderHeaderEntityFailureMessage.action from the dropdown

    When SalesOrderHeaders_CreateEntity.action gets executed successfully then CloseModalPage_Complete.action will be triggered or if SalesOrderHeaders_CreateEntity.action fails then CreateSalesOrderHeaderEntityFailureMessage.action will be triggered.

    MDK
  8. Now, that the SalesOrderHeaders_CreateEntity.action has been created, you will need to call this action when the end-user presses the Save button. You will add a Save button on the SalesOrderHeaders_Create.page and link it to the SalesOrderHeaders_CreateEntity.action.

    In SalesOrderHeaders_Create.page, drag and drop an Action Bar Item to the upper right corner of the action bar.

    MDK

    Click the link icon to open the object browser for the System Item property.

    Double click the Save type and click OK.

    MDK

    In the Properties pane | Events tab, click the link icon for the OnPress property to open the object browser, bind it to SalesOrderHeaders_CreateEntity.action.

    MDK
What is the CustomerDetails property in CreateOrder action being referred to ?
×
Step 6: Add data subscription to Customer detail page

In Customers_Detail.page you added total number of order counts for a given customer. When a new SalesOrder is created, this count doesn’t get updated automatically unless you navigate back and forth to this page.

DataSubscriptions : it is a way to listen to data changes that when triggers should cause a UI element to redraw. If your control or section has a target, that target is automatically subscribed for data change events. Otherwise you can also explicitly subscribe to DataSubscriptions by specifying an entity set name or readLink in an array. You can find more details here.

In Customers_Detail.page, select Customer Orders Object Table control. In Properties section, click + icon under Misc | DataSubscriptions and double click SalesOrderHeaders and click OK.

MDK
Log on to answer question
Step 7: Deploy and activate the application

Deploy the updated application to your MDK client.

  1. Right-click Application.app and select MDK: Deploy.

    MDK
  2. Select deploy target as Mobile Services.

    MDK

    You should see Deploy succeeded message.

    MDK
Log on to answer question
Step 8: Test the application

Make sure you are choosing the right device platform tab above.

  1. Re-launch the app on your device, you may asked to authenticate with passcode or Biometric authentication. You will see a confirmation pop-up, tap OK.

  2. Tap CUSTOMER LIST, tap one of the available customer record, you will then navigate to Customer detail page.

  3. You will see the CREATE ORDER option in customer detail page. Tap it to create a new sales order.

    MDK
  4. As we provided default values to the properties, you may change it if required. Tap save icon.

    MDK

    Now, you will notice that new record has been created and count value for SEE ALL is now increased by one as you implemented in step 6.

    MDK
  5. On Main page, tap SYNC to send local changes to the backend, a successful message will be shown.

    MDK
  1. Re-launch the app on your device, you may asked to authenticate with passcode or Biometric authentication. When you see a confirmation pop-up, tap OK.

  2. Tap Customer List, tap one of the available customer record, you will then navigate to Customer detail page.

  3. You will see the Create Order option in customer detail page. Tap on it to create a new sales order.

    MDK
  4. As we provided default values to the properties, you may change it if required. Tap Save.

    MDK

    Now, you will notice that new record has been created and count value for See All is increased by one as you implemented in step 6.

    MDK
  5. On Main page, tap Sync to send local changes to the backend, a successful message will be shown.

    MDK

Congratulations! You have successfully completed Enhance Your First MDK App with Additional Functionalities mission and you are now all set to Level Up with the Mobile Development Kit mission.
