Add Internationalization and Localization to an MDK App
Details

Add Internationalization and Localization to an MDK App

Jitendra Kansal
Jitendra Kansal
September 14, 2021
Created by
Jitendra Kansal
April 14, 2021
Intermediate
25 min.
mobile development kit client, iOS, SAP Business Technology Platform, SAP Mobile Services, Intermediate, Tutorial, Android, Mobile
Localize the UI text strings and format the values according to device's or browser's or app's current locale.

You will learn

  • How to define a property file to store the language and locale-specific strings
  • How to consume localized text strings in metadata definition
  • How to use Currency and Date Time formatters
QR code

Prerequisites

You may clone an existing project from GitHub repository and start directly with step 8 in this tutorial.

Step 1: Understand the Internationalization and Localization

Internationalization (i18n) is the process of designing and developing your software or mobile application product so it can be adapted and localized to different cultures, regions, and languages.

Localization (l10n) is the adaptation of your software or mobile application product to meet the language, culture, and other requirements of each locale. It refers to localizing time and date differences, currency, accounting standards, culturally appropriate images, symbols, and hand gestures, spelling, and other locale-specific components.

As a developer, you can now provide translations and localization for your MDK application. This allows end-users to view the mobile application in their own language and regional settings. MDK already supports various languages for end-user facing texts to be translated.

Done
Log on to answer question
Step 2: Create a new MDK project in SAP Business Application Studio

This step includes creating the mobile development kit project in the editor.

  1. Launch the Dev space in SAP Business Application Studio.

  2. Click Start from template on Welcome page.

    MDK

    If you do not see Welcome page, you can access it via Help menu.

  3. Select MDK Project and click Start.

    MDK

  4. In Basic Information step, provide the below information and click Next:

    Field Value
    MDK Template Type Select List Detail from the dropdown
    Your Project Name MDK_i18n_l10n
    Your Application Name <default name is same as project name, you can provide any name of your choice>
    Target MDK Client Version Leave the default selection as MDK 6.0+ (For use with MDK 6.0 or later clients)
    MDK

    This screen will only show up when your CF login session has expired. Enter your login credentials, click Login icon and select the org & space where you have set up the initial configuration for your MDK app.

    MDK

  5. In Service configuration step, provide the below information and click Next:

    Field Value
    Data Source Select Mobile Services from the dropdown
    Mobile Services Landscape Select standard from the dropdown
    Application Id Select com.sap.mdk.demo from the dropdown
    Destination Select SampleServiceV2 from the dropdown
    Enter a path to the OData service Leave it as it is
    Enable Offline It’s enabled by default
    MDK

  6. In Data Collections step, select Customers and SalesOrderHeaders. Click Finish to complete the project creation.

    MDK

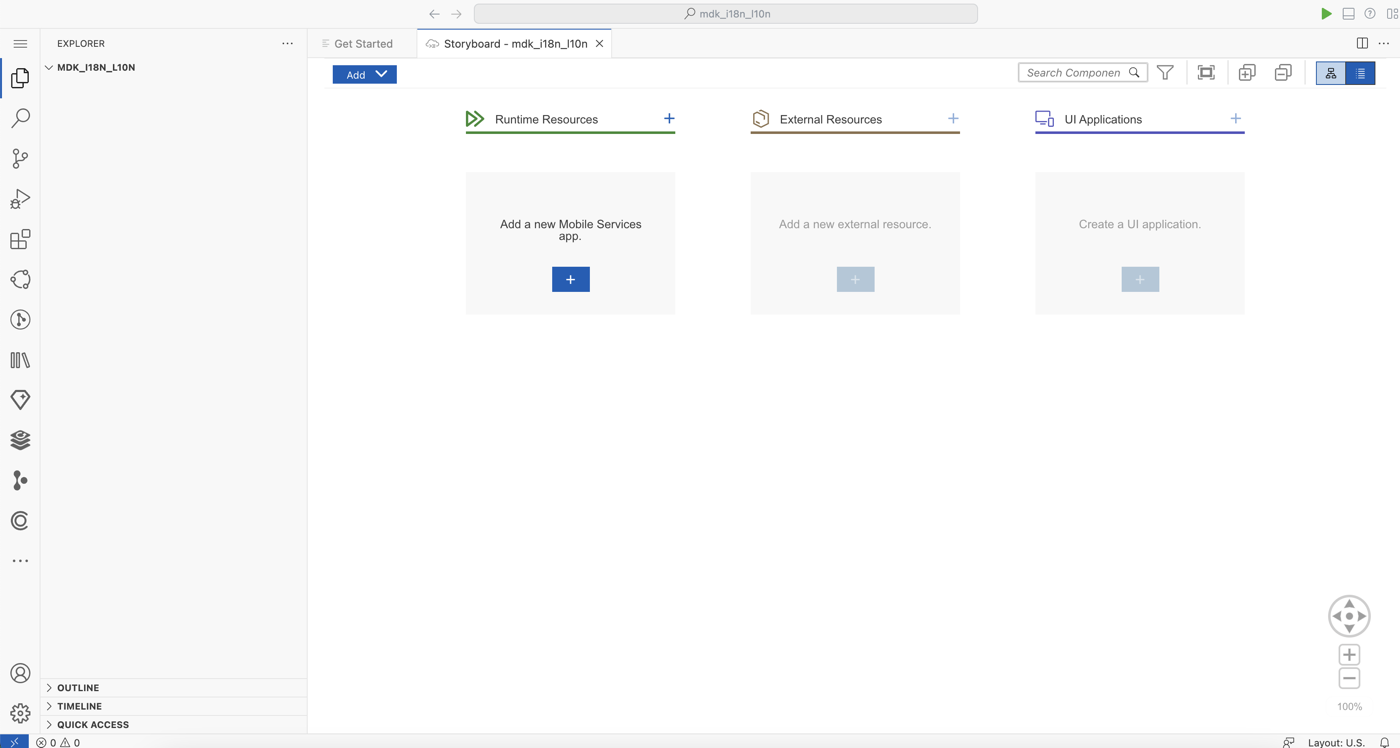

  7. After clicking Finish, the wizard will generate your MDK Application based on your selections. You should now see the MDK_i18n_l10n project in the project explorer.

Done
Log on to answer question
Step 3: Deploy the application

So far, you have learned how to build an MDK application in the SAP Business Application Studio editor. Now, you will deploy this application definition to Mobile Services and Cloud Foundry to consume it as Mobile and Web application respectively.

  1. Right-click Application.app and select MDK: Deploy.

    MDK

  2. Select deploy target as Mobile & Cloud.

    MDK editor will deploy the metadata to Mobile Services (for Mobile application) followed by to Cloud Foundry (for Web application).

    MDK

    You should see successful messages for both deployments.

    MDK
Done
Log on to answer question
Step 4: Run the app

Make sure you are choosing the right device platform tab above. Once you have scanned and on-boarded using the onboarding URL, it will be remembered. When you Log out and onboard again, you will be asked either to continue to use current application or to scan new QR code.

SAP Business Application Studio has a feature to generate QR code for app onboarding.

  1. Click the Application.app to open it in MDK Application Editor and click Application QR Code icon to display the QR code.

    MDK

  2. Select com.sap.mdk.demo application from the list.

    MDK

    The On-boarding QR code is now displayed.

    MDK

  3. Follow these steps to on-board the MDK client.

    Once you accept app update, you will see the Main page (with LOGOUT and SYNC options at bottom of the page) and CUSTOMERS and SALESORDERHEADERS entity sets to navigate to List-Detail page.

    MDK

    You will learn how to translate the UI texts on this screen (Main, CUSTOMERS, SALESORDERHEADERS, LOGOUT and SYNC) to their respective localized strings in the German language.

  4. Tap SALESORDERHEADERS to navigate to Sales order List.

    MDK

Make sure you are choosing the right device platform tab above. Once you have scanned and o-nboarded using the onboarding URL, it will be remembered. When you Log out and onboard again, you will be asked either to continue to use current application or to scan new QR code.

SAP Business Application Studio has a feature to generate QR code for app onboarding.

  1. Click the Application.app to open it in MDK Application Editor and click Application QR Code icon to display the QR code.

    MDK

  2. Select com.sap.mdk.demo application from the list.

    MDK

    The On-boarding QR code is now displayed.

    MDK

  3. Follow these steps to on-board the MDK client.

    Once you accept app update, you will see the Main page (with Logout and Sync options at bottom of the page) and Customers and SalesOrderHeaders entity sets to navigate to List-Detail page.

    MDK

    You will learn how to translate the UI texts on this screen (Main, Customers, SalesOrderHeaders, Logout and Sync) to their respective localized strings in the German language.

  4. Tap SalesOrderHeaders to navigate to Sales Order List. You will see that Title property has been styled.

    MDK

  1. Click the highlighted button to open the MDK Web application in a browser. Enter your SAP BTP credentials if asked.

    MDK

    You can also open the MDK web application by accessing its URL from .project.json file.
    MDK

    You will see the Main page (with Logout option at bottom of the page) and Customers and SalesOrderHeaders entity sets to navigate to List-Detail page.

    MDK

    You will learn how to translate the UI texts on this screen (Main, Customers, SalesOrderHeaders, and Logout) to their respective localized strings in the German language.

  2. Click SalesOrderHeaders to navigate to Sales Order List. You will see that Title property has been styled.

    MDK

There are two control properties displaying Date and Gross Amount values generated by the template.

You will also learn how you can format these values to be displayed based on the device’s current locale.

Done
Log on to answer question
Step 5: Define the i18n Properties File
View Full Instructions

The i18n.properties file is where language & locale specific strings are stored.

The file name structure can consist of up to 4 parts:

<base_filename>_<language_code>_<script_code>_<region_specifier>.properties

for example: myi18n_zh_Hant_HK.properties = properties file for Chinese language with Traditional script specifier and Hong Kong region specifier.

For this tutorial, you will create the i18n_de.properties file for the German language.

  1. Open i18n.properties and copy & paste the below information:

    main_title=Main
customers_title=Customers
salesOrderHeaders_title=SalesOrderHeaders
logout_button=Logout
sync_button=Sync
    MDK

    Each property file contains a list of localization strings that come in key value pair syntax.

    <Localization_Key>=<Localized_Value>

  2. Right-click the i18n folder and select MDK: New i18n File.

    MDK

  3. Enter the file name i18n_de, click Next and then Finish on the confirmation step.

    MDK

  4. Copy and paste the below information:

    main_title=Haupt
customers_title=Kunden
salesOrderHeaders_title=Kundenaufträge
logout_button=Ausloggen
sync_button=Synchronisieren
    MDK
Done
Log on to answer question
Step 6: Add Localized String Formatter

MDK applications support various localization formatter functions:

L: Localizable String

N: Number

C: Currency

S: Scientific

P: Percentage

DT: Date Time

D: Date

T: Time

You will use the Localizable String function to add language support on the Main page of your application.

  1. Click Main.page to open it in the MDK Page Editor.

  2. In the Properties pane, click the link icon for the Page caption, select i18n Objects in the dropdown and double click on main_title:"Main" to bind Caption to the Localizable String.

    MDK

  3. Similarly, update the Title for both Customers and SalesOrderHeaders Section buttons.

    MDKMDK

  4. Finally, update the Caption for both Logout and Sync Toolbar items.

You can find more information about Localized String formatter in help documentation.

Done
Log on to answer question
Step 7: Explore other supported formatter
View Full Instructions

You will add Currency and DateTime formatter in the SalesOrderHeaders_List.page.

Let’s start with Currency formatter:
Syntax: $(C, <Value>, <Currency Code>, <Locale>, <Format Options>)

  1. Click SalesOrderHeaders_List.page to open it in the MDK Page Editor.

  2. The Object Table control’s Status property is bound to the OData property {GrossAmount}. You will format the property value using the Currency formatter. In the Properties pane, click link icon for the Footnote property.

  3. Cut or remove the default expression in the object browser.

  4. Select i18n Objects in the dropdown and then select Currency in the formatters dropdown.

  5. Select Euro Member Countries for Country Code, click Insert to generate the expression, paste or type the {GrossAmount} for the currency value placeholder.

    MDK

    The new expression looks like below:

    $(C,{GrossAmount},'EUR','',{minimumIntegerDigits:1,minimumFractionDigits:0,maximumFractionDigits:2,useGrouping:true})

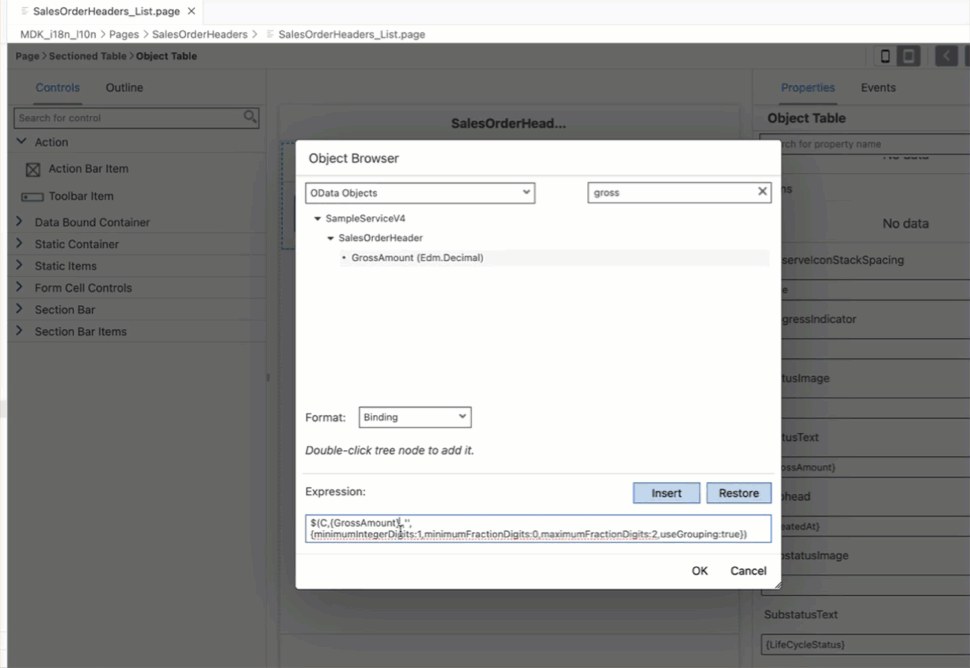

    Since there is already an OData property CurrencyCode part of SalesOrderHeaders entity, it would be best to use the value coming directly from the backend instead providing a constant value. So, replace the generated expression with below:

    $(C,{GrossAmount},{CurrencyCode},'',{minimumIntegerDigits:1,minimumFractionDigits:0,maximumFractionDigits:2,useGrouping:true})

  6. Click OK.

  7. You will now format the Subhead property’s value {CreatedAt} using DateTime formatter.

    Syntax: $(DT, <Value>, <Locale>, <Timezone>)

  8. Click link icon for the Title property.

  9. Cut or remove the default expression in the object browser, select i18n Objects in the dropdown, select DateTime in the formatters dropdown.

  10. Select Medium for Display Format and click Insert to generate the expression.

  11. Paste or type the {CreatedAt} for the date time value placeholder.

    MDK

    The new expression should look like below:

    $(DT,{CreatedAt},'','',{format:'medium'})

    For Time formatter, you must still provide the full date-time value, the result will only include time portion.

    For more details on these formatters, check the help documentation.

What are the various Display Format available in DateTime Formatter?
×
Step 8: Redeploy the application

Right-click the Application.app file in the project explorer pane, select MDK: Deploy and then select deploy target as Mobile & Cloud.

Done
Log on to answer question
Step 9: Update the MDK app with new metadata

  1. Re-launch the app on your device, authenticate with passcode or Biometric authentication if asked. You will see a Confirmation pop-up, tap OK.

  2. Navigate to SalesOrderHeaders list page. You will notice the formatted values as per device’s or app’s current locale and timezone.

    MDK

  3. Go to your device settings and change the device language to Deutsch. Relaunch the MDK client, you will now notice the localized strings on main page.

    MDK

  4. Tap KUNDENAUFTRÄGE to navigate to Sales order list page. You will notice the updated formatter values as per device’s current locale and timezone.

    MDK

  1. Re-launch the app on your device, authenticate with passcode or Biometric authentication if asked. You will see a Confirmation pop-up, tap OK.

  2. Navigate to SalesOrderHeaders list page. You will notice the formatted values.

    MDK

  3. Change the device language to German. (Settings>General>Language & Region>iPhone Language). Relaunch the MDK client, you will now notice the localized strings on main page.

    MDK

  4. Tap Kundenaufträge to navigate to Sales order list page. You will notice the updated formatter values as per device’s current locale and timezone.

    MDK

  1. Either click the highlighted button or refresh the web page to load the changes.

    MDK

  2. Navigate to SalesOrderHeaders list page. You will notice the formatted values.

    MDK

  3. Navigate to your browser settings and set the language top preference to German. Refresh the web page, you will now notice the localized strings on main page.

    MDK

  4. Click Kundenaufträge to navigate to Sales order list page. You will notice the updated formatter values as per device’s current locale and timezone.

    MDK
What is the default value for "Format Options" generated in Currency formatter?
×

Congratulations, you have successfully added Internationalization and Localization to your MDK App and you can continue with the remaining tutorials in this mission.
