Handle Error Archive in an MDK App
Details

Handle Error Archive in an MDK App

2020-03-23
Create an MDK app to display errors occurred while uploading local changes and implement some logic on how to handle such errors and then let users to fix it from the app by providing correct values.

You will learn

  • How to access Error Archive entity set to display local upload failure
  • How to handle a logic failure errors
  • How to fix these errors

Prerequisites

You may clone an existing project from GitHub repository and start directly with step 7 in this tutorial.


You have built an MDK app with offline functionality. In offline store, you make a change to a local record and upload this change (from request queue) to backend but backend prevents this change to accept due to some business logic failure. This error is recorded in an Offline OData specific entity set named as ErrorArchive. This entity set has detailed information about the errors. It’s now up-to developers how they handle such errors and then let users to fix it from the app by providing the correct values.

ErrorArchive is exposed to the application as an OData entity set and is accessible through the OData API in the same way that the application accesses any other entity sets from the offline store.

MDK

In this tutorial, you need to carry out the following tasks in order to understand how to display and handle such errors:

  • Create a new project in SAP Web IDE using MDK CRUD Project template
  • Create two additional pages to display list of errors and their details
  • Create an action to navigate from error list page to its details page
  • Create a business logic to find the affected entity
  • Navigate to the affected record to handle the error

For this tutorial, you will use Mobile Services sample backend destination. You will modify a PurchaseOrderHeaders record by changing SupplierId field. Offline store saves this record in request queue database and when you sync it with backend, backend prevents updating this record due to business logic failure. This failure record will be listed in Error list page, from here, you can navigate to details page for more information. You will implement a logic to navigate from details page to the affected record.

MDK
Step 1: Create a new MDK project in SAP Web IDE

This step includes creating the Mobile Development Kit project in the Editor.

  1. Launch the SAP Web IDE and select the MDK perspective by clicking on the icon in the left panel.

  2. Right click on Workspace folder and select New | MDK CRUD Project.

    MDK

    The MDK CRUD Project template creates the offline or online actions, rules, messages and list detail pages along with editable capability in respective pages. You can use such template to handle error archive situation.

    More details on MDK template is available in help documentation.

  3. Enter the Project Name as MDK_ErrorArchive and click Next.

    MDK
  4. Leave the default values in Application Creation step as it is, click Next.

  5. In Service Creation step, provide and select the below information:

    Field Value
    Name SampleServiceV2
    Service URL /destinations/mobileservices_cf
    Application ID com.sap.mdk.demo
    Destination Name com.sap.edm.sampleservice.v2
    Enable Offline Store Should be checked

    If you do not find mobileservices_cf destination, please ensure that you have followed this tutorial to setup this destination in SAP Cloud Platform cockpit.

    If you see a Authentication Required pop-up, then enter your cloud platform User Name and password to authenticate.

    For Offline OData capability only OData V2 is supported. OData V2 and V4 are supported for Online OData.

    MDK

    Regardless of whether you are creating an online or offline application, this step is needed app to connect to an OData service. When building an Mobile Development Kit application, it assumes the OData service created and the destination that points to this service is setup in Mobile Services and SAP Cloud Platform.

    Since you will create an offline based app, hence Enable Offline Store option is selected.

  6. Click Check Service to validate the service properties. If all the details are fine, you will see a success message. Click Next.

    MDK

    More details on Sample Back End is available in help documentation.

  7. In Metadata Source step, select PurchaseOrderHeaders and PurchaseOrderItems‚ and click Next.

  8. In following steps go with default selections and Finish the project creation.

    MDK

    After clicking Finish, the wizard will generate your MDK Application based on your selections. You should now see the MDK_ErrorArchive project in the project explorer.

Log on to answer question
Step 2: Create a new page to display Error list

Generated project is offline enabled and includes two entity sets (PurchaseOrderHeaders and PurchaseOrderItems) on main page and these entities are fully CRUD enabled. You can create a new record and also modify an existing one.

MDK
  1. Now, you will create a new page to display list of errors.

  2. In SAP Web IDE project, right-click the Pages folder | New MDK Page | Section Page | Next.

    MDK

    You can find more details about section pages.

  3. Enter the Page Name as ErrorList and click Next and then Finish on the confirmation step.

    MDK
  4. In the Properties pane, set the caption to Error List.

    MDK
  5. Next, add an Object Table control to display information like HTTP status code, HTTP method for the affected record.

    In the Layout Editor, expand the Controls | Compound section, drag and drop the Object Table control onto the page area.

    MDK

    A Compound control contains a group of other controls. Unlike in a container control where you can add your own child controls (container items), the child controls in a compound control are fixed. You can populate each of its child control by defining its data binding, depending on which the child controls are created.

  6. In the Properties pane, select the previously added service from the Service drop down and then select ErrorArchive entity set from the dropdown. This way, the Object Table has been bound to ErrorArchive entity.

  7. Provide below properties:

    Property Value
    Service SampleServiceV2.service
    Entity ErrorArchive
    MDK
  8. In Appearance section, provide below properties:

    Property Value
    Description leave it empty
    DetailImage leave it empty
    DetailImageIsCircular false
    Footnote leave it empty
    PreserveIconStackSpacing false
    ProgessIndicator leave it empty
    Status bind it to {RequestMethod}
    Subhead bind it to {RequestURL}
    SubStatus leave it empty
    Title bind it to {HTTPStatusCode}
    MDK

    You can find more details about ErrorArchive Entity Properties.

  9. In Search section, update below properties:

    Property Value
    SearchEnabled true
    MDK
  10. In Behavior section, update below properties:

    Property Value
    AccessoryType disclosureIndicator
    MDK
  11. In EmptySection section, update below properties:

    Property Value
    Caption No Sync Errors Found
    MDK
Log on to answer question
Step 3: Create a new page to display Error details
  1. Now, you will create another new page to display error details.

  2. In SAP Web IDE project, right-click the Pages folder | New MDK Page | Section Page | Next.

    MDK
  3. Enter the Page Name as ErrorDetails and click Next and then Finish on the confirmation step.

    MDK
  4. In the Properties pane, set the caption to Error Details.

    MDK

    In this page, you would show which entity has been affected due to business logic failure and also want to display other information like detailed error message, request body, request URL etc.

  5. Next, write a business logic to get the affected entity object and this object value will be shown in error details page.

  6. Right click on the Rules folder | New | File.

    MDK
  7. Enter the file name GetAffectedEntityHeaderCaption.js, click OK.

    Copy and paste the following code.

    export default function GetAffectedEntityHeaderCaption(context) {
     //Current binding's root is the errorArchiveEntity:
     //Get the affectedEntity object out of it
     let affectedEntityType = "Unknown EntitySet";
     let affectedEntity = context.getPageProxy().binding.AffectedEntity;
     let id = affectedEntity["@odata.id"];
     if (id.indexOf("(") > 0) {
       affectedEntityType = id.substring(0, id.indexOf("("));
     }
     return "Affected Entity: " + affectedEntityType;
    }



    @odata.id: an annotation that contains the entity-id. More details can be found here.

    AffectedEntity: A navigation property that allows applications to navigate from an ErrorArchive entity to an entity in the offline store that is affected by the error.

  8. Save your changes to the GetAffectedEntityHeaderCaption.js file.

  9. Next, add an Object Table control in ErrorDetails.page to display some information like affected entity and id for affected record.

    Open ErrorDetails.page, in the Layout Editor, expand the Controls | Compound section, drag and drop the Object Table control onto the page area.

    MDK
  10. In the Properties | Target pane, choose String Target from the dropdown and provide #Property:AffectedEntity value.

    MDK
  11. In Appearance section, provide below properties:

    Property Value
    Description leave it empty
    DetailImage leave it empty
    DetailImageIsCircular false
    Footnote leave it empty
    PreserveIconStackSpacing false
    ProgessIndicator leave it empty
    Status leave it empty
    Subhead {@odata.id}
    SubStatus leave it empty
    Title Edit Affected Entity
    MDK

    @odata.id: an annotation that contains the entity-id. More details can be found here.

  12. In Behavior section, update below properties:

    Property Value
    AccessoryType disclosureIndicator
    MDK
  13. Next, add a Header section bar to display affected entity information.

    In the Layout Editor, expand the Controls | Section Bar section, drag and drop the Header control onto the Object Table control.

    MDK

    Now, bind its Caption property to GetAffectedEntityHeaderCaption.js file.

    MDK
  14. Next, you can also display additional information like detailed error message, request body, request URL etc.

    In the Layout Editor, expand the Controls | Container section, drag and drop the Static Key Value control on the page area.

    MDK

    Update NumberOfColumns value to 1.

    MDK

    You can limit the number of columns to be displayed.

  15. Next, you will add items to the container.

    In the Layout Editor, expand the Controls | Container Item section, drag and drop the Key Value Item control in the Static Key Value control.

    MDK

    Provide the below information:

    Property Value
    KeyName HTTP Status Code
    Value {HTTPStatusCode}
    MDK

    Drag and drop 4 more Key Value Item control in the Static Key Value control and provide the below information:

    Property Value
    KeyName Request Method
    Value {RequestMethod}
    Property Value
    KeyName Request URL
    Value {RequestURL}
    Property Value
    KeyName Request Body
    Value {RequestBody}
    Property Value
    KeyName Error Message
    Value {Message}

    You should have final binding for all key value items as below:

    MDK

    More details on ErrorArchive Entity Properties is available in help documentation.

  16. Save your changes to the Error Details page.

Log on to answer question
Step 4: Navigate from Error list page to Error details page

When you click on any record in Error List page, you want to navigate to Error Details page to view more information about this error.

  1. Create a Navigation Action.

    Right click on the Actions folder | New MDK Action | Navigation Action | Next.

    MDK

    Provide the below information:

    Field Value
    Action Name ShowErrorDetails
    Page to Open select ErrorDetails.page
    MDK
  2. Bind this action to onPress of Object Table in Error List page.

    Open Error List page | Events tab, click the link icon for the OnPress property to open the object browser.

    Double click on the ShowErrorDetails.action action and click OK to set it as the OnPress Action.

    MDK
  3. Save your changes to the ErrorList.page file.

Log on to answer question
Step 5: Navigate from Error details page to affected record

When you click on an affected entity in Error details page, you want to bring the affected record so that you can fix business failure by modifying previous changes right there.

You can write a logic in JavaScript to handle the affectedEntity and then decide which action to call depends on which @odata.id is the affectedEntity and if there is no handler for an affected entity, app will display a toast message.

  1. Create a Message Action to display this toast message.

    Right click on the Actions folder | New MDK Action | Message Action | Next.

    MDK

    Provide the below information:

    Property Value
    Action Name UnknownAffectedEntityMessage
    Type select ToastMessage
    Message Affected Entity {{#Property:AffectedEntity/#Property:@odata.id}} doesn't have handler yet.
    Duration 4
    Animated true
    MDK

    Click Next and then Finish on the confirmation step.

  2. Write a business logic to decide which action to call depends on which @odata.type is the affectedEntity and if there is no handler for an affected entity, app will display a toast message saying this affected entity doesn’t have a handle yet.

  3. Right click on the Rules folder | New | File.

    MDK
  4. Enter the file name DecideWhichEditPage.js, click OK.

    Copy and paste the following code.

    export default function DecideWhichEditPage(context) {
      //Current binding's root is the errorArchiveEntity:
      let errorArchiveEntity = context.binding;
      //Get the affectedEntity object out of it
      let affectedEntity = errorArchiveEntity.AffectedEntity;
      console.log("Affected Entity Is:");
      console.log(affectedEntity);

      let targetAction = null;
      let id = affectedEntity["@odata.id"]; //e.g. PurchaseOrderHeaders(12345)
      let affectedEntityType = "Unknown Entity Set"; //By default it's unknown type
      if (id.indexOf("(") > 0) {
        //Extracting the entity set type from @odata.id e.g. PurchaseOrderHeaders
        var patt = /\/?(.+)\(/i;
       var result = id.match(patt);
       affectedEntityType = result[1];
      }
      console.log("Affected Entity Type Is:");
      console.log(affectedEntityType);
      //Here we decide which action to call depends on which affectedEntityType is the affectedEntity
      // You can add more complex decision logic if needed
      switch (affectedEntityType) {
        case "PurchaseOrderHeaders":
            targetAction = "/MDK_ErrorArchive/Actions/PurchaseOrderHeaders/NavToPurchaseOrderHeaders_Edit.action";
          break;
        default:
            //Save the affected Entity's type in client data so that it can be displayed by the toast
            context.getPageProxy().getClientData().AffectedEntityType = affectedEntityType;
            // Show a toast for affectedEntityType that we do not handle yet
            return context.executeAction("/MDK_ErrorArchive/Actions/UnknownAffectedEntityMessage.action");
      }

      if (targetAction) {
        let pageProxy = context.getPageProxy();
        //Set the affectedEntity object to root the binding context.
        pageProxy.setActionBinding(affectedEntity);
        //Note: doing 'return' here is important to chain the current context to the action.
        // Without the return the ActionBinding will not be passed to the action because it will consider
        // you are executing this action independent of the current context.
        return context.executeAction(targetAction);
      }
    }

  5. Save your changes to the DecideWhichEditPage.js file.

  6. Bind this file to onPress of Object Table in Error Details page.

    Open Error Details page | Select Object Table control | Events tab, click the link icon for the OnPress property to open the object browser.

    Double click on the DecideWhichEditPage.js action and click OK to set it as the OnPress Action.

    MDK
  7. Save the changes to the ErrorDetails page.

Log on to answer question
Step 6: Add a button on main page to view Error list

Now that the Error List page is created, you will add a button on the Main page that navigates to Error List page.

  1. Create a Navigation Action.

    Right click on the Actions folder | New MDK Action | Navigation Action | Next.

    MDK

    Provide the below information:

    Field Value
    Action Name ShowErrorList
    Page to Open select ErrorList.page
    MDK
  2. On Main page, drag and drop the Section Button Container Item control onto the Page.

    MDK

    Provide Title as Error Archive.

    MDK

  3. Bind ShowErrorList.action to the onPress of Error Archive section button in Main page.

    Go to Events tab, click the link icon for the OnPress property to open the object browser.

    Double click on the ShowErrorList.action action and click OK to set it as the OnPress Action.

    MDK

  4. Save the changes to the Main page.

Log on to answer question
Step 7: Deploy and activate the application

So far, you have learnt how to build an MDK application in the SAP Web IDE editor. Now, we deploy this application definition to Mobile Services.

  1. Right-click on the MDK_ErrorArchive MDK Application in the project explorer pane and select MDK Deploy and Activate.

    MDK
  2. Let the default configuration as it is and click Next.

    MDK

    Filter Files will be filtered and ignored in web packing process.

    Externals are the list of NPM modules that are part of the MDK Client application and should not be validated in the bundle.

  3. Click the drop down for Destination Name and select the mobileservices_cf destination, you will find list of existing application IDs, select the one you have chosen while creating the project.

    By default, automatically deploy option is selected, In other words, the application is automatically deployed from Mobile Services to your MDK client.

    MDK
  4. Click Next to finish the deployment from SAP Web IDE.

    You should see Application deployed successfully message in console log.

    MDK
Log on to answer question
Step 8: Populate the QR code for app on-boarding

SAP Web IDE has a feature to generate QR code for app on-boarding.

  1. Right click on the MDK_ErrorArchive MDK Application in the project explorer pane and select MDK Deploy and Activate.

    MDK
  2. Let the default configuration as it is and click Next.

    MDK
  3. Click on the QR-code icon to populate the QR-code for app on-boarding.

    MDK
Log on to answer question
Step 9: Run the app in MDK client

Make sure you are choosing the right device platform tab above.

On Android, the camera app does not support scanning the QR-code. As alternative you can use the Barcode scanner app to scan it.

  1. Open the Barcode scanner app and start scanning the QR code showing in SAP Web IDE.

  2. Tap Open browser. It will open SAP Mobile Services Client app.

    MDK
  3. Tap GET STARTED to connect MDK client to SAP Cloud Platform.

    MDK
  4. Enter Email address and password to login to SAP Cloud Platform and tap Log On to authenticate.

    MDK
  5. Tap AGREE on End User License Agreement.

    MDK
  6. Choose a passcode with at least 8 characters for unlocking the app and tap NEXT.

    MDK
  7. Confirm the passcode and tap DONE.

    MDK

    Optionally, you can enable fingerprint to get faster access to the app data.

    MDK
  8. Tap OK.

    MDK

    The MDK client receives deployed metadata definitions as a bundle.

    Now, you will see Main page with some entity sets being displayed and Offline store is being initialized.

    MDK
  9. You will modify a PURCHASEORDERHEADERS record, save it locally, sync it to the backend and if backend doesn’t accept this change due to some business logic failure, this record will appear in Error Archive list.

    Navigate to PURCHASEORDERHEADERS list, tap either one of the record.

    MDKMDK

    Tap edit icon.

    MDK

    Make some changes to SUPPLIERID value and SAVE it.

    MDK

    You will see Entity Updated toast message. You can always see this updated record reflecting in PURCHASEORDERHEADERS list which means offline store has accepted this change.

  10. Navigate to Main.page, click SYNC to upload local changes from device to the backend and to download the latest changes from backend to the device.

    MDK
  11. Once you see Sync success message, navigate to ERROR ARCHIVE list.

    MDK

    There you will find affected entity which couldn’t get accepted by backend due to some business logic failure.

    MDK
  12. Tapping any record navigates to Error Details page with more information about error.

    Here in ERROR MESSAGE you will see violates foreign key constraint and in REQUEST BODY, it shows the property that caused this failure.

    MDK

    It’s now up-to developers how to handle such errors and let users to modify record with correct values.

    In this tutorial, we have added a business logic to find out which is affected entity and how to navigate to respective record to let users to modify this record with correct values. Once done, user can again SYNC it with backend.

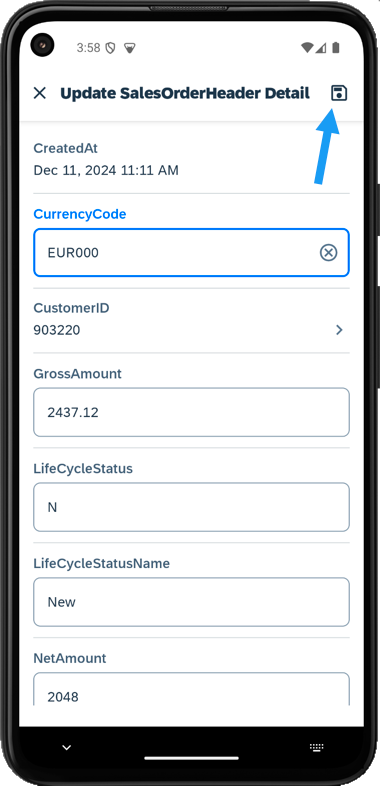

  13. Tap Edit Affected Entity and modify record with correct values.

    MDKMDK
  1. On iPhone, open your camera app and start scanning the QR code, as shown below.

    MDK
  2. Tap the toast message to launch SAP Mobile Services Client. It will open SAP Mobile Services Client app.

  3. Tap Start to connect MDK client to SAP Cloud Platform.

    MDK
  4. Enter Email address and password to login to SAP Cloud Platform and tap Log On to authenticate.

    MDK
  5. Tap Agree on End User License Agreement.

    MDK
  6. Choose a passcode with at least 8 characters for unlocking the app and tap Next.

    MDK
  7. Confirm the passcode and tap Done.

    MDK

    Optionally, you can enable Touch ID to get faster access to the app data, tap Enable.

    MDK
  8. Tap OK.

    MDK

    Now, you will see Main page with some entity sets being displayed and Offline store is being initialized.

    MDK
  9. You will modify a PurchaseOrderHeaders record, save it locally, sync it to the backend and if backend doesn’t accept this change due to some business logic failure, this record will appear in Error Archive list.

    Navigate to PurchaseOrderHeaders list, tap either one of the record.

    MDKMDK

    Tap Edit.

    MDK

    Make some changes to SupplierId value and Save it.

    MDK

    You will see Entity Updated toast message. You can always see this updated record reflecting in PurchaseOrderHeaders list which means offline store has accepted this change.

  10. Navigate to Main.page, click Sync to upload local changes from device to the backend and to download the latest changes from backend to the device.

    MDK
  11. Once you see Sync success message, navigate to Error Archive list.

    MDK

    There you will find affected entity which couldn’t get accepted by backend due to some business logic failure.

    MDK

    Tapping any record navigates to Error Details page with more information about error.

    Here in Error Message you will see SQL Exception: Foreign key constraint violation occurred and in Request Body, it shows the property that caused this failure.

    MDK

    It’s now up-to developers how to handle such errors and let users to modify record with correct values.

    In this tutorial, we have added a business logic to find out which is affected entity and how to navigate to respective record to let users to modify this record with correct values. Once done, user can again Sync it with backend.

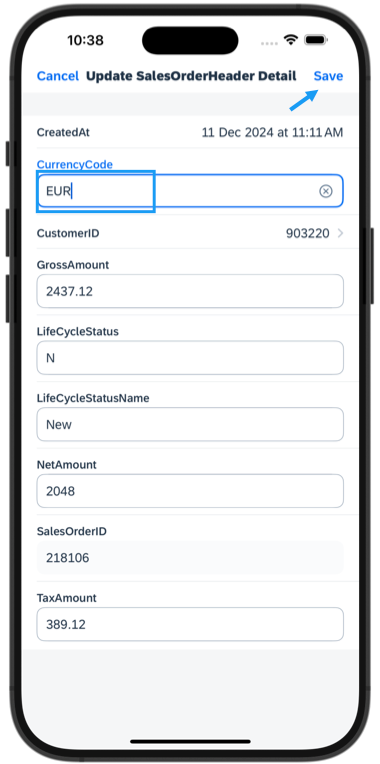

  12. Tap Edit Affected Entity and modify record with correct values.

    MDKMDK

Congratulations, you have successfully setup your app to handle Error Archive.

What is AffectedEntity in context of this tutorial?
×

Next Steps

Back to top
