Extend an MDK App with Customer Orders
Details

Extend an MDK App with Customer Orders

Jitendra Kansal
Jitendra Kansal
April 14, 2021
Created by
jitendrakansal
June 10, 2019
Intermediate
30 min.
mobile development kit client, SAP Business Technology Platform, Mobile, Tutorial, iOS, SAP Business Application Studio, Intermediate, Android, SAP Mobile Services
Display a customer order list and its details.

You will learn

  • How to enhance customer details with its order information
  • How to create a new page for displaying the order details
QR code

You may clone an existing project from GitHub repository to start with this tutorial.

To enhance your MDK app with customer order information, you need to carry out the following tasks:

  • Create a new order list page
  • Create a new order details page
  • Create a new navigation action to the new order details page
  • Write a JavaScript logic to calculate total number of orders for a customer
  • Display top 5 orders in customer detail page
  • Add a header control to the orders grid of the customer detail page to display a text label
  • Add a footer control to the orders grid of customer detail page to show total order count
MDK
Step 1: Create a new order list page

This page will display customer orders list, you will add an Object Table control that is used to display information (like Sales order ID, order creation date, gross amount and life cycle status name) about an object.

You can find more details about available controls in section page.

  1. In SAP Business Application Studio project, right-click the Pages | MDK: New Page | select Section Page | Next.

    MDK

    You can find more details about section pages.

  2. Enter the Page Name Customers_Orders and click Next and then Finish on the confirmation step.

    MDK

  3. In the Properties pane, set the caption to Customer Orders.

    MDK

  4. Next, add an Object Table compound to display information like sales order ID, order creation date, gross amount and life cycle status name.

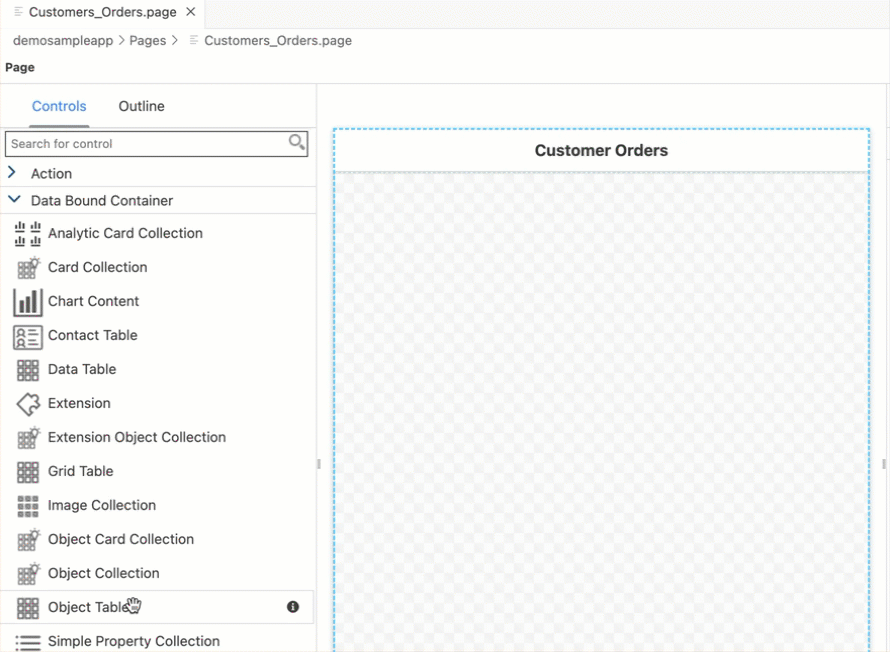

    In the Layout Editor, expand the Controls | Compound section, drag and drop the Object Table control onto the page area.

    MDK

    A Compound control contains a group of other controls. Unlike in a container control where you can add your own child controls (container items), the child controls in a compound control are fixed. You can populate each of its child control by defining its data binding, depending on which the child controls are created.

  5. In the Properties pane, select the previously added service from the Service drop down and then select SalesOrderHeaders entity set from the dropdown. This way, the Object Table has been bound to SalesOrderHeaders entity.

    Provide below Properties:

    Property Value
    Service Select Sample.service from the dropdown
    Entity Select SalesOrderHeaders from the dropdown
    QueryOptions $filter=CustomerId eq '{CustomerId}'&$top=5&$orderby=CreatedAt desc
    MDK

    For a given customer id, query expression will filter top 5 order entries returned in descending when sorted by the order creation date property.

    MDK

  6. Now, start binding Object Table properties with SalesOrderHeaders entity set properties.

    Provide the below information:

    Property Value
    Description $(D,{CreatedAt},'','',{format:'medium'})
    DetailImage Remove the default value and leave it blank
    Footnote Remove the default value and leave it blank
    PreserveIconStackSpacing false
    ProgressIndicator Remove the default value and leave it blank
    Status $(C,{GrossAmount},{CurrencyCode},'',{maximumFractionDigits:2,useGrouping:true})
    Subhead bind to {CustomerId}
    Substatus bind to {LifeCycleStatusName}
    Title bind to {SalesOrderId}
    MDK

    $(D,{CreatedAt},'','',{format:'medium'}) is an expression of how to format a date, end result would be like June 20, 2020. By default it will be formatted to the device’s locale setting. More details on Date Formatter is available in documentation.

    MDK

    $(C,{GrossAmount},{CurrencyCode},'',{maximumFractionDigits:2,useGrouping:true}) is an expression of how to format currency value, end result would be like €200.44. By default it will be formatted to the device’s locale setting. More details on Currency Formatter is available in documentation.

    MDK

  7. In the Search section of the Properties pane, change both the Search Enabled property and Barcode Scanner property to true.

    MDK

  8. In the Behavior section of the Properties pane, select DisclosureIndicator to AccessoryType property.

    MDK

  9. In the EmptySection of the Properties pane, provide No Orders Found for the caption property.

    MDK
Done
Log on to answer question
Step 2: Create a new order details page

This page will show related details for an order. In this page, you will add an Object Header control that is used to display information (like first name, last name, date of birth, email address & phone number) about the header of an object and Static Key Value control to display key value pair items like address, city, postal code & country.

  1. In SAP Business Application Studio project, right-click the Pages | MDK: New Page | select Section Page | Next.

    MDK

  2. Enter the Page Name SalesOrders_Details and click Next and the Finish on the confirmation step.

    MDK

  3. In the Properties pane set the Caption to Order Details.

    MDK

  4. Next, you will add a Static Key Value container and its container item Key Value Item to display information like sales order id, life cycle status & date of order creation name.

    Static Key Value is a container that can display one or more key value pair items on a section page. In this container, you can include a Key Value Item, a simple key value cell that displays a label and a text pair. You can find more details here about this container.

    In the Layout Editor, expand the Controls | Container section, drag and drop the Static Key Value control onto the page area.

    MDK

  5. Now, add key value item to this container. In the Layout Editor, expand the Controls | Container Item section, drag and drop the Key Value Item control onto the page area.

    MDK

    Provide the below information:

    Property Value
    KeyName Order Number
    Value bind to {SalesOrderId}
    MDK

    Make sure to select values for the mentioned properties only from SalesOrderHeader entity. You may find similar values from other entities.

  6. Repeat the above step by adding 5 more Key Value Item on the page.

    MDK

    Provide the below information:

    Property Value
    KeyName Status
    Value bind to {LifeCycleStatusName}
    Property Value
    KeyName Created At
    Value $(D,{CreatedAt},'','',{format:'medium'})
    Property Value
    KeyName Net Amount
    Value $(C,{NetAmount},{CurrencyCode},'',{maximumFractionDigits:2,useGrouping:true})
    Property Value
    KeyName Tax Amount
    Value $(C,{TaxAmount},{CurrencyCode},'',{maximumFractionDigits:2,useGrouping:true})
    Property Value
    KeyName Total Amount
    Value $(C,{GrossAmount},{CurrencyCode},'',{maximumFractionDigits:2,useGrouping:true})

    You should have final binding for all key value items as below:

    MDK
Can you drop an Object cell item or an Image Cell item to static key value container?
×
Step 3: Create navigation actions

  1. Now, you will create two Navigation actions that opens the Order List and Order Details page when called.

    Right-click the Actions folder | MDK: New Action | choose MDK UI Actions in Category | click Navigation Action | Next.

    Provide the below information:

    Field Value
    Action Name NavToCustomers_Orders
    PageToOpen Select Customers_Orders.page from the dropdown
    MDK

    Click Next and then Finish on the confirmation step.

  2. Repeat the above step and create a new navigation action.

    Provide the below information:

    Field Value
    Action Name NavToSalesOrders_Details
    PageToOpen Select SalesOrders_Details.page from the dropdown
    MDK

    Click Next and then Finish on the confirmation step.

Done
Log on to answer question
Step 4: Set the OnPress of the customer Orders

Go back to the Customers_Orders.page and set the OnPress event of the Object Table. You will link the Object Table to the NavToSalesOrders_Details.action so that when an end-user selects a order, the SalesOrders_Detail.page will open. MDK automatically passes the selected order to the details page.

In Customers_Orders.page, select the Object Table, click the link icon under the Events tab for the OnPress property to open the Object Browser.

Double-click the NavToSalesOrders_Details.action and click OK to set it as the OnPress Action.

MDK
Done
Log on to answer question
Step 5: Write JavaScript logic to calculate total number of orders
View Full Instructions

You will show a total count of orders for a customer in Customers_Detail.page. You will write a JavaScript logic for this calculation.

  1. Right-click the Rules folder | MDK: New Rule File | select Empty JS Rule.

  2. Enter the Rule name Customers_OrderCount, press Enter.

    MDK

  3. Copy and paste the following code.

    export default function CustomerOrderCount(context) {
    //The following currentCustomer will retrieve the current customer record
    const currentCustomer = context.getPageProxy().binding.CustomerId;
    //The following expression will retrieve the total count of the orders for a given customer
    return context.count('/DemoSampleApp/Services/Sample.service', 'SalesOrderHeaders', `$filter=CustomerId eq '${currentCustomer}'`).then((count) => {
        return count;
    });
}

  4. Save the changes to the Customers_OrderCount.js file.

Done
Log on to answer question
Step 6: Display top 5 orders in customer detail page

  1. You will add an Object Table compound to display top 5 orders information in the Customers_Detail.page.

    In the Layout Editor, expand the Controls | Compound section, drag and drop the Object Table control onto the page area.

    MDK

  2. In the Properties pane, select the previously added service from the Service drop down.

    Provide below Properties:

    Property Value
    Service Select Sample.service from the dropdown
    Entity Select {{#Property:@odata.readLink}}/SalesOrders from the dropdown
    QueryOptions $top=5&$orderby=CreatedAt desc
    MDK

    The odata.readLink annotation contains the read URL of the entity or collection.

    SalesOrders is a navigation property in Customer entity to SalesOrderHeader entity. You can find this information in OData service metadata document.

    MDK

    Query expression will filter order entries returned in descending when sorted by the order creation date property.

  3. Now, start binding Object Table properties with SalesOrderHeaders entity set properties.

    In the Appearance section of the Properties pane, provide the below information:

    Property Value
    Description Remove the default value and leave it blank
    DetailImage Remove the default value and leave it blank
    Footnote Remove the default value and leave it blank
    PreserveIconStackSpacing select false from the dropdown
    ProgressIndicator Remove the default value and leave it blank
    Status $(C,{GrossAmount},{CurrencyCode},'',{maximumFractionDigits:2,useGrouping:true})
    Subhead $(D,{CreatedAt},'','',{format:'medium'})
    Substatus bind to {CurrencyCode}
    Title bind to {SalesOrderId}
    MDK

  4. In the Behavior section of the Properties pane, select DisclosureIndicator to AccessoryType property.

    MDK

  5. In the EmptySection of the Properties pane, provide No Customer Orders Found to Caption property.

    MDK

  6. You may also want to open SalesOrders_Detail.page when clicking on any order in Customers_Detail.page. For this, you will set the OnPress event of the Object Table and link it to NavToSalesOrders_Details.action so that when an end-user selects a order, the Order Details page will open. MDK automatically passes the selected order to the details page.

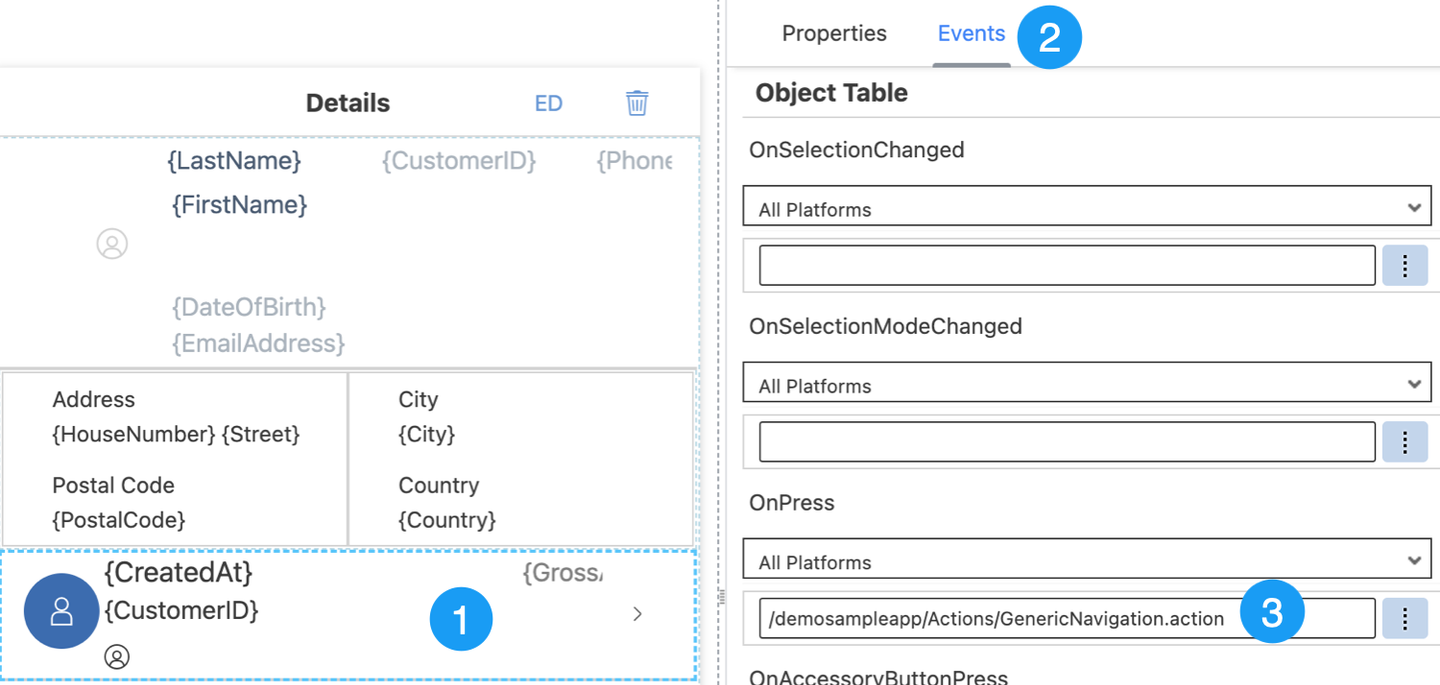

    In Customers_Detail.page, select the Object Collection, click the link icon under the Events tab for the OnPress property to open the Object Browser.

    Double-click the NavToSalesOrders_Details.action and click OK to set it as the OnPress action.

    MDK
Done
Log on to answer question
Step 7: Add Header control to orders grid

  1. For orders grid area, you will add a header to display some text label in Customers_Detail.page.

    In the Layout Editor, expand the Controls | Section Bar section, drag and drop the Header control above the order grid area.

    MDK

  2. Provide the below information:

    Property Value
    Caption Customer Orders
    MDK

    You can find more details about Header control.

Done
Log on to answer question
Step 8: Add Footer control to show total order count

  1. For orders grid area, you will also add a footer to display total count of orders for a customer.

    In the Layout Editor, expand the Controls | Section Bar section, drag and drop the Footer control above the order grid area.

    MDK

  2. Provide the below information:

    Property Value

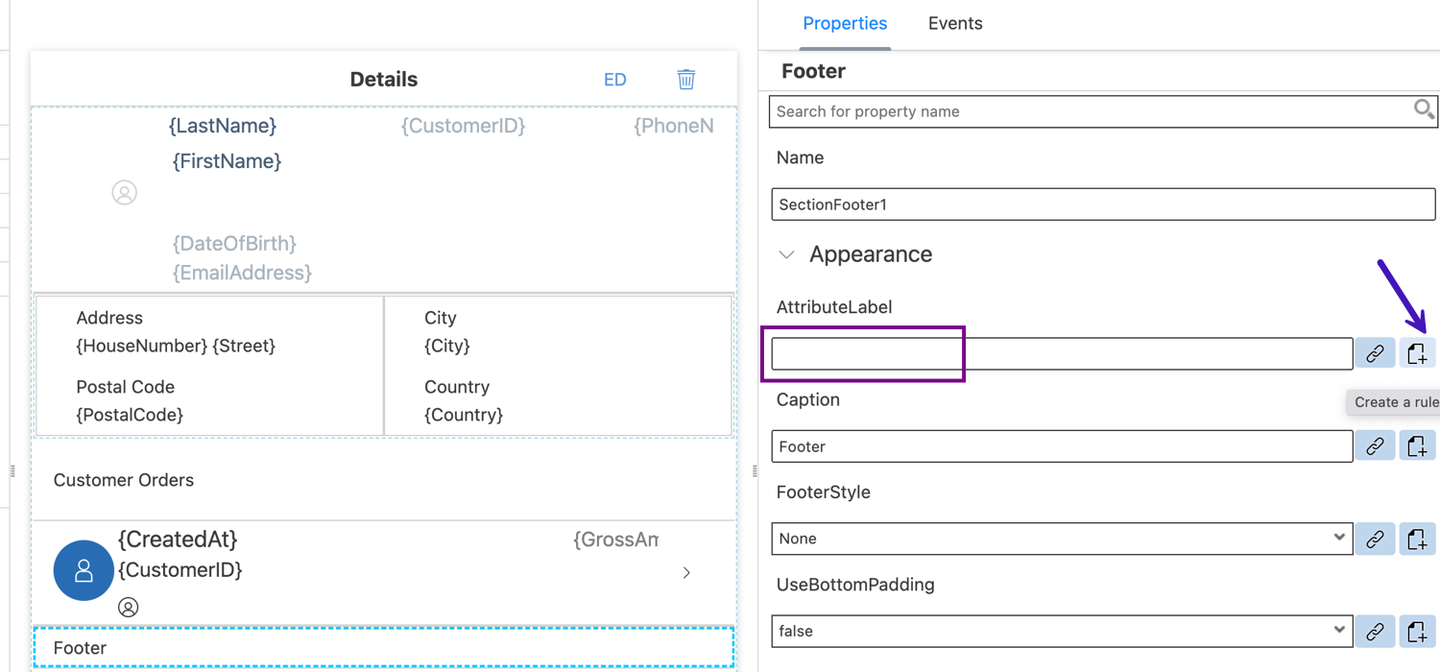

    Attribute Label click link icon, select Rules from dropdown and bind it to Customers_OrderCount.js
    Caption See All
    FooterStyle Select attribute from the dropdown
    AccessoryType Select DisclosureIndicator from the dropdown
    MDK

    You can find more details about Footer control.

  3. You may also want to open Customer Orders page when clicking See All. For this, you will set the OnPress event of the Footer control and link it to NavToCustomers_Orders.action so that when an end-user clicks on See All, the Customer Orders page will open.

    In Customers_Detail.page, select the Footer control See All, click the link icon under the Events tab for the OnPress property to open the Object Browser.

    Double-click the NavToCustomers_Orders.action and click OK to set it as the OnPress Action.

    MDK
Done
Log on to answer question
Step 9: Deploy the application

Deploy the updated application to your MDK client.

  1. Right-click Application.app and select MDK: Deploy.

    MDK

  2. Select deploy target as Mobile & Cloud.

    MDK

    You should see success message for both deployments.

    MDK
Done
Log on to answer question
Step 10: Test the application

  1. Re-launch the app on your device, you may asked to authenticate with passcode or Biometric authentication. When you see a confirmation pop-up, tap OK. Tap CUSTOMER LIST.

    MDK

    You will see the CUSTOMER ORDERS area in customer detail page and also total count of orders.

    MDK

    If you see No Customer Orders Found message, try with other customer record.

  2. Tapping on any order navigates to its details page.

    MDK

  3. Navigate back to Customer Detail page, tap See All, which navigates to the Customer Orders page.

    MDKMDK

  1. Re-launch the app on your device, you may asked to authenticate with passcode or Biometric authentication. When you see a confirmation pop-up, tap OK.

    MDK

  2. Tap Customer List | click a customer record. You will see the Customer Orders area in customer detail page and also total count of orders.

    MDK

    If you see No Customer Orders Found message, try with other customer record.

  3. Tapping on any order navigates to its details page.

    MDK

  4. Navigate back to Customer Detail page, tap See All, which navigates to the Customer Orders page.

    MDKMDK

  1. Either click the highlighted button or refresh the web page to load the changes.

    MDK

    If you see the error 404 Not Found: Requested route ('xxxxxtrial-dev-nsdemosampleapp-approuter.cfapps.xxxx.hana.ondemand.com') does not exist. while accessing the web application, make sure that in your space cockpit, highlight applications are in started state.

    MDK

  2. Click Customer List | click a customer record. You will see the Customer Orders area in customer detail page and also total count of orders.

    MDK

    If you see No Customer Orders Found message, try with other customer record.

  3. Clicking on any order navigates to its details page.

    MDK

  4. Navigate back to Customer Detail page, tap See All, which navigates to the Customer Orders page.

    MDKMDK
What is the Navigation property to access the associated SalesOrders for a given Customer?
×

Congratulations, you have successfully extended MDK app with Customer orders and you are now all set to implement Create Entity and Linking Entities in an MDK App.
