Use Machine Learning to Enrich Employee Data with Swagger UI
Details

Use Machine Learning to Enrich Employee Data with Swagger UI

November 23, 2020
Created by
April 21, 2020
Create, update, list and delete enrichment data using the Data API employee entity from Document Information Extraction, one of the SAP AI Business Services in SAP Cloud Platform.

You will learn

  • How to create, update, list and delete enrichment data using the employee entity

You can also use Document Information Extraction to enrich the information extracted from documents with your own master data records. You can, for example, match enrichment data entities, such as employee IDs, with the document Extracted Header Fields, such as receiver contacts.

When enriching data with Document Information Extraction, you use 2 types of entities that you find in business documents. The business entity represents different kinds of organizations with which you deal as a company. It can represent, for example, suppliers and customers. The employee entity represents an employee in the company.

When you finish this tutorial, you will have explored all Data API functionalities to create, update, list and delete enrichment data using the employee entity type. See Enrichment Data API documentation.


Step 1: Create client

After performing step 1 of the tutorial Use Machine Learning to Extract Information from Documents with Swagger UI to access and authorize the Document Information Extraction Swagger UI, you need to create a client. This client is used in most of the endpoints to distinguish and separate data.

You can either create a single client or multiple clients in the payload field of the POST /clients endpoint. The clientId values created here will be used in other service endpoints.

  1. Expand the POST /clients endpoint.

  2. Click Try it out.

  3. Enter your clientId and clientName values in the payload field in the format you see in Examples for payload parameter (c_27 and client 27, for example).

  4. Click Execute.

DOX

You should receive a response like the following:

DOX

CAUTION:

Be aware of the following Document Information Extraction trial account limitations:​

  • Maximum 40 uploaded document pages per week​ (the documents can have more than 1 page)

  • Maximum 1 created clientId

  • Maximum 10 created enrichment dataIds

Log on to answer question
Step 2: Create enrichment data

Use the POST /data/jobs endpoint to add your own master data records to the database to enrich the information extracted from documents.

  1. Expand the POST /data/jobs endpoint.

  2. Click Try it out.

  3. Define the data in the payload field, so that the system knows which extracted field (using, for example, the employee ID from master data) should be enriched.

    {
       "value":[
          {
             "id":"E0001",
             "email":"",
             "firstName":"Linda",
             "middleName":"",
             "lastName":"Owens"
          },
          {
             "id":"E0002",
             "email":"",
             "firstName":"Lin",
             "middleName":"",
             "lastName":"Owens"
          }
       ]
    }

  4. Choose the enrichment data type employee.

  5. Enter your clientId (created in the previous step).

  6. Click Execute.

DOX

What just happened?

In this example, in the payload field, several master data records (full name and ID, for example) from 2 employees (Linda Owens and Lin Owens) are provided, so this additional information can be added to the document extracted fields prediction when the information matches.

You should receive a response like the following with status PENDING:

DOX

Copy the id from the Response body to see the result of the enrichment data status in the next step.

Which of the following parameters are required to execute the POST /data/jobs endpoint and create enrichment data?
×
Step 3: See created enrichment data status

Use the GET /data/jobs/{id} endpoint to see the status of the uploaded enrichment data.

  1. Expand the GET /data/jobs/{id} endpoint.

  2. Click Try it out.

  3. Enter the id received in the POST /data/jobs endpoint as the id.

  4. Click Execute.

DOX

You should receive a response like the following with status SUCCESS:

DOX
Log on to answer question
Step 4: Upload document to get prediction with enrichment data

Document Information Extraction uses a globally pre-trained machine learning model that currently obtains better accuracy results with invoices and payment advices in the languages listed in Supported Languages and Countries. The team is working to support additional document types and languages in the near future.

When enrichment data has been uploaded and fits to a certain prediction it is added to the results from the GET /document/jobs/{id} endpoint. To have the enrichment data in the prediction, you need to have the following part in the query of the POST /document/jobs endpoint (it is usually already there by default):

"enrichment": {
    "sender": {
      "top": 5,
      "type": "businessEntity",
      "subtype": "supplier"
    },
    "employee": {
      "type": "employee"
    }
}

Do the following:

  1. Expand the POST /document/jobs endpoint.

  2. Click Try it out.

  3. Right click Sample Invoice 2, then click Save link as to download locally the document file for this enrich employee data example.

    You can also upload to the service and enrich any document file in PDF or single-page PNG and JPEG format that has content in headers and tables, such as an invoice. In this case, make sure the data you define in the payload field, in step 2, matches your document fields.

  4. Upload the document file you want to enrich.

  5. In options, enter the list of fields to be extracted from the uploaded file (documentNumber, taxId, purchaseOrderNumber, shippingAmount, netAmount, senderAddress, senderName, grossAmount, for example), the client id you created in step 1 (c_27, for example), the document type (invoice, for example), receivedDate (2020-02-17, for example) and the enrichment data type employee.

    {
       "extraction":{
          "headerFields":[
             "documentNumber",
             "taxId",
             "purchaseOrderNumber",
             "shippingAmount",
             "netAmount",
             "senderAddress",
             "senderName",
             "grossAmount",
             "currencyCode",
             "receiverContact",
             "documentDate",
             "taxAmount",
             "taxRate",
             "receiverName",
             "receiverAddress"
          ],
          "lineItemFields":[
             "description",
             "netAmount",
             "quantity",
             "unitPrice",
             "materialNumber"
          ]
       },
       "clientId":"c_27",
       "documentType":"invoice",
       "receivedDate":"2020-02-17",
       "enrichment":{
          "employee":{
             "type":"employee"
          }
       }
    }

  6. Click Execute.

This is how the request should look like:

DOX

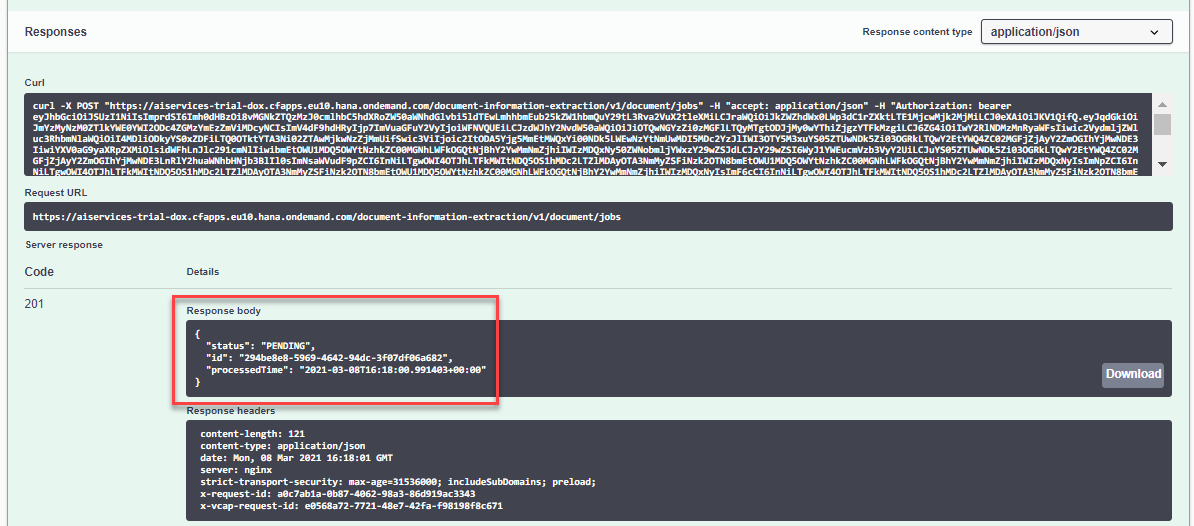

And that’s how the response looks like:

DOX

Copy the id from the Response body to get enrichment data prediction in the next step.

Log on to answer question
Step 5: Get enrichment data prediction

When enrichment data has been uploaded and fits to a certain prediction it is added to the results from the GET /document/jobs/{id} endpoint.

Enrichment data is refreshed automatically every 4 hours. It might take up to 4 hours until the enrichment data prediction is available in the response. If the enrichment data prediction is NOT available in the response in your first try, perform again (some hours later) steps 4 and 5. Do not perform steps 7 and 8 before you see the enrichment data prediction in the response in step 5.

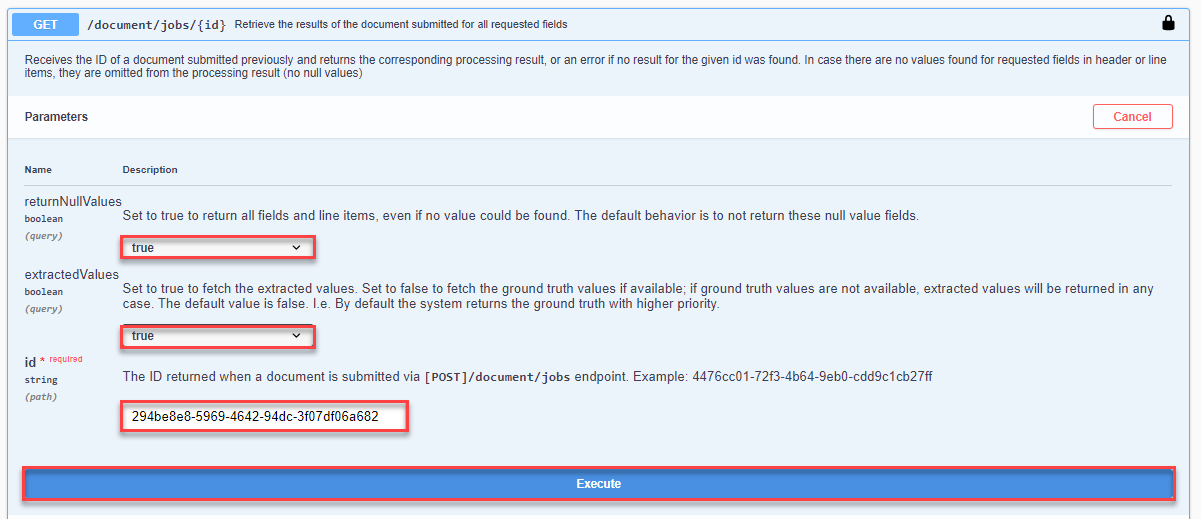

  1. Expand the GET /document/jobs/{id} endpoint.

  2. Click Try it out.

  3. Set returnNullValues and extractedValues to true.

  4. Enter the id received in the POST /document/jobs endpoint as the id.

  5. Click Execute.

The endpoint request and response look as follows:

DOXDOX

What just happened?

In this example, in the response, one of the extracted fields is the receiver contact Linda Owens. This information is enriched with the employee ID enrichment data created in step 2. The prediction suggests the employee ID from Linda Owens (E0001) with 100% probability. The employee ID from Lin Owens (E0002) is not even considered by the machine leaning model.

This is an example of a full prediction including the enrichment data part:

{
  "status": "DONE",
  "id": "47dc278a-f329-4925-9344-48ac7ffda67a",
  "fileName": "sample-invoice-2.pdf",
  "documentType": "invoice",
  "created": "2020-11-13T09:22:46.069362+00:00",
  "finished": "2020-11-13T09:22:55.708792+00:00",
  "country": "XX",
  "extraction": {
    "headerFields": [
      {
        "name": "taxAmount",
        "category": "amounts",
        "value": null,
        "type": "number",
        "page": null,
        "confidence": null,
        "coordinates": {
          "x": 0,
          "y": 0,
          "w": 0,
          "h": 0
        },
        "group": 1
      },
      {
        "name": "taxRate",
        "category": "amounts",
        "value": null,
        "type": "number",
        "page": null,
        "confidence": null,
        "coordinates": {
          "x": 0,
          "y": 0,
          "w": 0,
          "h": 0
        },
        "group": 1
      },
      {
        "name": "documentDate",
        "category": "document",
        "value": "2020-02-20",
        "type": "date",
        "page": 1,
        "confidence": 0.654179429306703,
        "coordinates": {
          "x": 0.863306451612903,
          "y": 0.286121402108863,
          "w": 0.0681451612903226,
          "h": 0.0088344257623254
        }
      },
      {
        "name": "senderAddress",
        "category": "sender",
        "value": "Cupertino,CA 95014",
        "type": "string",
        "page": 1,
        "confidence": 0.595586925575679,
        "coordinates": {
          "x": 0.067741935483871,
          "y": 0.0929039612425192,
          "w": 0.138306451612903,
          "h": 0.0102593331433457
        }
      },
      {
        "name": "senderName",
        "category": "sender",
        "value": "Apple Store One Infinite Loop",
        "type": "string",
        "page": 1,
        "confidence": 0.597478873833562,
        "coordinates": {
          "x": 0.0665322580645161,
          "y": 0.0544314619549729,
          "w": 0.127016129032258,
          "h": 0.030777999430037
        }
      },
      {
        "name": "grossAmount",
        "category": "amounts",
        "value": 1998,
        "type": "number",
        "page": 1,
        "confidence": 0.549836874008179,
        "coordinates": {
          "x": 0.793548387096774,
          "y": 0.447420917640353,
          "w": 0.0681451612903226,
          "h": 0.00997435166714167
        }
      },
      {
        "name": "documentNumber",
        "category": "document",
        "value": "9001321",
        "type": "string",
        "page": 1,
        "confidence": 0.654770247993015,
        "coordinates": {
          "x": 0.863306451612903,
          "y": 0.268167569108008,
          "w": 0.0584677419354839,
          "h": 0.00854944428612142
        }
      },
      {
        "name": "receiverContact",
        "category": "receiver",
        "value": "Linda Owens",
        "type": "string",
        "page": 1,
        "confidence": 0.622583129314276,
        "coordinates": {
          "x": 0.150403225806452,
          "y": 0.320604160729553,
          "w": 0.0943548387096774,
          "h": 0.00797948133371335
        }
      },
      {
        "name": "receiverAddress",
        "category": "receiver",
        "value": "5584 Nickel Road KINTA, Oklahoma 74552",
        "type": "string",
        "page": 1,
        "confidence": 0.587670087023011,
        "coordinates": {
          "x": 0.14758064516129,
          "y": 0.275577087489313,
          "w": 0.170564516129032,
          "h": 0.0287831290966087
        }
      },
      {
        "name": "receiverName",
        "category": "receiver",
        "value": "Future Inc.",
        "type": "string",
        "page": 1,
        "confidence": 0.605180115394649,
        "coordinates": {
          "x": 0.148387096774194,
          "y": 0.257623254488458,
          "w": 0.0770161290322581,
          "h": 0.00883442576232546
        }
      },
      {
        "name": "taxId",
        "category": "amounts",
        "value": null,
        "type": "string",
        "page": null,
        "confidence": null,
        "coordinates": {
          "x": 0,
          "y": 0,
          "w": 0,
          "h": 0
        },
        "group": 1
      },
      {
        "name": "shippingAmount",
        "category": "amounts",
        "value": null,
        "type": "number",
        "page": null,
        "confidence": null,
        "coordinates": {
          "x": 0,
          "y": 0,
          "w": 0,
          "h": 0
        }
      },
      {
        "name": "currencyCode",
        "category": "amounts",
        "value": "USD",
        "type": "string",
        "page": 1,
        "confidence": 0.962176322937012,
        "coordinates": {
          "x": 0,
          "y": 0,
          "w": 0,
          "h": 0
        }
      },
      {
        "name": "purchaseOrderNumber",
        "category": "details",
        "value": null,
        "type": "string",
        "page": null,
        "confidence": null,
        "coordinates": {
          "x": 0,
          "y": 0,
          "w": 0,
          "h": 0
        }
      },
      {
        "name": "netAmount",
        "category": "amounts",
        "value": 1998,
        "type": "number",
        "page": 1,
        "confidence": 0.227824148204592,
        "coordinates": {
          "x": 0.793548387096774,
          "y": 0.447420917640353,
          "w": 0.067741935483871,
          "h": 0.00968937019093763
        }
      }
    ],
    "lineItems": [
      [
        {
          "name": "description",
          "category": "details",
          "value": "Phone 11 Pro 256GB Gold",
          "type": "string",
          "page": 1,
          "confidence": 0.618215461879066,
          "coordinates": {
            "x": 0.0758064516129032,
            "y": 0.376460530065546,
            "w": 0.181451612903226,
            "h": 0.00854944428612137
          }
        },
        {
          "name": "quantity",
          "category": "details",
          "value": 1,
          "type": "number",
          "page": 1,
          "confidence": 0.623341202735901,
          "coordinates": {
            "x": 0.631048387096774,
            "y": 0.37674551154175,
            "w": 0.0108870967741935,
            "h": 0.00797948133371329
          }
        },
        {
          "name": "netAmount",
          "category": "amounts",
          "value": 1149,
          "type": "number",
          "page": 1,
          "confidence": 0.634690215774611,
          "coordinates": {
            "x": 0.794758064516129,
            "y": 0.376460530065546,
            "w": 0.0681451612903226,
            "h": 0.00997435166714161
          }
        },
        {
          "name": "unitPrice",
          "category": "details",
          "value": 1149,
          "type": "number",
          "page": 1,
          "confidence": 0.619598222275575,
          "coordinates": {
            "x": 0.709677419354839,
            "y": 0.376460530065546,
            "w": 0.0681451612903226,
            "h": 0.00997435166714161
          }
        },
        {
          "name": "materialNumber",
          "category": "details",
          "value": null,
          "type": "string",
          "page": 1,
          "confidence": null,
          "coordinates": {
            "x": 0,
            "y": 0,
            "w": 0,
            "h": 0
          }
        }
      ],
      [
        {
          "name": "description",
          "category": "details",
          "value": "Apple Watch Edition GPS + Cellular, 44mm Space Black Titanium Case with Anchor Gray Sport Loop",
          "type": "string",
          "page": 1,
          "confidence": 0.615273810685171,
          "coordinates": {
            "x": 0.0737903225806452,
            "y": 0.402678825876318,
            "w": 0.524193548387097,
            "h": 0.0290681105728128
          }
        },
        {
          "name": "quantity",
          "category": "details",
          "value": 1,
          "type": "number",
          "page": 1,
          "confidence": 0.624722316861153,
          "coordinates": {
            "x": 0.631048387096774,
            "y": 0.403248788828726,
            "w": 0.0108870967741935,
            "h": 0.00826446280991738
          }
        },
        {
          "name": "netAmount",
          "category": "amounts",
          "value": 849,
          "type": "number",
          "page": 1,
          "confidence": 0.613978360380445,
          "coordinates": {
            "x": 0.794758064516129,
            "y": 0.402678825876318,
            "w": 0.0552419354838709,
            "h": 0.00968937019093757
          }
        },
        {
          "name": "unitPrice",
          "category": "details",
          "value": 849,
          "type": "number",
          "page": 1,
          "confidence": 0.591678272073086,
          "coordinates": {
            "x": 0.71008064516129,
            "y": 0.402678825876318,
            "w": 0.0548387096774193,
            "h": 0.00968937019093757
          }
        },
        {
          "name": "materialNumber",
          "category": "details",
          "value": null,
          "type": "string",
          "page": 1,
          "confidence": null,
          "coordinates": {
            "x": 0,
            "y": 0,
            "w": 0,
            "h": 0
          }
        }
      ]
    ]
  },
  "fileType": "pdf",
  "enrichment": {
    "employee": [
      {
        "id": "E0001",
        "confidence": 1
      }
    ]
  }
}

You have now successfully used the employee entity to get enrichment data predictions for the document you uploaded to Document Information Extraction.

Log on to answer question
Step 6: See all enrichment data entries

To see a list of the enrichment data entries you have created:

  1. Expand the GET /data endpoint.

  2. Click Try it out.

  3. Choose the enrichment data type employee and enter your clientId.

  4. Click Execute.

DOX

You should receive a response like the following:

DOX
Log on to answer question
Step 7: Delete enrichment data

To delete enrichment data which has been uploaded before:

  1. Expand the DELETE /data endpoint.

  2. Click Try it out.

  3. Define the data in the payload field, so that the system knows which data entry (using, for example, the data entry ID) should be deleted.

    {
       "value":[
          {
             "id":"E0001"
          }
       ]
    }

  4. Choose the enrichment data type employee and enter your clientId.

  5. Click Execute.

DOX

You should receive a response like the following:

DOX
Log on to answer question
Step 8: Delete client

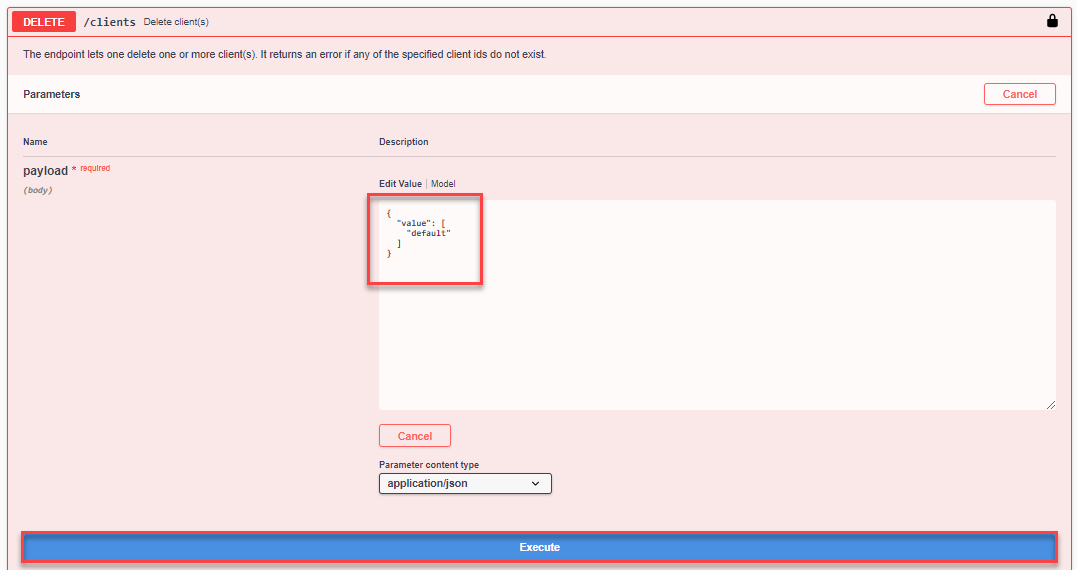

If you want to delete a client you created in Step 1, use the DELETE /clients endpoint.

  1. Expand the DELETE /clients endpoint.

  2. Click Try it out.

  3. Enter in the payload field the client id or multiple client ids (c_27, for example) you want to delete.

  4. Click Execute.

DOX

You should receive a response like the following:

DOX

Congratulations, you have completed this tutorial.

Log on to answer question

Next Steps

Back to top
