Consume SOAP Web Services in SAP Cloud Application Programming Model (CAP)

This tutorial explains how to consume legacy SOAP Web Services in a SAP Cloud Application Programming Model (CAP) backend service application.
You will learn
  • Understand the business problem
  • Understand the application architecture
  • How to get prepared for development
  • How to get the web service definition (WSDL)
  • How to create the web service reference
  • How to use the destination and XSUAA services to point to the service host
  • How to use additional node modules to create the SOAP client and perform the web service calls
  • How to develop a reusable module to create SOAP clients
  • How to develop the CAP service code to achieve the application’s objective
ale-biagiAlessandro BiagiJuly 6, 2022
Created by
July 6, 2022


  • Get an SAP Business Technology Platform trial account following this tutorial
  • Setup SAP Business Application Studio in your trial account following this tutorial
  • Have access to an SAP S/4HANA Cloud tenant with a communication user with access to communication scenario SAP_COM_0193 or SAP_COM_0093, via some communication arrangement (unfortunately S/4HANA Cloud trial tenants do not provide it, so make sure you’re granted such access by other means)

IMPORTANT NOTE: this tutorial is intended for developers who have previous experience in developing CAP applications which consume either OData or REST APIs using SAP Business Application Studio and SAP BTP destinations, as well as handling communication scenarios and communication arrangements in S/4HANA Cloud.

  • Step 1

    You may have realized that most modern cloud applications are built to interact with other external solutions via OData and/or REST APIs (and you may have already done it yourself in several opportunities). But, there are some solutions that still do not offer 100% of services as OData or REST, providing some interfaces via SOAP web services – this is the case, for example, of S/4HANA Cloud which exposes a variety of OData services but, for same cases, still sticks with SOAP web services.

    If you started programming in the last 5 years, you might not even know what I’m talking about – or if you know, it’s the fault of some legacy system you have to deal with.

    SOAP, or Simple Object Access Protocol (not to be confused with SOA), is a protocol for creating distributed and decentralized web services – the famous web services – which allow the exchange of information between systems, using the XML format. The latest version is from 2007 (1.2) and was the most popular way of connecting systems in the first decade of the 2000s, before the emergence of the REST protocol that encouraged web APIs with JSON and, later, microservices – lighter ways to exchange information between systems over the web.

    As previously mentioned almost all the latest web and mobile technologies offer native (or close to) support for handling REST Web APIs, but little is said about SOAP connections. The purpose of this tutorial is precisely to help those who need to deal with Node.js CAP applications on the client and SOAP on the server.

  • Step 2

    You are going to build a simple CAP application that reads Business Users from S/4HANA Cloud (which are exposed exclusively via a SOAP web service).

    You can view the application architecture bellow:

    Figure 1 – Application Architecture
  • Step 3

    Before you move forward with the instructions, first get prepared for development by completing the following two basic steps:

    1. Set up a destination to your S/4HANA Cloud system using a communication user (NOT a business user). You can name your destination S4HC just to be compatible with the further instructions in the tutorial. If you have trouble creating your destination just follow this tutorial on SAP Developers.
    2. Jump start a new CAP project in SAP Business Application Studio: after opening your dev space, open a new terminal window, move to the “projects” directory and initialize a new blank project with cds init business-users. Open the newly created project in a workspace to get ready for development.
  • Step 4

    The first thing you need to do is to get the web service definition which is described in WSDL (Web Services Description Language).

    WSDL is an XML notation for describing a web service. A WSDL definition tells a client how to compose a web service request and describes the interface that is provided by the web service provider.

    You can get such definition from SAP API Business Hub, so access

    In the home page, first make sure to (1) login to API Business Hub.

    NOTE: you must login for the download process to work properly.

    Then, after login, (2) click on the S/4HANA Cloud tile.

    Figure 2 – Login to SAP API Business Hub and access S/4HANA Cloud section

    In the next page, (1) click on the APIs tab, then, (2) in the find box, type “business user read” and press enter. Finally, (3) click on the Business User – Read tile.

    Figure 3 – Locate Business User – Read SOAP API

    In the next page, click on API Specification.

    NOTE: make sure your communication user (set up in your destination) has access to communication scenario SAP_COM_0193 or SAP_COM_0093, via some communication arrangement, as indicated below:

    Figure 4 – Access API Specification

    Click on the down arrow next to WSDL and save the QUERYBUSINESSUSERIN.wsdl file in your local computer.

    Figure 5 – Download QUERYBUSINESSUSERIN.wsdl

    Now, go to your CAP project in Business Application Studio and create a folder named “external” under the srv folder, then drag & drop the recently downloaded QUERYBUSINESSUSERIN.wsdl file into it like demonstrated below:

    Figure 6 – QUERYBUSINESSUSERIN.wsdl file imported to CAP project

    This definition will be used later upon creation of the web service client.

  • Step 5

    The next step is to reference the web service in the project’s package,json file. So, open it up and insert the following code snippet right before the last curly bracket:

      "cds": {
        "requires": {
          "UserRead": {
            "kind": "SOAP",
            "credentials": {
              "destination": "S4HC",
              "path": "/sap/bc/srt/scs_ext/sap/querybusinessuserin"

    After the insertion, your package.json file should look like the screenshot below:

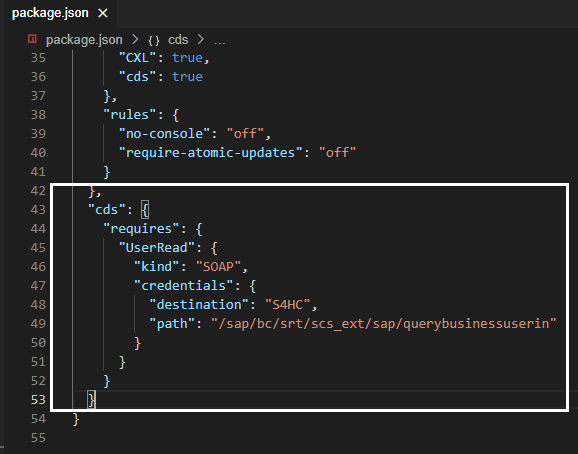

    Figure 7 – Reference to web service in package,json

    Notice that the reference is pointing to the destination that has been previously created in BTP with the path to the actual service location.

    Although the destination already points to the S/HANA Cloud host, as the WSDL file has been downloaded from SAP API Business Hub (not directly from a communication arrangement in the actual S4/HANA Cloud tenant), the service location within it is “generic”, meaning it’s just a “placeholder” in the format of https://host:port/<service path>.

    Therefore, you still need to replace such placeholder with the actual S/4HANA Cloud tenant host, but the code snippets in this tutorial have been developed to dynamically set the service endpoint at runtime using the setEndpoint method from the soap node package. So, it’s not necessary to do such replacement directly in the WSDL file, although it can be done if you desire, like in the screenshot below:

    Figure 8 – Replace host:port with actual tenant host

    Now, the project is fully set up to communicate with the web service via the application code.

  • Step 6

    Before moving on to binding the services to your project, make sure to login to Cloud Foundry either via the BAS command palette (View > Find Command) or command line interface (CLI) in the terminal.

    After login, create the destination and XSUAA service instances using the command lines below:

    • cf create-service destination lite busers-dest
    • cf create-service xsuaa application busers-xsuaa

    Upon successful creation of the service instances, on the left-hand pane of BAS (1) click on the Cloud Foundry icon (small light bulb), then (2) on the refresh button at the top right of the pane.

    The newly created instances should be displayed (3) at end of the list, like demonstrated below:

    Figure 9 – Newly created service instances

    Right click on the busers-dest service instance and select “Bind service to a locally run project” and, then, in the dialog, make sure the business-users folder is selected and click on the “Select folder for .env file” button.

    Figure 10 – Select business-users folder

    Now, repeat the same procedure for the busers-xsuaa service instance.

    Click again on the Explorer icon in the left-hand pane and, then, (1) on the refresh button at the right of the project name. (2) You should see the .env file that has been created like demonstrated below:

    Figure 11 – .env file for services binding

    Now, you need to (1) rename that file to default-env.json and (2) transform its contents into JSON format (as it’s just defining a regular environment variable called VCAP_SERVICES which is not in the expected JSON format), like demonstrated below:

    Figure 12 – Rename .env and adjust to JSON format
  • Step 7

    To facilitate the creation of SOAP clients and avoid to much effort preparing a SOAP envelope in XML format to invoke the web service’s methods via HTTP request, you can use a pre-built Node.js SOAP client manager from the “soap” package available on npm (in Java there’s already native support for SOAP web services in frameworks such as Spring).

    Also, to create an asynchronous http client and easily fetch destination data from BTP, you will utilize the “http-client” and “connectivity” node packages from the SAP Cloud SDK respectively.

    So, install those dependencies by running the following commands:

    • npm install soap
    • npm install @sap-cloud-sdk/http-client
    • npm install @sap-cloud-sdk/connectivity

    NOTE: if you intend to deploy your application to Cloud Foundry later, you must also install the “passport” package, as the latest CDS version is enforcing security on bootstrap when deployed to production.

    And, finally, to install the other dependencies from the original jump-started package.json you just run:

    • npm install

    And with that, you are now fully ready to start the development!

  • Step 8

    In a productive scenario, you usually would have more than one web service being manipulated throughout the application code, so it’s convenient to create a module with a function that facilitates the creation and handling of SOAP clients and can be largely reused.

    Under the srv folder create a folder named lib and, in that folder, create a file named soap-service.js like demonstrated below:

    Figure 13 – Create soap-service.js file

    Open-up that file and paste the following code snippet into it:

    const soap = require('soap');
    const client = require('@sap-cloud-sdk/http-client');
    const connectivity = require('@sap-cloud-sdk/connectivity');
    // Helper to create a soap service through the BTP destination service
    async function getSoapService(service, wsdl, endpoint) {
        // Get the service reference
        var definition = cds.env.requires[service];
        // Get the destination data from BTP
        const dest = await connectivity.getDestination({ destinationName: definition.credentials.destination });
        // Get service endpoint
        const url = (dest.url.substr(dest.url.length-1,1) === '/') ? dest.url.substr(0,dest.url.length-1) : dest.url;
        endpoint.url = url + definition.credentials.path;
        // Create an httpClient which connects over the BTP destination
        var httpClient = {
            request: async function (url, data, callback, exheaders, exoptions) {
                client.executeHttpRequest(dest, {
                    method: 'POST',
                    url: url,
                    data: data,
                    headers: exheaders
                }, {...exoptions, fetchCsrfToken: false}).then((result) => {
                    callback(null, result,;
                }).catch((e) => {
        // Instantiate the service using that http client
        return soap.createClientAsync(wsdl, { httpClient: httpClient });
    module.exports = {

    The code is quite simple: the getSoapService function receives the service name (defined in package.json) and the WSDL file location with the service description, then fetches the destination data from BTP and uses it to get the service endpoint and create an HTTP client, which is then passed to the createClientAsync function from the soap package, that returns a promise to get the actual SOAP client later in the application code.

  • Step 9

    Now, you must create a handler function which will invoke the web service method that returns the business users from S/4HANA Cloud as response.

    In the lib folder, create a file named handlers.js like demonstrated below:

    Figure 14 – Create handlers.js file

    Open-up that file and paste the following code snippet into it:

    const { getSoapService } = require('./soap-service');
    let userReadServicePromise = null;
    let userReadServiceEndpoint = { url: null };
    (async function () {
        // Connect to external S/4HC SOAP service
        userReadServicePromise = getSoapService('UserRead', './srv/external/QUERYBUSINESSUSERIN.wsdl', userReadServiceEndpoint);
    /*** HANDLERS ***/
    async function readBusinessUser(req) {
        try {
            // Get the SOAP client for the UserRead service
            const userReadService = await userReadServicePromise;
            // Set the parameters for the QueryBusinessUserIn method of the sevice
            const param = {
                BusinessUser: {
                    PersonIDInterval: {
                        IntervalBoundaryTypeCode: 9,
                        LowerBoundaryPersonID: "0000000000"
                    BusinessPartnerRoleCodeInterval: {
                        IntervalBoundaryTypeCode: 9,
                        LowerBoundaryBusinessPartnerRoleCode: "000000"
                QueryProcessingConditions: {
                    QueryHitsUnlimitedIndicator: true
            // Invoke QueryBusinessUserIn method asynchronously and wait for the response
            const resp = await userReadService.QueryBusinessUserInAsync(param);
            // Prepare the actual service response
            const busUsers = [];
            if (resp && resp[0] && resp[0].BusinessUser) {
                resp[0].BusinessUser.forEach(busUser => {
                        ID: ((busUser.User) ? busUser.User.UserID : busUser.PersonID),
                        FirstName: busUser.PersonalInformation.FirstName,
                        LastName: busUser.PersonalInformation.LastName,
                        PersonFullName: busUser.PersonalInformation.PersonFullName,
                        BusinessPartnerRoleCode: busUser.BusinessPartnerRoleCode,
                        HasUser: ((busUser.User) ? true : false)
            return busUsers;
        } catch (err) {
            req.error(err.code, err.message);
    module.exports = {

    Upon module loading, a promise to the service is created by the getSoapService function, which is, then, used in the readBusinessUser handler to get the actual SOAP client for the UserRead service referenced in package.json. The QueryBusinessUserIn method of the service is invoked asynchronously, passing a few required parameters (basically filters and query processing definitions), and the response is finally formatted into the expected CAP service response.

  • Step 10

    Now that you have the complete business logic of the application, you can create the CAP service definition to expose the data fetched from S4/HANA Cloud via a service entity and attach the handler function to its READ event.

    In the srv folder, create a file named busers-service.cds like demonstrated below:

    Figure 15 – Create busers-service.cds file

    Open-up that file and paste the following code snippet into it:

    CDS Service Definition Language
    namespace sap.extensions.soap.busers;
    service BusinessUsers @(path : '/bussiness-users') {
        entity BusinessUser {
            ID : String(12);
            FirstName : String(128);
            LastName : String(128);
            PersonFullName : String(258);
            BusinessPartnerRoleCode : String(6);
            HasUser : Boolean;

    Here you are just exposing a non-persistent entity named BusinessUser containing only some relevant fields to be fetched from S/4HANA Cloud.

  • Step 11

    The last step is to attach the handler function to the READ event of the BusinessUser entity, so the CAP service can be called to retrieve the business users data from S/4HANA Cloud and return it to the client as an OData v4 response.

    In the srv folder, create a file named busers-service.js like demonstrated below:

    Figure 16 – Create busers-service.js file

    Open-up that file and paste the following code snippet into it

    const cds = require('@sap/cds');
    const {
    } = require('./lib/handlers');
    module.exports = cds.service.impl(async function () {
        /*** SERVICE ENTITIES ***/
        const {
        } = this.entities;
        // ON events
        this.on('READ', BusinessUser, readBusinessUser);

    As you can see, the readBusinessUser handler is attached to the ON READ event of the BusinessUser entity.

  • Step 12

    Finally, you are all set! So, test the application by running cds watch and, then, CTRL+Click on the http://localhost:4004 link to open-up the CAP service home page in a new tab:

    Figure 17 – CAP service home page

    Now, click on the BusinessUser entity link and, after some seconds, you should get the JSON containing the Business Users from your S/4HANA Cloud tenant, like demonstrated below:

    Figure 18 – Business users from S/4HANA Cloud tenant

    And that’s it! A fully working CAP service consuming a SOAP web service from S/4HANA Cloud.

  • Step 13

    What command line you run to install the module which facilitates the creation of SOAP clients and avoids the effort of preparing a SOAP envelope in XML format?
