Create the Product Page UI with Ratings/Comments

1. Go back to the Product Page page.

2. Drag onto the canvas a container, and in the container add title, star rating (in By Me tab), and a text component.




3. Select the container, and then in Layout tab set the layout to horizontal, and set the align components to middle.



4. For the title, set the Content to Data and Variables > Data Variables > Products1 > Productname.

   • In the Layout tab, set its width to Fit to content.

5. For the star rating:

   • Go to Properties tab, and set Maximum value to 5.
   • Set the Value to the following formula:
     JavaScript

     Copy

     DEFAULT(FIND_BY_KEY(appVars.Ratings, "productID", STRING(params.productID)).avg,0)


   • Set View only? to true.

   • Go to Layout tab and set its width to Fit to content.

6. For the text component, set the Content to the following formula:

   JavaScript

   Copy

   FORMAT_LOCALIZED_DECIMAL(DEFAULT(FIND_BY_KEY(appVars.Ratings, "productID", STRING(params.productID)).avg,0), "en", 1,1)


What do the formulas do?

The formulas for the Rating and RatingCount first get the record in the Ratings app variable with a product ID the same as the current product.

Then it takes the average rating to display in the star rating control as stars, and the number of ratings with 1 decimal place to display in the text field.

1. Add a List divider component next onto the canvas.



   Double-click the list divider, which opens the style editor.

   The style editor is similar to the template editor (which is opened by the icon at the bottom of the Properties tab), except that the style editor only lets you change the styles of the component or the component’s parts.

   Change the following properties under Style:

   • Border color to Positive (under Follow smart content color)
   • Border width to Thick
   • Click Exit.


2. Copy and paste the list divider so you have 2 lines in a row.

   The lines look like boxes but will be displayed as lines.

3. In between the dividers, add a container, with a text and star rating component, so it looks like this.



   Change the layout of the container to horizontal.

4. For the text box, change the width to Fit content.

   Edit the current style, and change Typography > Text size to small text.

   Set the Content to Rate this product.

5. For the star rating, change the following bindings:

   Field	Value
   Maximum value	5
   Value	Page variable > rating
   View only?	Page variable > ratingcomplete

6. Click on the star rating, and open the logic pane.

   Change the event to Component: Star rating > Property ‘Value’ changed.



   Add flow functions after the event so the logic pane looks like this:



   What’s going on?

   The logic flow is intended to do the following:
   1. IF: Check if the rating was changed to a number above 0.
   2. Create record: Add a record to the Rating entity representing this rating.
   3. Set page variable: Indicate that the user gave a rating and disable the rating component.
   4. Execute cloud function: Retrieve the average ratings for all products, since we have a new rating.
   5. Set app variable: Save the average ratings

   All of this should update the overall rating for the product at the top of the page.

7. Set the bindings for the flow functions.

   • For If condition, set the condition to the following formula:

     JavaScript

     Copy

     pageVars.rating != 0


   • For Create record, set the resource to Rating.

     For the Rating record, click Custom object and set the following:

     Field	Value
     Rating	Page variable > rating
     RatingBy	Any static text (I wrote static text daniel). In the future, you would get the current user and bind that.
     ProductID	Page parameter > productID
     DateCreated	Formula NOW()



   • For Set page variable, set the variable ratingcomplete to true.

   • For Execute cloud function, set the function to AverageRating.

   • For Set app variable, set the Ratings variable to the following formula:

     JavaScript

     Copy

     outputs["Execute cloud function"].values.ratings


8. Click Save.

9. Click Save (upper right).

You can now test this functionality. Open the app, navigate to the product page of one of the products, and give it a rating.

After clicking a rating of 4, the overall rating of the product changes to 4. At the same time, the rating component is disabled so you cannot rate the product again.

If you want, you can go back to the product list, then navigate again to this product, and give another rating, and see what happens.

1. Under the second list divider add the following:

   • Text component

   • Input field

   • Button



2. For the text field, change the text to Add Comment.

   In the Layout tab, change the bottom gap to 1px.

3. For the input box, do the following:

   • Remove the Label text.
   • Bind Value to Page variable > newcomment.


4. For the button, change the Label to Post.

5. Select the button, and open the logic pane.

   Set up flow functions as follows:



6. Configure the flow functions as follows:

   • For the Create record:

     Set the resource to Comment.

     For the Comment record, click Custom object and set the following:

     Field	Value
     Comment	Page variable > newcomment
     ProductID	Page parameter > productID
     CommentedBy	Any static text (I wrote static text daniel). In the future, you would get the current user and bind that.
     DateCreated	formula NOW()



   • For the bottom Set page variable:

     Set the variable to newcomment. Leave everything else alone so that it resets to an empty string.

   • For the top Set page variable:

     Set the variable to pagesize, and set the assigned value to the following formula:

     JavaScript

     Copy

     pageVars.pagesize + 1


   • For the Trigger event, set the Triggered event to Product Page / Refresh Comments event.

7. Click Save.

What’s going on?

The logic flow is intended to do the following:
1. Creates record: Add a record to the Comment entity representing this rating.
2. Set page variable (bottom): Clear the comment input box.
3. Set page variable (top): Add one to the page size – since we want add the new comment to the list of comments but keep exactly the comments that were displayed before.
4. Trigger event: Retrieve the comments again, since we have a new comment to display.

1. Below the button, add the following:

   • Text component

   • Container

     Inside the container add 2 text components.

   • Button (under the container)



2. For the first text component:

   • Set the Content to No posts yet.
   • Set Visible (in Advanced Properties) to the formula:
     JavaScript

     Copy

     IS_EMPTY(data.Comment1)


3. For the container:

   • Go to the Style tab, and edit the Layout Container style and change padding to 4px all around.
   • Under Effects, enable the shadow, set shadow to Content Shadow 1 and set the shadow color to static color #AF9E8D.
   • Go to the Properties tab, and set Repeat with to Data variable > Comment1.

4. For the first text component in the container:

   • Set the Content to the following formula:
     JavaScript

     Copy

     FORMAT_DATETIME_LOCAL(repeated.current.dateCreated, "YYYY-MM-DD HH:mm:ss") + " - " + repeated.current.commentedBy


   • Go to the Style tab, edit the Primary Paragraph style, and under Typography set the text size to small.

5. For the second text component in the container:

   • Set the Content to Data item in repeat > comment.

6. For the button:

   • Set Content to More.
   • Under Advanced Properties, set Visible to the following formula:
     JavaScript

     Copy

     pageVars.totalcount>pageVars.pagesize


7. Select the More button, and open the logic pane.

   • Add Set page variable, and set pagesize to the following formula:

     JavaScript

     Copy

     pageVars.pagesize + 3


   • Add a Trigger event and set the Trigger event to Product Page / Refresh Comments event.



Go to the Launch tab, and click Open Preview Portal.

Click Open web preview, and select the Social media project.

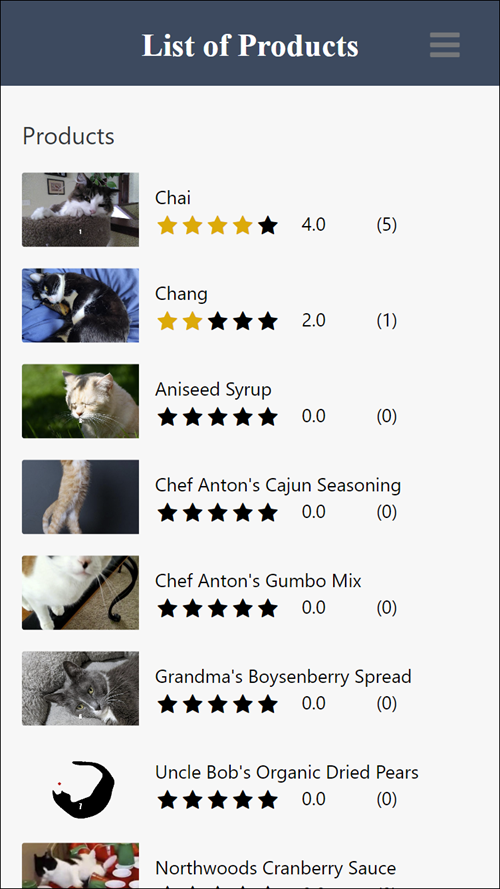

The List of Products page should open, showing the list of Northwind products, with a cat picture for each. And for each it should show:

• Stars representing their average rating (from the Visual Cloud Function)
• A 1-decimal number representing the average rating
• A number in parentheses representing the number of ratings

Click one of the products, and you get to the Product Page.

Click the hamburger menu (top right), and you can navigate back to the home page.

On the Product Page, you can rate the product, and the average rating will update.

And you can add a comment.

Once you have more than 3 comments, you can use the More button to see earlier comments.
