Enhance an IDoc Interface with Preprocessing

1. Go to Customizing for SAP Application Interface Framework (transaction code /AIF/CUST) and navigate to Interface Development > Define Interfaces. In the upcoming dialog, enter your previously created namespace DEMO_1, and continue.

2. Enable Change mode. Double-click the existing interface FCUSTOMER to open it. Deselect the Move Corresponding Structures flag and select the Pre-Processing flag.



3. Save your changes.

1. While in Customizing (transaction code /AIF/CUST), navigate to Interface Development > Define Structure Mappings.

2. In the upcoming dialog, enter your previously created namespace DEMO_1, interface name FCUSTOMER, and interface version 1. Choose Continue.

3. Choose New Entries and enter the root node of your interface structure, here ZDEMO_1_FLCUSTOMER_CREATEFROMD.



4. Select the new entry and double-click Assign Destination Structure in the menu on the left.

5. Choose New Entries and enter the Number of Structure Mapping 10. As Destination Structure, enter the same root node of your interface structure, ZDEMO_1_FLCUSTOMER_CREATEFROMD. Finally, select the Move Corresponding Fields flag.



6. Save your changes.

We would like to set a fixed discount when creating a new customer.

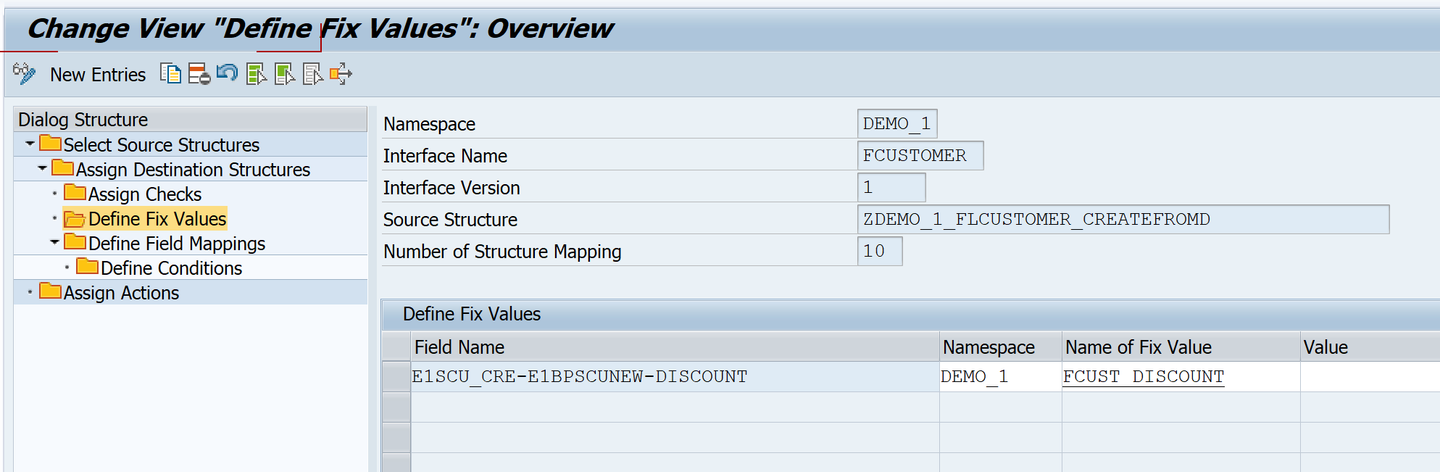

1. While in Define Structure Mappings, with your destination structure ZDEMO_1_FLCUSTOMER_CREATEFROMD selected, double-click the node Define Fix Values in the menu on the left. In Change mode, choose New Entries to add a new fixed value, and enter or select the following details:

   Field	Value
   Field Name	E1SCU_CRE-E1BPSCUNEW-DISCOUNT
   Namespace	DEMO_1
   Name of Fix Value	FCUST_DISCOUNT

2. Press Enter. Because the fix value doesn’t exist yet, you are asked to create the new fix value.



3. Save the new entry.

4. Double-click the new fix value to further define it. A new window opens in which you can enter the following information:

   Field	Value
   Fix Value Description	Enter a meaningful description, for example Flight customer discount.
   Value	10



5. Save your changes and close the new window.

1. While in Define Structure Mappings, with your destination structure ZDEMO_1_FLCUSTOMER_CREATEFROMD selected, double-click the node Define Field Mappings. Create a new entry by choosing New Entry and define the field mapping as follows:

   Field	Value
   Field in Destination Structure	E1SCU_CRE-E1BPSCUNEW-CUSTTYPE
   Field Name 1	E1SCU_CRE-E1BPSCUNEW-CUSTTYPE
   Namespace	DEMO_1
   Value Mapping	VM_CUSTTYPE

   Since the value mapping doesn’t exist yet, you are asked to create it. Confirm the dialog.

2. Navigate to the reusable value mapping by double-clicking VM_CUSTTYPE and define it with the following information:

   Field	Value
   Value mapping description	Map customer type
   Data Element for INT	S_CUSTTYPE
   Number of External Values	1
   Single or Multiple Value Mapping	Single
   Customizing or Master Data	Master Data



3. Save the value mapping and navigate back to Define Field Mappings. Your field mapping should look like this:



4. Save your changes.

In the mapping, you created a value mapping for the customer type. Before you run the scenario, maintain the value mapping table entries.

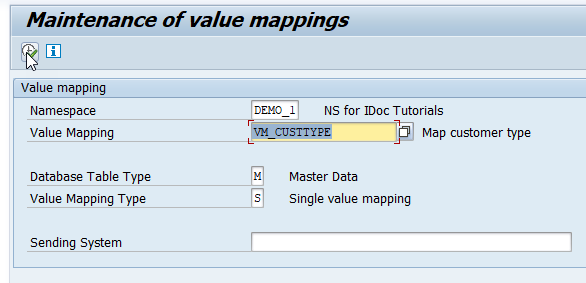

1. In Maintenance of value mappings (transaction code /AIF/VMAP), enter namespace DEMO_1 and your value mapping name VM_CUSTTYPE. Press Enter and choose Execute.



2. Choose Append and add the following two new entries:

   Index	External Value	B/P customer
   1	1	P
   2	2	B

3. Save your changes.

1. Go to Customizing for SAP Application Interface Framework (transaction code /AIF/CUST) and navigate to Interface Development > Additional Interface Properties > Assign IDoc Types. In the upcoming dialog, enter your previously created namespace DEMO_1, and continue.

2. Double-click the existing interface FCUSTOMER to open it and select the Preprocessing (IDoc Runtime) flag.



3. Save your changes.

After the setup is complete, test your settings and verify that the IDoc monitoring is working as planned.

1. Send in new test IDocs, for example using the Test Tool for IDoc Processing (transaction code WE19).

2. In the test tool, maintain basic type FLCUSTOMER_CREATEFROMDATA01.

3. Maintain the control record fields corresponding to your partner profile and the port created beforehand as follows:

   Field name	Value
   Receiver Port	SAP<SID> (<SID> being your system ID)
   Receiver Partner Number	The partner number as specified in the partner profile
   Receiver Type	LS
   Sender Port	The port as specified before
   Sender Partner Number	The partner number as specified in the partner profile
   Sender Type	LS
   Message Type	FLCUSTOMER_CREATEFROMDATA

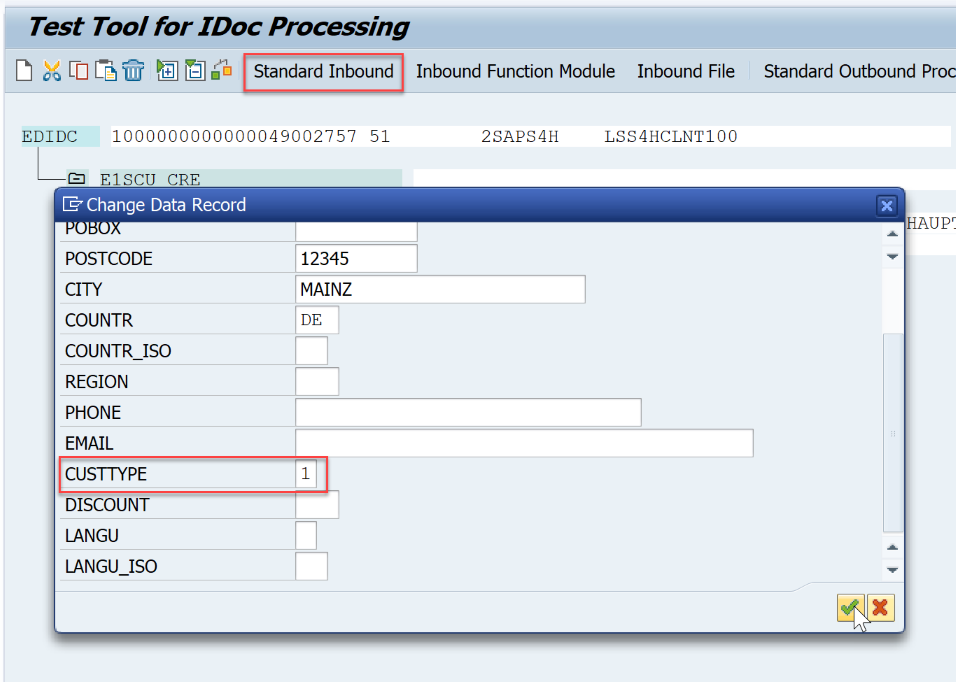

4. Maintain sample data record by entering at least customer name, form, street, postcode, city, country and customer type. As customer type, choose either 1 or 2.

5. Then, choose Standard Inbound. A dialog pops up informing you that the IDoc was passed to the application.

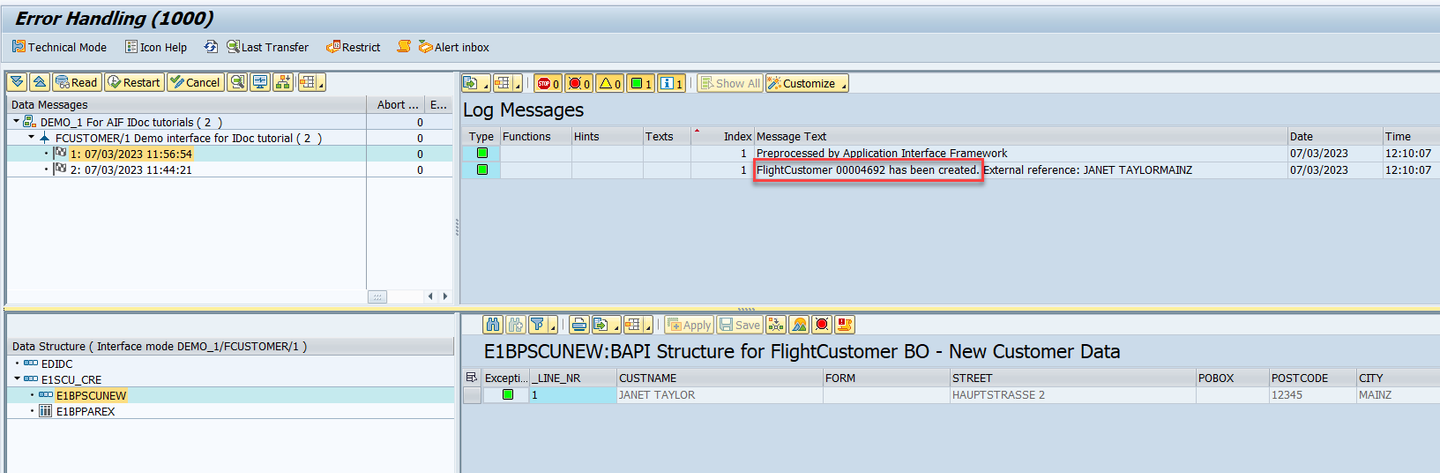

6. Check the results of your test in the Interface Monitor (transaction code /AIF/IFMON). When you select the summary line for your interface, you’re forwarded to Monitoring and Error Handling, where you can see your selected test message(s).



   As you can see, the flight customer has been successfully created. Note down the generated customer ID provided in the log message. You need it in the next step.

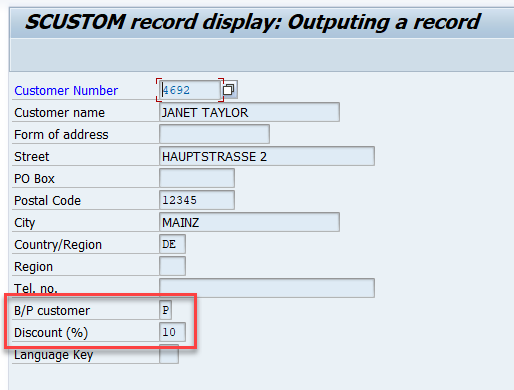

7. To check that the mappings worked as expected, open the SCUSTOM record display (transaction code BC_GLOBAL_SCUST_DISP), and enter the beforehand copied customer ID into the filter, then choose Display.



   In the data record, you can see that the customer type and the discount have been successfully mapped.



Congratulations! You have enhanced an IDoc interface with preprocessing in SAP Application Interface Framework.
