Create a Custom RAP Business Object to Trigger Purchase Requisitions API

Create a custom RAP business object to trigger purchase requisitions API with SAP S/4HANA Cloud ABAP Environment.
You will learn
  • How to logon to SAP S/4HANA Cloud ABAP Environment
  • How to create an ABAP package
  • How to create a database table
  • How to create a CDS model and projection view
  • How to create behavior definition & implementation
  • How to create service definition & service binding
  • How to run SAP Fiori Elements Preview
mervey45Merve TemelNovember 17, 2022
Created by
mervey45
October 6, 2021

Prerequisites

  • IMPORTANT: It is essential that you are a member of SAP Early Adopter program.
  • You have a license for SAP S/4HANA Cloud and have a developer user in it
  • You have installed the latest Eclipse with ADT.
  • Business Catalog SAP_BR_PURCHASER needs to be assign to your business user
  • Use Starter Development Tenant in S/4HANA Cloud for the tutorial to have necessary sample data in place. See 3-System Landscape and Transport Management.

In the online shop, customers can order various items. Once an item is ordered, a new purchase requisition is created via purchase requisitions API.

EML can be used to trigger purchase requisitions API, which is released for cloud development.

In this tutorial, wherever XXX appears, use a number (e.g. 000).

  • Step 1
    1. Open Eclipse, select File > New > Other.

      logon
    2. Search ABAP Cloud Project, select it and click Next >.

      logon
    3. Select SAP S/4HANA Cloud ABAP Environment, enter the ABAP service instance URL and click Next >.

      logon
    4. Click Open Logon Page in Browser to log in.

      logon

      HINT: The administrator receives an welcome e-mail after provisioning. This e-mail includes the system URL. By removing /ui you can log into the SAP S/4HANA Cloud ABAP Environment system. Further information can be found here.

    5. Click Next >.

      logon
    6. Check your ABAP service instance connection and click Finish.

      logon
    7. Now your project will be available in the project explorer.

      logon
  • Step 2

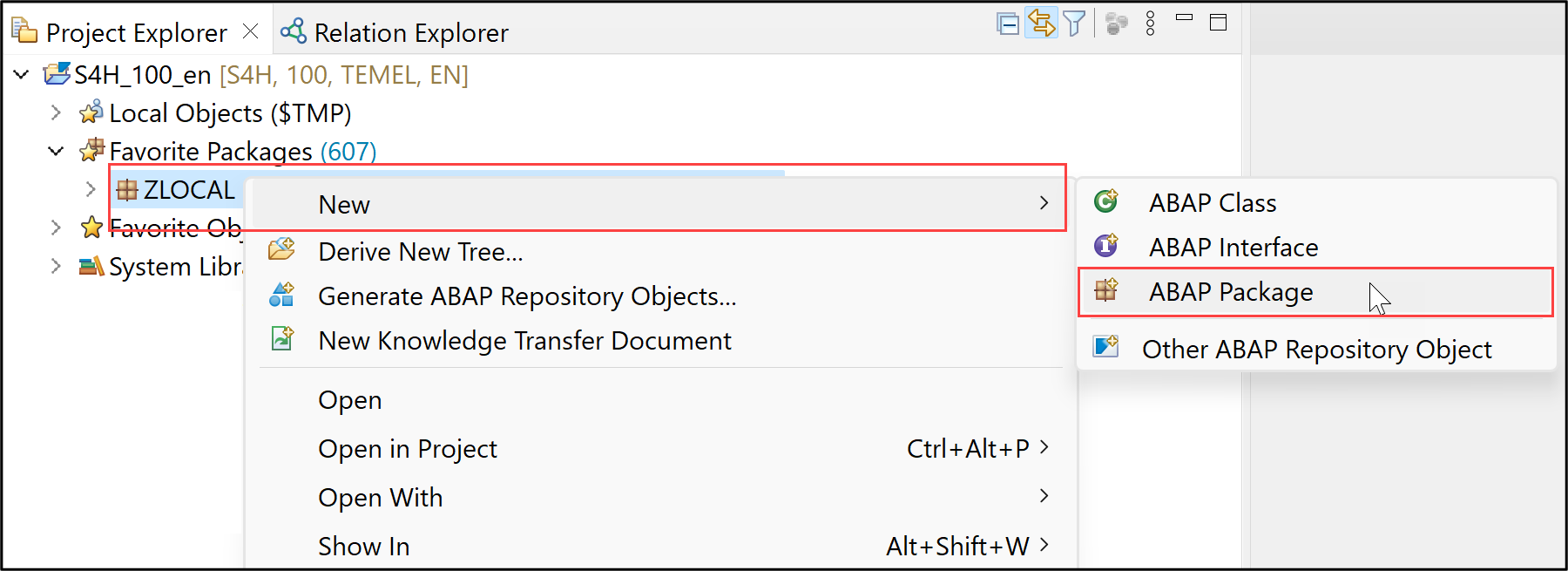

    1. Select ZLOCAL > New > ABAP Package.

      package
    2. Create new ABAP package:

      • Name: Z_PURCHASE_REQ_XXX
      • Description: Package XXX
      • Check Add to favorite packages
      package
      Click Next >.
    3. Create a new request:

      • Request Description: TR12345
      package
      Click Finish.
  • Step 3
    1. Right-click your package Z_PURCHASE_REQ_XXX and select New > Other ABAP Repository Object.

      table
    2. Search for database table, select it and click Next >.

      table
    3. Create new database table:

      • Name: ZONLINESHOP_XXX
      • Description: Shop to purchase electronics
      table
      Click Next >.
    4. Click Finish.

      table
    5. Replace your code with following:

      ABAP
      Copy
      @EndUserText.label : 'Shop to purchase electronics'
      @AbapCatalog.enhancement.category : #NOT_EXTENSIBLE
      @AbapCatalog.tableCategory : #TRANSPARENT
      @AbapCatalog.deliveryClass : #A
      @AbapCatalog.dataMaintenance : #RESTRICTED
      define table zonlineshop_xxx {
        key client     : abap.clnt not null;
        key order_uuid : sysuuid_x16 not null;
        order_id       : abap.char(10) not null;
        ordereditem    : abap.char(10) not null;
        deliverydate   : abap.dats;
        creationdate   : abap.dats;

      }

    6. Save and activate.

    7. Right-click your package Z_PURCHASE_REQ_XXX and select New > Other ABAP Repository Object.

      table
    8. Search for database table, select it and click Next >.

      table
    9. Create new database table:

      • Name: ZSHOP_AS_XXX
      • Description: Database table for additional save
      table
      Click Next >.
    10. Click Finish.

      table
    11. Replace your code with following:

      ABAP
      Copy
      @EndUserText.label : 'Database table for additional save'
      @AbapCatalog.enhancement.category : #NOT_EXTENSIBLE
      @AbapCatalog.tableCategory : #TRANSPARENT
      @AbapCatalog.deliveryClass : #A
      @AbapCatalog.dataMaintenance : #RESTRICTED
      define table zshop_as_xxx {
        key client     : abap.clnt not null;
        key order_uuid : sysuuid_x16 not null;
        purchasereqn   : abap.string(256);
        purinforecord  : abap.string(256);
        purorder       : abap.string(256);

      }

    12. Save and activate.

  • Step 4
    1. Right-click your package Z_PURCHASE_REQ_XXX and select New > Other ABAP Repository Object.

      cds
    2. Search for data definition, select it and click Next >.

      cds
    3. Create new data definition:

      • Name: ZI_ONLINE_SHOP_XXX
      • Description: Data model for online shop
      cds
      Click Next >.
    4. Click Finish.

      cds
    5. Replace the code for your behavior ZI_ONLINE_SHOP_XXX with following:

      ABAP
      Copy
      @EndUserText.label: 'Data model for online shop'
      @AccessControl.authorizationCheck: #CHECK
      define root view entity ZI_ONLINE_SHOP_XXX as select from zonlineshop_xxx {
        key order_uuid as Order_Uuid,
        order_id as Order_Id,
        ordereditem as Ordereditem,
        deliverydate as Deliverydate,
        creationdate as Creationdate
      }

    6. Save and activate.

  • Step 5
    1. Right-click Data Definitions and select New Data Definition.

      projection
    2. Create new projection view:

      • Name: ZC_ONLINE_SHOP_XXX
      • Description: Projection view for online shop
      • Referenced Object: ZI_ONLINE_SHOP_XXX
      projection
      Click Next >.
    3. Click Finish.

      projection
    4. Replace the code for your behavior ZC_ONLINE_SHOP_XXX with following:

      ABAP
      Copy
      @EndUserText.label: 'shop projection'
      @AccessControl.authorizationCheck: #CHECK
      @Search.searchable: true
      @UI: { headerInfo: { typeName: 'Online Shop',
                          typeNamePlural: 'Online Shop',
                          title: { type: #STANDARD, label: 'Online Shop', value: 'order_id' } },

            presentationVariant: [{ sortOrder: [{ by: 'Creationdate',
                                                  direction: #DESC }] }] }
      define root view entity ZC_ONLINE_SHOP_XXX
        as projection on ZI_ONLINE_SHOP_XXX
      {
            @UI.facet: [          { id:                  'Orders',
                                        purpose:         #STANDARD,
                                        type:            #IDENTIFICATION_REFERENCE,
                                        label:           'Order',
                                        position:        10 }      ]
        key Order_Uuid,
            @UI: { lineItem:       [ { position: 10,label: 'order id', importance: #HIGH } ],
                    identification: [ { position: 10, label: 'order id' } ] }
            @Search.defaultSearchElement: true
            Order_Id,
            @UI: { lineItem:       [ { position: 20,label: 'Ordered item', importance: #HIGH } ],
                    identification: [ { position: 20, label: 'Ordered item' } ] }
            @Search.defaultSearchElement: true
            Ordereditem,
            Deliverydate       as Deliverydate,
            @UI: { lineItem:       [ { position: 50,label: 'Creation date', importance: #HIGH },
                                    { type: #FOR_ACTION, dataAction: 'update_inforecord', label: 'Update IR' } ],
                  identification: [ { position: 50, label: 'Creation date' } ] }
            Creationdate       as Creationdate
      }

    5. Save and activate.

  • Step 6
    1. Right-click your data definition ZI_ONLINE_SHOP_XXX and select New Behavior Definition.

      behavior
    2. Create new behavior definition:

      behavior

      Click Next >.

    3. Click Finish.

      behavior
    4. Replace your code with following:

      ABAP
      Copy
      managed implementation in class zbp_i_online_shop_xxx unique;

      define behavior for ZI_ONLINE_SHOP_XXX alias Online_Shop
      with additional save
      persistent table zonlineshop_xxx
      lock master
      authorization master ( instance )
      //etag master <field_name>
      {
        field ( numbering : managed, readonly ) order_Uuid;
        field ( mandatory ) Ordereditem;
        field ( readonly ) Creationdate, order_id;
        determination calculate_order_id on modify { create; }
        internal action create_pr;
        internal action set_inforecord;
        internal action update_inforecord;
        create;
        update;
        delete;
      }

    5. Save and activate.

  • Step 7
    1. Right-click your projection view ZC_ONLINE_SHOP_XXX and select New Behavior Definition.

      behavior
    2. Create new behavior definition:

      behavior

      Click Next >.

    3. Click Finish.

      behavior
    4. Replace your code with following:

      ABAP
      Copy
      projection;
      //strict; //Comment this line in to enable strict mode. The strict mode is prerequisite to be future proof regarding syntax and to be able to release your BO.

      define behavior for ZC_ONLINE_SHOP_XXX //alias <alias_name>
      {
        use create;
        use update;
        use delete;

      }

    5. Save and activate.

  • Step 8
    1. In your behavior definition ZI_ONLINE_SHOP_XXX set the cursor before the implementation class zbp_i_online_shop_xxx and click CTRL + 1. Double-click on Create behavior implementation class zbp_i_online_shop_xxx to create your implementation class.

      implementation
    2. Create new implementation class:

      implementation

      Click Next >.

    3. Click Finish.

      implementation
    4. In your Global Class, replace your code with following:

      ABAP
      Copy
      CLASS zbp_i_online_shop_xxx DEFINITION PUBLIC ABSTRACT FINAL FOR BEHAVIOR OF zi_online_shop_xxx.
      class-DATA cv_pr_mapped TYPE RESPONSE FOR MAPPED i_purchaserequisitiontp.
      ENDCLASS.

      CLASS zbp_i_online_shop_xxx IMPLEMENTATION.
      ENDCLASS.

    5. In your Local Types, replace your code with following:

      ABAP
      Copy
      CLASS lsc_zbp_i_online_shop_xxx DEFINITION INHERITING FROM cl_abap_behavior_saver.

        PROTECTED SECTION.

          METHODS save_modified REDEFINITION.

      ENDCLASS.

      CLASS lsc_zbp_i_online_shop_xxx IMPLEMENTATION.

        METHOD save_modified.
          DATA : lt_online_shop_as TYPE STANDARD TABLE OF zshop_as_xxx,
                ls_online_shop_as TYPE                   zshop_as_xxx.
          IF zbp_i_online_shop_xxx=>cv_pr_mapped-purchaserequisition IS NOT INITIAL.
            LOOP AT zbp_i_online_shop_xxx=>cv_pr_mapped-purchaserequisition ASSIGNING FIELD-SYMBOL(<fs_pr_mapped>).
              CONVERT KEY OF i_purchaserequisitiontp FROM <fs_pr_mapped>-%pid TO DATA(ls_pr_key).
              <fs_pr_mapped>-purchaserequisition = ls_pr_key-purchaserequisition.
            ENDLOOP.
          ENDIF.


          IF create-online_shop IS NOT INITIAL.
            " Creates internal table with instance data
            lt_online_shop_as = CORRESPONDING #( create-online_shop ).
            lt_online_shop_as[ 1 ]-purchasereqn =  ls_pr_key-purchaserequisition .

            INSERT zshop_as_xxx FROM TABLE @lt_online_shop_as.
          ENDIF.
        ENDMETHOD.
      ENDCLASS.

      CLASS lhc_zbp_i_online_shop_xxx  DEFINITION INHERITING FROM cl_abap_behavior_handler.
        PRIVATE SECTION.

          METHODS get_instance_authorizations FOR INSTANCE AUTHORIZATION
            IMPORTING keys REQUEST requested_authorizations FOR  online_shop RESULT result.

          METHODS create_pr FOR MODIFY
            IMPORTING keys FOR ACTION online_shop~create_pr.

          METHODS update_inforecord FOR MODIFY
            IMPORTING keys FOR ACTION online_shop~update_inforecord.

          METHODS calculate_order_id FOR DETERMINE ON MODIFY
            IMPORTING keys FOR online_shop~calculate_order_id.


      ENDCLASS.

      CLASS lhc_zbp_i_online_shop_xxx  IMPLEMENTATION.

        METHOD get_instance_authorizations.
        ENDMETHOD.

        METHOD create_pr.
      **  if a new laptop is ordered, trigger a new purchase requisition
          IF keys IS NOT INITIAL.
            MODIFY ENTITIES OF i_purchaserequisitiontp
      ENTITY purchaserequisition
          CREATE FIELDS ( purchaserequisitiontype )
          WITH VALUE #(  ( %cid                    = 'My%CID_1'
                          purchaserequisitiontype = 'NB' ) )

        CREATE BY \_purchaserequisitionitem
        FIELDS ( plant
                  purchaserequisitionitemtext
                  accountassignmentcategory
                  requestedquantity
                  baseunit
                  purchaserequisitionprice
                  purreqnitemcurrency
                  materialgroup
                  purchasinggroup
                  purchasingorganization
      *               MultipleAcctAssgmtDistribution
                      )
        WITH VALUE #(
                      (    %cid_ref = 'My%CID_1'
                            %target = VALUE #(
                                            (  %cid                            = 'My%ItemCID_1'
                                                plant                           = '1010'
                                                purchaserequisitionitemtext     = 'created from PAAS API XXX'
                                                  accountassignmentcategory     = 'U'
                                                requestedquantity               = '8.00'
                                                baseunit                        = 'EA'
                                                purchaserequisitionprice        = '10.00'
                                                purreqnitemcurrency             = 'EUR'
                                                materialgroup                   = 'A001'
                                                purchasinggroup                 = '001'
                                                purchasingorganization          = '1010'

                                                )
                                            )
                        )
                      )
      ENTITY purchaserequisitionitem

      CREATE BY \_purchasereqnacctassgmt
          FIELDS ( CostCenter
                  GLAccount
                  Quantity
                  BaseUnit )
          WITH VALUE #( (   %cid_ref = 'My%ItemCID_1'
                            %target  = VALUE #( ( %cid = 'MyTargetCID_1'
                                                  CostCenter   = 'JMW-COST'
                                                  GLAccount    = '0000400000' ) ) ) )
      CREATE BY \_purchasereqnitemtext
        FIELDS ( plainlongtext )
        WITH VALUE #(  (   %cid_ref = 'My%ItemCID_1'
                            %target  = VALUE #( (
                                                %cid = 'MyTargetCID_2'
                                                textobjecttype = 'B01'
                                                language       = 'E'
                                                plainlongtext  = 'item text created from PAAS API XXX'
                                              ) (
                                                %cid = 'MyTargetCID_3'
                                                textobjecttype = 'B02'
                                                language       = 'E'
                                                plainlongtext  = 'item2 text created from PAAS API XXX'
                                              ) )
                    )   )
                REPORTED DATA(ls_pr_reported)
                MAPPED DATA(ls_pr_mapped)
                FAILED DATA(ls_pr_failed).
            zbp_i_online_shop_xxx=>cv_pr_mapped = ls_pr_mapped.

          ENDIF.
        ENDMETHOD.


        METHOD update_inforecord.
          SELECT SINGLE * FROM i_purchasinginforecordtp  WHERE PurchasingInfoRecord = '5500000219' INTO @DATA(ls_data).
      *           update an existing info record
      *update remainder for nodays-no delivery remainder after half the timeperiod b/w delivery and creation date/system date
      *fi
          MODIFY ENTITIES OF i_purchasinginforecordtp
                ENTITY purchasinginforecord
                UPDATE SET FIELDS WITH
                VALUE #( ( %key-PurchasingInfoRecord = '5500000219'
                            Supplier                 = ls_data-supplier
                            MaterialGroup            = ls_data-MaterialGroup
                            SupplierMaterialGroup    = ls_data-SupplierMaterialGroup
                            NoDaysReminder1          = '12'
                            PurchasingInfoRecordDesc = 'noDays remainder updated'
                        ) )
                  FAILED   DATA(ls_failed_update)
                  REPORTED DATA(ls_reported_update)
                  MAPPED   DATA(ls_mapped_update).

        ENDMETHOD.

        METHOD calculate_order_id.
          DATA:
            online_shops TYPE TABLE FOR UPDATE zi_online_shop_xxx,
            online_shop  TYPE STRUCTURE FOR UPDATE zi_online_shop_xxx.
      *      delete from zonlineshop_xxx UP TO 15 ROWS.
          SELECT MAX( order_id ) FROM zonlineshop_xxx INTO @DATA(max_order_id).
          READ ENTITIES OF zi_online_shop_xxx IN LOCAL MODE
            ENTITY zi_online_shop_xxx
              ALL FIELDS
                WITH CORRESPONDING #( keys )
                RESULT DATA(lt_online_shop_result)
            FAILED    DATA(lt_failed)
            REPORTED  DATA(lt_reported).
          DATA(today) = cl_abap_context_info=>get_system_date( ).

          LOOP AT lt_online_shop_result INTO DATA(online_shop_read).
            max_order_id += 1.

            online_shop               = CORRESPONDING #( online_shop_read ).
            online_shop-order_id      = max_order_id.
            online_shop-Creationdate  = today.
            online_shop-Deliverydate  = today + 10.
            APPEND online_shop TO online_shops.
          ENDLOOP.
          MODIFY ENTITIES OF zi_online_shop_xxx IN LOCAL MODE
        ENTITY zi_online_shop_xxx UPDATE SET FIELDS WITH online_shops
        MAPPED   DATA(ls_mapped_modify)
        FAILED   DATA(lt_failed_modify)
        REPORTED DATA(lt_reported_modify).

      **create purchase requisition

      * if a new laptop is ordered, trigger a new purchase requisition
          IF lt_failed_modify IS INITIAL.
            MODIFY ENTITIES OF zi_online_shop_xxx IN LOCAL MODE
            ENTITY Online_Shop EXECUTE create_pr FROM CORRESPONDING #( keys )
            FAILED DATA(lt_pr_failed)
            REPORTED DATA(lt_pr_reported).
          ENDIF.


        ENDMETHOD.
      *
      ENDCLASS.

    6. Save and activate.

      HINT: The option internal can be set before the action name to only provide an action for the same BO. An internal action can only be accessed from the business logic inside the business object implementation such as from a determination or from another action.

  • Step 9

    You have 2 options to open the documentation inside ADT.

    Option 1:

    1. Open your ABAP class zbp_i_online_shop_xxx, search for i_purchaserequisitiontp, press CTRL and click on it.
      service
    2. Now you are in the released object i_purchaserequisitiontp.
      Click Open Documentation to open it.
      service
    3. Now you are able to read the documentation.
      service

    HINT: You can also open the Element Info by clicking i_purchaserequisitiontp and pressing F2.

    service

    You can also switch to different layers inside the Element Info.

    service

    Option 2:

    1. Go back to tab i_purchaserequisitiontp. You are now able to see the behavior definition folder of the released object i_purchaserequisitiontp in the project explorer. Now navigate to the documentation i_purchaserequisitiontp and open it.
      service

      HINT: You can also check the API State of released object and see its visibility by selecting the properties.
    2. Now you can see the documentation.
      service
  • Step 10
    1. Right-click your projection view ZC_ONLINE_SHOP_XXX and select New Service Definition.

      service
    2. Create new service definition:

      • Name: ZSD_SHOP_XXX
      • Description: Service definition for online shop
      service
      Click Next >.
    3. Click Finish.

      service
    4. Replace your code with following:

      ABAP
      Copy
      @EndUserText.label: 'Service definition for online shop'
      define service ZSD_SHOP_XXX {
        expose ZC_ONLINE_SHOP_XXX as online_shop;
      }

    5. Save and activate.

  • Step 11
    1. Right-click your service binding ZSD_SHOP_XXX and select New Service Binding.

      binding
    2. Create new service binding:

      • Name: ZSB_SHOP_XXX
      • Description: Service binding for online shop
      • Binding Type: OData V2 - UI
      • Service Definition: ZSD_SHOP_XXX
      binding
      Click Next >.
    3. Click Finish.

      binding
    4. Right-click your service binding ZSB_SHOP_XXX and select Activate.

      binding
    5. Click Publish to publish your service binding.

      binding
  • Step 12
    1. Select online_shop in your service binding and click Preview to open SAP Fiori Elements preview.

      preview
    2. Click Create to create a new entry.

      preview
    3. Enter an id and click Create.

      preview
    4. Click Create again. And click Close

      preview
    5. Check your result.

      preview
  • Step 13
    1. In the Project Explorer, select your system and right click on Properties.

      preview
    2. Select ABAP Development and copy the system URL without -api, paste it in a browser and log in.

      preview
    3. Select the Manage Purchase Requisitions tile.

      preview
    4. Click Go.

      preview
    5. Select your purchase requisition.

      preview
    6. Check your purchase requisition item and select it. Your ID should appear here instead of XXX.

      preview
    7. Select Notes and check your item text. Your ID should appear here instead of XXX.

      preview

    8. Check your item note. Your ID should appear here instead of XXX.

      preview
  • Step 14

    How can you open the documentation inside ADT?

Back to top
