Implement a Custom Shell Plug-in in the SAP BTP ABAP Environment

Learn how to develop and deploy a custom shell plug-in to your SAP BTP ABAP Environment as part of a SAP Fiori Application.
You will learn
  • How to create a custom shell plug-in.
  • How to deploy the shell plug-in to your SAP BTP ABAP Environment as part of a SAP Fiori Application.
  • How to create a Business Catalog and Business Role to regulate access to the SAP Fiori Application.
AriannaMussoBarcucciArianna Musso BarcucciDecember 6, 2023
Created by
mervey45
March 21, 2023
Contributors
mervey45
AriannaMussoBarcucci

Prerequisites

  • You have access to a SAP BTP Subaccount with a SAP Business Application Studio subscription.
  • You have access to a SAP BTP ABAP Environment in a Cloud Foundry space in the subaccount.
  • You have connected SAP Business Application Studio to your SAP BTP ABAP Environment via destination.
  • You have a user in the subaccount, with Business_Application_Studio_Developer role collection.
  • You are a member of the Cloud Foundry space where your SAP BTP ABAP Environment resides, and you have Space Developer role.
  • You have a user in your SAP BTP ABAP Environment with the following roles: SAP_BR_ADMINISTRATOR and SAP_BR_DEVELOPER.
  • You are connected to your SAP BTP ABAP Environment in the ABAP Development Tool (ADT) in Eclipse.

This tutorial was written for SAP BTP ABAP Environment. However, you should be able to use it in SAP S/4HANA Cloud Environment in the same way.

Throughout this tutorial, you will create various development objects and UI components. Wherever the suffix ### or 000 is used, please replace it with your initials or group number.

  • Step 1

    The shell plug-in will be deployed to the local ZLOCAL software component in your SAP BTP ABAP Environment. For this reason, you need to create in ADT a local package and a transport request for the software component.

    1. Access ABAP Developer Tool in Eclipse and connect to your SAP BTP ABAP Environment.

    2. Right click on your SAP BTP ABAP Environment and click on New > ABAP Package:

      Create new package
    3. Input a name and a description for your package. Make sure that the Package Type is Development. Click on Next.

      Create new package - name and description

      For the scope of this tutorial, the package name is Z_PLUGIN_###. You can use this name or choose your own package name. But make sure that your package name starts with Z. Take note of the name of the package you just created, you will need it in a later step. You can also mark the Add to favorite package option, so the package will be automatically added to your favorites and it will be easier to find later on.

    4. In the Software Component field input ZLOCAL. Click on Next.

      Create new package - select software component
    5. Select the Create a new request option and input a description for your transport request. Click on Finish. The package will be created.

      Create new transport request
    6. Open the Transport Organizer and select your SAP BTP ABAP Environment. Navigate to Workbench > Local Change Requests > Modifiable. Here you can see the transport request you just created. Take note of the transport request number, you will need it in a later step.

      Transport organizer - transport request number
  • Step 2

    The shell plug-in will be deployed to your SAP BTP ABAP Environment as part of a SAP Fiori Application. For this reason, you need to create an empty SAP Fiori Application of type SAPUI5 in Business Application Studio.

    1. In your SAP BTP Subaccount, navigate to the Instances and Subscriptions tab in the left panel. In the Subscriptions tab, click on the SAP Business Application Studio link to access your instance of the SAP Business Application Studio.

      Access BAS from BTP
    2. Click on Create Dev Space button in the top right corner, input a Dev Space name and select the SAP Fiori option. Click on Create Dev Space. This might take a couple of minutes. Once the developer workspace is running, click on it to access it.

      Create Dev Space in BAS
    3. Click on Start from template.

    4. Select the SAP Fiori Application option and click on Start.

      Create SAP Fiori application

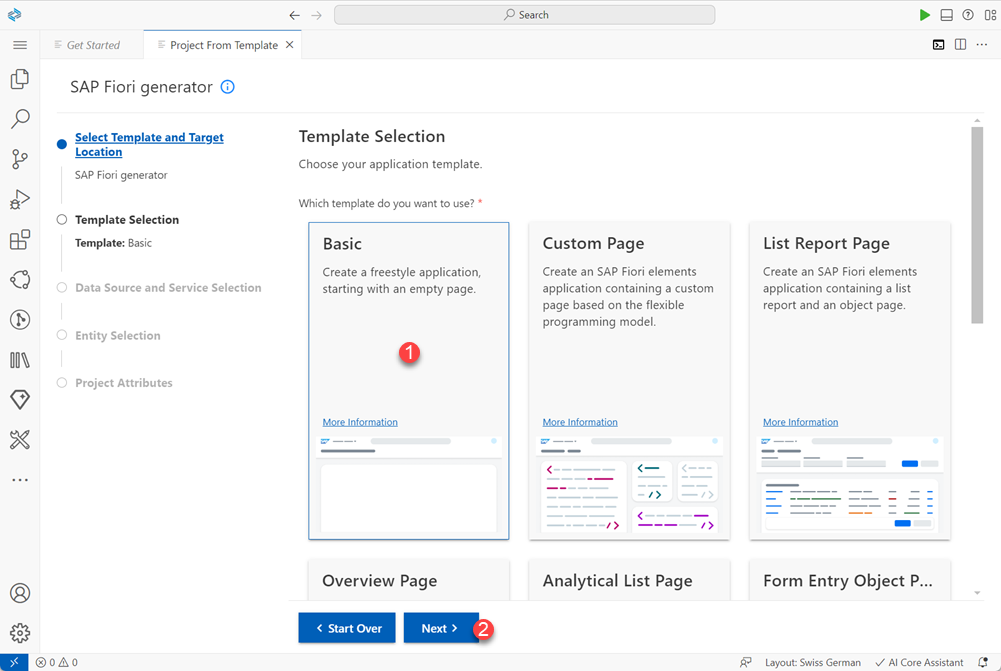

    5. In the Template Type dropdown menu, select SAP Fiori. Select the Basic floorplan and click on Next.

      Create SAPUI5 project
    6. In the Data source dropdown menu, select None and click on Next.

      Create SAP Fiori application - Data source
    7. In the View name field, choose a view name and click on Next.

      Create SAP Fiori application - Entity selection

      For the scope of this tutorial the view name is plugin_view. You can use this name or choose a different name. If you choose a different view name, make sure to keep it consistent throughout the rest of the tutorial. While developing a SAP Fiori Application it is good practice to add the suffix _view to the name of your view.

    8. Input a Module name, an Application title and a Description of your choice. Select the Add deployment configuration option and the Add FLP configuration option. Click on Next.

      Create SAP Fiori application - Project attributes
    9. In the Please choose the target dropdown menu, select ABAP. In the Destinations dropdown menu, select the destination that points towards your SAP BTP ABAP Environment. Input a name for the SAPUI5 ABAP Repository and a Deployment description. In the Package field, input the name of the package that you created in ABAP Development Tool in Eclipse in the previous step. Select Enter manually and Input the Transport Request number you created in the previous step. Click on Next.

      Create SAP Fiori application - Deployment configuration
    10. In the Semantic Object field input Shell and in the Action field input plugin. Input a Title of your choice. Click on Finish. The project folder will be generated.

      Create SAP Fiori application - Fiori Launchpad Configuration

      Make sure to input the fields with the correct cases: Shell must start with an upper case and plugin must start with a lower case.

  • Step 3

    SAP Fiori Application projects created via the SAP Fiori template are automatically initialized with several basic folders, files and configurations. To create a shell plug-in and deploy it as part of your SAP Fiori Application, you need to change some of these initial configurations.

    1. In Business Application Studio, open the folder of the project you just created and navigate to the webapp folder. Double click on the manifest.json file to open it.

      Open manifest.json file
    2. In the manifest.json file, modify the following configurations:

      • Under the "sap.app" configuration adjust the "type" parameter to "component".
      • Under the "crossNavigation" configuration remove the "title". And add the parameter "hideLauncher": true.
      • Remove the "routing" and the "rootView" configurations.
      • At the end of the file, insert the following code snippet:
        "sap.flp": {"type": "plugin"}.
      • At the end your mainfest.json file should look like the following:

        JSON
        Copy
        {
          "_version": "1.58.0",
          "sap.app": {
        "id": "zplugin###",
        "type": "component",
        "i18n": "i18n/i18n.properties",
        "applicationVersion": {
          "version": "0.0.1"
        },
        "title": "{{appTitle}}",
        "description": "{{appDescription}}",
        "resources": "resources.json",
        "sourceTemplate": {
          "id": "@sap/generator-fiori:basic",
          "version": "1.11.4",
          "toolsId": "ca6d90b1-7c62-441c-8145-fa747953cc5c"
        },
        "crossNavigation": {
          "inbounds": {
            "Shell-plugin": {
              "hideLauncher": true,
              "semanticObject": "Shell",
              "action": "plugin",
              "signature": {
                "parameters": {},
                "additionalParameters": "allowed"
              }
            }
          }
        }
          },
          "sap.ui": {
        "technology": "UI5",
        "icons": {
          "icon": "",
          "favIcon": "",
          "phone": "",
          "phone@2": "",
          "tablet": "",
          "tablet@2": ""
        },
        "deviceTypes": {
          "desktop": true,
          "tablet": true,
          "phone": true
        }
          },
          "sap.ui5": {
        "flexEnabled": true,
        "dependencies": {
          "minUI5Version": "1.120.1",
          "libs": {
            "sap.m": {},
            "sap.ui.core": {},
            "sap.f": {},
            "sap.suite.ui.generic.template": {},
            "sap.ui.comp": {},
            "sap.ui.generic.app": {},
            "sap.ui.table": {},
            "sap.ushell": {}
          }
        },
        "contentDensities": {
          "compact": true,
          "cozy": true
        },
        "models": {
          "i18n": {
            "type": "sap.ui.model.resource.ResourceModel",
            "settings": {
              "bundleName": "zplugin###.i18n.i18n"
            }
          }
        },
        "resources": {
          "css": [
            {
              "uri": "css/style.css"
            }
          ]
        }
          },
          "sap.flp":{
          "type": "plugin"
          }
        }


        In the above code snippet, certain parameters are project-dependent and might therefore have different values for you. For this reason, you should use this code snippet as a guide, and manually adjust your mainfest.json file (rather than simply copy and paste this code snippet).

    3. Delete all the content in your controller folder (This is a sub-folder of the webapp folder). Then delete the controller folder itself.

      Delete controller folder
    4. Delete all the content in your view folder (This is a sub-folder of the webapp folder). Do not delete the view folder itself, you will need it in a later step.

      Delete view folder content
    5. Open the Component.js file in the webapp folder. Delete the entire content of the file, and replace it with the following code:

    JavaScript
    Copy
    sap.ui.define([
            "sap/ui/core/UIComponent"
        ],
        function (UIComponent) {
            "use strict";

            return UIComponent.extend("zplugin###.Component", {
                metadata: {
                    manifest: "json"
                },

                /**
                 * The component is initialized by UI5 automatically during the startup of the app and calls the init method once.
                 * @public
                 * @override
                 */
                init: function () {
                    // call the base component's init function
                    UIComponent.prototype.init.apply(this, arguments);

                    var oRenderer = sap.ushell.Container.getRenderer();
                    var oEntry = {
                        title: "Personalized shell plug-in",
                        icon: "sap-icon://role",
                        value: function () {
                            return jQuery.Deferred().resolve("Plug-in example");
                        },
                        content: function () {
                            return jQuery.Deferred().resolve(new sap.m.Text("plugin-text", {text: ""}));
                        },
                        onSave: function () {
                            return jQuery.Deferred().resolve();
                        }
                    };
                    oRenderer.addUserPreferencesEntry(oEntry);
                }
            });
        }
    );


    In line 7, the "zplugin###.Component" is taken from the name of your project. If you chose a different project name in the previous step, make sure to substitute the zplugin### with the correct project name. The name of your project can be found in the manifest.json file under the "sap.app">"id" parameter.

  • Step 4

    Your basic SAPUI5 Application can be previewed before it is deployed. Using the preview functionality is good practice before deploying an application, to make sure that the UI looks as intended and the application’s functionalities work as desired.

    1. In Business Application Studio, In the Storyboard tab right click on your UI Application and click on Open Application Info.

      Preview application

      The Storyboard tab can always be open from the Search bar by typing the command > Open Storyboard.

    2. In the Application Info view, select the Preview Application tile.

      Preview application 2
    3. Select start fiori-run. This will prompt a new terminal window which will run the start fiori-run command. This can take up to a few seconds. Once it is done, a preview of your application will open up in a new browser window.

      Preview application - start fiori run
    4. In the preview of your application, click on the user icon in the top-right corner and open the settings. Your shell plug-in is listed in the user’s settings dialog.

      Application preview - settings
      Application preview - shell plug-in

      The shell plug-in is currently empty. You will implement it in a later tutorial.

  • Step 5

    You can now deploy your SAPUI5 Application with a basic (empty) shell plug-in to your SAP BTP ABAP Environment.

    1. In Business Application Studio, in the Application Info view, click on the Deploy tile:

      Deploy application
    2. The deployment process will begin. You will be prompted to confirm the deployment by typing Y. Once the SAPUI5 Application is successfully deployed to your SAP BTP ABAP Environment, the terminal will return the status:
      Deployment Successful. You can now close the terminal window.

      The deployment process can take up to a few minutes.

    3. After a successful deployment, your software package in ABAP Developer Tool in Eclipse will be automatically enhanced by a BSP Application and a Launchpad App Descriptor Item.

      New ADT files
  • Step 6

    Now that your basic shell plug-in has been successfully deployed to your SAP BTP ABAP Environment as part of a SAPUI5 Application, you need to assign the application to a Business Catalog. To do this, you first need to create an IAM App, which points to your deployed SAPUI5 Application. (You will assign the IAM App to a Business Catalog in a later step).

    1. Access ABAP Developer Tool in Eclipse and connect to your SAP BTP ABAP Environment.

    2. Right click on your package and select New > Other ABAP repository object.

      Create business catalog 1
    3. In the search bar, search for IAM App and click on it.

      Create business catalog 2

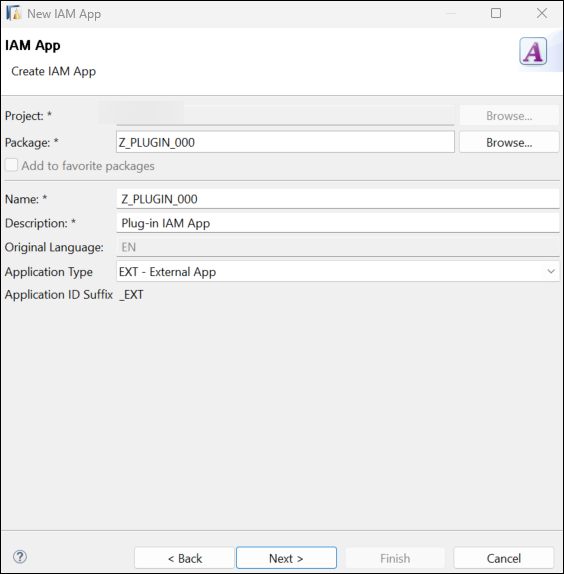

    4. Enter a name and a description for the IAM app. Keep External App as the App Type.

      Create business catalog 3
    5. Click on next and select the transport request you created in a previous step. Click on Finish.

    6. In the newly created IAM App, enter the name of your Launchpad App Descriptor Item in the corresponding field and save ( File > Save). Then click on Publish Locally.

      Publish locally

      Publishing the IAM App can take up to a couple of minutes. You can keep track of the process in the lower right corner of the ABAP Developer Tool in Eclipse.

  • Step 7

    Now that you have created the IAM App, you can create a Business Catalog and assign the IAM App to it.

    1. In the IAM App, click on the link Create a new Business Catalog and assign the App to it.

      Create business catalog 4
    2. Enter a name and description.

      Create business catalog 5
    3. Click next and select your transport request. Click on Finish.

    4. A new window will automatically pop up prompting you to create the Business Catalog App Assignment. Click on Next.

      Create business catalog 6
    5. Select the transport request you used previously. Click on Finish.

    6. The generated IAM App, IAM App to Catalog Assignment and IAM Business Catalog will appear in your project folder.

    7. Double click on the IAM Business Catalog file to open it. Click on Publish Locally.

      Create business catalog 8

      Publishing the Business Catalog can take up to a minute. You can keep track of the process in the lower right corner of the ABAP Developer Tool in Eclipse.
      Make note of your Business Catalog ID, you will need it in a later step.

  • Step 8

    Now you need to create a Business Role in your SAP BTP ABAP Environment and then assign the Business Catalog to it. Any user in your SAP BTP ABAP Environment with this Business Role will have access to the shell plug-in.

    1. Access the Fiori Launchpad of your SAP BTP ABAP Environment.

    2. Search for the Maintain Business Roles application and open it.

      Create business role 1
    3. In the lower right corner, click on New. Enter a Business Role ID and a description. Click on Create. The Business Role will be created and will open automatically.

      Create business role 2
    4. In the Assigned Business Catalogs tab, click on ‘Add’ to add your Business Catalog.

      Create business role 4

      Search for your Business Catalog, select it and click on OK.

      Create business role 5
    5. In the Assigned Business Users tab, click on Add.

      Create business role 6

      Search for your user name, select it and click OK.

    6. In the General Role Details tab, change the value for the Write, Read, Value Help parameter to Unrestricted. Then click on Save.

    Create business role 7

  • Step 9

    You have successfully created an empty shell plug-in and deployed it to your SAP BTP ABAP Environment as part of a SAPUI5 Application. You have setup the IAM App, the Business Catalog and the Business Role. Any user with this Business Role will now see the shell plug-in in the user settings dialog: click on the user icon in the top right corner, and click on Settings.

    Create business role 8

    You might have to refresh the webpage for the shell plug-in to appear in the Settings.

    In the next tutorial, you will learn how to enrich your shell plug-in making use of OData Services.

  • Step 10

    Where can you see your custom shell plug-in after deploying the SAPUI5 Application to your SAP BTP ABAP Environment?
