Enrich your Shell Plug-in with OData Services

In this tutorial you will continue working on the shell plug-in you created in the pervious tutorial in this series. You will learn how to enrich it using OData Services to expose user-related information. To do this, you will first need to create a Data Definition to expose the User ID of the current user and the corresponding Business Role information.

1. Access ABAP Developer Tool in Eclipse, connect to your SAP BTP ABAP Environment, and open the package you created as part of the previous tutorial.

2. Right click on the package and select New > Other ABAP Repository Object:



3. In the search bar, search for Data Definition and click on it.

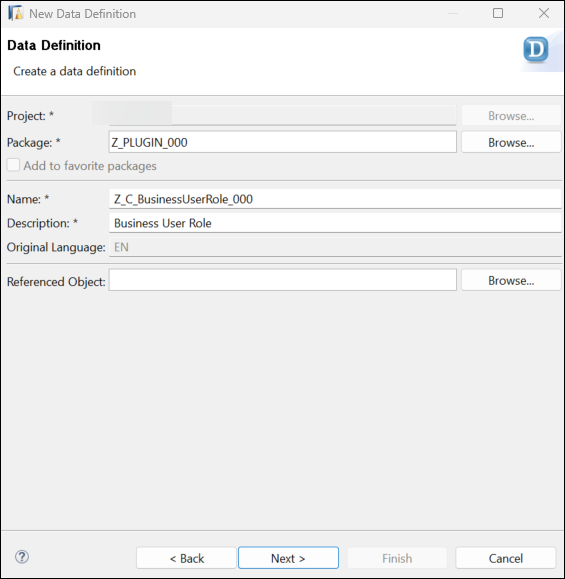

4. Enter a Name and a Description. Click on Next.



5. Select the transport request you created in the previous tutorial, and click on Next.



6. The Data Definition is initialized with a pre-filled code based on your chosen template. Adjust it as follows:

   ABAP

   Copy

   @AccessControl.authorizationCheck: #NOT_REQUIRED
   @EndUserText.label: 'Business User Role'
   define root view entity Z_C_BusinessUserRole_### as select from I_IAMBusinessUserBusinessRole as _BusinessUserRole
   association [0..*] to I_IAMBusinessRoleText as _BusinessRoleText on $projection.BusinessRoleUUID = _BusinessRoleText.BusinessRoleUUID
   {
   key abap.char'Me' as ID,
   key _BusinessUserRole.BusinessRoleUUID as BusinessRoleUUID,
   _BusinessUserRole.BusinessRole as BusinessRole,
   _BusinessRoleText.Name as Name,
   /* Associations */
   _BusinessRoleText
   }
   where _BusinessUserRole.UserID = $session.user


7. Save your Data Definition and activate it using the Activate icon.



Now you need to create a second Data Definition, which will take the User ID exposed by the Data Definition you created in the previous step, and will expose the data related to that User ID, such as name and email address.

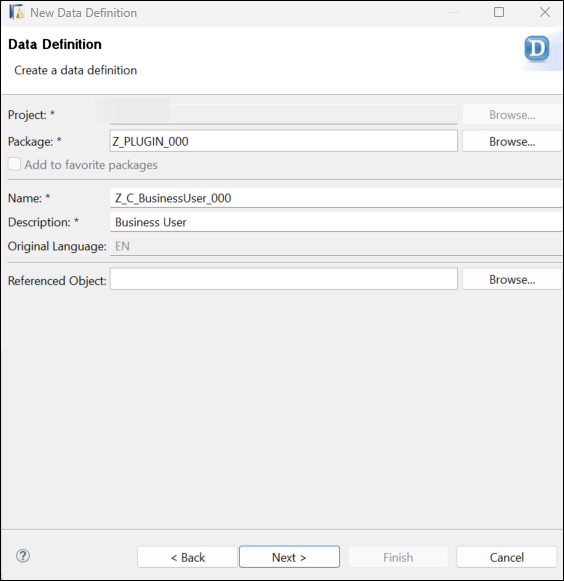

1. As in the previous step, right click on the package and select New > Other ABAP Repository Object. In the search bar, search for Data Definition and click on it. Enter a Name and a Description. Click on Next.



2. Select your transport request and click on Finish.

3. The Data Definition is initialized with a pre-filled code based on your chosen template. Adjust it as follows:

   ABAP

   Copy

   @AccessControl.authorizationCheck: #NOT_REQUIRED
   @EndUserText.label: 'Business User'
   define root view entity Z_C_BusinessUser_### as select from I_BusinessUserBasic
       association [0..*] to Z_C_BusinessUserRole_### as _BusinessUserRole on $projection.ID = _BusinessUserRole.ID
       {
       key abap.char'Me' as ID,
       BusinessPartner,
       BusinessPartnerUUID,
       PersonFullName,
       UserID,
       _WorkplaceAddress.PhoneNumber,
       _WorkplaceAddress.DefaultEmailAddress,
       _WorkplaceAddress.Building,
       _WorkplaceAddress.RoomNumber,
       /* Associations */
       _BusinessUserRole
       }
   where UserID = $session.user


4. Save your Data Definition and activate it using the Activate icon.



In order to expose the data from the two previous Data Definitions you need to create a Service Definition.

1. Right click on the package and select New > Other ABAP Repository Object. In the search bar, search for Service Definition and click on it. Enter a Name and a Description. Click on Next.



2. Select your transport request and click on Finish.

3. Add your Projection Views to your Service Definition as follows:

   ABAP

   Copy

   @EndUserText.label: 'Business User Service Definition'
   define service ZUI_BUSINESSUSER_### {
       expose Z_C_BusinessUser_### as BusinessUser;
       expose Z_C_BusinessUserRole_### as BusinessUserRole;
   }


4. Save your Service Definition and activate it using the Activate icon.



Your Service Definition will be consumed by your SAP Fiori Application via the use of a Service Binding.

1. In your project explorer, right click on your Service Definition and select New Service Binding.



2. Enter a Name and a Description. In the Binding Type dropdown menu, select the option OData V4 - UI and click on Next.



   It is good practice to include the type of Service Binding in the Service Binding name, e.g.: adding the suffix V_O4 to the name of Service Bindings of type OData Service V4.

3. Select your transport request and click on Finish.

4. Save your Service Binding and activate it using the Activate icon.



5. In the newly created Service Binding, click on the Publish button.



   Publishing a Service Binding can take up to a few minutes. Once the Service Binding is successfully published, the Local Service Endpoint parameter will change to Published.

6. You can now preview your Service Binding: click on the Service URL link.



7. A new window will open up in your browser. In the URL of the browser window, Replace the last part ?sap-client=100 with BusinessUser('Me') and press Enter. Your personal user information will be displayed.



Now that you have created an OData Service which exposes user-related information, you need to add it to your SAPUI5 project in Business Application Studio, to enhance your shell plug-in.

1. In Business Application Studio, open the folder of your project and navigate to the webapp folder. Right click on the manifest.json file and select Open Service Manager.



2. This will open an overview of the services used in your project. If there are any previous services, click on the bin icon to delete them.



3. To add a new OData Service, click on Add Service.



4. Select the Destination option. In the Destination dropdown menu, select the destination pointing to your SAP BTP ABAP Environment. In the Provide Service section, select Fetch and from the Select a service dropdown menu, select your Service Binding. Click on Add.



5. Optional: in the manifest.json file you can see that the OData Service has been added automatically under "dataSources" and "models" configurations.



6. Optional: in the ui5.yaml file on project top level you can see that the system connection has been added automatically as backend configuration.



7. Open the manifest.json file. In the configuration sap.ui5 > dependencies > libs, remove the following parameters: "sap.f": {}, "sap.suite.ui.generic.template": {}, "sap.ui.comp": {}, "sap.ui.generic.app": {} and "sap.ui.table": {}. Add the parameter "sap.ui.layout": {} after "sap.ushell": {}. The configuration should look like this:



8. In your workspace, go to your project folder and make a right click. Select Open in Integrated Terminal. This will open a new terminal window. Input the command npx @sap-ux/create add mockserver-config and press enter.



9. A new dependency will be added in the package.json file, in the configuration "main" > "devDependencies":



Your SAPUI5 Application can now consume user-related information via the OData Service you created. You now need to specify how you want this information to be consumed and displayed in your application. You will first modify the i18n.properties file, which defines which text is displayed for each of your user-related data. You will then create a View of type Fragment in your project, to define the layout with which the user-related information will be displayed. And finally, you will add this Fragment View to the content of your application.

1. In the webapp > i18n folder, open the i18n.properties file. Substitute the file content with the following code:

   HTML

   Copy

   #Texts for manifest.json
   #XTIT: Application name
   appTitle=Shell Plug-in
   #YDES: Application description
   appDescription=Shell Plug-in
   #XTIT: Main view title
   title=Shell Plug-in
   flpTitle=Shell Plug-in
   flpSubtitle=
   #Title and Subtitle of the Plug-in
   titleTab=Personalized shell plug-in
   subtitleTab=Plug-in example
   #Fragment Labels
   labelUserID=System User ID
   tooltipUserID=Steampunk System User ID
   labelMail=E-Mail Address
   tooltipMail=User-Specific E-Mail Address
   labelPhone=Phone Number
   tooltipPhone=User-Specific Phone Number
   labelLocation=Location
   tooltipLocation=User-Specific Location
   titleTable=Assigned Business Roles
   noContentTable=No Assigned Business Roles
   labelBusinessRole=Business Role
   labelBusinessRoleName=Name


2. Via the OData Service you created in a previous step, you can consume Business User details associated with the current Business User. You now need to define how these data will be displayed. To do this, you need to create a form, and specify its layout and contents. In your project, go to the empty folder webapp > view. Right click on the folder and select New File.



3. Input a Name for your new View file, and make sure it ends with .fragment.xml to create a View of type Fragment . Click on OK.



4. Open the newly created Fragment View file, and input the following code:

   XML

   Copy

   <core:FragmentDefinition
       xmlns="sap.m" xmlns:core="sap.ui.core"
       xmlns:form="sap.ui.layout.form"
       xmlns:layout="sap.ui.layout"
       xmlns:grid="sap.ui.layout.cssgrid"
       id="businessUserFragment">
   <Page id="PersonInfoPage" title="{PersonFullName}" binding="{path:'/BusinessUser(%27Me%27)'}">
       <content>
       <VBox id="_IDGenVBox1" class="sapUiSmallMargin">
   <form:Form editable="false" id="form0">
               <form:layout>
                   <form:ResponsiveGridLayout id="_IDGenResponsiveGridLayout1" labelSpanXL="5" labelSpanL="5" labelSpanM="5" labelSpanS="5" adjustLabelSpan="false" emptySpanXL="0" emptySpanL="0" emptySpanM="0" emptySpanS="0" columnsXL="5" columnsL="5" columnsM="5" singleContainerFullSize="false"/>
               </form:layout>
       <form:formContainers>
           <form:FormContainer title="" id="PersonInfoContainer">
               <form:formElements><form:FormElement label="{i18n>labelUserID}" id="LabelUserID" tooltip="{i18n>tooltipUserID}">
                       <form:fields><Text id="UserID" text="{UserID}" wrappingType="Normal" textAlign="Begin" tooltip="{i18n>tooltipUserID}"/>
                       </form:fields>
                   </form:FormElement>
                   <form:FormElement label="{i18n>labelMail}" id="LabelEMail">
                       <form:fields>
                           <Text id="EMail" text="{DefaultEmailAddress}" wrappingType="Normal" textAlign="Begin" tooltip="{i18n>tooltipMail}"/>
                       </form:fields>
                   </form:FormElement>
                   <form:FormElement label="{i18n>labelPhone}" id="LabelPhone">
                       <form:fields>
                           <Text id="Phone" text="{PhoneNumber}" wrappingType="Normal" textAlign="Begin" tooltip="{i18n>tooltipPhone}"/>
                       </form:fields>
                   </form:FormElement>
                   <form:FormElement label="{i18n>labelLocation}" id="LabelLocation">
                       <form:fields>
                           <Text id="Location" text="{Building} / {RoomNumber}" wrappingType="Normal" textAlign="Begin" tooltip="{i18n>tooltipLocation}"/>
                       </form:fields>
                   </form:FormElement>
               </form:formElements>
           </form:FormContainer>
       </form:formContainers>
       </form:Form>
       </VBox>
       <Title id="TableTitleID" text="{i18n>titleTable}" textAlign="Center" titleStyle="H4"/>
       <Table noDataText="{i18n>noContentTable}" id="TableBusinessRoles" items="{path:'_BusinessUserRole'}">
       <items>
           <ColumnListItem type="Active" id="ColumnItem">
               <cells>
                   <Text text="{BusinessRole}" id="BusinessRole"/>
                   <Text text="{Name}" id="BusinessRoleName"/>
               </cells>
           </ColumnListItem>
       </items>
       <columns>
           <Column id="ColumnBusinessRole">
               <header>
                   <Label text="{i18n>labelBusinessRole}" id="LabelBusinessRole"/>
               </header>
           </Column>
           <Column id="ColumnBusinessRoleName">
               <header>
                   <Label text="{i18n>labelBusinessRoleName}" id="LabelBusinessRoleName"/>
               </header>
           </Column>
           </columns>
           </Table>
           </content>
       </Page>
   </core:FragmentDefinition>


5. Your Fragment View defines how you want the data to be displayed. You now need to load the Fragment View into the content of your SAPUI5 Application, so that the form containing the user-related information will actually be displayed in your application. In the webapp folder, open the Component.js file. Replace the content of the file with the following code:

   JavaScript

   Copy

   sap.ui.define([
           "sap/ui/core/UIComponent",
           "sap/ui/model/resource/ResourceModel",
           "sap/ui/core/Fragment"
       ],
           function (UIComponent, ResourceModel, Fragment) {
               "use strict";

           return UIComponent.extend("zplugin###.Component", {
               metadata: {
                   manifest: "json"
               },

               /**
               * The component is initialized by UI5 automatically during the startup of the app and calls the init method once.
               * @public
               * @override
               */
               init: function () {
                   // call the base component's init function
                   UIComponent.prototype.init.apply(this, arguments);

                   var businessUserModel = this.getModel();

                   var vtitleTab = new ResourceModel({
                       bundleName: "zplugin###.i18n.i18n"
                   }).getResourceBundle().getText("titleTab");

                   var vsubtitleTab = new ResourceModel({
                       bundleName: "zplugin###.i18n.i18n"
                   }).getResourceBundle().getText("subtitleTab");

                   var oRenderer = sap.ushell.Container.getRenderer();
                   var oEntry = {
                       title: vtitleTab,
                       icon: "sap-icon://role",
                       value: function () {
                           return jQuery.Deferred().resolve(vsubtitleTab);
                       },
                       content: function () {
                           if (!this.oFragment) {
                               this.oFragment = Fragment.load({
                                   type: "XML",
                                   id: "BusinessUserFragment",
                                   name: "zplugin###.view.BusinessUserFragment"
                               }).then(function (fragment) {
                                   var i18nModel = new ResourceModel({
                                       bundleName: "zplugin###.i18n.i18n"
                                   });
                                   fragment.setModel(i18nModel, "i18n");
                                   fragment.setModel(businessUserModel);

                                   return fragment;
                               });
                           }
                           return this.oFragment;
                       },
                       onSave: function () {
                           return jQuery.Deferred().resolve();
                       }
                   };
                   var i18nModel = new ResourceModel({
                       bundleName: "zplugin###.i18n.i18n"
                   });
                   oRenderer.setModel(i18nModel, "i18n");
                   oRenderer.addUserPreferencesEntry(oEntry);
               }
           });
       }
       );


   If you have chosen different names for your project and for your Fragment View in the previous steps, you will need to adjust the code above: replace any instance of ### with your initials or group number, and replace BusinessUserFragment with the name of your View.

Your enhanced SAPUI5 Application can be previewed before it is deployed. Using the preview functionality is good practice before deploying an application, to make sure that the UI looks as intended and the application’s functionalities work as desired.

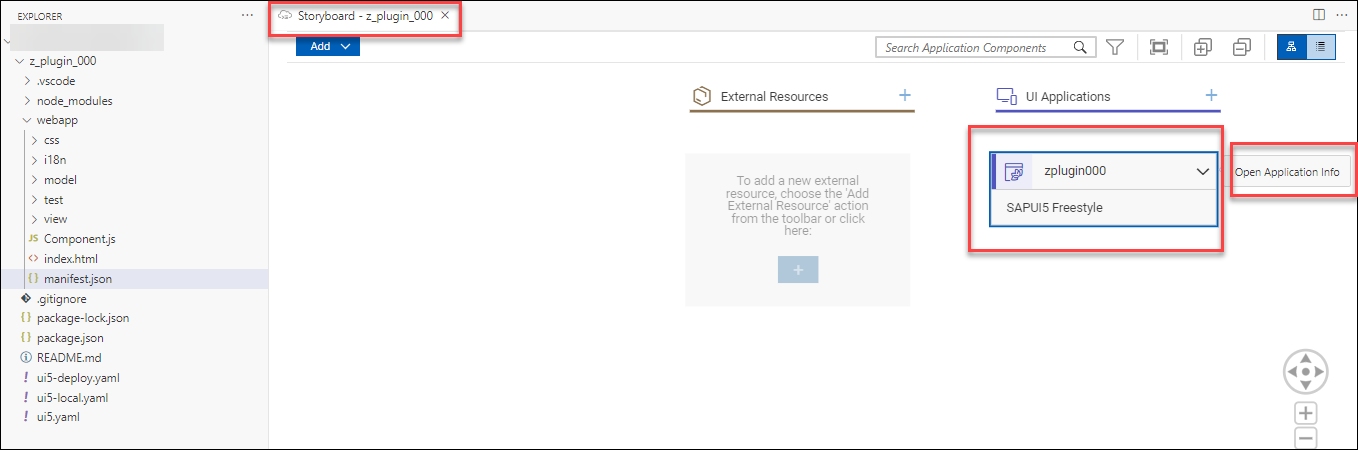

1. In Business Application Studio, In the Storyboard tab right click on your UI Application and click on Open Application Info.



   The Storyboard tab can always be open from the Search bar by typing the command > Open Storyboard.

2. In the Application Info view, select the Preview Application tile.

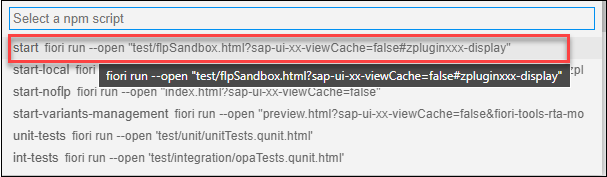

3. Select start fiori-run. This will prompt a new terminal window which will run the start fiori-run command. This can take up to a few seconds. Once it is done, a preview of your application will open up in a new browser window.



4. In the preview of your application, click on the user icon in the top-right corner and open the Settings. Your shell plug-in is listed in the user’s settings dialog. User-related information is displayed according to the layout you defined using the Fragment View.




You can now re-deploy your SAPUI5 Application with an enhanced shell plug-in to your SAP BTP ABAP Environment.

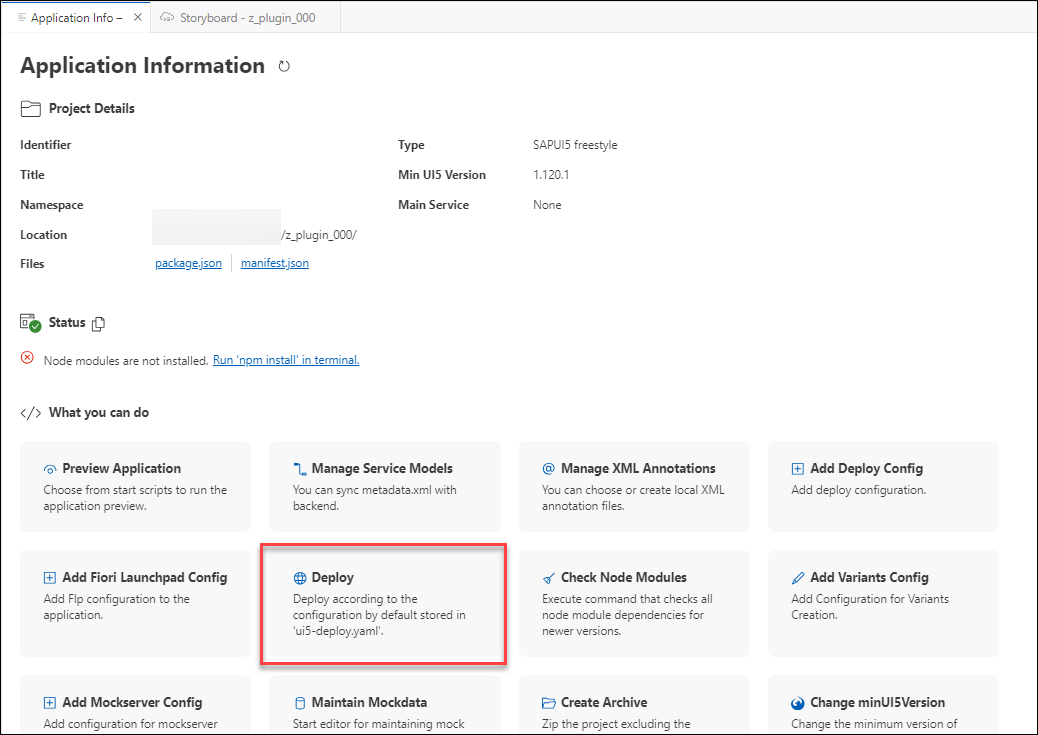

1. In Business Application Studio, in the Application Info view, click on the Deploy tile:



2. The deployment process will begin. You will be prompted to confirm the deployment by typing Y. Once the SAPUI5 Application is successfully deployed to your SAP BTP ABAP Environment, the terminal will return the status:
   Deployment Successful.

   The deployment process can take up to a few minutes.

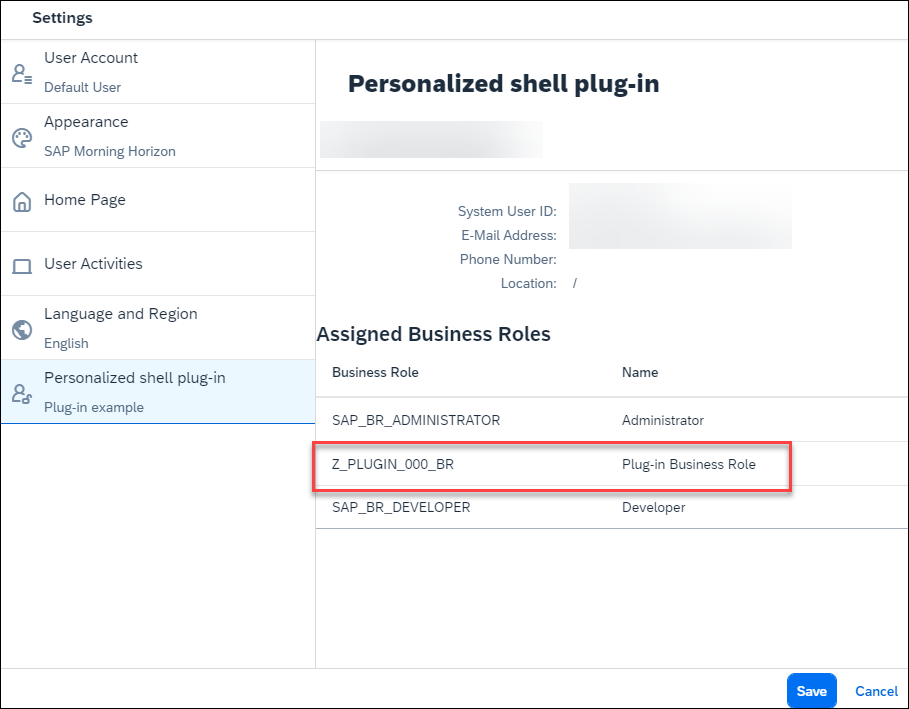

After a successful deployment, your shell plug-in will be updated in the system. Login to your SAP BTP ABAP Environment with a Business User with the necessary Business Role (see previous tutorial in this series). Open your application by clicking on the application tile. The plug-in can be accessed via the user settings dialog. The plug-in returns data related to your Business User and a list of Business Roles that are assigned to your Business User.
