Integrate SAP BTP ABAP Environment and SAP S/4HANA Cloud, public edition using the OAuth 2.0 SAML Bearer Assertion Flow

Intermediate
20 min.
SAP BTP ABAP environment, Intermediate, Tutorial, ABAP Development, SAP S/4HANA Cloud
Integrate SAP BTP, ABAP environment and SAP S/4HANA Cloud, public edition using the OAuth 2.0 SAML Bearer Assertion Flow. This tutorial takes an existing integration based on Basic Authentication and configures the more complex authentication mechanism to enable the usage of principal propagation.
You will learn
  • How to configure OAuth 2.0 for outbound connectivity.
  • How to configure an OAuth 2.0 Identity Provider for inbound connectivity.
AchimSeubertAchim SeubertNovember 27, 2024
Created by
AriannaMussoBarcucci
November 29, 2023
Contributors
AriannaMussoBarcucci
Liebherr

Prerequisites

In this tutorial, all activities on S/4HANA Cloud side will be performed in the customizing tenant (100) of your development system.

  • Step 1

    The OAuth 2.0 SAML Bearer Assertion flow works as follows:

    At design time, the OAuth 2.0 client, in our case a system in the SAP BTP, ABAP environment, is signed up to the authorization server, in our case the SAP S/4HANA Cloud, public edition system. The authorization server provides the clients credentials.

    At run time, the OAuth 2.0 client sends the following information to the token endpoint of the authorization server (1):

    • SAML Bearer Assertion (authorization grant)
    • Client ID
    • Client secret or client certificate

    The authorization server authenticates the OAuth 2.0 client with its credentials (client id and client secret or client certificate), validates the SAML Bearer assertion, and, if the SAML Bearer assertion is validated successfully, the authorization server issues an access token (2).

    The OAuth 2.0 client sends the access token to the resource server – in our case the SAP S/4HANA Cloud, public edition system – to access the protected resource (3). The protected resource validates the access token and, if valid, grants access.

    OAuth explanation

    The SAML Bearer Assertion is an XML document. It contains the information about the principal to be propagated. This information is stored in the <saml.Subject><saml:NameID> element of the XML document. It provides the actual ID and its format.

    To validate the SAML Bearer Assertion, the authorization server needs to trust the issuer of the SAML Bearer assertion – in our case, the system in the SAP BTP, ABAP Environment.

  • Step 2

    As an administrator in SAP S/4HANA Cloud, public edition system, you will derive the information of the endpoint and audience needed to set up the OAuth 2.0 communication.

    1. Open the SAP Fiori Launchpad of your SAP S/4HANA Cloud, public edition system

    2. Open the Communication Systems app and access the Own SAP Cloud System. You can filter for the Own SAP Cloud System via the Adapt Filters button.

      Own SAP Cloud System

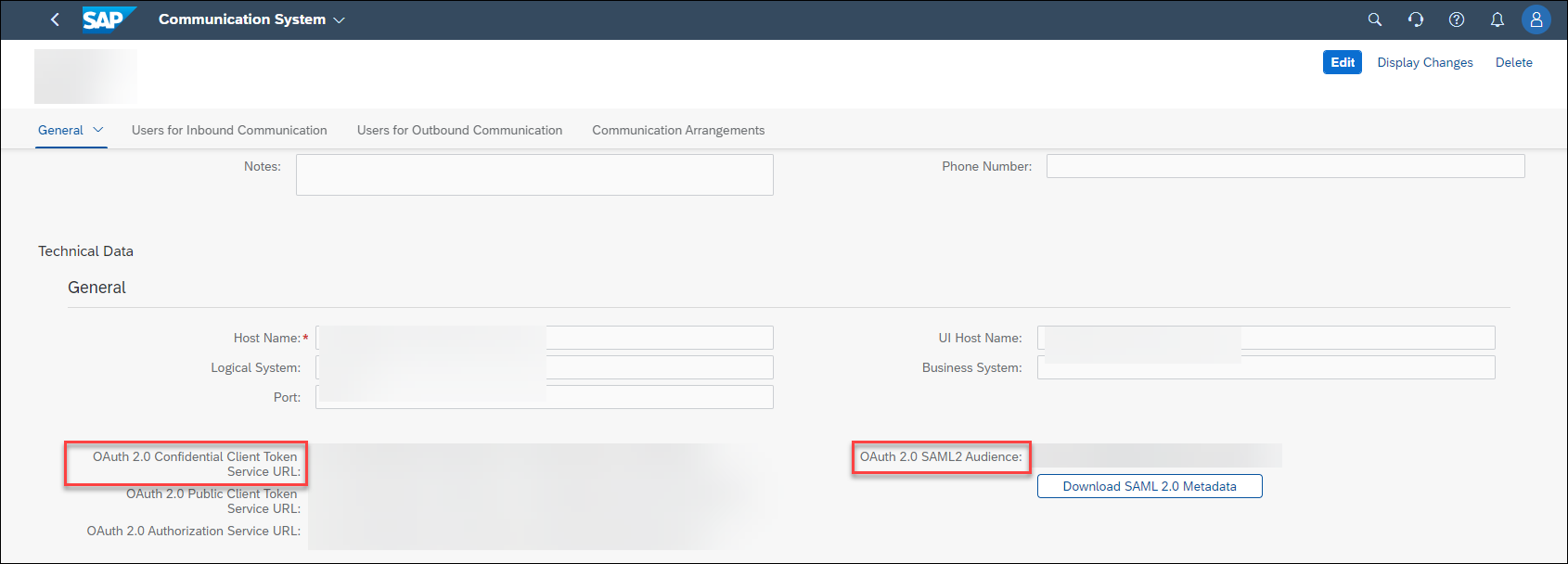

    3. In the General section copy the OAuth 2.0 SAML2 Audience and OAuth 2.0 Confidential Client Token Service URL. Store it for later use.

      Copy Credentials
  • Step 3

    As an administrator in SAP BTP ABAP environment, adjust your communication system to support the OAuth 2.0 authentication method for outbound connectivity.

    1. Open SAP Fiori Launchpad of your SAP BTP ABAP environment system.

    2. Open the Communication Systems app and access Communication System ZBPA2X_COM_SYS_S4H

    3. Choose Edit

    4. In section OAuth 2.0 Settings set

      1. Token Endpoint: OAuth 2.0 Confidential Client Token Service URL (derived in STEP 1)
      2. Audience: OAuth 2.0 SAML2 Audience (derived in STEP 1)

      Set Credentials

  • In section Users for Outbound Communication

    1. Choose +
    2. Choose Authentication Method OAuth 2.0
    3. Provide OAuth 2.0 Client ID: Username of communication user created in Step ‘Create a Communication User’ of the previous tutorial (ZBPA2X_COM_USER)
    4. Provide Client Secret: Password of communication user created in Step ‘Create a Communication User’ of the previous tutorial. Here you reuse the communication user in order to sign up to the OAuth 2.0 client.

    Provide User Credentials

  • Choose Create

  • Choose Save to save the communication system

  • Step 4

    As an administrator in SAP BTP ABAP environment, configure your communication arrangement to use the authentication OAuth 2.0 for outbound connectivity.

    1. In the SAP Fiori Launchpad, open the Communication Arrangements app

    2. Navigate to Communication Arrangement ZBPA2X_CA_OUTBOUND

    3. Choose Edit

    4. In Section Outbound Communication:

      1. Select newly maintained outbound communication user of type OAuth 2.0 for Outbound Communication

        Outbound Communication
        Outbound Communication 2

      2. Note down the SAML2 Issuer, make sure SAML2 Identifier is E-Mail

        Note SAML Issuer

    5. Choose Save to save the Communication Arrangement

  • Step 5

    As an administrator in SAP BTP ABAP environment, obtain a signing certificate for the system. This certificate will allow the SAP S/4HANA Cloud, public edition system to trust the SAP BTP ABAP environment system.

    1. Stay in communication arrangement ZBPA2X_CA_OUTBOUND

    2. Choose button Download > Download Signing Certificate

      Download Signing Certificate

    3. Note down where the file was saved, for later use

  • Step 6

    As an administrator in SAP S/4HANA Cloud, public edition, configure your communication system to trust the OAuth 2.0 Identity Provider of the SAP BTP, ABAP environment system using the previously obtained signing certificate. This will enable OAuth 2.0 authentication for the exposed remote service.

    1. Open the SAP Fiori Launchpad of the customizing tenant (100) of your SAP S/4HANA Cloud, public edition development system.

    2. Access the Communication Systems app and open communication system ZBPA2X_COM_SYS

    3. Choose Edit

    4. Enable OAuth2.0 Identity Provider section

      1. Provide OAuth 2.0 SAML Issuer: Noted down in STEP 4
      2. Choose Upload Signing Certificate button
      3. Upload the certificate obtained in STEP 5

        Upload Signing Certificate

    5. Choose Save to save the Communication System

    6. An additional User for Inbound Communication with Authentication Method OAuth 2.0 is created automatically

      Inbound Communication User
  • Step 7

    As an administrator in SAP S/4HANA Cloud, public edition, configure your communication arrangement to use the authentication method OAuth 2.0 for inbound connectivity.

    1. Open communication arrangement ZBPA2X_CA_INBOUND

    2. Choose button Edit

    3. In the Inbound Communication section select newly maintained inbound communication user of type OAuth 2.0 for Inbound Communication

      Set Inbound Communication User
      Set Inbound Communication User 2

    4. Choose Save to save the Communication Arrangement

    5. A new button appears: OAuth 2.0 Details, this will be needed in the next step

      Set Inbound Communication User 3
  • Step 8

    Now you must determine the business catalogs, which enable your S/4HANA Cloud business user for business partner creation. The determination is done as follows:

    1. In the communication arrangement Inbound Communication section, choose button OAuth 2.0 Details

    2. In the OAuth 2.0 Details Popup, mark API_BUSINESS_PARTNER_0001 OAuth 2.0 Scope ID

    3. Choose button Granted by Business Catalogs

      Granted by Business Catalogs

    4. In the OAuth 2.0 Details popup you can see the business catalogs, which enable your S/4HANA Cloud business user for business partner creation.

      Business Catalogs

      E.g. business catalog SAP_CMD_BC_BP_MAINT_PC is contained in business role BR_BUPA_MASTER_SPECIALIST. This business role is used in this tutorial to authorize the business user to create a business partner.

    5. Choose button Close

  • Step 9

    As a developer in SAP BTP, ABAP environment, you can now execute the console application.

    1. In ADT, open the project for your SAP BTP ABAP environment system

    2. Navigate to the Console Application ZBPA2X_CL_CLASSRUN

    3. If you have previously executed your code, change it to create a business partner with different properties

    4. Right click on the class and choose Run As > ABAP Application (Console)

    5. Note down the Business Partner number that is written to the Console for later use

      Run Class
  • Step 10

    You should now verify that the business partner was successfully created in your SAP S/4HANA Cloud, public edition system.

    1. Open the SAP Fiori Launchpad of your SAP S/4HANA Cloud, public edition system.

    2. Access the Manage Business Partner Master Data app

    3. Enter the created Business Partner number in the related field and press the Go button. Check data of the created business service.

      Check Business Partner Data

    4. Display column Created By via the settings button.

      Check Business Partner Data 2
      Check Business Partner Data 3

    5. Check the data of the created business partner. See that the user was created by the technical communication user, and not by your own business user

      Check Business Partner Data 3

    You have now verified that the integration of SAP BTP, ABAP environment and your SAP S/4HANA Cloud, public edition system, using the OAuth 2.0 SAML Bearer Assertion authentication flow, indeed works.

    You will see that the business partner was created by your business user in that system, and not by a technical communication user. Your identity is thus propagated from SAP BTP ABAP environment to the SAP S/4HANA Cloud, public edition system and used to consume the service. For this reason, it is necessary for your S/4HANA Cloud business user to be authorized for business partner creation, which is achieved by assigning business role BR_BUPA_MASTER_SPECIALIST to the user. Without the role assignment, the remote service call fails with an authorization error.

  • Step 11
