Develop Queries Based on Booking Supplement and Consume on SAP Analytics Cloud

Requires Customer/Partner License
Develop analytical queries based on booking supplements from ABAP system as data sources and consume them in the SAP Analytics Cloud to create analytical models, stories and multi-dimensional reports.
You will learn
  • How to create an analytical query based on booking supplement as CDS View Entities
  • How to connect an ABAP System to SAP Analytics Cloud

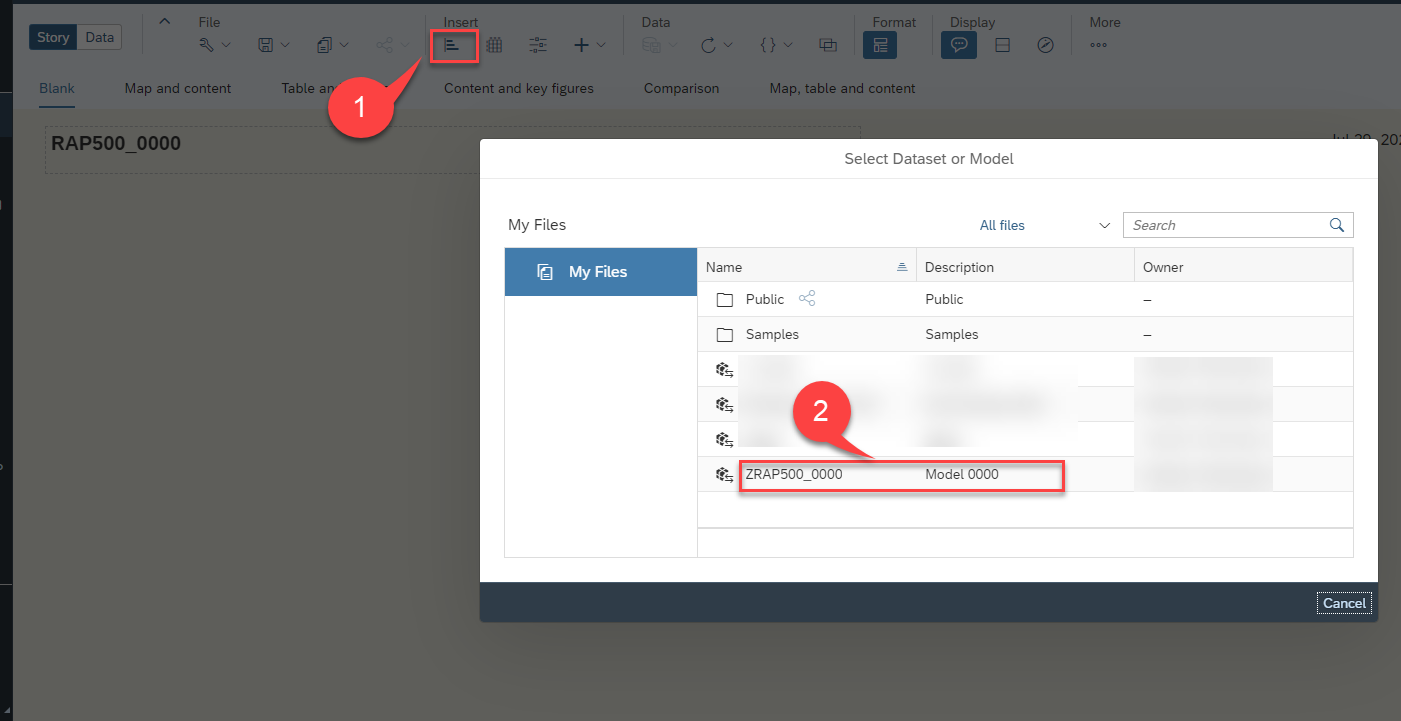

  • How to consume analytical queries on SAP Analytics Cloud by creating models and stories
niloofar-flothkoetterNiloofar FlothkoetterNovember 23, 2021
Created by
niloofar-flothkoetter
September 12, 2021
Contributors
niloofar-flothkoetter

Prerequisites

Always replace #### with your initials or group number.

  • Step 1

    The new RAP based InA service exposure enables the SAP Business Technology Platform ABAP Environment developers to develop analytical queries(based on ABAP-CDS analytical data models) and expose them via the InA (Information Access) service protocol. In this Tutorial you will create a complete Analytical Data Model for Booking data. This consists out of dimensions for Carrier, Customer, Connection and Agency data, as well as an interface CDS view for Booking data which acts as a data source for the cube and query.
    These analytical queries can be further consumed in the SAP Analytics cloud to create analytical models, stories, multi-dimensional reports and more.

    overview
  • Step 2

    As a first task you will start to import templates that you will use in this tutorial to create Analytical CDS views such as dimension views, cubes and queries.

    The templates already contain certain annotations that are mandatory for the above mentioned analytical CDS views. If values such as the name of a property have to be added this can then simply be done by using code completion.

    1. Click on the following link to display the file analytical_templates.xml. Templates

    2. Right-click on the browser window and save the content as an xml-file called analytical_templates.xml.

      file
    3. Open ADT. In the menu choose Window > Preferences.

      window
    4. In the Templates dialogue choose Import.

      import
    5. Select the XML file analytical_templates.xml that you have saved.

      upload

      The Import-Dialog only allows to select files having the extension .xml. When you have downloaded the file using a different file extension you have first to rename your file so that it gets the extension .xml.

    6. You will see that three new templates have been imported that you will use in the following tutorial.

      Press Apply and Close

      apply
  • Step 3

    Dimensions views are links to various master data, which are later used in reporting as further attributes (according to which different aggregations can be made) and thus make up the versatility of our Analytical Model.

    In the following you will create seven dimension views for Travel Agencies, Carrier, Customers, Connections, Airport, Booking and Supplements so that you can visualize our measures Quantity, Sales and Average Sales in relation to these dimensions.

    1. Open ADT and login to your ABAP System.
      If you do not have a package, create a new one.

    2. Right-click your package and choose New > Other ABAP Repository Object.

      new
    3. Choose Core Data Services > Data Definition and click Next.

      new data definition
    4. Enter the following values

      • Name: ZRAP500_I_Agency_####
      • Description: Dimension for Agencies
      • Referenced Object: /dmo/agency

      and click Next.

      By selecting a table or another CDS view as Referenced object the wizard will use this object as a data source for the new CDS view and it will automatically add all fields into the DDL source code and it will also create camel Case aliases if needed.

      data definition
    5. Choose a transport request and click Next.

      Do NOT press Finish, because otherwise the wizard will not provide us the option to choose a specific template but would choose the template that you have used the last time.

      transport
    6. In the Templates dialogue choose the Define a View Entity for a Dimension and press Finish. The Define a View Entity for a Dimension template is one of the new data definition templates that you have imported in the last step. This template contains certain annotations which will be explained below that are mandatory for dimension views.

      define view
  • Step 4
    1. Now you need to edit the dimension view. Here you can use code completion to add the values for the annotations

      @ObjectModel.representativeKey

      and

      @ObjectModel.text.element

      that are needed for our dimension view.

      view
    2. Click on representativeKey, delete the placeholder representativKey so that you get an empty string ’’ , press CTRL + Space and choose AgencyID.
      You define AgencyID as the representative key to be able to refer to it using @ObjectModel.foreignKey.association

      key
    3. Click on textElement, delete the placeholder string textElement, press CTRL + Space and choose Name.

      text

      You state that attribute Name contains the text element for a given AgencyId. With that, you can deliver texts in our analytical query using annotation '@AnalyticsDetails.query.display: #TEXT' on attribute AgencyId and it is not necessary to expose attribute name separately via the query to show the name of an agency.

    4. To make @ObjectModel.text.element: ['Name'] work, you need to annotate the attribute Name as being text via @Semantics.text: true

      true
    5. Build an association to I_Country to be able to retrieve associated texts (country names). Add this association in your code:

      ` association [1] to I_Country as _Country on Agency.country_code = _Country.Country `

      association

      Add as Agency to the define view entity line, to avoid any syntax error:

      define view entity ZRAP500_I_Agency_#### as select from /dmo/agency as Agency

    6. Define a foreignKey association via CountryCode (the representative key of I_Country) to be able to fetch and expose country information (ID and text) as AgencyCountry in the cube and in the query.

      key
    7. You expose the Country association to be able to access country information in the cube and query.

      country
    8. Remove these fields because they are too long for our analytics scenarios

      //   email_address as EmailAddress,

      //   web_address as WebAddress


    9. Change @AccessControl.authorizationCheck: from #CHECK to #NOT_REQUIRED.

    10. Save and activate the dimension.

      key
    11. Your final code should look like following:

      ZRAP500_I_AGENCY_####
      Copy
      @AccessControl.authorizationCheck: #NOT_REQUIRED
      @EndUserText.label: 'dimension for Agency'
      @Metadata.ignorePropagatedAnnotations: true

      @Analytics.dataCategory: #DIMENSION
      @Analytics.internalName: #LOCAL
      @ObjectModel.representativeKey: 'AgencyID'

      define view entity ZRAP500_I_Agency_#### as select from /dmo/agency as Agency
      association [1] to I_Country as _Country on Agency.country_code = _Country.Country
      {
      @ObjectModel.text.element: ['Name']
      key agency_id           as AgencyId,
          @Semantics.text: true
          name                as Name,
          street              as Street,
          postal_code         as PostalCode,
          city                as City,

          @ObjectModel.foreignKey.association: '_Country'
          country_code        as CountryCode,
          phone_number        as PhoneNumber,

          /*Associations*/
          _Country
      }

  • Step 5
    1. Right click Data Definition > New Data Definition. Enter following values and press Next:

      • Name: ZRAP500_I_Airport_####
      • Description: Dimension for Airport
      • Referenced Object: /dmo/airport
      airport
    2. Select a transport request and press Next.

    3. Select again the template Define a View Entity for Dimension and press Finish.
    4. Choose the property AirportId for the annotation @ObjectModel.representativeKey and choose Name for the annotation @ObjectModel.text.element.
      annotation
    5. The same mechanisms are implemented as with dimension Agency, i.e.,

      • modeling a dimension with a representative key
      • denoting and exposing a text element Name
      • modeling and exposing an association to I_Country
    6. Change @AccessControl.authorizationCheck: from #CHECK to #NOT_REQUIRED.

    7. Save and activate the dimension.

      key
    8. Your final code should look like following:

      ZRAP500_I_Airport_####
      Copy
      @AbapCatalog.viewEnhancementCategory: [#NONE]
      @AccessControl.authorizationCheck: #NOT_REQUIRED
      @EndUserText.label: 'Airport Dimension'
      @Metadata.ignorePropagatedAnnotations: true

      @Analytics.dataCategory: #DIMENSION
      @ObjectModel.representativeKey: 'AirportId'

      define view entity ZCM_I_Airport
        as select from /dmo/airport as Airport

        association [1] to I_Country as _Country on Airport.country = _Country.Country

      {
      @ObjectModel.text.element: ['Name']
      key airport_id as AirportId,
          @Semantics.text: true
          name as Name,
          city as City,

          @ObjectModel.foreignKey.association: '_Country'
          country as Country,

          /*Associations*/
          _Country
      }

  • Step 6
    1. Right click Data Definition > New Data Definition. Enter following values and press Next:

      • Name: ZRAP500_I_Carrier_####
      • Description: Dimension for Carrier
      • Referenced Object: /dmo/carrier
      airport
    2. Select a transport request and press Next.

    3. Select again the template Define a View Entity for Dimension and press Finish.
    4. Choose the property CarrierId for the annotation @ObjectModel.representativeKey and choose Name for the annotation @ObjectModel.text.element.
      annotation
    5. The same mechanisms are implemented as with dimension Agency and Airport except that we do not expose any other association, i.e.,

      • modeling a dimension with a representative key
      • denoting and exposing a text element Name
    6. Change @AccessControl.authorizationCheck: from #CHECK to #NOT_REQUIRED.

    7. Save and activate the dimension.

      key
    8. Your final code should look like following:

      ZRAP500_I_Carrier_####
      Copy
      @AbapCatalog.viewEnhancementCategory: [#NONE]
      @AccessControl.authorizationCheck: #NOT_REQUIRED
      @EndUserText.label: 'Carrier View - CDS View Entity Model'
      @Metadata.ignorePropagatedAnnotations: true

      @Analytics.dataCategory: #DIMENSION
      @ObjectModel.representativeKey: 'CarrierId'

      define view entity ZCM_I_Carrier
        as select from /dmo/carrier as Carrier
      {
      @ObjectModel.text.element: ['name']
      key carrier_id as CarrierId,
          @Semantics.text: true
          name       as Name
      }

  • Step 7
    1. Right click Data Definition > New Data Definition. Enter following values and press Next:

      • Name: ZRAP500_I_Booking_####
      • Description: Dimension for Booking
      • Referenced Object: /dmo/booking
      airport
    2. Select a transport request and press Next.

    3. Select again the template Define a View Entity for Dimension and press Finish.
    4. Choose the property BookingId for the annotation @ObjectModel.representativeKey.
    5. You need to define and expose a foreign Key for TravelId because analytics needs a foreign key relationship on the key attribute TravelId.
      • Define the association association [1..1] to /DMO/I_Travel_U as _Travel on $projection.TravelId = _Travel.TravelID.
      • Remove the @ObjectModel.text.element annotation and add the annotation @ObjectModel.foreignKey.association: _Travel on the top of travel_id key.
    6. Although /dmo/booking contains more information, we just expose BookingDate and FlightDate here. Other interesting attributes (Customer, Carrier, Connection) are exposed via their own dimension views. The other potential measure attribute FlightPrice is not used in this tutorial (because we analyze Booking Supplements).
      Remove this lines of code:


      // customer_id as CustomerId, // carrier_id as CarrierId, // connection_id as ConnectionId, // flight_price as FlightPrice, // currency_code as CurrencyCode,
      remove
    7. Add annotations to BookingDate and FlightDate:

      @EndUserText.label: 'Booking Date'
      and
      @EndUserText.label: 'Flight Date'

    8. Change @AccessControl.authorizationCheck: from #CHECK to #NOT_REQUIRED.

    9. Save and activate the dimension.

      key
    10. Your final code should look like following:

      ZRAP500_I_BOOKING_####
      Copy
      @AbapCatalog.viewEnhancementCategory: [#NONE]
      @AccessControl.authorizationCheck: #NOT_REQUIRED
      @EndUserText.label: 'Booking View - CDS View Entity Model'
      @Metadata.ignorePropagatedAnnotations: true

      @Analytics.dataCategory: #DIMENSION
      @ObjectModel.representativeKey: 'BookingId'

      define view entity ZCM_I_Booking
        as select from /dmo/booking as Booking

        association [1..1] to /DMO/I_Travel_U as _Travel on $projection.TravelId = _Travel.TravelID

      {
      @ObjectModel.foreignKey.association: '_Travel'
      key travel_id     as TravelId,
      key booking_id    as BookingId,

          @EndUserText.label: 'Booking Date'
          booking_date  as BookingDate,

          @EndUserText.label: 'Flight Date'
          flight_date   as FlightDate,

          /* Associations */
          _Travel
      }

  • Step 8
    1. Right click on the folder Data Definitions > New > Data Definition.
    2. Enter the following values and press Next.
      • Name: ZRAP500_I_Connection_####
      • Description: Dimension for Connections
      • Referenced Object: /dmo/connection
      connection
    3. Select a transport request and press Next.

    4. Select again the template Define a View Entity for Dimension and press Finish.
    5. Choose the property connectionId for the annotation @ObjectModel.representativeKey.
    6. Add three associations for _Carrier, _DepartureAirport and _DestinationAirport:
      association [1] to ZRAP500_I_Carrier_#### as _Carrier on $projection.CarrierId = _Carrier.CarrierId
      association [1..1] to ZRAP500_I_Airport_####  as _DepartureAirport   on $projection.DepartureAirportId   = _DepartureAirport.AirportId
      association [1..1] to ZRAP500_I_Airport_####  as _DestinationAirport on $projection.DestinationAirportId = _DestinationAirport.AirportId


      and expose them in the field list by adding _Carrier, _DepartureAirport and _DestinationAirport

      association

      The Connection dimension shall expose attributes around departure and destination locations. It therefore references the same dimension Airport twice, as Departure Airport and as Destination Airport.

    7. Add the following annotation to the key field CarrierId

      @ObjectModel.foreignKey.association: '_Carrier'

    8. Add two annotations @EndUserText.label: 'Departure Airport' and @ObjectModel.foreignKey.association: '_DepartureAirport' to the field airport_from_id as AirportFromId to referring to the AirportId of the departure airport to expose the ID and text of the airport. You can change AirportFromId to DepartureAirportId.

    9. Add two annotations @EndUserText.label: 'Destination Airport' and @ObjectModel.foreignKey.association: '_DestinationAirport' to the field airport_to_id as AirportToId to referring to the AirportId of the destination airport to expose the ID and text of the airport. You can change AirportToId to DestinationAirportId.

    10. Add @EndUserText.label: annotations for DepartureTime and ArrivalTime.

    11. Remove these two elements because we do not need them:

          connection.distance as Distance,
          connection.distance_unit as DistanceUnit

      association
    12. Add DepartureCity, DepartureCountry, DestinationCity and DestinationCountry with @EndUserText.label: annotation and expose them in the field list by adding _DepartureAirport._Country as _DepartureCountry and _DestinationAirport._Country as _DestinationCountry

    13. Change @AccessControl.authorizationCheck: from #CHECK to #NOT_REQUIRED.

    14. Save and activate the dimension view.
    15. Your final code should look like the following:

      ZRAP500_I_Connection_####
      Copy

      @AccessControl.authorizationCheck: #NOT_REQUIRED @EndUserText.label: 'Dimension for Connections' @Metadata.ignorePropagatedAnnotations: true @Analytics.dataCategory: #DIMENSION @Analytics.internalName: #LOCAL @ObjectModel.representativeKey: 'ConnectionId' define view entity ZRAP500_I_Connection_#### as select from /dmo/connection as connection association [1] to ZRAP500_I_Carrier_#### as _Carrier on $projection.CarrierId = _Carrier.CarrierId association [1..1] to ZRAP500_I_Airport_#### as _DepartureAirport on $projection.DepartureAirportId = _DepartureAirport.AirportId association [1..1] to ZRAP500_I_Airport_#### as _DestinationAirport on $projection.DestinationAirportId = _DestinationAirport.AirportId { @ObjectModel.foreignKey.association: '_Carrier' key connection.carrier_id as CarrierId, key connection.connection_id as ConnectionId, @EndUserText.label: 'Departure Airport' @ObjectModel.foreignKey.association: '_DepartureAirport' connection.airport_from_id as DepartureAirportId, @EndUserText.label: 'Departure City' _DepartureAirport.City as DepartureCity, @EndUserText.label: 'Departure Country' @ObjectModel.foreignKey.association: '_DepartureCountry' _DepartureAirport.Country as DepartureCountry, @EndUserText.label: 'Destination Airport' @ObjectModel.foreignKey.association: '_DestinationAirport' connection.airport_to_id as DestinationAirportId, @EndUserText.label: 'Destination City' _DestinationAirport.City as DestinationCity, @EndUserText.label: 'Destination Country' _DestinationAirport.Country as DestinationCountry, @EndUserText.label: 'Departure Time' connection.departure_time as DepartureTime, @EndUserText.label: 'Arrival Time' connection.arrival_time as ArrivalTime, /*Associations*/ _Carrier, _DepartureAirport, _DepartureAirport._Country as _DepartureCountry, _DestinationAirport, _DestinationAirport._Country as _DestinationCountry }
  • Step 9
    1. Right click on the folder Data Definitions > New > Data Definition.
    2. Enter the following values and press Next.
      • Name: ZRAP500_I_Customer_####
      • Description: Dimension for Customer
      • Referenced Object: /dmo/customers
      customer
    3. Select a transport request and press Next.
    4. Select again the template Define a View Entity for Dimension and press Finish.
    5. Choose the property CustomerId for the annotation @ObjectModel.representativeKey.
    6. Remove all elements and insert them again with pressing CTRL + Space > Insert All Elements. Because you have used a select from /dmo/customer as Customer and your elements will be inserted with Customer.
    7. Add an associations for _Country:


      association [1] to I_Country as _Country on Customer.country_code = _Country.Country

      and expose it in the field list by adding _Country.

    8. Choose CustomerName for the annotation @ObjectModel.text.element and define CustomerName with first name and last name:

      customer name
    9. Add annotation the following annotation to the CountryCode:

        @ObjectModel.foreignKey.association: '_Country'

    10. Remove all these elements because they are too much for your analytics case:

        Customer.title as Title,
        Customer.email_address as EmailAddress,
        Customer.createdby as Createdby,
        Customer.createdat as Createdat,
        Customer.lastchangedby as Lastchangedby,
        Customer.lastchangedat as Lastchangedat,

    11. Change @AccessControl.authorizationCheck: from #CHECK to #NOT_REQUIRED.

    12. Save and activate the dimension view.
    13. Your final code should look like the following:

      ZRAP500_I_Customer_####
      Copy
      @AccessControl.authorizationCheck: #NOT_REQUIRED
      @EndUserText.label: 'Dimension for Customer'
      @Metadata.ignorePropagatedAnnotations: true

      @Analytics.dataCategory: #DIMENSION
      @Analytics.internalName: #LOCAL
      @ObjectModel.representativeKey: 'CustomerId'

      define view entity ZRAP500_I_Customer_#### as select from /dmo/customer as Customer
      association [1] to I_Country as _Country on Customer.country_code = _Country.Country
      {
          @ObjectModel.text.element: ['CustomerName']
          key Customer.customer_id as CustomerId,
          Customer.first_name as FirstName,
          Customer.last_name as LastName,

          @Semantics.text: true
          concat_with_space(first_name, last_name, 1) as CustomerName,
          Customer.street as Street,
          Customer.postal_code as PostalCode,
          Customer.city as City,

          @ObjectModel.foreignKey.association: '_Country'
          Customer.country_code as CountryCode,
          Customer.phone_number as PhoneNumber,

          /*Associations*/
          _Country

      }

  • Step 10
    1. Right click on the folder Data Definitions > New > Data Definition.
    2. Enter the following values and press Next.
      • Name: ZRAP500_I_Supplement_####
      • Description: Dimension for Supplement
      • Referenced Object: /dmo/supplement
      supplement
    3. Select a transport request and press Next.

    4. Select again the template Define a View Entity for Dimension and press Finish.
    5. Choose the property SupplementId for the annotation @ObjectModel.representativeKey.
    6. Add an associations for _SupplText:


      association [1..*] to ZRAP500_I_SUPPTEXT_#### as _SupplText on $projection.SupplementId = _SupplText.SupplementId

      and expose it in the field list by adding _SupplText.

    7. Choose _SupplText for the annotation @ObjectModel.text.association.
    8. Remove price and currency elements.
    9. Change @AccessControl.authorizationCheck: from #CHECK to #NOT_REQUIRED.
    10. Remove all these elements because they are too much for your analytics case:
      supplement_category as SupplementCategory,
      local_created_by as LocalCreatedBy,
      local_created_at as LocalCreatedAt,
      local_last_changed_by as LocalLastChangedBy,
      local_last_changed_at as LocalLastChangedAt,
      last_changed_at as LastChangedAt,


    11. Change @AccessControl.authorizationCheck: from #CHECK to #NOT_REQUIRED.

    12. Save and activate the dimension view. You will have an error that SupplementText is not exist, you need to create it in the next step.
    13. Your final code should look like the following:

      ZRAP500_I_Supplement_####
      Copy
      @AccessControl.authorizationCheck: #NOT_REQUIRED
      @EndUserText.label: 'Dimension for Supplement'
      @Metadata.ignorePropagatedAnnotations: true

      @Analytics.dataCategory: #DIMENSION
      @Analytics.internalName: #LOCAL
      @ObjectModel.representativeKey: 'SupplementId'

      define view entity ZRAP500_I_Supplement_#### as select from /dmo/supplement

      association [1..*] to ZRAP500_I_SUPPTEXT_#### as _SupplText on $projection.SupplementId = _SupplText.SupplementId

       {
          @ObjectModel.text.association: '_SupplText'
          key supplement_id as SupplementId,

            /* Associations */
          _SupplText
      }

  • Step 11
    1. Right click on the folder Data Definitions > New > Data Definition.
    2. Enter the following values and press Next.
      • Name: ZRAP500_I_SuppText_####
      • Description: Supplement Text view
      • Referenced Object: /dmo/suppl_text
      supplement text
    3. Select a transport request and press Next.

    4. Select the template Define View Entity and press Finish.
      view entity
    5. Add two annotations for data category and representative key:

        @ObjectModel.dataCategory: #TEXT
        @ObjectModel.representativeKey: 'SupplementId'

    6. Add another two annotations to LanguageCode and Description:


      @Semantics.language:true
      @Semantics.text:true

    7. Change @AccessControl.authorizationCheck: from #CHECK to #NOT_REQUIRED

    8. Save and activate the dimension view.

    9. Do not forget to activate your ZRAP500_I_Supplement_#### dimension to solve the error in the last step.

    10. Your final code should look like the following:

      ZRAP500_I_SuppText_####
      Copy
      @AbapCatalog.viewEnhancementCategory: [#NONE]
      @AccessControl.authorizationCheck: #NOT_REQUIRED
      @EndUserText.label: 'Supplement Text view'
      @Metadata.ignorePropagatedAnnotations: true
      @ObjectModel.usageType:{
          serviceQuality: #X,
          sizeCategory: #S,
          dataClass: #MIXED
      }

      @ObjectModel.dataCategory: #TEXT
      @ObjectModel.representativeKey: 'SupplementId'

      define view entity ZRAP500_I_SUPPTEXT_#### as select from /dmo/suppl_text as SupplText {

          key supplement_id as SupplementId,

          @Semantics.language:true
          key language_code as LanguageCode,

          @Semantics.text:true
          description as Description
      }

  • Step 12

    You need to create a helper interface view to expose the necessary elements from /dmo/book_suppl as well as from associated Travel and Booking views. The cube is based on this view.

    1. Right click on the folder Data Definitions > New > Data Definition.
    2. Enter the following values and press Next.
      • Name: ZRAP500_I_BookingSupplmnt_####
      • Description: Booking Supplement
      • Referenced Object: /dmo/book_suppl
      booking supplement
    3. Select a transport request and press Next.

    4. Select the template Define View Entity and press Finish.
    5. Define associations to retrieve CustomerId, AgencyId (Travel) and CarrierId, ConnectionId (Booking) information.

      Add two annotations:

      association [1..1] to /dmo/travel     as _Travel     on  $projection.TravelId     = _Travel.travel_id
      association [1..1] to /dmo/booking    as _Booking    on  $projection.TravelId     = _Booking.travel_id
                                                          and $projection.BookingId    = _Booking.booking_id

    6. Define the sales per booked supplement based on the price of the supplement (with currency code annotation).

      Add annotation @Semantics.amount.currencyCode: to the currencyCode field.

      Currency conversion will be defined in the query.

    7. Change @AccessControl.authorizationCheck: from #CHECK to #NOT_REQUIRED

    8. Save and activate the dimension view.

    9. Your final code should look like the following:

      ZRAP500_I_BookingSupplmnt_####
      Copy
      @AbapCatalog.viewEnhancementCategory: [#NONE]
      @AccessControl.authorizationCheck: #NOT_REQUIRED
      @EndUserText.label: 'Booking Supplement'
      @Metadata.ignorePropagatedAnnotations: true
      @ObjectModel.usageType:{
        serviceQuality: #X,
        sizeCategory: #S,
        dataClass: #MIXED
      }

      @ObjectModel.representativeKey: 'BookingSupplementId'

      define view entity ZRAP500_I_BookingSupplmnt_####

        as select from /dmo/book_suppl as BSupplement

        association [1..1] to /dmo/travel     as _Travel     on  $projection.TravelId     = _Travel.travel_id
        association [1..1] to /dmo/booking    as _Booking    on  $projection.TravelId     = _Booking.travel_id
                                                             and $projection.BookingId    = _Booking.booking_id
      {
      key travel_id             as TravelId,
      key booking_id            as BookingId,
      key booking_supplement_id as BookingSupplementId,

          supplement_id as SupplementId,

          _Travel.customer_id    as CustomerId,
          _Travel.agency_id      as AgencyId,
          _Booking.carrier_id    as CarrierId,
          _Booking.connection_id as ConnectionId,

          @Semantics.amount.currencyCode: 'CurrencyCode'
          price as Sales,
          currency_code as CurrencyCode,

         /* Associations */
         _Travel,
         _Booking
      }

  • Step 13

    The Cube is the analytical interface view that is ultimately used in the query and holds the model together. In addition to the facts and the measurable key figures (if necessary also calculations), it contains references to the dimensions.

    1. Right click on the folder Data Definitions > New > Data Definition.
    2. Enter the following values and press Next.
      • Name: ZRAP500_I_SupplCube_####
      • Description: Booking Supplement Cube
      • Referenced Object: ZRAP500_I_BookingSupplmnt_#### (your booking supplement interface)
      cube
    3. Select a transport request and press Next.

    4. Select the template Define a View Entity for cube and press Finish.
      cube view
    5. Your created booking supplement interface is implemented in this cube, add as BSupplement in this line:

        define view entity ZRAP500_I_SuppCube_#### as select from ZRAP500_I_BookingSupplmnt_#### as BSupplenment

    6. You can separate keys, dimensions and measures.

      separate
    7. Add the following associations

      associations
      Copy

      association [1..1] to ZRAP500_I_Supplement_#### as _Supplement on $projection.SupplementId = _Supplement.SupplementId association [1..1] to ZRAP500_I_Customer_#### as _Customer on $projection.CustomerId = _Customer.CustomerId association [1..1] to ZRAP500_I_Agency_#### as _Agency on $projection.AgencyId = _Agency.AgencyId association [1..1] to ZRAP500_I_Booking_#### as _Booking on $projection.BookingId = _Booking.BookingId and $projection.TravelId = _Booking.TravelId association [1..1] to ZRAP500_I_Connection_#### as _Connection on $projection.CarrierId = _Connection.CarrierId and $projection.ConnectionId = _Connection.ConnectionId association [1..1] to ZRAP500_I_Carrier_#### as _Carrier on $projection.CarrierId = _Carrier.CarrierId

      you also need to add the following entries to the field list


      _Agency,
      _Booking,
      _Supplement,
      _Customer,
      _Connection,
      _Carrier

      association
    8. In the created cube you define foreignKey associations via _Supplement, _Customer, _Agency, _AgencyCountry, _Carrier and _Connection to be able to fetch and expose information in the cube and in the query. And you need to provide an end user text label.

      • Add the annotation @ObjectModel.foreignKey.association: '_Supplement' and @EndUserText.label: 'Product' to the field SupplementId
      • Add the annotation @ObjectModel.foreignKey.association: '_Customer' and @EndUserText.label: 'Customer' to the field CustomerId
      • Add the annotation @ObjectModel.foreignKey.association: '_Agency' and @EndUserText.label: 'Agency' to the field AgencyID
      • Add the annotation @ObjectModel.foreignKey.association: '_Carrier' and @EndUserText.label: 'Carrier' to the field CarrierId
      • Add the annotation @ObjectModel.foreignKey.association: '_Connection' to the field ConnectionId
      annotations
    9. Now you need to expose other attributes like booking date, flight date, departure and destination Country, departure and destination Airport, etc. Add these attributes with all needed annotations:

      @EndUserText.label: 'AgencyCountry'
      @ObjectModel.foreignKey.association: '_AgencyCountry'
      _Agency.CountryCode as AgencyCountry,

      @EndUserText.label: 'Booking Date'
      _Booking.BookingDate as BookingDate,

      @EndUserText.label: 'Flight Date'
      _Booking.FlightDate  as FlightDate,

      @EndUserText.label: 'Departure Airport'
      @ObjectModel.foreignKey.association: '_DepartureAirport'
      _Connection.DepartureAirportId as DepartureAirport,

      @EndUserText.label: 'Departure Country'
      @ObjectModel.foreignKey.association: '_DepartureCountry'
      _Connection.DepartureCountry as DepartureCountry,

      @EndUserText.label: 'Destination Airport'
      @ObjectModel.foreignKey.association: '_DestinationAirport'
      _Connection.DestinationAirportId as DestinationAirport,

      @EndUserText.label: 'Destination Country'
      @ObjectModel.foreignKey.association: '_DestinationCountry'
      _Connection.DestinationCountry as DestinationCountry,



      and expose them all in the field list by adding them in the field list:

         _Agency._Country as _AgencyCountry,
         _Connection._DepartureAirport as _DepartureAirport,
         _Connection._DepartureCountry as _DepartureCountry,
         _Connection._DestinationAirport as _DestinationAirport,
         _Connection._DestinationCountry as _DestinationCountry,

      attributes
    10. You need to add some annotations to your measures:

         @Semantics.amount.currencyCode: 'CurrencyCode'
         @Aggregation.default: #SUM
         Sales,
         CurrencyCode,

         @EndUserText.label: 'Quantity'
         @Aggregation.default: #SUM
         cast ( 1 as abap.int8 ) as Quantity,

    11. Change @AccessControl.authorizationCheck: from #CHECK to #NOT_REQUIRED
    12. Save and activate the dimension view.

    13. Your final code should look like the following:

      ZRAP500_I_SupplCube_####
      Copy

      @AccessControl.authorizationCheck: #NOT_REQUIRED @EndUserText.label: 'Booking Supplement cube' @Metadata.ignorePropagatedAnnotations: true @Analytics.dataCategory: #CUBE @Analytics.internalName: #LOCAL define view entity ZRAP500_I_SupplCube_0000 as select from ZRAP500_I_BookingSupplmnt_0000 as BSupplenment association [1..1] to ZRAP500_I_Supplement_0000 as _Supplement on $projection.SupplementId = _Supplement.SupplementId association [1..1] to ZRAP500_I_Customer_0000 as _Customer on $projection.CustomerId = _Customer.CustomerId association [1..1] to ZRAP500_I_Agency_0000 as _Agency on $projection.AgencyId = _Agency.AgencyId association [1..1] to ZRAP500_I_Booking_0000 as _Booking on $projection.BookingId = _Booking.BookingId and $projection.TravelId = _Booking.TravelId association [1..1] to ZRAP500_I_Connection_0000 as _Connection on $projection.CarrierId = _Connection.CarrierId and $projection.ConnectionId = _Connection.ConnectionId association [1..1] to ZRAP500_I_Carrier_0000 as _Carrier on $projection.CarrierId = _Carrier.CarrierId { /* keys */ key TravelId, key BookingId, key BookingSupplementId, /* dimensions */ @EndUserText.label: 'Product' @ObjectModel.foreignKey.association: '_Supplement' SupplementId, @EndUserText.label: 'Customer' @ObjectModel.foreignKey.association: '_Customer' CustomerId, @EndUserText.label: 'Agency' @ObjectModel.foreignKey.association: '_Agency' AgencyId, @EndUserText.label: 'AgencyCountry' @ObjectModel.foreignKey.association: '_AgencyCountry' _Agency.CountryCode as AgencyCountry, @EndUserText.label: 'Carrier' @ObjectModel.foreignKey.association: '_Carrier' CarrierId, @ObjectModel.foreignKey.association: '_Connection' ConnectionId, @EndUserText.label: 'Booking Date' _Booking.BookingDate as BookingDate, @EndUserText.label: 'Flight Date' _Booking.FlightDate as FlightDate, @EndUserText.label: 'Departure Airport' @ObjectModel.foreignKey.association: '_DepartureAirport' _Connection.DepartureAirportId as DepartureAirport, @EndUserText.label: 'Departure Country' @ObjectModel.foreignKey.association: '_DepartureCountry' _Connection.DepartureCountry as DepartureCountry, @EndUserText.label: 'Destination Airport' @ObjectModel.foreignKey.association: '_DestinationAirport' _Connection.DestinationAirportId as DestinationAirport, @EndUserText.label: 'Destination Country' @ObjectModel.foreignKey.association: '_DestinationCountry' _Connection.DestinationCountry as DestinationCountry, /* Measures */ @Semantics.amount.currencyCode: 'CurrencyCode' @Aggregation.default: #SUM Sales, CurrencyCode, @EndUserText.label: 'Quantity' @Aggregation.default: #SUM cast ( 1 as abap.int8 ) as Quantity, /* Associations */ _Agency, _Agency._Country as _AgencyCountry, _Booking, _Supplement, _Customer, _Travel, _Connection, _Connection._DepartureAirport as _DepartureAirport, _Connection._DepartureCountry as _DepartureCountry, _Connection._DestinationAirport as _DestinationAirport, _Connection._DestinationCountry as _DestinationCountry, _Carrier }
  • Step 14

    Since a query belongs to the projection layer (formerly known as consumption layer) it must have a C in its name according to the naming convention used in the Virtual Data Model (VDM) used in SAP S/4HANA. To create a query, there is a mandatory header annotation: @Analytics.query: true

    Again you can use a template that you have imported at the beginning of this tutorial.

    1. Right click on the folder Data Definitions > New > Data Definition.
    2. Enter the following values and press Next.
      • Name: ZRAP500_C_SuppQuery_####
      • Description: Booking Supplement Query
      • Referenced Object: ZRAP500_I_SuppCube_#### (your created cube)
      query
    3. Select a transport request and press Next.

    4. Select the template Define a View Entity for Query and press Finish.
      query view
    5. Change @AccessControl.authorizationCheck: from #CHECK to #PRIVILEGED_ONLY. It only allows privileged access to this query to avoid that it is queried from regular ABAP programs. Remove all associations.

      If using regular ABAP selects, the analytical processor to execute the query is not used, which might lead to unwanted / wrong results.

      The DCL0 (see below) blocks all unprivileged access (SQL queries return 0 rows)

    6. Define a parameter to control the currency conversion

      access
    7. Expose dimension attributes:

      • Annotate them to appear on COLUMNS in tabular views of the query with @AnalyticsDetails.query.axis: #COLUMNS
      • Annotate them to appear either as KEY (Supplement) or TEXT (all others) on views of the query with @AnalyticsDetails.query.display: #KEY or @AnalyticsDetails.query.display: #TEXT
      expose
    8. Define a currency conversion with a fixed reference date (‘20200101’) based on the Sales attribute.

       @EndUserText.label: 'Sales'
       @AnalyticsDetails.query.axis: #ROWS
       @Semantics.amount.currencyCode: 'DisplayCurrency'
       @Aggregation.default: #SUM // requires @Aggregation.default: #FORMULA on 2105 systems
       currency_conversion (
         amount => Sales,
         source_currency => CurrencyCode,
         target_currency => $parameters.P_DisplayCurrency,
         exchange_rate_date => cast ('20200101' as abap.dats),
         exchange_rate_type => 'M'
       ) as SalesInDispCrcy,


      Currency conversion could also be defined on the cube level, however, then it would be applied to all selected rows instead of the final (aggregated) result, usually having lower performance.

    9. Use the view parameter to define the Display Currency attribute with a default value ‘USD’ (US Dollar)

        @Consumption.defaultValue: 'USD'
        @EndUserText.label: 'Display Currency'
        $parameters.P_DisplayCurrency as DisplayCurrency,

    10. expose the quantity measure.
        @AnalyticsDetails.query.axis: #ROWS
        @Aggregation.default: #SUM
        Quantity,

    11. define a calculated measure Average Sales using a formula

      The expression 1 as AverageSales is required to create an attribute which carries the result of the formula (the number ‘1’ has no semantics).

        @EndUserText.label: 'Average Sales'
        @AnalyticsDetails.query.axis: #ROWS
        @Aggregation.default: #FORMULA
        @AnalyticsDetails.query.formula: '$projection.SalesInDispCrcy / $projection.Quantity'
        1 as AverageSales

    12. Save and activate the dimension view.
    13. Your final code should look like the following:

      ZRAP500_C_SuppQuery_####
      Copy

      @AccessControl.authorizationCheck: #PRIVILEGED_ONLY @EndUserText.label: 'Booking Supplement Query' @Analytics.query: true define view entity ZRAP500_C_SuppQuery_0000 with parameters P_DisplayCurrency: abap.cuky as select from ZRAP500_I_SuppCube_0000 { /* keys */ key TravelId, key BookingId, key BookingSupplementId, @AnalyticsDetails.query.axis: #COLUMNS @AnalyticsDetails.query.display: #KEY SupplementId as Supplement, @AnalyticsDetails.query.axis: #COLUMNS @AnalyticsDetails.query.display: #TEXT CustomerId as Customer, @AnalyticsDetails.query.axis: #COLUMNS @AnalyticsDetails.query.sortDirection: #ASC @AnalyticsDetails.query.display: #TEXT AgencyId as Agency, @AnalyticsDetails.query.axis: #COLUMNS @AnalyticsDetails.query.display: #TEXT AgencyCountry, @AnalyticsDetails.query.axis: #COLUMNS @AnalyticsDetails.query.display: #TEXT CarrierId as Carrier, @AnalyticsDetails.query.axis: #COLUMNS BookingDate, @AnalyticsDetails.query.axis: #COLUMNS FlightDate, @AnalyticsDetails.query.axis: #COLUMNS @AnalyticsDetails.query.display: #TEXT DepartureAirport, @AnalyticsDetails.query.axis: #COLUMNS @AnalyticsDetails.query.display: #TEXT DepartureCountry, @AnalyticsDetails.query.axis: #COLUMNS @AnalyticsDetails.query.display: #TEXT DestinationAirport, @AnalyticsDetails.query.axis: #COLUMNS @AnalyticsDetails.query.display: #TEXT DestinationCountry, @EndUserText.label: 'Sales' @AnalyticsDetails.query.axis: #ROWS @Semantics.amount.currencyCode: 'DisplayCurrency' @Aggregation.default: #SUM // requires @Aggregation.default: #FORMULA on 2105 systems currency_conversion ( amount => Sales, source_currency => CurrencyCode, target_currency => $parameters.P_DisplayCurrency, exchange_rate_date => cast ('20200101' as abap.dats), exchange_rate_type => 'M' ) as SalesInDispCrcy, @Consumption.defaultValue: 'USD' @EndUserText.label: 'Display Currency' $parameters.P_DisplayCurrency as DisplayCurrency, @AnalyticsDetails.query.axis: #ROWS @Aggregation.default: #SUM Quantity, @EndUserText.label: 'Average Sales' @AnalyticsDetails.query.axis: #ROWS @Aggregation.default: #FORMULA @AnalyticsDetails.query.formula: '$projection.SalesInDispCrcy / $projection.Quantity' 1 as AverageSales }
  • Step 15

    Similar to the SAP Fiori Elements preview which is offered for OData V2 UI and OData V4 UI service bindings there is now an Analytical Data Preview available. This can be used by the ABAP developer to test the implementation of an Analytical Query since the preview uses the InA protocol.

    Now that you have created the query it is possible to use a data preview to test our implementation.

    1. Navigate to the folder Data Definition

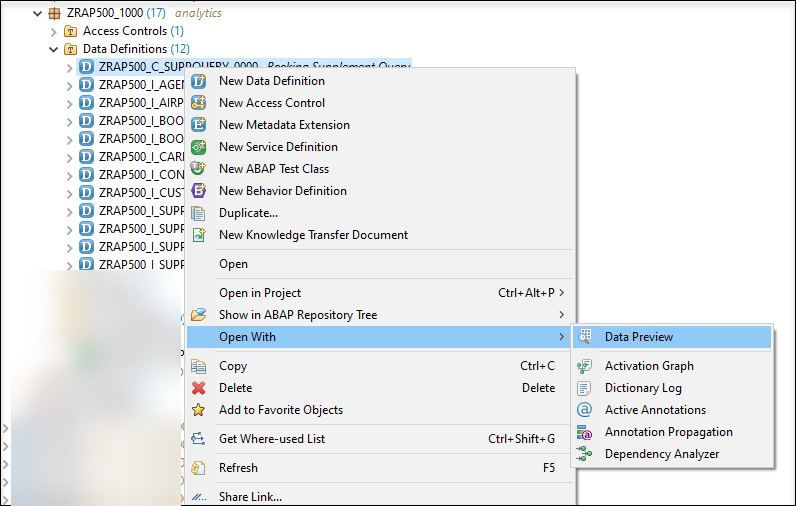

    2. Right click on the query ZRAP500_C_SuppQuery_#### and select Open with > Data Preview
      Right Click
    3. A new browser tab will open and you might have to authenticate using the credentials of your SAP BTP ABAP environment system.

    4. Choose US Dollar as Display Currency with clicking OK.

      Ok Click
    5. You can see the data that has been retrieved using the InA-Protocol.

      Data Preview
  • Step 16

    You need to create an access control DCL0 for booking supplement query to block all unprivileged access (SQL queries return 0 rows).
    Use “Standard” DCL (aka DCL0) to make the protected CDS view return 0 results.

    1. Right click your package > New > Other ABAP Repository Object > search for Access control and click Next

      access
    2. Enter the following values and press Next.

      • Name: ZRAP500_C_BOOKINGQUERY_####
      • Description: access control for query
      • Referenced Object: ZRAP500_C_SuppQuery_#### (Your created query)
      access
    3. Select a transport request and press Finish.

    4. Remove lines 9 and 10 and enter false.

      access
    5. Save and activate your access control.

    6. Your final code should look like the following:
      ZRAP500_C_BOOKINGQUERY_####
      Copy
      @EndUserText.label: 'Disallow access to Booking Supplement Q'
      @MappingRole: true
      define role ZRAP500_C_BOOKINGQUERY_#### {
        grant
          select
            on
              ZRAP500_C_SuppQuery_####
                where
                  false;
      }


  • Step 17

    You use a service definition to define which data is to be exposed as a business service, using one or more business service bindings.

    1. Right-click your created query and choose New Service Definition.

      new service definition
    2. Enter the following values and press Next.

      • Name: ZRAP500_C_SupplmntService_####
      • Description: Booking Supplement Analysis Service
      • check if Exposed Entity is your created query ZRAP500_I_SUPPQUERY_####
      service definition
    3. Select transport request and press Next.

    4. Select the template Define Service and press Finish.
    5. After the query is exposed as a service it must be activated by pressing Ctrl+F3
      service definition
  • Step 18

    The service binding is used to bind a service definition to a communication protocol and in our case, the protocol that enables web-based data access from ABAP systems is the Information Access (InA) protocol.

    1. Right click your newly created service definition and choose New Service Binding.

      RightClick
    2. Enter the following values and press Next

      • Name: ZRAP500_UI_SuppIna_####
      • Description: Booking Suplement Query Service Binding
      • Choose InA - UI as Binding Type
      • Check if the service definition ZRAP500_C_SUPPLMNTSERVICE_#### which you created before, is listed in the field Service Definition.
      new binding
    3. Choose a transport request and click Finish.

    4. Activate your service binding.
    5. After activation, the external service name for your query is displayed.
      service binding

      The analytical query will be displayed with the external service name in SAP Analytics Cloud as the data source.

  • Step 19
    1. Right-click your package, choose New > Other ABAP Repository Object.

      New
    2. Search for IAM App under Cloud Identity and Access Management. Click Next.

      New
    3. Enter the following values and press Next

      • Name: ZRAP500_SUPPLEMENTIAM_####
      • Description: IAM App for Booking Supplement Query
      • Choose EXT-External App as Application Type and click Next
      new IAM APP
    4. Choose a transport request and click Finish.

      Your created IAM App name will get an EXT automatically in his name like: ZRAP500_SUPPLEMENT_####_EXT.

      IAM App
    5. Go to the Services tab and click on insert button.

      Add
    6. Select Service Type as InA - UIand your Service Name which is your service binding name ZRAP500_UI_SUPPLEMENT_####. Click OK.

      Find service
    7. Save and activate your App.

    8. You need to Publish Locally this IAM App.

      publish locally
  • Step 20
    1. Right-click your package, choose New > Other ABAP Repository Object and search for Business Catalog.

      business catalog
    2. Enter the following values and press Next

      • Name: ZRAP500_BUSINESS_CATALOG_####
      • Description: Business catalog
      next
    3. Choose a transport request and click Finish.

    4. To create a Business Catalog App Assignment, in your created Business Catalog click Apps, click Add, assign your previously created external IAM app as IAM App and click Next.

      IAM App
    5. Choose a transport request and click Finish. The Business Catalog App Assignment will be opened.

      publish
    6. Back to the Business Catalog, choose your Assignment ID and click Publish Locally.

      publish
  • Step 21
    1. Login to the Fiori launchpad and open Maintain Business Roles App under Identity and Access Management.

      maintain business roles
    2. Navigate to the SAP_BR_Developer Role, select Assign Business Catalogs and click Edit.

      Assign Business Catalogs
      Add Business Catalog
    3. Click Add and find your business catalog in the popup and click OK to add the business catalog.

      Add
      select
    4. Check in the Assigned Business Catalogs, if your business catalog is added in the list. Click Save.

      save
  • Step 22
    1. Back to the main page of Fiori launchpad and open Communication Systems App under Communication Management.

      Communication Systems
    2. Click New to create a new communication system. Enter System ID and System Name, click Create.

      new communication system
      edit communication system
    3. The new communication system will be opened. Switch Destination Service to OFF and now enter you SAP Analytics Cloud host name (ex: ###.cloud.sap) as Host Name and 443 as Port. Click Save.

      edit communication system
    4. Back to the Communication Management and open Communication Arrangements to create a new one.

      communication arrangement
    5. Click New and select SAP_COM_0065 as Scenario.Enter a name for your communication arrangement and click Create.

      create
    6. The new communication arrangement will be opened. Choose the communication system which you created previously in the Communication System field. Provide the Tenant ID of your SAP Analytics Cloud tenant.

      tenant

      Tenant ID can be found under the main menu of the SAP Analytics Cloud tenant, click System > About > System Name.

    7. Under the Outbound Services, the service status for UI Link Navigation should be checked as Active and Retrieve Stories should be unchecked, click Save.

      Outbound
  • Step 23
    1. Login to the SAP Analytics Cloud tenant.

      Login
    2. Open the main menu and click Connection and on the Connection Window click Add. In the popup under Connect to Live Data click SAP S/4 HANA.

      add connection
      connection
    3. In the New S/4 HANA Live Connection dialog enter Name and Description, Connection Type has to be Direct, for Host copy your Fiori launchpad link like ###.abap-web.stagingaws.hanavlab.ondemand.com. Enter 443 in HTTPS Port field, and 100 for Client. As Authentication Method choose SAML Single Sign-on (Standard Compliant). Click OK.

      new connection
    4. check the result.

      result
  • Step 24

    Models transform your raw data into useful information that can then be used to create dynamic visualizations. Since you will use the unique feature Live Data Connection SAP Analytics cloud will create the model based on the analytical query that you have created and published in the previous exercise. Based on such a model you can perform online analysis without the need of data replication.

    1. Expand navigation bar, choose Modeler and Click Live Data Model .

      live
      live
    2. In the popup choose SAP BW for System Type. Choose your created connection in the last step as Connection.Choose your created connection in the last step as Connection and if needed login with your username and password in the second popup.

      system type
    3. Expand Data source and select your created Query in the last exercise as Data Source.

      data source
    4. Click OK to continue.

      ok button
    5. In the model you can check all Measures and dimensions which are from @EndUserText.label annotations.

      measures
      dimension
    6. Save the new model and enter the following values and click OK:

      • Name: ZRAP500_####
      • Description: Model ####
      save
    7. Check your model in the Modeler page.

      modeler
  • Step 25

    A story is a presentation-style document that uses various elements such as charts, images or tables to visualize your data.
    Adding a chart starts with picking a chart type. Then you select your model and add measures and dimension and start on working how the data is displayed. Here you will create a story including a chart, a table and a Donut chart.

    Open a blank dashboard

    1. Expand navigation bar and click Stories and choose Dashboard as your template.

      stories
      template
    2. A Blank Dashboard will be opened.

      blank
    3. Enter a Dashboard Title like RAP500_####.

      title

    Insert Charts

    1. To insert a chart, click on the chart icon in the task menu and select your model with double clicking your model.

      insert chart
    2. Set Currency as US Dollar with clicking Set.

      set
    3. You can move the chart with click and drag around the page. After you found a place for your chart, you need to add some measures and dimensions, which should be shown on the chart. You will find all settings on the right hand side under Builder.

      Builder
    4. Open + Add Measure and choose Sales.

      measure
    5. Open + Add Dimension and choose Product. Now there is a chart which shows how the sales are distributed in different products.

      dimension
    6. SAP Analytics Cloud can read the text fields defined in the supplement dimension with annotation @ObjectModel.text.association: '_SupplText' and therefore the product names from supplement cube with the annotation @EndUserText.label: ‘Product’

      text
    7. To insert another chart with a different structure, click on the chart icon in the task menu, click Comparison and choose Waterfall.

      insert chart
    8. Choose a measure (Average Sales) and a dimension (Agency) for your chart.

      chart
    9. SAP Analytics Cloud can read the text fields defined in the query with annotation @AnalyticsDetails.query.display: #TEXT.

      text

    Insert indicator

    1. Click the chart icon in the task menu, click Indicator and choose Numeric Point.

      numeric
    2. Choose Average Sales as Primary Values under Measures.

      measure
    3. You will find the calculated measure in this chart.

      measure

    Save the Story

    1. You are almost done with your story, you need just to save the story. Click on save icon and choose Save.

      save
    2. Enter following values and click OK

      • Name: RAP500_####_Story
      • Description: Story ###
      story
    3. You will find your new created story under Welcome to Stories.

      welcome

    You have used the preconfigured connection of the SAP Analytics Cloud instance to connect to the SAP BTP ABAP environment system where you have developed an Analytical Query. The data was retrieved using a Live Data Connection so that any change in the data was immediately reflected in the visualization of your query in SAP Analytics Cloud.

  • Step 26

    You can create more different and complicated analytics charts and tables with your query. Here there is some more examples.

    1. Click the chart icon in the task menu, click Trend and choose Line.

      line
    2. Choose Average Sales and Sales as left and right axis and Booking Date as dimension. You can change the color of axis and make the chart bigger or move it around your dashboard.

      chart
    3. Click again chart icon in the task menu, click Correlation and choose Cluster Bubble

      correlation
    4. Choose Sales as Measure, Product as Dimension and Agency Country as Color. You can make a filter on agency country and choose some of countries for your chart. You can change the color of your chart as well.

      bubble

      In this chart you can find out how much of a product has been sold in a country and you can find the more sold products in each country.

    5. Do not forget to save your story.

      bubble
  • Step 27

    Which connection type did you used in the SAP Analytics Cloud?

Back to top
