Create Custom UI for S/4HANA on SAP Cloud Platform

Create Custom UI for S/4HANA on SAP Cloud Platform

August 6, 2021
Created by
December 11, 2017
Create a UI in a SAP Cloud Platform Subaccount's Web IDE and deploy it to the S/4HANA system.

You will learn

  • How to create a UI from template in SAP Web IDE
  • How to adapt that UI to your needs
  • How to test that UI
  • How to deploy that UI as application to the S/4HANA Cloud system’s SAPUI5 ABAP Repository
QR code


Authorizations: Your user needs
- (a) business role(s) with Unrestricted Write Access for business catalog Extensibility - Fiori App Development (ID: SAP_CORE_BC_EXT_UI) and Extensibility - Custom Business Objects (ID: SAP_CORE_BC_EXT_CBO) and in your S/4HANA Cloud system
- access to SAP Web IDE

As building UIs in SAP Cloud Platform (Side-by-Side Extensibility) offers more possibilities than UI Adaptation within S/4HANA Cloud (In-App-Extensibility), this tutorial shows you roughly how to build an UI based on a S/4HANA Cloud Custom Business Object’s OData service in Web IDE and how to get it to the S/4HANA Cloud system.

Additional Information

  • SAP S/4HANA Cloud Release (tutorial’s last update): 1902

Step 1: Create UI project from template in SAP Web IDE

In your SAP Cloud Platform Subaccount go to Services, search for SAP Web IDE and select it.

Open SAP Web IDE service overview in SAP Cloud Platform

Click Go to Service to open SAP Web IDE.

Open SAP Web IDE

Select New Project from Template to start wizard for UI project creation.

Select new project

If you don’t see this welcome page then follow the alternative way:

File > New > Project from Template

Select the List Report Application template and click Next to create a new UI of this type.

Select UI Project Template

Enter basic information for the project, like Bonusplan as name and title.

Enter basic information

Click Next.

To add a data connection click Service Catalog and set the destination SAP_DEV_SYSTEM which you have previously created on your SAP Cloud Platform.

Choose YY1_BONUSPLAN_CDS as service and click Next.

Choose data connection for list report application

Choose all annotations in this view and move on with Next.

Select annotation

Customize the template by selecting YY1_BONUSPLAN as OData collection and click Finish.

Customize template
Log on to answer question
Step 2: Configure S/4HANA Cloud application tile

To configure the tile that will appear in your S/4HANA Cloud Fiori Launchpad later, do the following:
Open the webapp folder and manifest.json file, and make sure to be in Descriptor Editor for the file.

Then go to Navigation

Add the following information:

Semantic Object Bonusplan
Action maintain
Inbound Tile
Title Bonusplan
Icon sap-icon://money-bills
Configure application tile data

Save the file.

Log on to answer question
Step 3: Edit UI in SAPUI5 Visual Editor

Open the SAPUI5 Visual Editor for your project Bonusplan via context menu.

Open SAPUI5 Visual Editor

Switch via Edit button to edit mode.

SAPUI5 Editor Edit button

Click the column header area for the “Validity Start Date” column to mark it. On the right the marked control’s properties will appear. You can see that you marked the whole column and not only the header cell’s text, if the control property area has the heading “Column” instead of “Text”. Scroll down in the column’s properties to “Visibility” and set it to false.

Adapt UI in SAPUI5 Editor

Make the “Validity End Date” column invisible as well.

Save your changes with CTRL+S.

Log on to answer question
Step 4: Test UI

Although the Preview in SAPUI5 Editor already gives you an idea on how the UI will look and behave like a test in an own browser window is started this way.

Having just chosen a file of your project in the navigation tree or editor, click the play button to run your application in the test environment of SAP Web IDE.

Run application

Now you get the UI previewed in an own browser window. It has functionality already. For example by pressing the Go button, you’ll get the list of Bonusplans from your S/4HANA Cloud system.

Running application in full screen preview
Log on to answer question
Step 5: Deploy as application to S/4HANA Cloud

Right click your project Bonusplan and deploy it to your S/4HANA Cloud system via context menu Deploy > Deploy to SAPUI5 ABAP Repository.

Deploy UI to S/4HANA system

A wizard opens. Set the destination to your S/4HANA Cloud system ones. Ensure that the UI is deployed as a new application. Click Next.

Set options for deployment as new application

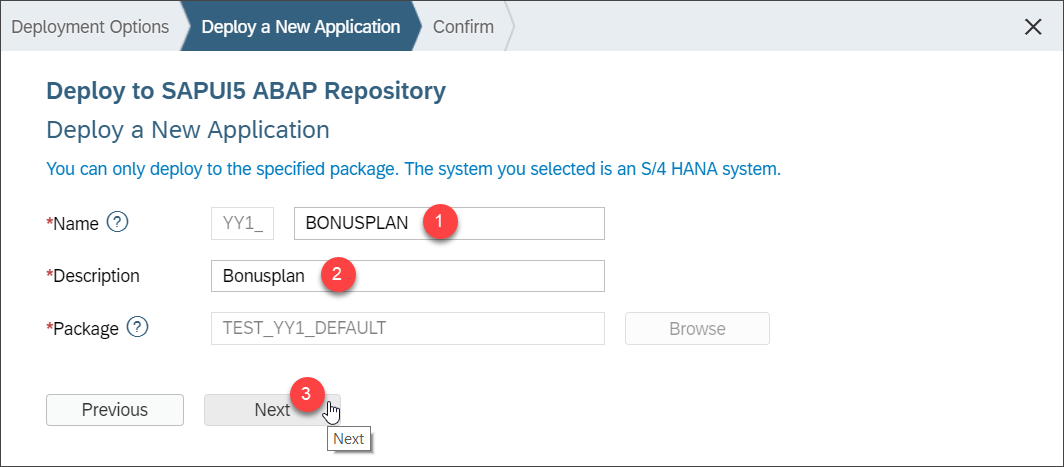

Give an application name and description, click Next and Finish.

Set application name
Log on to answer question
Step 6: Test yourself
In which UI project file can you configure the tile for your S/4HANA Cloud application?
