Create Custom Analytical Queries

Setup custom analytical queries for use.
You will learn

In this tutorial you will learn how to setup Custom Analytical Queries for use. This section deals with creating, deleting and modifying queries. The creation of Restricted Measures will take part in this example.


The Business user requires the role SAP_BR_ANALYTICS_SPECIALIST to access the Query Designer. The according business catalog is SAP_CA_BC_ANA_AQD.

Custom Analytical Queries is a tool used for reporting and analysis.
Raw data from business documents are getting converted into a meaningful grid.
By using Custom Analytical Queries you do not need to understand the technical details.

  • Step 1

    Start the Custom Analytical Queries Application by selecting the corresponding tile in the SAP Fiori Launchpad.

    start Custom CDS View App
  • Step 2

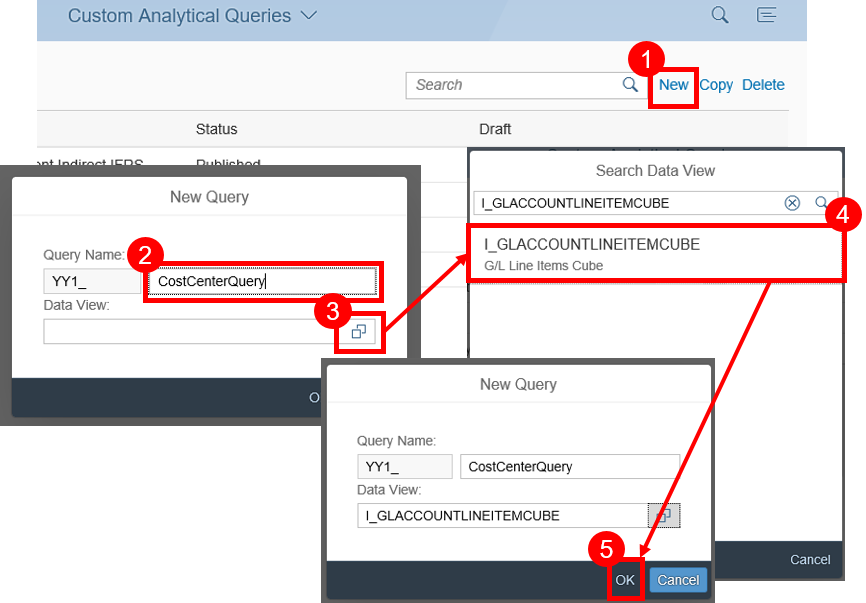

    Choose New (1) to create a new query. Enter the query name (2): CostCenterCostQuery.

    Choose the data view (3) + (4) I_GLACCOUNTLINEITEMCUBE. Press OK (5) to create the query.

    Select Data Source
  • Step 3

    On the General tab, you can specify the label.

    Select Data Source
  • Step 4

    Switch now to the Field Selection tab.

    Select all following fields of the Data View, so that they can be copied to the query:
    - Amount in CC Crcy
    - Controlling Area
    - Cost Center
    - Fiscal Year
    - Fiscal Year Variant
    - Cost Object
    - Transaction Currency
    - Fiscal Period

    Select Data Source
  • Step 5

    Switch now to the Display tab. The Display icon indicates, whether a column is shown in
    the report. The Filter icon indicates, whether a fixed value filter is defined for this field.

    Select Data Source
  • Step 6

    By Selecting the field Controlling Area (1) you are able to change the attributes of this field:

    • define the label as Key Controlling Area (2)
    • change the display status (3)
    • you can choose to hide/show the aggregated results (4)
      when the query is executed in the design studio
    • and so on (5).
    Select Data Source
  • Step 7

    Field types are symbolized by different icons as:
    - measure (1)
    - dimension (2).

    Click Move Up/Down (3) to reorder the fields within an across Row/Column/Free
    section. Choose Row/Column/Free (4) to quickly move across the sections.

    Afterwards you can Save (5) your draft.

    Select Data Source
  • Step 8

    Switch to the Filters tab. This section displays the fixed value filters and the user input values for the selected dimension. Change Filters from No Filters to User Input Values.
    A dialog will be shown in the design studio to read value from user.

    start Custom CDS View App
  • Step 9

    Or define a fixed value filter. The result set upon executing the report will be filtered by the conditions specified here. Add multiple include conditions. A range of values can also be specified.

    Select Data Source
  • Step 10

    Switch back to the Display (1) tab again and press Add to add a new restricted measure.
    A popup appears to enter the label and the name (2) of the restricted measure.

    Select Data Source
  • Step 11

    Now choose the measure Restricted Amount to add the restrictions.

    Select Data Source
  • Step 12

    On the following popup, you can choose a dimension for the restrictions. Choose Fiscal Year.

    Select Data Source
  • Step 13

    You can have multiple include and exclude conditions with value help support.

    Select Data Source
  • Step 14

    Define a new User Input Filter for restricted measures (1). Choose on the popup the tab User Input Filters and enter the attributes (2) on the following popup. Click on the new Button (3) to create a new input filter (4) + (5). The dimension is derived from the version.

    A new field for user input filter is created.

    Select Data Source
  • Step 15

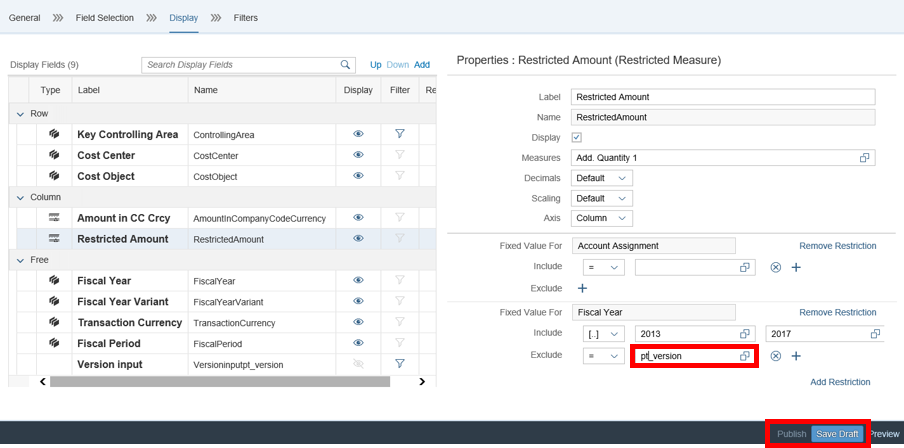

    The : signifies the usage of a user input filter.
    While executing the query, the value for pt_version is read from user and entered into the
    query. The user input filter can be used at any other location in the query for Version fields.

    Now Save and Publish your draft.

    Select Data Source
  • Step 16

    Where can you add user input values?
