Create and Expose Core Data Services Based on a Database Table

10/15/2018

Build a list report app with the ABAP RESTful programming model for SAP Fiori.

You will learn

  • How to create a database table
  • How to create Core Data Services

In this tutorial, wherever XXX appears, use a number (e.g. 000).


Step 1: Open Eclipse

Select to your ABAP package created in tutorial Create Simple Database Table for ABAP Environment and create a Core Data Services (CDS) data definition.

Open Eclipse
Log on to answer question
Step 2: Create data definition
  1. Search for data definition, select it and click Next.

    Create data definition

  2. Enter a name and a description for your data definition ZI_BOOKING_XXX.

    Create data definition

  3. Select a new transport request and click Next.

    Create data definition

  4. Select Define View template and press Finish.

    Create data definition

Log on to answer question
Step 3: Specify SQL view

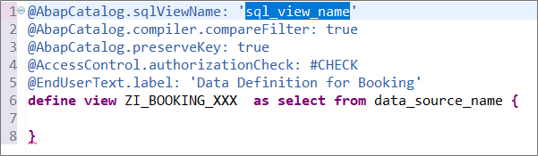

  1. Specify the sql view name in the view definition as ZV_BOOKING_XXX.

    Specify SQL view

  2. Specify your data source after the select from statement as ztbooking_xxx.

    Specify SQL view

  3. Specify your data definition as shown below. The keyword key is used to specific a key element and the keyword as is used to define alias names. The two associations I_Country and I_Currency are defined and exposed in the projection. The element CurrencyCode is specified as currency key for the element Cost which is an amount field. The view entity is specified as searchable using the view annotation @Search.searchable: true and the element CustomerName is specified as default search element using the element annotation @Search.defaultSearchElement: true.

    @AbapCatalog.sqlViewName 'ZV_BOOKING_XXX'
    @AbapCatalog.compiler.compareFilter : true
    @AbapCatalog.preserveKey: true
    @AccessControl.authorizationCheck: #CHECK
    @EndUserText.label : 'Data Definition Booking'
    @Search.searchable : true
    define view ZI_BOOKING_XXX
       as select from ztbooking_xxx as Booking
       association [0..1] to I_Country  as _Country  on $projection.country = _Country.country
       association [0..1] to I_Currency as _Currency on $projection.CurrencyCode = _Currency.Currency

       {
         key booking              as Booking,
             @Search.defaultSearchElement: true
             customername         as CustomerName,
             numberofpassengers   as NumberOfPassengers,
             emailaddress         as EmailAddress,
             country,
             dateofbooking        as DateOfBooking,
             dateoftravel         as DateOfTravel,
             @Semantics.amount.currencyCode: 'CurrencyCode'
             cost,
             @Semantics.currencyCode: true
             currencycode          as CurrencyCode,
             lastchangedat         as LastChangedAt,

             _Country,
             _Currency
    }

  4. Save and activate.

    Specify SQL view

Log on to answer question
Step 4: Add UI annotation
  1. Go back to the data definition and used the @UI annotations to add the UI-specific semantics. Add following UI annotation in front of your data definition.

    Add UI annotation

        @UI: {
      headerInfo: {
      typeName: 'Booking',
      typeNamePlural: 'Bookings',
      title: { type: #STANDARD, value: 'Booking' }
      }
    }

  2. Replace your code with following:

    define view ZI_Booking_XXX
      as select from ztbooking_xxx as Booking
      association [0..1] to I_Country  as _Country  on $projection.country = _Country.Country
      association [0..1] to I_Currency as _Currency on $projection.CurrencyCode = _Currency.Currency
    {

          @UI.facet: [
            {
              id:       'Booking',
              purpose:  #STANDARD,
              type:     #IDENTIFICATION_REFERENCE,
              label:    'Booking',
              position: 10 }
          ]


          @UI: {
              lineItem: [ { position: 10, importance: #HIGH, label: 'Booking ID' } ],
              identification:[ { position: 10, label: 'Booking ID' } ]
              }
      key booking                                as Booking,

          @UI: {
            lineItem: [ { position: 20, label: 'Customer', importance: #HIGH } ],
            identification:[ { position: 10, label: 'Customer' } ]
          }
          @Search.defaultSearchElement: true
          customername                           as CustomerName,

          @UI: {
          lineItem: [ { position: 30, label: 'No of Passengers', importance: #HIGH } ],
          identification:[ { position: 30, label: 'No of Passengers' } ]
          }
          numberofpassengers                     as NumberOfPassengers,

          @UI: {
               identification:[ { position: 40, label: 'Email' } ]
           }
          emailaddress                           as EmailAddress,

          @UI: {
               identification:[ { position: 50, label: 'Country' } ]
           }
          country,

          @UI: {
               identification:[ { position: 60, label: 'Booked On' } ]
           }
          dateofbooking                          as DateOfBooking,

          @UI: {   identification:[ { position: 70, label: 'Traveling on' } ]    }
          dateoftravel                           as DateOfTravel,


          @UI: {
          lineItem: [ { position: 40, label: 'Cost', importance: #HIGH } ],
          identification:[ { position: 80, label: 'Cost' } ]
          }
          @Semantics.amount.currencyCode: 'CurrencyCode'
          cost,

          @UI: { identification:[ { position: 90, label: 'Currency' } ]     }
          @Semantics.currencyCode: true
          currencycode                           as CurrencyCode,

          @UI: { identification:[ { position: 100, label: 'Last Changed At' } ] }
          lastchangedat                          as LastChangedAt,

          //publich associations
          _Country,
          _Currency
    }

  3. Save and activate your data definition.

    Add UI annotation

Log on to answer question
Step 5: Open other repository object

Right-click on your package and navigate to New > Other ABAP Repository Object from the appearing context menu.

Open other repository object
Log on to answer question
Step 6: Create service definition
  1. Search for service definition, select the appropriate entry and click Next.

    Create service definition

  2. Create a service definition and call it Z_I_BOOKING_XXX.

    Create service definition

  3. Click Finish to complete your transport request.

    Create service definition

Log on to answer question
Step 7: Expose entities
  1. Expose the ZI_Booking_XXX and the I_Country view entities.

      @EndUserText.label: 'Service Definition for Booking'

      define service Z_I_Booking_XXX {
      expose ZI_Booking_XXX as Booking;
      expose I_Country  as Country;
      }

  2. Save and activate your service definition.

    Expose entities

Log on to answer question
Step 8: Open other repository object

Right-click on your package and navigate to New > Other ABAP Repository Object from the appearing context menu.

Open other repository object
Log on to answer question
Step 9: Create service binding
  1. Search for service binding, select the appropriate entry and click Next.

    Create service binding

  2. Create a service binding definition and call it Z_I_BOOKING_XXX.

    Create service binding

  3. Click Finish to complete your transport request.

    Create service binding

  4. Save and activate your service binding.

    Create service binding

Log on to answer question
Step 10: Publish locally

Click Publish Locally to publish your service binding.

Publish locally
Log on to answer question
Step 11: Check your metadata
  1. Click on the created URL to see your result.

    Check your metadata

  2. Sign in with your communication user and password.

    Check your metadata

  3. Check your result:

    Check your metadata

Log on to answer question
Step 12: Open SAP Fiori elements view
  1. Go back to your service binding Z_I_BOOKING_XXX
    Open the preview for SAP Fiori elements app on the right side.

    Open SAP Fiori elements view

  2. Check your result:

    Open SPA Fiori elements view

Log on to answer question
Step 13: Test yourself

Write following UI annotation as a header Information:

  • typeName: Test
  • typeNamePlural: Tests
  • title:
  • type: #STANDARD
  • value: testyourself
×
